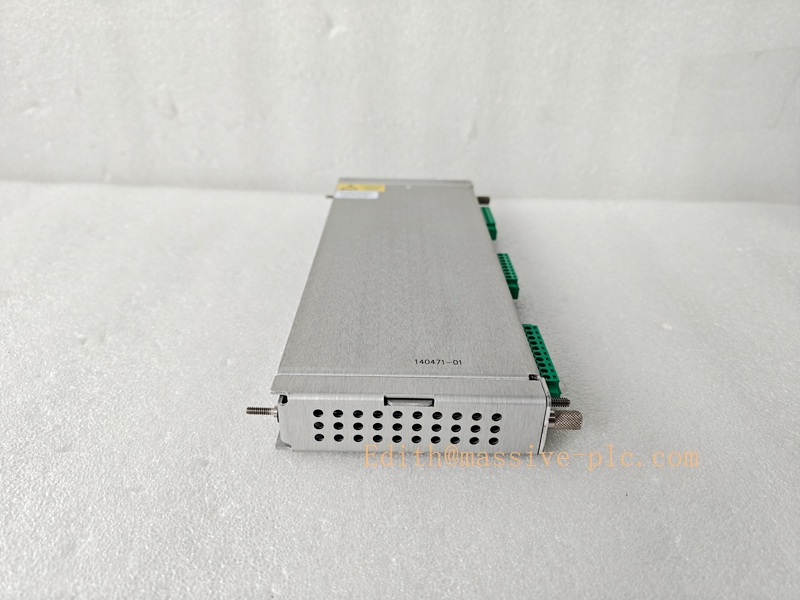

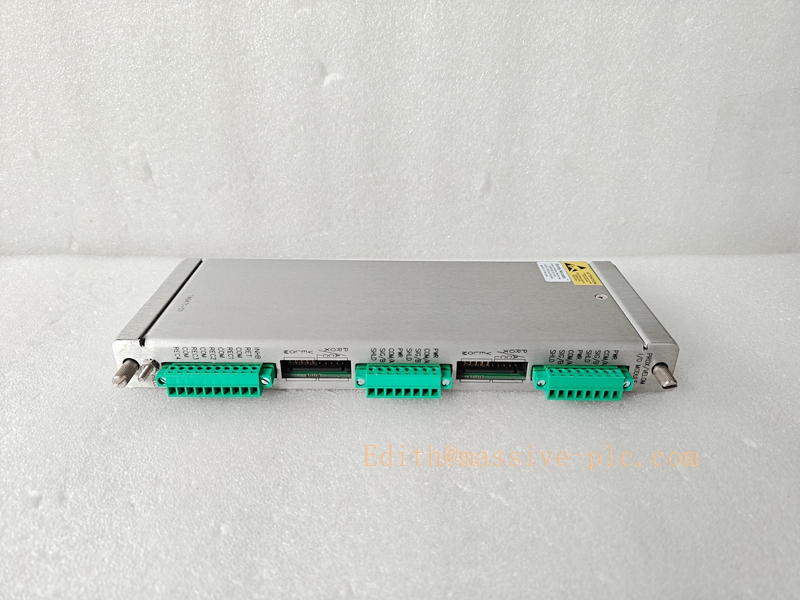

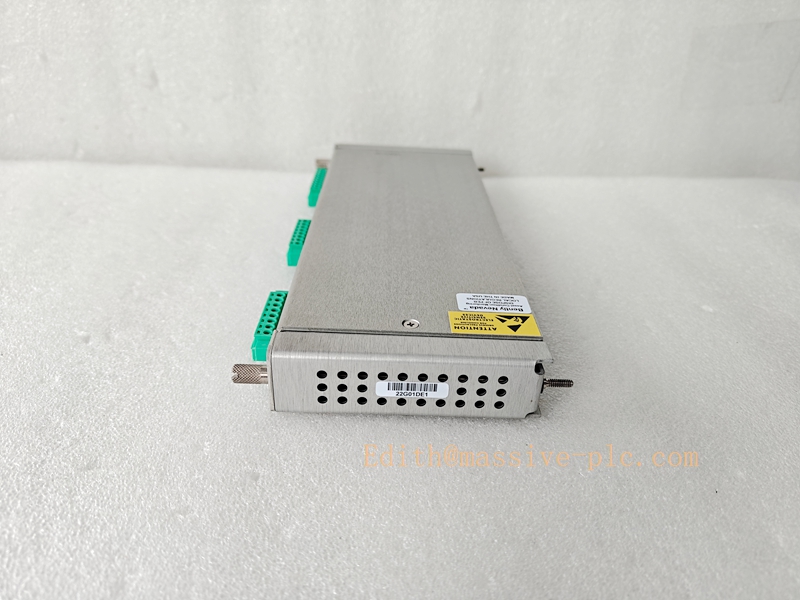

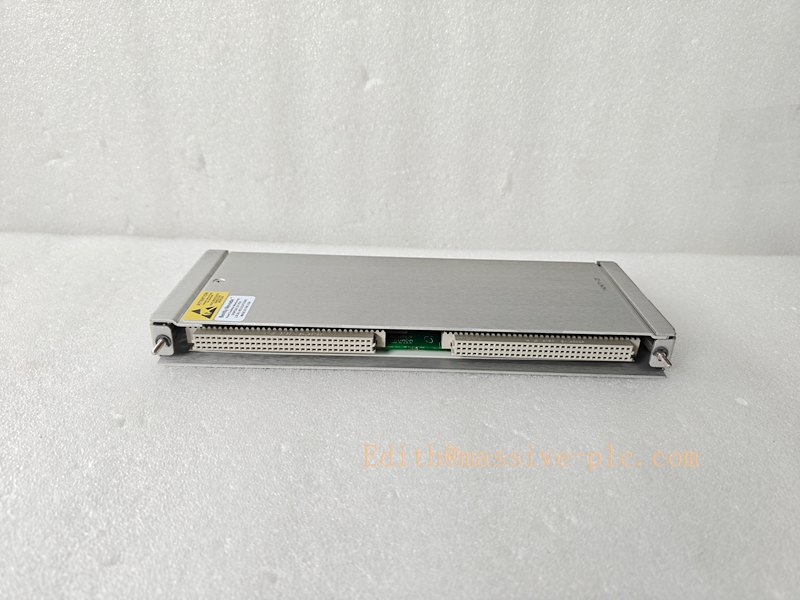

Bently Nevada 140471‑01 Prox/Velom Internal Termination I/O Assembly
Product Overview
140471‑01 is the non‑barrier internal‑termination I/O accessory for 3500/42M Proximitor/Seismic Monitor (176449‑02) in Bently Nevada 3500 machinery‑protection system. It provides rear‑rack screw terminals for proximity probes and seismic velocity sensors, routes analog vibration and position signals to the 3500/42M main monitor board via rack backplane connector. This unit cannot operate independently and must mount behind 176449‑02 in the same rack slot to build a complete 3500/42M monitor set for safe‑area sensor installation.
Important distinction: Do not confuse 140471‑01 (for 3500/42M vibration‑position) with 140471‑02 (for 3500/64M dynamic‑pressure); these two share similar part‑number prefix but serve completely different monitor boardsMoore Auto….
140471-01
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 140471‑01 |
| Matching Main Board | 3500/42M (176449‑02) Proximitor/Seismic Monitor |
| Termination Style | Internal Termination, non‑IS (safe‑area only) |
| Channels | 4 independent input channels |
| Supported Sensors | Proximity probes, Velomitor seismic velocity transducers, accelerometers |
| Signal Interface | Rack‑rear plug‑in screw terminals for field sensor cables |
| Power Supply | Supplied from 3500 rack backplane bus |
| Typical Power Consumption | 1.1 W |
| Operating Temperature | ‑30 ℃ ~ +65 ℃ (rack); Storage:‑40 ℃ ~ +85 ℃ |
| Form Factor | Single‑slot plug‑in for 3500 instrument rack |
| Weight | Approx. 0.28 kg |
| Compliance | API 670 compliant; supports TMR triple‑modular‑redundancy architecture |
| Installation | Installed directly behind 176449‑02 main monitor within identical rack slot |
Key Features
- Safe‑area internal termination design: Field sensor cables connect directly to rear‑rack terminals. Eliminates external terminal blocks and intermediate jumper cables, simplifies cabinet wiring for non‑hazardous locations.
- Four‑channel mixed‑sensor compatibility: Each channel configurable for proximity probe (displacement/thrust) or seismic velocity transducer, supports mixed sensor types on one I/O assembly.
- Full transducer loop supervision: Enables 3500/42M main board to detect sensor open‑circuit, short‑circuit and cable fault diagnostics.
- Configuration‑transparent hardware: No separate software setup. All sensor parameters, alarm thresholds, filter settings are configured in 3500 Rack Configuration Software for paired 3500/42M monitor.
- TMR‑ready: Fully compatible with triple‑modular‑redundancy voting system for high‑reliability machinery‑protection applications.
- Hot‑swap capable: Supports online module replacement following official Bently maintenance procedure.
Related I/O comparison
- 140471‑01: Internal termination non‑IS for 3500/42M, safe‑area sensors.
- 140481‑01: External‑termination counterpart for 3500/42M, requires interconnection cables and remote terminal blocks.
- 140471‑02: Internal termination I/O for 3500/64M dynamic‑pressure monitor (different function)Moore Auto….
Typical Applications & Application Scenarios
Main Applications
- Signal wiring interface for proximity probes and velocity seismic sensors paired with 3500/42M monitor.
- Measure radial shaft vibration, thrust position, eccentricity for rotating machinery.
- Deliver vibration and position data for Alert / Danger alarm, machinery protection trip logic and predictive‑maintenance trending.
Industry Scenarios
- Power generation: steam turbine, gas turbine, generator sets.
- Oil & gas: refinery centrifugal compressors, pipeline turbo‑machinery, safe‑area sensor installations.
- Petrochemical plants: process compressors, turbo‑expanders and critical rotating equipment complying with API 670.
140471-01
Supporting / Matching Components
- Mandatory paired main monitor: 176449‑02 (3500/42M) Proximitor/Seismic Monitor; standalone operation not permitted.
- Host rack: 3500/05 instrument rack.
- Rack power supply: 3500/15 series power‑supply modules.
- Field sensors: Proximity probe systems, Velomitor velocity transducers and matched shielded sensor cables.
- Auxiliary modules:
- 3500/32M / 3500/33 relay modules for hardware alarm & trip contact output
- 3500/92 / 3500/77M gateway modules for uploading vibration/position data and alarms to DCS, SCADA or System 1 platform
- Configuration software: Bently Nevada 3500 Rack Configuration Software.
Related & Reference Part Numbers
- 176449‑02: 3500/42M main monitor board
- 140481‑01: External‑termination I/O assembly for 3500/42M
- 3500/42M‑01‑00: Complete assembly (176449‑02 + 140471‑01 internal‑termination I/O)
- 140471‑02: Internal‑termination I/O for 3500/64M dynamic‑pressure monitor (not interchangeable)Moore Auto…
Installation & Maintenance Notes
- 140471‑01 must install behind 176449‑02 in same rack slot. Cannot mix‑use internal‑termination and external‑termination I/O for a single 3500/42M monitor set.
- This I/O has no intrinsic‑safety barrier, only connect sensors installed in safe non‑explosive zones. For hazardous‑area applications select barrier‑type I/O variant.
- Use shielded sensor cables; separate vibration signal wiring from high‑power cables to reduce noise.
- After hardware installation, validate channel health status, sensor fault‑detection and alarm logic inside 3500 configuration software.
- Execute hot‑swap replacement strictly following Bently Nevada official service manual.
