Bently Nevada 128229-01 Proximitor Seismic I/O Module Technical Profile
1. Product Details
- Core Identity: A 4-channel Proximitor Seismic I/O Module belonging to the Bently Nevada 3500 Machinery Protection System, manufactured in the USA, supplied as brand new original unit with 12-month factory warranty.
- Physical Specs: Net weight 2000g, with internal terminal design, no extra external terminal blocks required for field wiring.
- Basic Compatibility: Natively designed for the 3500 platform, seamlessly interfacing with various 3500 series monitoring cards without additional adapter hardware.
2. Primary Applications
- Critical Rotating Machinery Protection: Reliably routes sensor data to 3500 monitoring modules, enabling continuous comparison of machine vibration against configured alarm and danger setpoints.
- Industrial Scenarios: Widely deployed on turbines, compressors, large pumps and other key rotating equipment in power generation, petrochemical and metallurgy industries.
- System Integration: Supports seamless configuration, expansion and upgrade of turbine monitoring systems, fully compliant with API 670 machinery protection standards.
3. Related Series Models
- Core Configuration Variants: 128229-01 (standard 4-channel Proximitor/Seismic I/O), 135489-01 (4-channel Proximitor/Seismic I/O with internal safety barrier), 135489-02 (2-channel displacement/acceleration + 2-channel speed I/O), 135489-03 (4-channel speed I/O).
- Terminal Variants: Internal terminal version, external terminal version, intrinsically safe barrier version for different field wiring and hazardous area deployment requirements.
- Cross-System Compatible Models: Interoperable with 3500/42M Proximitor Seismic Monitor, 3500/72M Speed Monitor and other 3500 series units to form a full-coverage machinery protection solution.

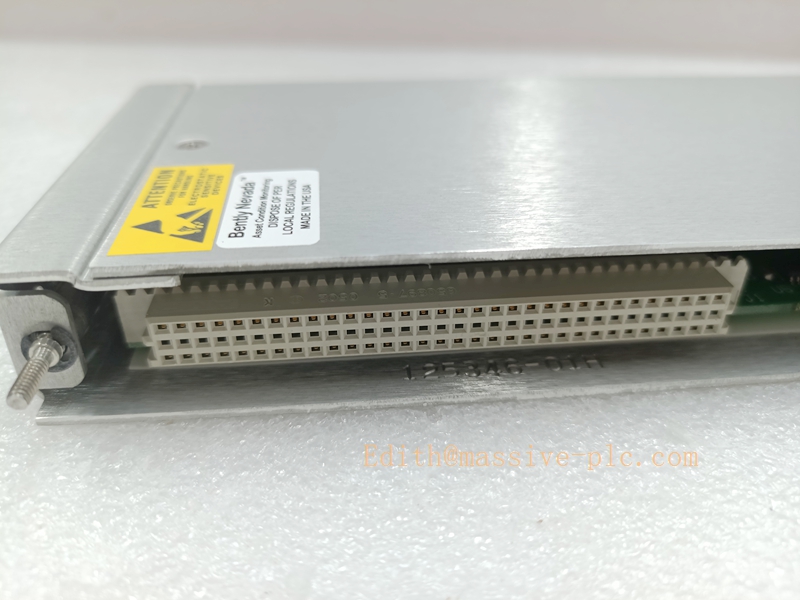

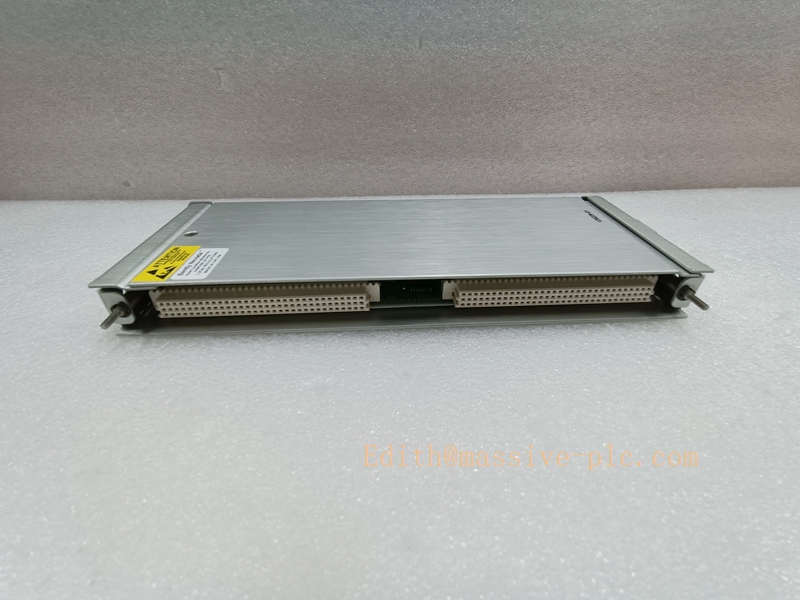

350042 128229-01
4. Core Features
- Dual Transducer Compatibility: Natively supports input from both proximity and seismic transducers, no extra signal conditioning modules required.
- Streamlined Wiring Design: Internal terminal structure significantly reduces cabinet wiring complexity and occupied panel space, simplifying on-site wiring work.
- Plug-and-Play Architecture: Hot-swappable under powered status, no system shutdown required for module replacement, greatly reducing Mean Time To Repair (MTTR) during sensor replacements.
5. Main Functions
- 4-Channel Independent Monitoring: Supports 4 independent monitoring channels, each channel can be programmed via the 3500 Rack Configuration Software to deliver various vibration and position measurement data.
- Timely Machinery Protection: Enables continuous real-time machinery health monitoring, triggering timely alerts and automated protection trips to prevent catastrophic mechanical failures.
- Critical Data Output: Provides essential machinery operation data for operation and maintenance teams, supporting predictive maintenance and fault diagnosis workflows.
