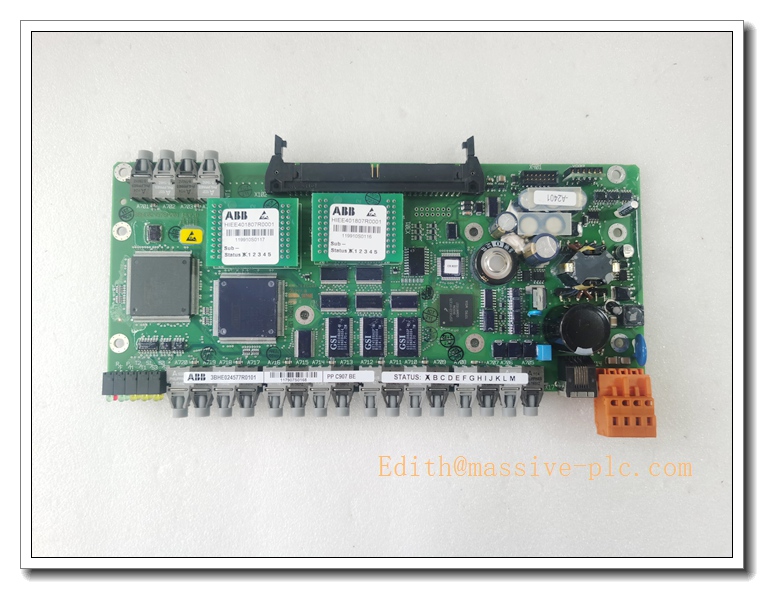

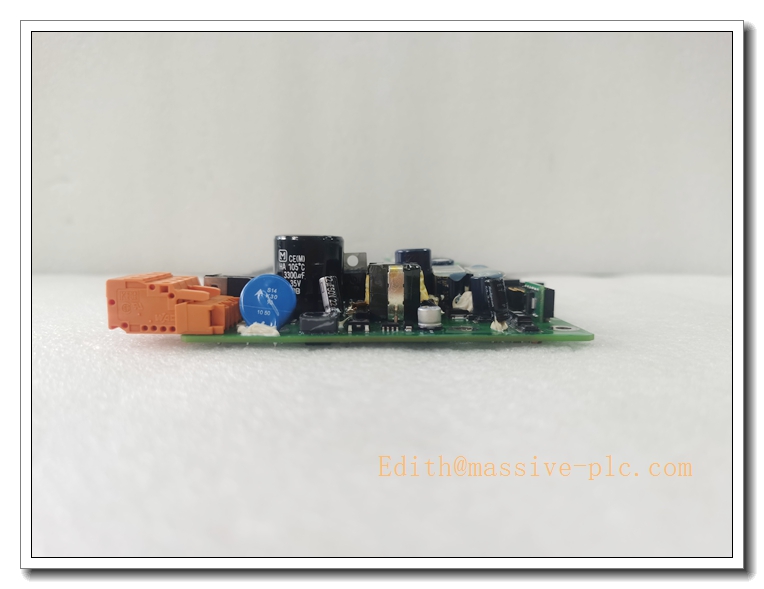

ABB PPC907BE 3BHE024577R0101 UNITROL 6000 Power Control Processor Board, AC800PEC Excitation Main Processing Module, Power Generation Excitation System Spare Part



Product Application

PPC907BE is the main power control processor board for ABB UNITROL 6000 generator excitation system, running on the AC800PEC high-performance control platform. It executes core excitation regulation algorithms, communicates with I/O boards such as PCD235A101, and manages generator voltage control, reactive power adjustment, system synchronization and fault protection.

  • Thermal power plant generator excitation closed-loop regulation
  • Hydropower station generator voltage and reactive power control
  • Combined cycle power unit UNITROL 6000 excitation cabinet master controller
  • Grid-connected synchronous generator set stability control
  • Large synchronous motor excitation control
  • Power plant excitation system retrofit and spare replacement
  • Handling grid disturbance and generator transient stability control

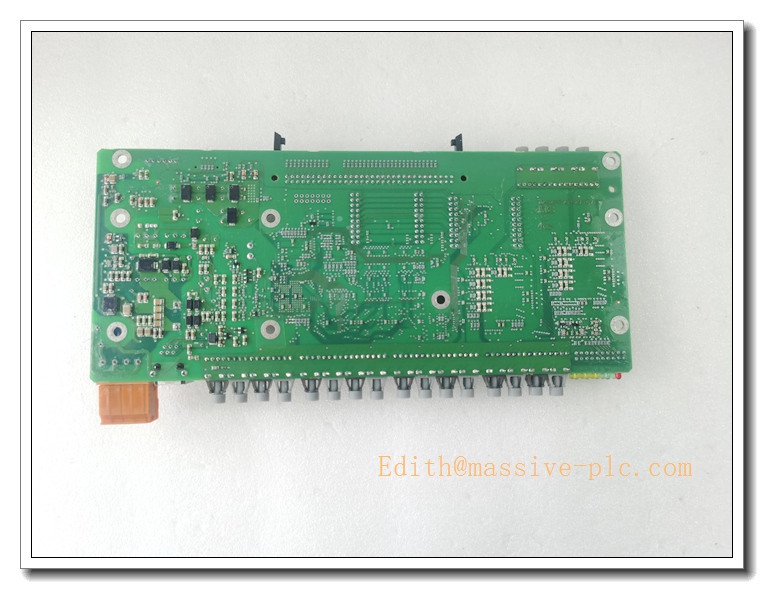

PPC907BE 3BHE024577R0101

Specifications

  • Part Number: PPC907BE, 3BHE024577R0101
  • Brand: ABB
  • Product Type: Excitation Power Control Processor Board
  • Compatible System: ABB UNITROL 6000, AC800PEC
  • Mounting: Eurocard rack mounting inside excitation cabinet
  • Dimension: 373 × 142 × 38 mm
  • Weight: Approx. 0.95 kg
  • Power supply: Auxiliary DC power supplied via backplane
  • PCB coating: Conformal coating for anti-corrosion and dust resistance
  • Protection Class: IP20, cabinet installation only
  • Condition: Original new / refurbished spare available
  • Compliance: CE, IEC power control EMC standard



Parameters

  • Processor: High-speed dedicated industrial processor for excitation control
  • Control Algorithm: AVR automatic voltage regulation, VAR/PF control, limiter functions
  • Communication: High-speed internal backplane bus for I/O module synchronization
  • Redundancy: Support redundant dual processor architecture
  • Operating Temperature: -25°C ~ +70°C
  • Storage Temperature: -40°C ~ +85°C
  • Relative Humidity: 5%~95% RH, non-condensing
  • Shock & Vibration: Comply with IEC 60068 industrial vibration standard
  • Status Indicator: On-board LED indicators for power, running, communication and fault status
  • Diagnostic: Continuous self-diagnosis of hardware, bus communication and control loop faults



Key Features

  1. Main processor board for UNITROL 6000 excitation system, executes AVR and excitation limit control logic
  2. High-speed processing capability, fast response to generator and grid transient fluctuation
  3. Seamless cooperation with PCD235A101 and other I/O boards for signal sampling and pulse output
  4. Support redundant dual PPC907BE configuration to achieve bumpless automatic switchover
  5. Conformal coated PCB, reliable performance in power station dusty and strong electromagnetic interference environment
  6. Eurocard pull-out rack structure, convenient on-site maintenance and module replacement
  7. Built-in comprehensive diagnostic functions, quickly locate hardware and communication faults
  8. Strict factory function testing, critical spare for large generator excitation control cabinet

PPC907BE 3BHE024577R0101

ABB Same Series Related Models (≥6)

  1. PPC907BE 3BHE024577R0101
  2. PCD235A101 3BHE032025R01
  3. PCD231B 3BHE025541R01
  4. PCD232A 3BHE024575R01
  5. DATX110 3ASC25H209
  6. PPC905
  7. PPC907B



Maintenance

  • Routine inspection: Check PCB dust accumulation, backplane connector and LED status every 6–12 months
  • Clean board surface with dry compressed air; liquid solvent cleaning is strictly prohibited
  • ESD protection must be adopted during disassembly, anti-static wristband required
  • If excitation regulation abnormality or communication fault alarm occurs, power off and check backplane connection and bus cable
  • Do not energize the module if PCB corrosion, burn marks or condensation are found
  • We support function testing, refurbishment and spare replacement service for this PPC907BE processor board



Installation

  1. Cut off all high voltage and auxiliary power supply of excitation cabinet, confirm zero voltage before operation.
  2. Wear anti-static wristband to prevent electrostatic damage to processor and peripheral chips.
  3. Open excitation cabinet door, release the locking mechanism of old board.
  4. Pull out the Eurocard module gently, avoid scratching backplane pins.
  5. Insert new board along cabinet guide rail and lock firmly.
  6. Confirm backplane bus connection and inter-module cables are fully seated.
  7. Restore power supply, perform excitation system self-test and bus communication verification.
  8. Download excitation parameters, carry out no-load excitation test, verify AVR regulation performance and protection interlock before commissioning.
