ABB PDD405A101 (3BHE041626R010) Drive Control Hub

Product Overview

PDD405A101, Part No. 3BHE041626R010 is ABB high‑performance central control hub designed for ACS8000 medium‑voltage variable‑speed drive systems. It serves as the main controller board for multi‑cell medium‑voltage drives, executing core motor control algorithms, drive‑level protection logic, real‑time signal processing and multi‑subsystem coordination. This module handles deterministic closed‑loop control, collects feedback signals from power units, coordinates I/O and communication interfaces, and delivers speed‑torque regulation for large‑scale motors. It is a legacy original hardware, widely used as spare‑part for existing installed ACS8000 drive fleet, original manufacturing has been discontinued.

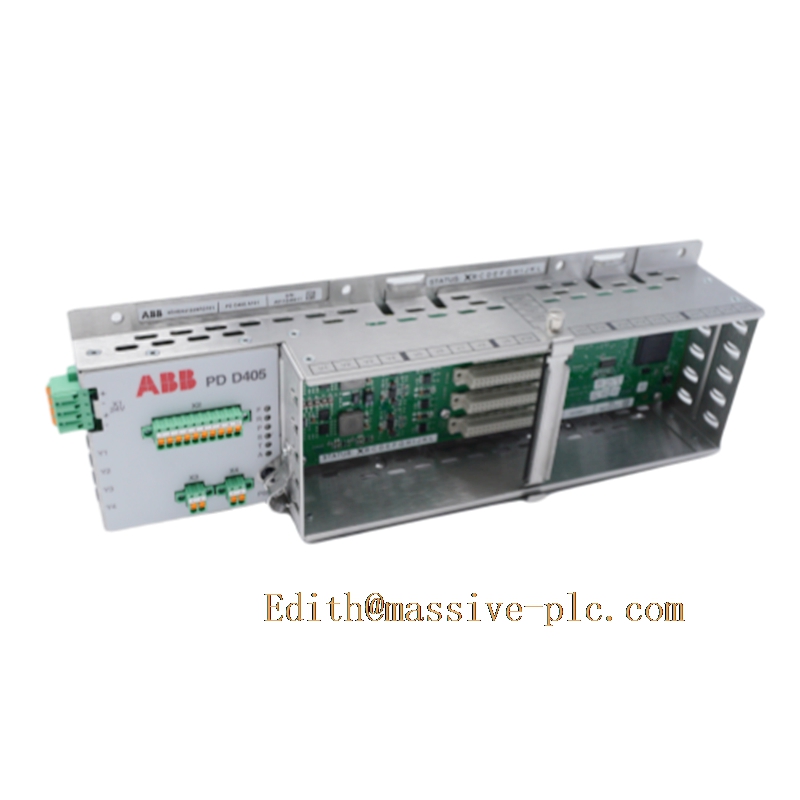

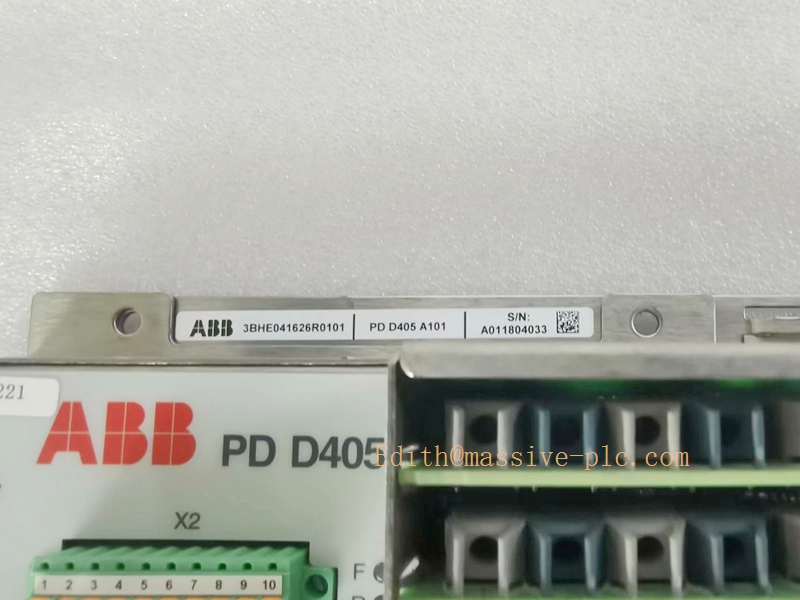

ABB PDD405A101 3BHE041626R0101

Typical Applications

Medium‑voltage large drive control: Core control unit for ABB ACS8000 series MV drives
Heavy‑industry motor control: Mine hoists, large compressors, pulp & paper refiners, cement mills, large fans and pumps
Power‑generation auxiliary drive systems: Boiler feed‑water pumps, induced draft fans for thermal power plants
Retrofit & spare‑part replacement: Maintenance and component renewal for existing ACS8000 installed base
Heavy‑duty variable‑speed applications requiring high‑speed deterministic control and robust fault protection

Specifications & Technical Parameters

Item	Specification
Model	PDD405A101
Part Number	3BHE041626R010
Module Type	Main Control Hub for ACS8000 MV Drive
Architecture	Dual‑core DSP + FPGA real‑time processing
Control Loop Cycle	<25 μs fast control loop response
Control Algorithm	Direct Torque Control (DTC) support
Power Supply	24 VDC nominal, ±10 % tolerance
Power Consumption	Typical 12‑15 W
Operating Temperature	‑20 ℃ ~ +60 ℃
Storage Temperature	‑40 ℃ ~ +85 ℃
Communication Interfaces	DDCS fiber optic links, serial interfaces, internal drive backplane bus
On‑board I/O	Multi‑channel digital signal acquisition for power‑unit status feedback
Vibration Resistance	1 G, 5‑150 Hz (IEC industrial standard)
Humidity	5‑95 % RH, non‑condensing
Protection Class	IP20 (cabinet‑mount only)
Certifications	CE compliant for industrial drive equipment
Weight	Approx. 480 g
Mounting	Installed inside ACS8000 drive cabinet, plug‑in board structure

Key Features & Benefits

Ultra‑fast deterministic real‑time control: DSP+FPGA hardware architecture realizes microsecond‑level control cycle, fast response for large motor load fluctuations and grid disturbance.
Native DTC control support: Implements ABB Direct Torque Control algorithm, delivers excellent torque performance for heavy‑load starting and variable‑load working conditions.
Integrated comprehensive drive protection: Executes over‑current, over‑voltage, over‑temperature, power‑unit fault detection and interlock protection logic, improves drive system safety.
Multi‑interface coordination: DDCS fiber‑optic communication links power‑cell units, realizes reliable high‑speed data exchange inside medium‑voltage drive cabinet with strong anti‑interference capability.
Centralized status acquisition & diagnostics: Collects feedback signals from power units, I/O boards and auxiliary modules; records fault history for troubleshooting.
Plug‑in hot‑swap friendly structure: Standard board‑level installation, convenient for on‑site replacement during drive maintenance.
Industrial rugged design: Designed for heavy‑industry cabinet environment, anti‑vibration, wide operating temperature range, adapts to harsh field conditions.
