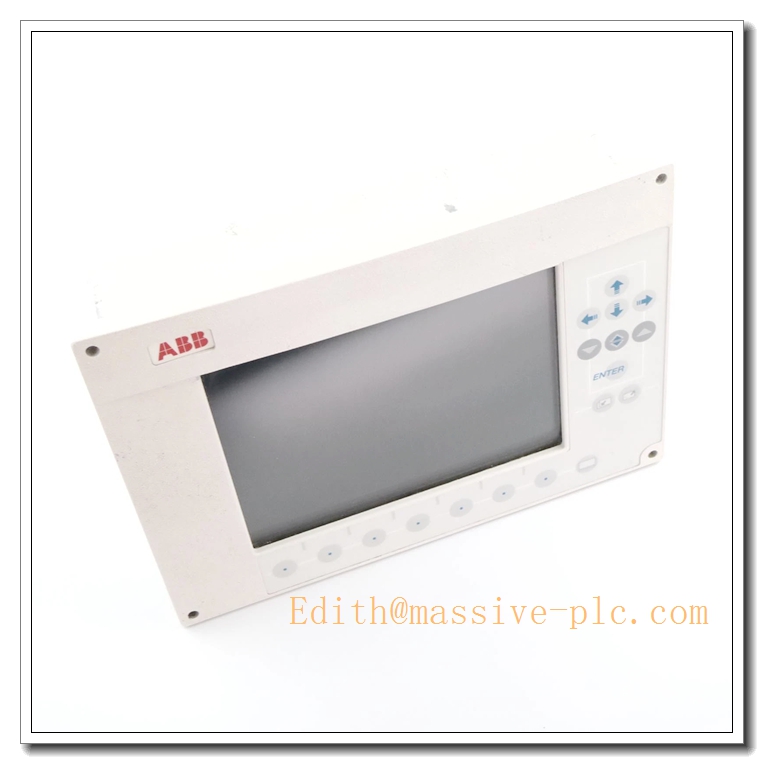

ABB GOP2 rugged graphic operator panel (HMI) designed for ABB legacy distributed control systems

Description

ABB GOP2 Product Technical Manual

Product Core Introduction

The ABB GOP2 is a rugged graphic operator panel (HMI) designed for ABB legacy distributed control systems. It acts as the local human-machine interface for process control racks, enabling operators to view real-time process variables, adjust setpoints, acknowledge alarms, check diagnostic status and operate control loops directly on site. Built for high-vibration, dusty and high electromagnetic interference industrial environments, the GOP2 is widely used as spare replacement for older power, pulp & paper and chemical DCS cabinets. It supports panel flush mounting and communicates with ABB controllers via serial bus.

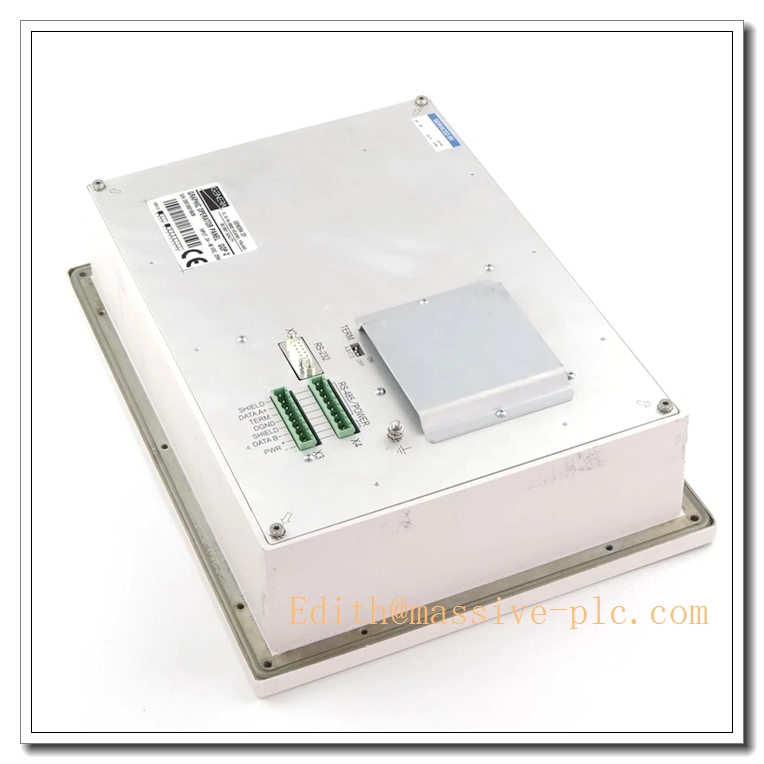

ABB GOP 2

Main Technical Specifications

• Model: GOP2 (Graphic Operator Panel)
• Rated Supply Voltage: 24VDC, operating range 18–30VDC
• Power Consumption: Max 22W
• Display: 10.4-inch TFT LCD, resistive touch screen, 800 × 600 resolution
• Communication Interfaces: RS232, RS485, Ethernet
• Supported Protocol: ABB proprietary bus, Modbus RTU / Modbus TCP
• Operating Temperature: -10°C ~ +55°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%–95% RH, non-condensing
• Front Panel Protection: IP65; Rear housing: IP20
• MTBF: ≥95,000 hours
• Mounting: Cabinet door flush panel mounting
• Dimension: 280mm × 220mm × 70mm
• Net Weight: 2.5 kg
• Status Indicators: Power, Run, Communication Fault LED indicators

Recommended Homologous Series Models

• GOP1: Early-generation operator panel, smaller screen size, for simple local monitoring in legacy small control cabinets.
• GOP2-6ST: Compact 6-inch variant of GOP2, for limited cabinet door space with fewer display requirements.
• GOP2-12ST: 12-inch large-screen upgraded model, high resolution for multi-loop complex process monitoring.
• GOP3: Next-generation replacement panel, upgraded processor and touch panel, compatible project migration for GOP2 retrofit.

Professional Quality Control & Test Standard Operating Procedures (SOP)

4.1 General Test Standard

All ABB operator panels are inspected following ISO9001, IEC61131 and IEC61000 EMC standards. Each unit carries unique serial number for full lifecycle traceability.

4.2 Core Test SOP

1. Visual & Mechanical Inspection: Inspect front touchscreen, housing, sealing gasket, terminal blocks and communication connectors for scratches, cracks and damage; verify cutout dimension and mounting bracket fit against engineering drawings.
2. Power-On Basic Function Test: Apply minimum, rated and maximum 24VDC supply; validate power and run LED; check backlight, touch response and confirm no overcurrent or short-circuit.
3. Display & Touch Calibration Test: Test full-screen display uniformity, check dead pixels; perform touch point calibration across the whole panel surface, verify no touch drift or blind zones.
4. Communication Interface Test: Connect to test controller via RS485 and Ethernet; verify real-time data reading, setpoint write and alarm message transmission, monitor communication error counters.
5. EMC Immunity Test: Conduct ESD, electrical fast transient burst, surge and radiated interference test per IEC61000; confirm no screen flicker, touch malfunction or communication dropout.
6. Temperature Cycling Test: -10°C ↔ +55°C thermal cycling for 40 cycles, 2 hours per cycle; check touch stability and display performance under temperature variation.
7. Vibration & Shock Test: 10–150Hz sinusoidal vibration and mechanical shock test to validate screen assembly, solder joints and connector retention.
8. Continuous Burn-In Aging: 160 hours burn-in at 50°C with continuous data refresh; monitor backlight stability and communication quality to screen intermittent faults.
9. Final Inspection & Packaging: Reset factory parameters, re-calibrate touch screen, record serial number, pack with anti-static bag and attach inspection certificate.

New Module Installation Guidelines

5.1 Pre-installation Preparation

Cut off cabinet power and controller bus power; confirm model and serial number match purchase order; inspect panel, sealing gasket and mounting brackets for integrity. Wear anti-static wristband before handling internal circuit board. Prepare screwdriver, torque screwdriver, shielded communication cable and programming laptop for project download.

5.2 Installation Steps

1. Cut the cabinet door aperture following dimension drawing; clean the aperture edge and remove burrs.
2. Place the rubber sealing gasket on the panel front frame; insert from front of cabinet door into the cutout.
3. Fasten the rear mounting brackets evenly with specified torque to compress the gasket and maintain IP65 front protection.
4. Wire 24VDC power cable to power terminal; connect shielded RS485 or Ethernet communication cable to controller; separate signal cables from high-power cables.
5. Tighten terminal screws; confirm correct power polarity and no bare copper exposure.

5.3 Post-installation Commissioning

Restore cabinet power and energize ; observe LED indicators to confirm normal power and boot status. Download HMI project via programming software, configure communication parameters and station address. Test real-time data reading, setpoint modification and alarm acknowledgement function. Run continuous 60-hour stability test; verify touch response and communication link before formal online operation.

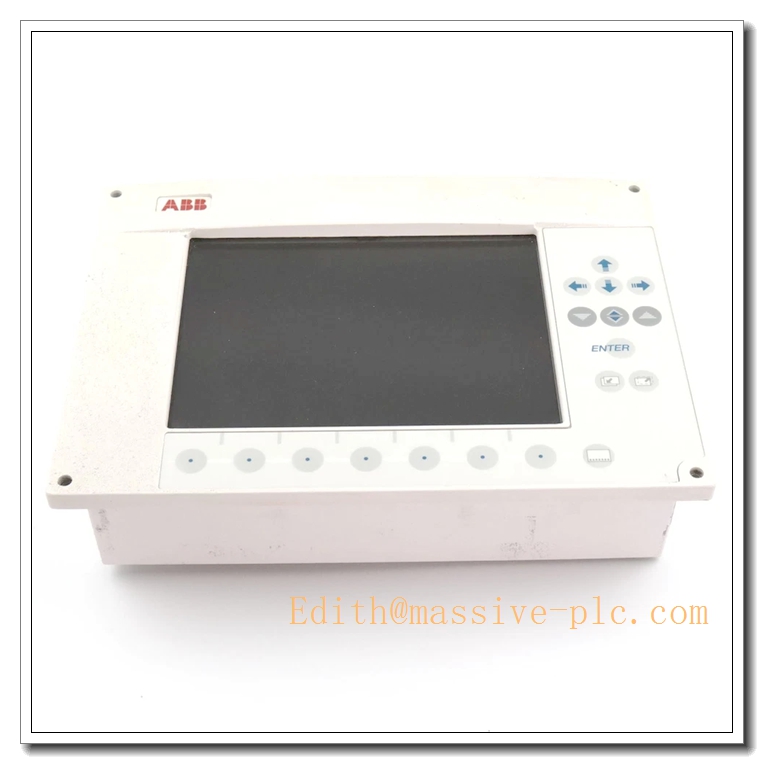

ABB GOP 2

Application Scenarios & Product Features

6.1 Core Application Scenarios

• Power plant boiler, turbine local DCS cabinet operation and monitoring
• Petrochemical continuous process local operator interface
• Pulp & paper mill process control cabinet on-site operation
• Cement, metallurgy kiln and rolling mill local HMI
• Legacy ABB DCS system spare replacement and cabinet retrofit

6.2 Core Product Features

• 10.4-inch resistive touch graphic operator panel dedicated for ABB DCS systems
• IP65 front panel protection, suitable for dusty and humid cabinet door installation
• Multiple communication ports supporting serial and Ethernet connection to controllers
• Local alarm display, setpoint adjustment and loop operation without laptop
• Reinforced mechanical structure, resistant to vibration and industrial electromagnetic interference
• Simple flush panel mounting, easy for maintenance and spare swap
• Built-in diagnostic function for communication and hardware fault indication

Frequently Asked Questions (FAQ)

Q1: Power LED off after installation A1: Verify 24VDC supply voltage and polarity; inspect loose terminals or broken wiring; measure terminal voltage. If input voltage is normal while LED stays off, replace the operator panel.

Q2: Touch screen is unresponsive or touch position drifts A2: Re-run touch calibration program; check for physical scratch or liquid contamination on touch film; inspect loose internal touch connector. Replace touch assembly if hardware damage occurs.

Q3: Panel cannot communicate with DCS controller A3: Check communication cable shielding and wiring; verify baud rate, station address and protocol match controller setting; eliminate ground loop interference.

Q4: Screen flickers or has abnormal bright/dark spots A4: Check power supply ripple; inspect high-power cable interference; verify ambient temperature within rated range. Replace backlight unit if aging.

A5: Confirm HMI project alarm configuration; check controller alarm enable status; verify real-time tag mapping between panel and controller.

A6: It supports Modbus RTU/TCP for third-party devices, but the native graphic project tool is designed for ABB DCS tag system. Full function compatibility needs project re-development.
