Name: ABB DSAI130A Analog Input Module, Part No. 3BSE018292R1 for ABB Advant Controller 400 (AC400) DCS - MASSIVE
Brand: ABB

Description

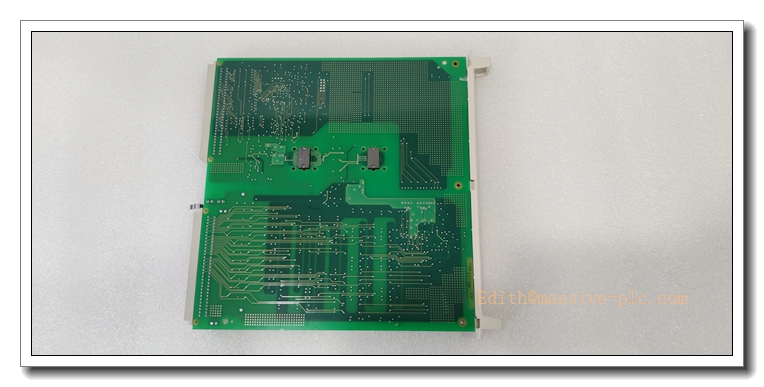

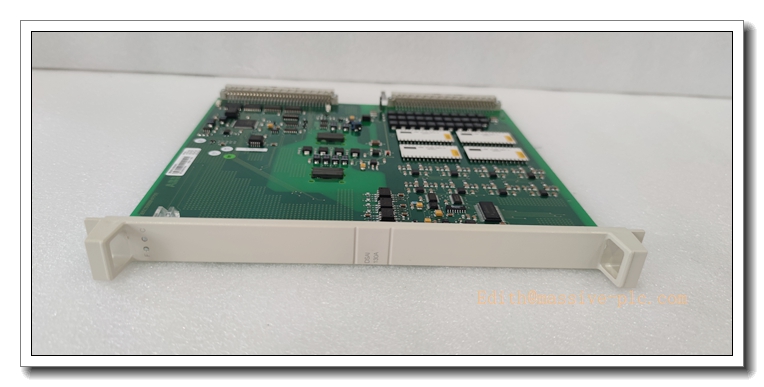

ABB DSAI130A Analog Input Module, Part No. 3BSE018292R1 for ABB Advant Controller 400 (AC400) DCS

Product Description

The DSAI130A is an 8-channel isolated analog input module for ABB Advant Controller 400 (AC400) DCS system. It acquires analog field signals such as 4–20 mA, 0–20 mA current signals from transmitters, pressure sensors, flow meters and temperature transducers. Each channel features galvanic isolation for noise suppression and circuit protection. The module converts received analog signals into digital data and communicates with the AC400 controller via the rack backplane bus. It supports onboard channel diagnostics, wire-break detection and module self-test functions. This module is widely used in power plants, pulp & paper mills and chemical processing plants for spare replacement, maintenance and retrofit of legacy AC400 distributed control systems.

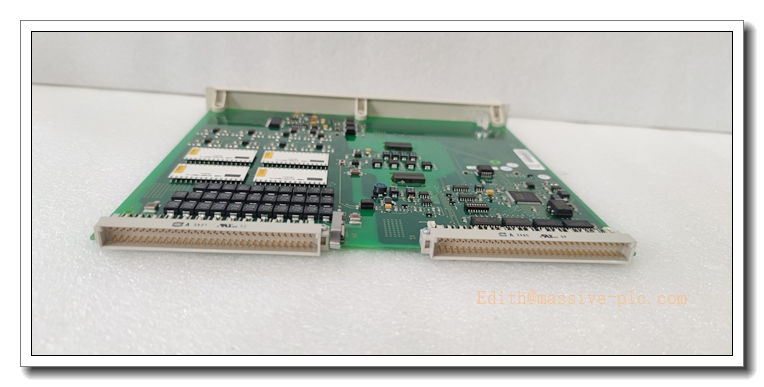

DSAI130A 3BSE018292R1

Technical Specifications

Model: DSAI130A
ABB Part Number: 3BSE018292R1
Product Family: ABB Advant Controller 400 (AC400)
Type: 8-channel Galvanically Isolated Analog Input Module
Input Signal: 4–20 mA / 0–20 mA
Number of Channels: 8 isolated channels
Diagnostics: Wire break detection, channel fault monitoring, module self-diagnosis
Backplane Bus: AC400 Advant local rack bus
Power Supply: Module logic power supplied from rack backplane
Operating Temperature: 0 °C ~ +60 °C
Storage Temperature: -40 °C ~ +85 °C
Relative Humidity: 5%–95% non-condensing
Protection Class: IP20 (installed inside control cabinet)
Mounting: Standard slot mounting on I/O rack
Status Indication: Module fault LED + individual channel status LEDs
Accuracy: ±0.2% of full scale

Compatibility & Installation Pitfalls

Compatibility

Compatible Controller: ABB Advant Controller 400 ()
Rack: standard I/O rack and matching backplane
Field Devices: 4–20mA two-wire / four-wire transmitters, pressure, flow, level transmitters
Configuration Software: Advant Control Builder

Installation Pitfalls

Two-wire Transmitter Power: Confirm loop power supply configuration. Incorrect wiring will damage transmitters or the analog input channels.
Shield Cable Grounding: Use shielded twisted-pair cables for analog signals. Single-point grounding of cable shield is required to eliminate ground loops and signal drift.
ESD Hazard: PCB electronics are sensitive to electrostatic discharge. ESD wrist strap must be worn when handling the module outside the rack.
Module Configuration: After module replacement, verify hardware configuration in Advant Control Builder. Mismatched module type will trigger bus communication errors.
Hot Swap Caution: Even if the rack supports module hot removal, avoid online replacement for critical control loops; unexpected signal loss may cause process trips.
Wiring Separation: Analog signal cables must be routed separately from high voltage and inverter power cables to prevent EMI interference.
Overload Protection: Excessive input current can burn channel circuits. Check field loop wiring short-circuit before commissioning.

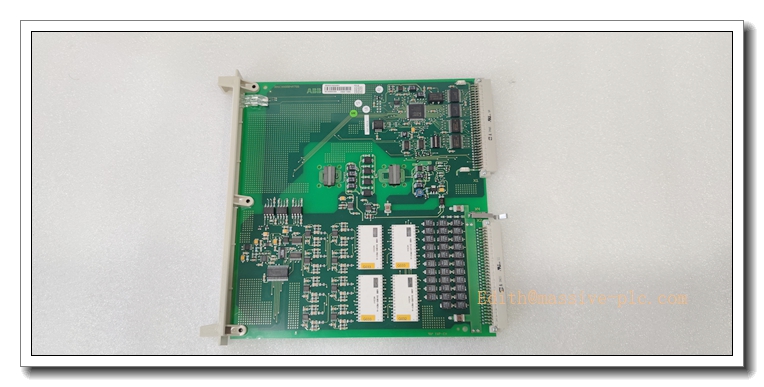

DSAI130A 3BSE018292R1

Standard Operating Procedure (SOP)

Pre-Installation

Verify part number DSAI130A / 3BSE018292R1. Inspect PCB, terminal block and housing for physical damage.
Back up DCS hardware configuration and control logic project.
Isolate and lock out field signal loop power for all 8 channels.
Prepare wiring drawings, ESD protection tools and channel list.

Module Replacement & Installation

Wear ESD wrist strap before touching the module.
Unlock module latch and carefully extract the old DSAI130A from rack slot.
Insert new DSAI130A into rack guide rails, fully seat and lock the latch.
Reconnect field analog wiring to terminal block following the wiring diagram.
Restore rack controller power.

Post-Installation Verification

Check module and channel LED status on rack; confirm no module fault alarms.
Verify hardware configuration in Advant Control Builder.
Apply calibrated reference signal to each channel one by one, confirm accurate value reading in DCS HMI.
Test wire-break diagnostic function by disconnecting field transmitter wiring.
Monitor signal stability during normal plant operation.
Record serial number, replacement date and channel test results in equipment maintenance log.

Application Scenarios

Power plant boiler and turbine process measurement
Pulp & paper mill analog process signal acquisition
Chemical plant continuous process flow, pressure and level monitoring
Water treatment plant sensor signal collection
Legacy ABB DCS system maintenance, spare parts replacement and retrofit projects
