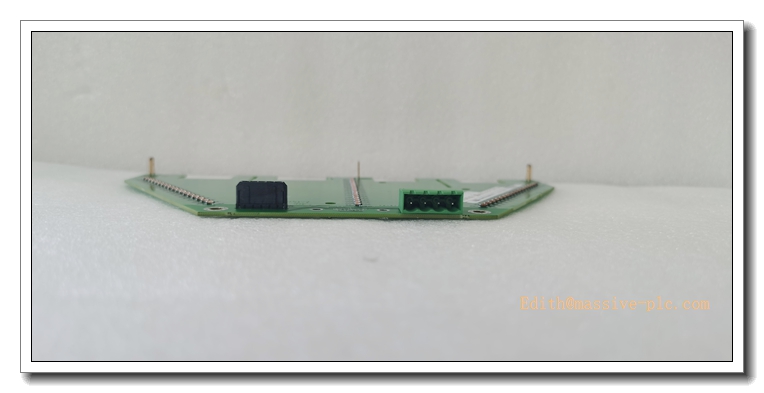

ABB 3BHE032285R0102 (XVC772A102) Phase Interface Board for AC 800M DCS System

Description

3BHE032285R0102 (XVC772A102) Product Technical Specification & Operation Manual

Product Title

ABB 3BHE032285R0102 (XVC772A102) Phase Interface Board for AC 800M DCS System

Core Product Introduction

The 3BHE032285R0102, marked with model XVC772A102, is an original ABB phase interface board designed for the AC 800M distributed control system. It serves as a critical signal conditioning and phase acquisition hardware unit for medium-voltage drive and power control applications. This board samples phase voltage/current signals, converts raw high-voltage analog signals into standardized digital data, and transmits processed data back to the main controller for closed-loop regulation, protection logic and fault diagnosis.

Built with industrial ruggedized PCB design, the module provides electrical isolation between high-potential power circuits and low-voltage control side. It suppresses common-mode noise and ground loop interference widely present in power plant, substation and heavy industry environments. Integrated self-diagnostic circuits continuously monitor board health status, supporting real-time fault reporting to the DCS host. It is factory-calibrated, compact for rack installation and engineered for long-term continuous operation in demanding power control systems.

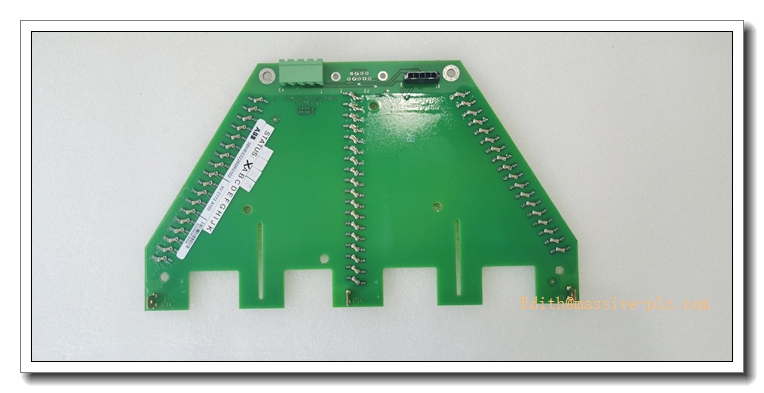

3BHE032285R0102 XVC772A102

Main Technical Specifications

Electrical Parameters

• Part Number: 3BHE032285R0102
• Model Code: XVC772A102
• Manufacturer: ABB
• Supply Voltage: 24 VDC (permissible tolerance ±20%)
• Typical Power Consumption: ≤10 W
• Signal Isolation: High galvanic isolation between power sampling circuit and control logic
• Sampling Accuracy: ±0.1% full scale
• Sampling Frequency: Up to 1kHz
• Communication Backplane: ABB AC 800M internal rack bus

Environmental & Mechanical

• Operating Temperature: -25°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5% ~ 95% RH, non-condensing
• Protection Class: IP20 (must be installed inside closed control cabinet)
• Mounting: ABB standard rack backplane plug-in installation
• Weight: Approx. 200 g
• Vibration Compliance: IEC 60068-2-6
• EMC Standard: IEC 61000 series for power industry electromagnetic immunity

Function Features

• Multi-channel phase voltage & current signal acquisition
• Analog signal conditioning and filtering
• Onboard self-test and fault flag output
• Hot-swap compatible (system configuration dependent)
• Real-time status diagnostics

Recommended Models of the Same Series

These compatible ABB interface & signal boards fit the AC800M rack ecosystem with consistent backplane architecture:

• 3BHE032286R0103 XVC772A103: Upgraded phase interface board with extended temperature range and enhanced surge protection for offshore power applications.
• 3BHE032284R0101 XVC772A101: Basic version phase interface board, cost-effective for standard land-based medium voltage drive control.
• 3BHE024577R0101 XVC761A101: High-speed pulse & frequency acquisition board, used for generator speed and turbine monitoring.
• 3BHE021935R0101 XVC780A101: Multi-channel analog input interface board for general process analog signal collection in DCS racks.

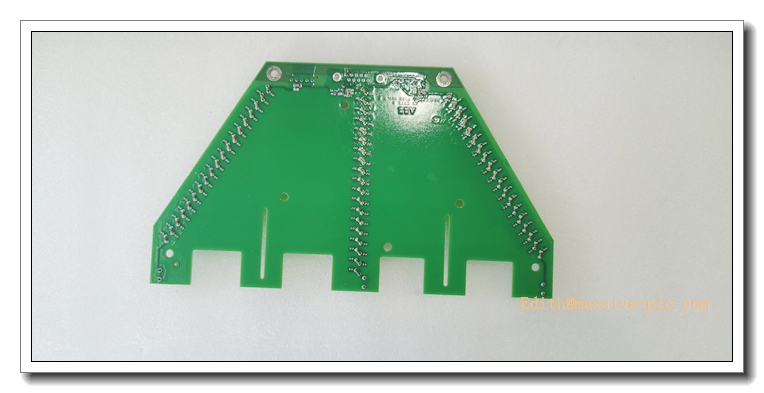

3BHE032285R0102 XVC772A102

Professional Quality Control Test Standard Operating Procedures (SOP)

5.1 Incoming Component Inspection

All active chips, precision resistors, isolation components and PCB substrates comply with ABB component grade specifications. Critical electronic components undergo batch sampling for temperature cycling, insulation and surge testing. Non-conforming materials are rejected and not released to assembly.

5.2 PCB Assembly & AOI Inspection

After SMT soldering, automatic optical inspection (AOI) checks solder joints, component polarity and placement. Manual rework for detected soldering defects before functional power-up test.

5.3 Functional Bench Test

Each board is powered on on dedicated ABB test bench. Engineers verify signal sampling linearity, channel balance, backplane communication and fault diagnostic functions. All input channels must meet the declared accuracy specification.

5.4 High Voltage Withstand & Isolation Test

Galvanic isolation and hipot test is performed between power sampling side and control low voltage side to verify insulation integrity, no breakdown or leakage.

5.5 Thermal Aging Test

Continuous powered aging for 48 hours under cyclic temperature conditions. Real-time logging of signal drift, temperature behavior and communication stability to screen early-life failures.

5.6 Final QC & Traceability

Final full function retest, label serialization and unique serial number registration for full lifecycle traceability. Products comply with CE, UL and ISO9001 quality requirements. Each unit is issued with factory test certificate.

New Module Installation Guidelines

Pre-Installation Preparation

1. Isolate and cut off the whole DCS rack power supply. Confirm lockout-tagout procedure to prevent accidental energization.
2. Verify part number 3BHE032285R0102 matches BOM requirement. Inspect PCB for transport damage, cracked solder or bent connectors.
3. Prepare ESD wristband and anti-static mat. The board contains sensitive semiconductors; electrostatic discharge will permanently damage the circuit.
4. Check rack slot and backplane connector for dirt, oxidation or pin deformation.

Installation Steps

1. Wear ESD protection before handling the board. Hold the board only by the edges; avoid touching PCB traces and components.
2. Align the board with the rack guide rails, slide smoothly into the assigned slot. Push firmly until the backplane connector fully seats.
3. Fasten the front panel locking screws to secure the board in rack.
4. Connect external phase sampling wiring strictly following ABB schematic. Torque terminals to specified value, ensure no loose wires or short circuits.

Post-Installation Commissioning

1. Double-check all wiring, confirm no cross-phase short or reversed polarity.
2. Restore rack power gradually. Observe front panel LED indicators: power LED steady ON, status LED normal without fault alarm.
3. Launch Control Builder M engineering software to read channel raw values, validate phase sampling data and diagnostic status.
4. Run 30 minutes continuous stability test. Confirm no signal drift or intermittent communication drop before handover.

Application Scenarios & Product Features

Main Application Scenarios

• Medium voltage variable frequency drives (ABB ACS2000 series)
• Power plant generator excitation & phase monitoring control
• Substation distributed control and protection systems
• Heavy industry power control for metallurgy, mining and pulp & paper
• Turbine and generator phase signal acquisition & closed-loop control

Core Features

• High galvanic isolation protects DCS controller from high voltage transients
• Precision phase sampling for voltage/current vector calculation
• Built-in hardware filtering suppresses power-frequency noise and surge interference
• Onboard self-diagnosis for quick fault localisation
• Standard ABB rack plug-in design, easy maintenance and replacement
• Rugged PCB construction, suitable for vibration-prone power station environments
• Seamless integration with AC 800M DCS control software

Frequently Asked Questions (FAQ)

Q1: Power LED off after rack power on? A1: Check rack backplane power supply. Inspect slot connector contact and board seating. Confirm ESD damage did not occur during handling. If power supply is normal and indicator remains off, the board has hardware failure, replace unit.

Q2: Phase sampling value abnormal / large deviation? A2: Verify external CT/PT wiring polarity and terminal tightness. Check grounding of signal cable, avoid mixing power cables and signal cables. Run channel calibration via Control Builder M. If deviation persists, inspect board for component damage or aging.

Q3: Board reports communication timeout to controller? A3: Check if the board is fully inserted into backplane. Confirm slot address configuration. Inspect backplane bus health and adjacent module status. Restart DCS controller to reload hardware configuration.

Q4: Can I install this board in non-ABB custom rack? A4: No. 3BHE032285R0102 XVC772A102 uses dedicated ABB AC800M backplane bus. It cannot work on third-party racks.

Q5: Does this board support hot swap? A5: Hot swap function is hardware supported, but you must follow site safety procedure and project configuration. Hot swapping under live high voltage sampling wiring is strictly forbidden.

Q6: What is recommended maintenance cycle? A6: Visual inspection of PCB and terminals every 6 months in dusty environments. Full signal calibration once per year. Avoid physical shock and condensation.
