3500/40M (140734-01) Bently Nevada Proximitor Monitor

Description

3500/40M (140734-01) Bently Nevada Proximitor Monitor Full Specification

Product Description

The Bently Nevada 3500/40M with part number 140734-01 is a high-performance four-channel Proximitor monitor module designed for the Bently Nevada 3500 machinery protection and condition monitoring system. As a core signal conditioning and measurement unit, it is specially engineered to interface with eddy-current proximity transducers, precisely converting raw probe signals into calibrated displacement, vibration, and position data for critical rotating machinery.

Each of the four independent channels supports fully configurable monitoring functions, including radial shaft vibration, shaft eccentricity, differential expansion, and thrust position measurement. The module provides on-board signal conditioning, high-precision filtering, programmable alarm/trip thresholds, and comprehensive sensor fault detection. Built for extreme industrial operating environments with wide temperature tolerance, the 3500/40M 140734-01 ensures 24/7 continuous, stable, and repeatable measurement for turbines, compressors, generators and other high-value rotating equipment, fully complying with API 670 industry machinery protection standards.

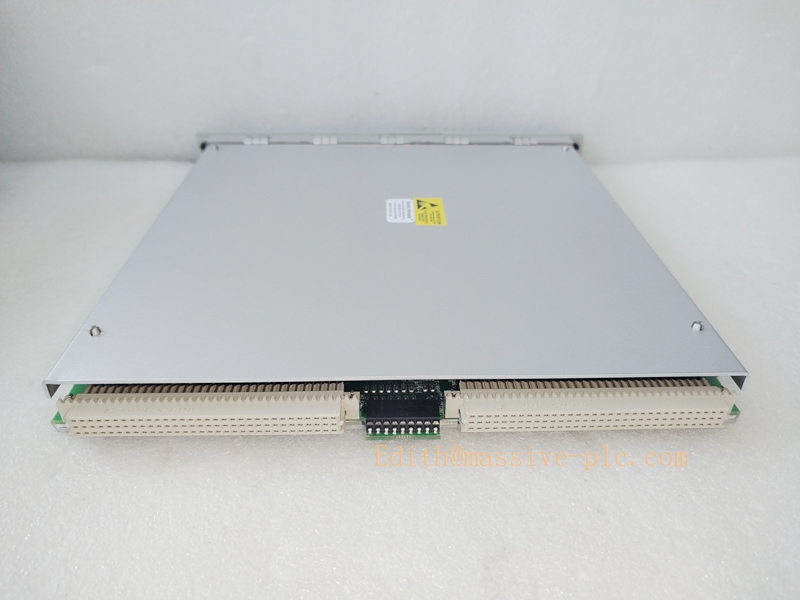

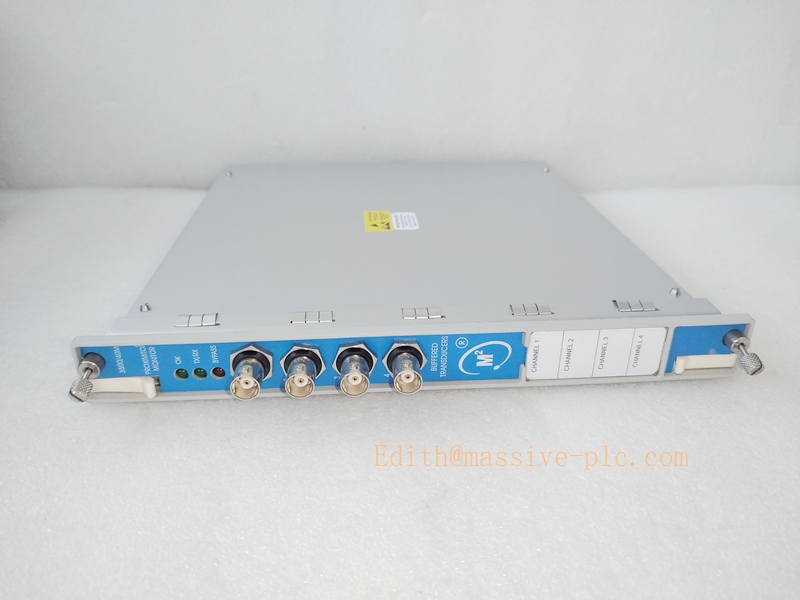

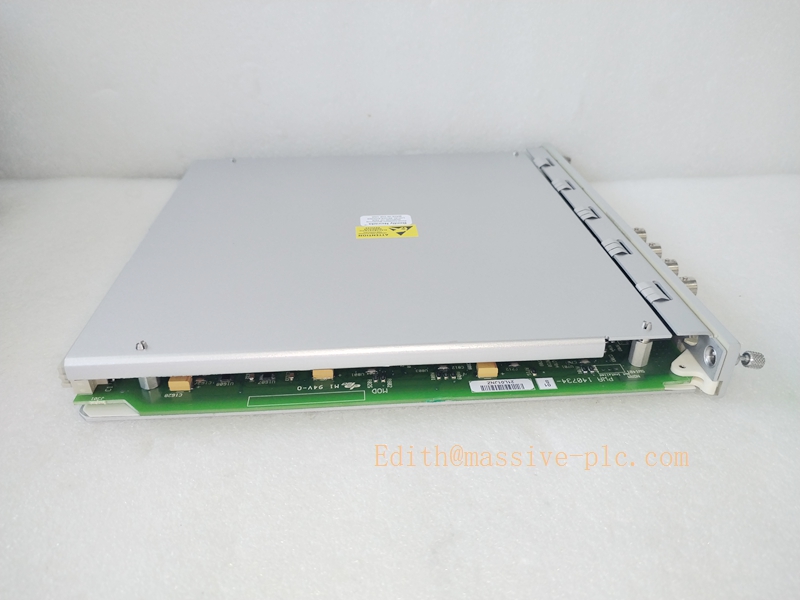

3500/40M 140734-01

Core Technical Specifications

Key Features & Competitive Advantages

3.1 Core Features

• Four Independent Configurable Channels: Equipped with four isolated measurement channels, each channel can be individually programmed for different machinery monitoring tasks, maximizing rack space utilization and enabling multi-parameter synchronous monitoring of a single machine unit.
• High-Precision Eddy-Current Signal Conditioning: Dedicated signal processing circuit for proximity probe signals provides superior noise filtering, stable baseline tracking and high-resolution displacement/vibration sampling, ensuring accurate measurement in complex industrial environments.
• Multi-Functional Monitoring Logic: Supports radial vibration, shaft eccentricity, thrust position and differential expansion measurement, covering all core mechanical condition parameters of rotating and reciprocating equipment.
• Dual-Level Alarm Protection: Each channel features independent Alert (warning) and Danger (trip) threshold settings with configurable time delay, effectively filtering transient interference and realizing graded equipment protection.
• Full Self-Diagnosis & Sensor Fault Detection: Real-time monitoring of sensor disconnection, short circuit, signal overload and circuit abnormality, automatically reporting faults to prevent invalid monitoring data and missing protection actions.
• Ultra-Wide Temperature Adaptation: Industrial-grade wide-temperature design supports normal operation from -30 °C to +65 °C, adapting to severe outdoor and uninsulated workshop environmental conditions.

3.2 Product Advantages

• Exceptional Environmental Robustness: Wider operating temperature range than conventional monitor modules enables reliable deployment in extreme cold and high-temperature industrial sites without performance derating.
• High Measurement Stability & Repeatability: Optimized circuit design and professional algorithm processing eliminate long-term signal drift, ensuring consistent monitoring accuracy during years of continuous operation.
• Flexible On-Site Configuration: Fully programmable via official 3500 configuration software, supporting fast parameter modification, function switching and threshold adjustment without hardware replacement.
• Excellent System Compatibility: Plug-and-play compatible with all standard 3500 rack accessories, enabling seamless system expansion, upgrade and spare part replacement.
• Low Maintenance & High Cost-Performance: Four-channel integrated design reduces module quantity and wiring complexity, lowering overall system investment and daily maintenance workload.

Typical Application Fields

The 3500/40M 140734-01 proximity monitor module is widely deployed for high-precision condition monitoring and safety protection of core rotating machinery in heavy industrial industries:

• Thermal & Gas Power Generation: Shaft vibration, thrust position and eccentricity monitoring for steam turbines, gas turbines and generator sets, providing critical data for unit safety protection.
• Petrochemical & Refinery Industry: Online condition monitoring for large centrifugal compressors, process pumps and high-speed rotating process equipment to prevent shaft friction and mechanical failure.
• Oil & Gas Onshore/Offshore Facilities: Adaptable to extreme temperature environments for offshore platform machinery and field device protection systems.
• Metallurgy & Heavy Manufacturing: Precision shaft state monitoring for large rolling mills, industrial fans and transmission rotating equipment.
• High-Reliability Industrial Protection Projects: Applied in scenarios requiring long-term unattended operation, high measurement accuracy and low false-alarm rate.
• 3500 System Retrofit & Spare Replacement: Standard universal spare module for upgrading and replacing aging monitoring units of existing 3500 machinery protection systems.

Technical Pitfalls to Avoid

• Incorrect Channel Function Configuration: Misassigning vibration, position or expansion functions will cause mismatched filtering parameters and full-scale measurement errors, leading to invalid monitoring data.
• Mismatched Probe & Cable Length: Inconsistent probe model and total cable length will result in incorrect signal tuning, baseline offset and inaccurate displacement readings.
• Unreasonable Alarm Threshold & Delay Setup: Overly sensitive parameters cause frequent false alarms, while loose thresholds fail to capture early mechanical faults, reducing system protection effectiveness.
• Non-Standard Shielding & Grounding: Improper shielding grounding and mixed wiring of signal and power cables introduce severe EMI interference, causing signal jitter and data fluctuation.
• Ignoring Probe Gap Calibration: Uncalibrated installation gap between probe and shaft will lead to linear measurement deviation and long-term monitoring inaccuracy.
• Over-Temperature Continuous Operation: Long-term operation beyond the -30 °C ~ +65 °C range accelerates circuit aging and triggers module self-protection shutdown.
• Firmware Version Mismatch: Inconsistent firmware with rack interface and relay output modules causes data synchronization failure and abnormal alarm logic output.

Related Product Recommendations

• 3300 Series Proximity Probes & Extension Cables: Matched eddy-current transducer series, providing original shaft vibration and displacement signals for 3500/40M monitoring channels.
• Bently Nevada 3500/34 Relay Output Module: Supporting safety output module, executing alarm and trip commands based on 3500/40M monitoring judgment data.
• Bently Nevada 3500/20 Rack Interface Module: Core system communication unit ensuring stable data transmission and logic synchronization of all rack modules.
• Bently Nevada 3500/15 Power Supply Module: Redundant power supply unit providing stable backplane power for continuous module operation.
• 81546-01 Terminal Board: Dedicated XDCR signal termination and relay output terminal board for standardized field wiring management.
• 3500 System Configuration Software: Professional tool for channel function configuration, threshold setting, signal tuning, calibration and fault diagnosis.

Installation Guidelines

• Standard Rack Mounting: Install the module in a grounded standard 3500 industrial rack, placed in a well-ventilated, dust-proof and dry cabinet to avoid corrosive gas and strong mechanical vibration.
• Reliable Backplane Connection: Ensure tight and stable card edge contact with the rack backplane to prevent loose connection-induced communication interruption and data loss.
• Standardized Sensor Wiring: Use dedicated shielded cables for proximity probe signals; strictly separate signal wires from high-power cables and implement single-point shielding grounding to eliminate interference.
• Precise Probe Gap Calibration: Adjust and calibrate the probe installation gap according to official specifications before commissioning to ensure linear measurement range and accurate baseline signal.
• Pre-Operation Functional Verification: Complete channel parameter configuration, signal simulation and alarm function testing after installation to verify monitoring accuracy and protection logic validity.

Daily Maintenance Guidelines

• Routine Status Inspection: Regularly check module operating indicators, signal connection status and wiring tightness; clean module surface dust quarterly to ensure stable heat dissipation.
• Periodic Signal Calibration: Perform channel accuracy calibration and probe gap verification every six months to eliminate signal drift and maintain long-term measurement precision.
• Regular Fault Log Analysis: Export and analyze module operation logs and fault records regularly to identify potential sensor aging and mechanical equipment abnormal trends in advance.
• Wiring & Accessory Maintenance: Inspect signal cable shielding layer and connector aging status periodically, replace damaged cables to avoid signal attenuation and interference.
• Spare Module Management: Store standby 140734-01 modules in constant-temperature dry environment; conduct regular power-on tests to ensure complete functional availability for emergency replacement.
