WOODWARD 5501‑471 NetCon SIO Module
Product Title

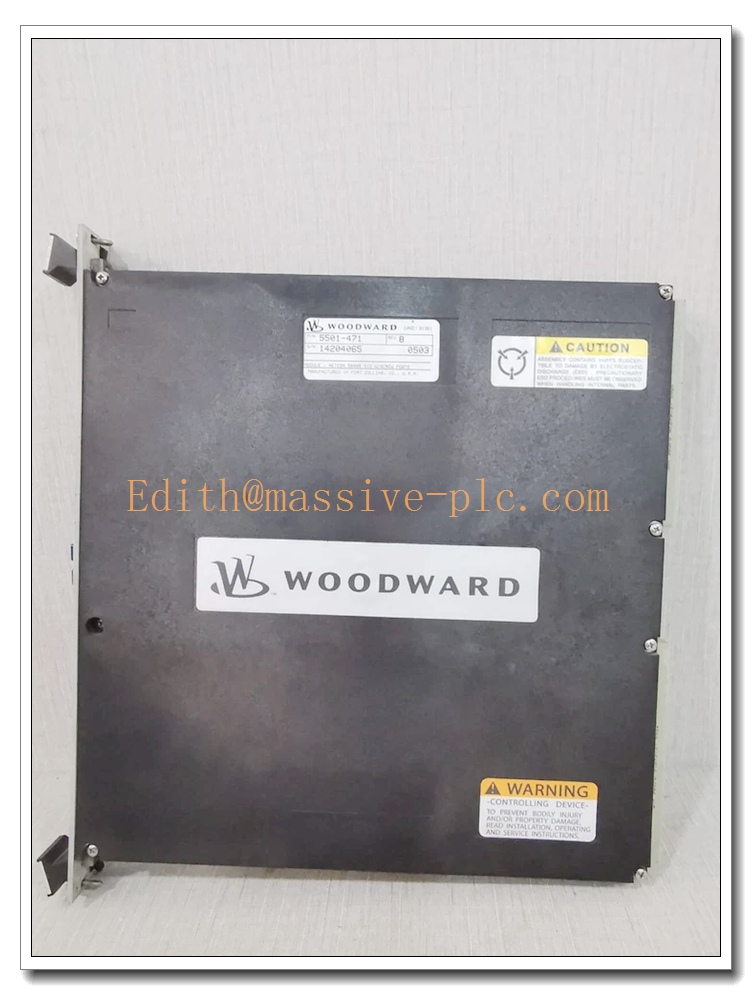

WOODWARD 5501‑471 NetCon Serial Input/Output (SIO) Communication Module
Product Detailed Description
The Woodward 5501‑471 is a rack‑mount intelligent serial communication module belonging to Woodward NetCon / MicroNet control platform, designed to act as a multi‑protocol serial gateway for turbine and engine control systems. It establishes bidirectional data exchange between the main controller, field peripheral devices, HMIs and remote supervisory hosts. Equipped with a front‑panel 24‑character LED diagnostic display and integrated emergency‑stop button, it delivers on‑site status visualization and local safety intervention capability. The module adopts conformal‑coated circuit board design for enhanced resistance against humidity, dust and mild salt‑spray corrosion. Manufactured in USA, it is widely deployed within critical prime‑mover control loops for power‑generation and industrial mechanical‑drive applications.

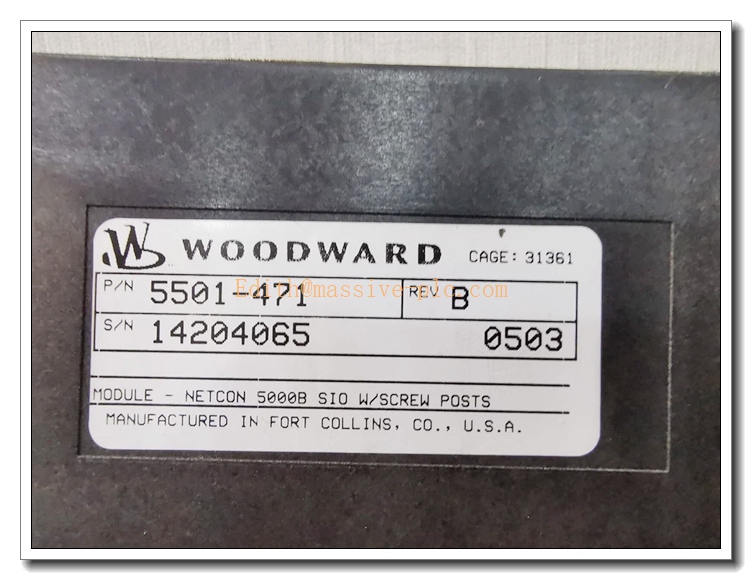

WOODWARD 5501-471
Technical Parameters
| Item | Specification |
|---|---|
| Manufacturer | Woodward |
| Part Number | 5501‑471 |
| Product Type | NetCon SIO Serial Communication Module |
| Power Supply | 24 VDC ±10 % DC input |
| Serial Interfaces | 2 × RS‑232; 2 × Multi‑mode RS‑232 / RS‑422 / RS‑485 |
| Max Baud Rate | 115.2 kbps |
| Supported Protocols | Modbus RTU, Modbus ASCII |
| Communication Buffer | Receive:128 bytes; Transmit:32 bytes |
| Front‑Panel Interface | 24‑character LED display, Emergency‑Stop push‑button |
| Operating Temperature | ‑40 °C ~ +70 °C |
| Enclosure Protection | NEMA 4X rated housing |
| Weight | Approx. 0.8 kg |
| Dimensions | 160 × 160 × 120 mm |
| Mounting Form | Plug‑in rack slot for MicroNet chassis |
| Conformal Coating | Applied for harsh‑environment protection |
| Country of Origin | USA |
Compatibility & Installation Traps
Compatibility
- Supported chassis: Woodward MicroNet Plus, Simplex, and TMR redundant rack systems.
- Backward‑compatible with predecessor 5501‑470; direct drop‑in replacement for legacy slot positions.
- Works with NetCon / 9900 series turbine controller firmware; firmware version matching is mandatory before commissioning.
- Not compatible with third‑party non‑Woodward backplane hardware.
Installation Traps & Common Pitfalls
- Grounding risk: RS‑485/422 bus ground potential mismatch will trigger communication frame loss; separate signal ground from high‑power actuator ground. Do not daisy‑chain protective earth via communication cable shielding.
- Slot restriction: Only insert into designated SIO slots; placing into CPU or analog‑I/O dedicated slots will cause module failure or backplane damage.
- Baud‑rate mismatch: Physical port hardware mode (RS‑232 / 422 /485) must match software configuration; mis‑configuration leads to no‑communication without obvious alarm codes.
- Power‑on sequence: Install or remove the module only when chassis power is OFF. Hot‑swap is not supported; hot‑plug may damage backplane bus chips.
- Environmental note: Even with conformal coating, avoid direct condensation inside cabinet; condensation causes premature circuit corrosion.
Standard Operating Procedures (SOP)
- Pre‑installation check: Verify chassis power is fully de‑energized. Inspect module connectors for pin bending or corrosion. Confirm target slot is SIO‑compatible slot.
- Mechanical mounting: Slide module smoothly into rack slot, fasten front‑panel locking screws to guarantee reliable backplane contact.
- Wiring execution: Terminate serial cables according to selected physical standard (RS‑232 /422 /485). Properly terminate bus resistors at cable endpoints for RS‑485 multi‑drop networks.
- Power‑on: Restore chassis 24 VDC power supply. Observe front‑panel LED display for boot‑up status codes. Confirm no hardware fault indicators activate.
- Configuration: Access system configuration tool, assign port physical mode, baud rate, parity and Modbus protocol parameters. Download matching firmware revision if required.
- Communication validation: Establish link with slave devices / HMI; validate data read‑write integrity. Monitor for frame‑loss or timeout alarms.
- Commissioning & handover: Record port parameter settings for maintenance files. Run continuous operation test; confirm stable data transmission before formal system startup.
- Maintenance: Before removing module, cut off chassis power supply completely.
Typical Application Scenarios
‑ Gas / steam turbine control systems for power generation ‑ Large‑bore gas‑diesel engine governor control ‑ Generator set monitoring & supervisory data gateway ‑ Compressor mechanical‑drive control cabinets ‑ Marine prime‑mover distributed control networks ‑ Industrial site Modbus protocol conversion for NetCon platform
Matching Supporting Components
‑ MicroNet series system chassis (Simplex / TMR redundant rack) ‑ Woodward configuration tool software for NetCon platform ‑ Shielded RS‑232 / RS‑422 / RS‑485 communication cables ‑ 24 VDC redundant power supply unit for control cabinet ‑ Woodward main CPU controller cards for MicroNet system ‑ Local HMI operator panels connected via serial ports
Related Woodward Model Recommendations
- 5501‑470: Legacy predecessor SIO module, lower max baud‑rate; used for old‑site spare‑part replacement.
- 5466‑5006 / 5466‑5007 Smart‑Plus SIO: Modern upgraded drop‑in compatible alternative, enhanced communication performance and larger buffer capacity.
- 5466‑258: MicroNet discrete I/O module for digital signal expansion within same chassis system.
- 5501‑622: Analog I/O module for NetCon platform, for sensor‑signal acquisition matching SIO communication function.
