Name: VE4003S2B6 DeltaV S‑Series 16‑Channel 4‑20mA HART Analog Input Module, Emerson DCS Field Signal Acquisition I/O Pack for Smart Transmitters - MASSIVE
Brand: EMERSON

Description

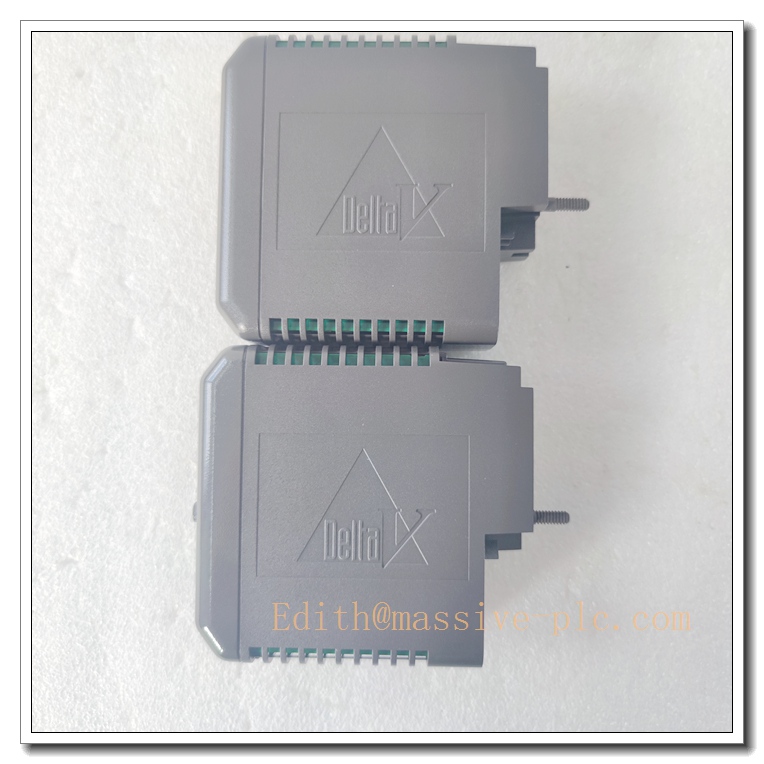

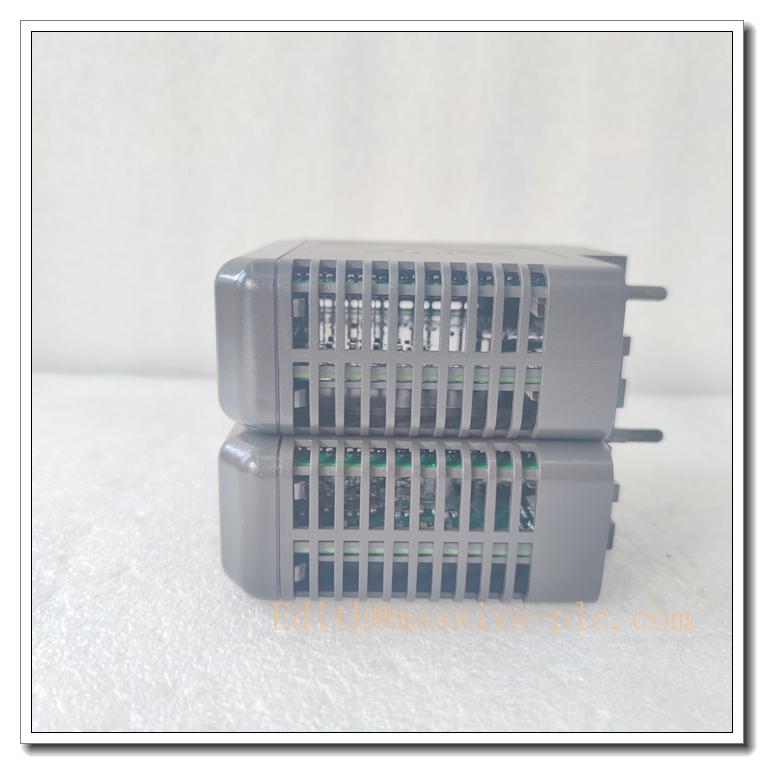

VE4003S2B6 DeltaV S‑Series 16‑Channel 4‑20mA HART Analog Input Module, Emerson DCS Field Signal Acquisition I/O Pack for Smart Transmitters

Product Application

VE4003S2B6 is a high‑density analog input I/O pack of Emerson DeltaV S‑series I/O family. It collects 4–20mA analog signals from field two‑wire transmitters, converts them into digital values and transmits process data to DeltaV controller via LocalBus. It supports HART pass‑through communication to realize remote configuration, calibration, diagnostics and asset management for HART smart instruments. Commonly deployed in petrochemical refineries, oil & gas pipelines, power plants, pulp & paper mills and pharmaceutical factories. It is widely used to acquire pressure, differential pressure, temperature, liquid level, flow rate and other continuous process variables. The module is suitable for cabinet installation near field process skids, and supports redundant I/O architecture for critical control loops. It provides reliable raw process data for closed‑loop PID regulation, alarming and historical trend recording.

VE4003S2B6 KJ3223X1-BA1

Product Specifications

Part Number: VE4003S2B6
Series: DeltaV S‑Series I/O Pack
Channel Count: 16 channels 4‑20mA analog input
Signal Type: 2‑wire transmitter, loop‑powered 4–20mA
Protocol Support: HART transparent communication for each channel
Installation: Plug‑in pack, mounted on S‑series I/O terminal base
Hot‑Swap: Hot‑swappable module
Channel Isolation: Individual channel isolation design
Diagnostics: On‑board channel fault detection, open‑loop / short‑circuit alarm

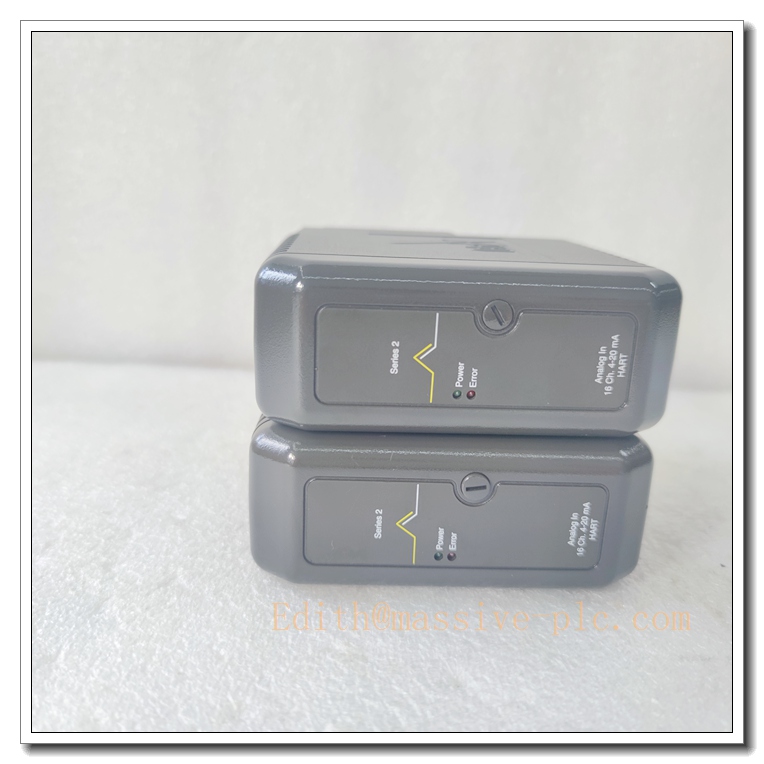

Indication: Front panel LED for power, communication and per‑channel status
Certification: ATEX / IECEx / FM Class I Div 2 hazardous area approval
Protection: IP20, indoor control cabinet installation

Core Technical Parameters

Input Signal Range: 4–20 mA DC
ADC Resolution: 16‑bit high precision sampling
Measurement Accuracy: ±0.05% of full scale
HART Modem: Built‑in HART modem for each channel
Power Supply: Powered through DeltaV I/O backplane LocalBus
Operating Temperature: -20 ℃ ~ +60 ℃
Storage Temperature: -40 ℃ ~ +85 ℃
Relative Humidity: 5%–95%, non‑condensing
Channel Diagnostics: Wire break detection, over‑range / under‑range alarm, short circuit detection
Update Rate: Fast channel scanning for real‑time process variable refresh
EMC Compliance: Meet industrial process control EMC standards

Recommended Matching Models (8 Models)

Supporting components to build complete DeltaV I/O rack and field instrument system:

KJ2005X1-MQ VE3008 DeltaV MQ Controller
KJ3007X1-BA1 Analog Output Module
S‑Series I/O Terminal Base for VE4003S2B6
KJ1501X1-BC2 Redundant Rack Power Supply
12P2532X062 DeltaV I/O Rack Backplane
3051 Pressure Transmitter with HART
644 Temperature Transmitter HART
AMS Device Manager Software for HART asset management

VE4003S2B6 KJ3223X1-BA1

Product Features

✅ High‑Density 16‑Channel Design 16 analog input channels integrated in one single I/O pack, greatly saves cabinet slot space and reduces total cost for large quantity of analog signal acquisition points.

✅ Native HART Pass‑Through Support Each channel embeds independent HART modem. Operators can remotely read instrument tag, calibration data, diagnostic information and perform parameter modification without visiting field transmitters.

✅ Comprehensive Channel‑Level Diagnostics Real‑time detection of field circuit open loop, short circuit and signal over‑range. Front panel LED and DeltaV system alarm quickly pinpoint faulty channel, shorten troubleshooting time.

✅ Hot‑Swappable Online Replacement The I/O pack can be pulled out and replaced with spare module while the rack remains powered on, no need to shut down the whole control rack and interrupt other normal running channels.

✅ Channel‑to‑Channel Isolation Isolation between each individual channel prevents fault propagation from one faulty field loop to adjacent channels, improving system stability.

✅ Hazardous Area Installation Approval Certified for Zone 2 / Division 2 explosive gas environment, can be installed in remote field control cabinet close to process units to shorten field signal cable length.

✅ Seamless DeltaV System Integration Auto recognition by DeltaV controller after insertion, no complicated DIP switch setting. Channels are directly mapped to DST tags for rapid engineering configuration.

Installation Guidelines

Cut off rack power for non‑redundant I/O rack before installation. Hot‑swap replacement can be executed following DeltaV operation procedure.
Mount the matching S‑series terminal base onto the I/O rack first, then insert VE4003S2B6 I/O pack firmly onto the base until it clicks into place.
Wire field 2‑wire HART transmitters to corresponding terminal points on the base, use shielded twisted pair cable for 4–20mA signal wiring with single‑point shielding grounding.
Separate analog signal cables from high‑power motor cables in cable tray to avoid electromagnetic interference.
Complete wiring inspection and check for short circuit or open circuit on each loop before power‑on.
Power on the I/O rack, verify front panel power and communication LED status. Confirm the module is discovered automatically by DeltaV controller.
Download I/O configuration, assign channel DST tags, activate HART communication and test each transmitter signal reading.
Perform loop calibration for critical measurement channels before putting into online process monitoring.

Maintenance Instructions

Daily Maintenance Check module front panel LED indicators. Confirm no channel fault alarm. Inspect cabinet temperature and ventilation status. Check terminal wiring for looseness or corrosion.

Periodic Maintenance Every 6–12 months: Export module diagnostic log. Back up DeltaV I/O configuration. Inspect dust accumulation on circuit board. Calibrate critical analog input loops.

Fault Maintenance

Single channel no signal: Check field transmitter, loop wiring and terminal connection first; confirm channel hardware fault then replace I/O pack.
HART communication failure: Verify loop resistance of 4–20mA circuit and HART configuration setting.
Module communication offline: Inspect contact between I/O pack and terminal base, check rack power supply. Replace spare VE4003S2B6 and restore configuration.
Electrostatic protection must be adopted during module handling. Do not disassemble I/O pack housing.

Long‑Term Operation Tips Avoid overvoltage surge on field analog loops, install signal surge protectors for long‑distance field wiring. Keep control cabinet sealed and dry.
