Name: TRICONEX PM6301A High-Reliability Power Supply Module - MASSIVE
Brand: Triconex

Description

TRICONEX PM6301A High-Reliability Power Supply Module Product Introduction

The TRICONEX PM6301A is an industrial-grade, high-integrity redundant power supply module exclusively designed for Triconex Trident and TMR Safety Instrumented Systems (SIS). As the core power distribution unit for safety control cabinets, this module converts universal AC mains power into stable, isolated 24VDC industrial power for SIS controllers, I/O modules and communication units. Built with high-efficiency power conversion, over-grade protection and fault-tolerant design, the PM6301A fully complies with IEC 61508 SIL 3 functional safety standards, providing continuous, ripple-free and fail-safe power support for critical safety loops in high-risk process industries.

Product Applications

The TRICONEX PM6301A is widely deployed in safety-critical industrial scenarios requiring ultra-stable and uninterrupted power supply for SIS systems, covering oil & gas, petrochemical, chemical processing, thermal power generation, energy and pharmaceutical industries. It serves as the standard power supply core for ESD, F&G and HIPPS safety systems, with typical application scenarios as follows:

SIS System Cabinet Central Power Supply: Provides standardized 24VDC stable power output for Triconex main processors, analog/digital I/O modules and communication modules, ensuring consistent power quality for the entire safety control system.
Emergency Shutdown (ESD) System Power Guarantee: Delivers uninterrupted power support for emergency shutdown logic loops and execution components, avoiding safety system failure or misoperation caused by power fluctuation or instantaneous power failure.
Fire & Gas (F&G) Monitoring System Power Supply: Supplies reliable operating power for field gas detection equipment, flame detectors and linkage alarm modules, ensuring continuous hazard monitoring and rapid linkage response.
High-Risk Process Equipment Power Protection: Adapts to high-reliability power supply demands of HIPPS and key process interlock systems, eliminating production safety hazards caused by unstable power supply of safety loops.
Long-Term Unattended Industrial Scenarios: Suitable for remote stations, unmanned workshops and continuous production units, realizing long-term stable power output and reducing system failure risks caused by power equipment aging.

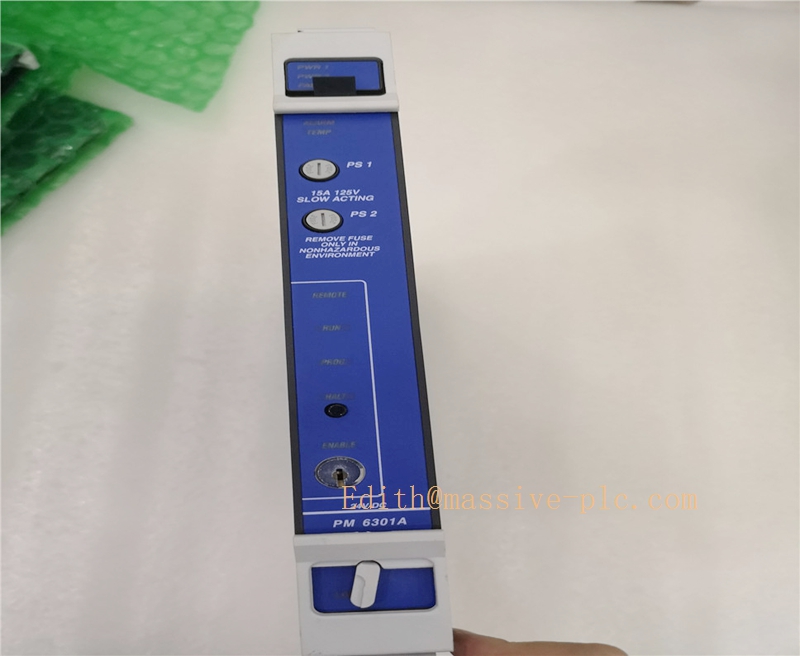

TRICONEX PM6301A

Technical Specifications & Parameters

The TRICONEX PM6301A adopts industrial high-efficiency switching power supply design, with wide voltage input, precise voltage stabilization and comprehensive circuit protection. It features excellent power conversion efficiency and environmental adaptability, fully meeting the strict power supply requirements of SIL 3-grade safety systems. Detailed specifications are listed below:

2.1 Electrical & Power Parameters

Module Type: Industrial redundant safety power supply module
Input Voltage Range: 100VAC ~ 240VAC universal wide voltage input
Rated Output Voltage: 24VDC stable industrial safety voltage
Rated Output Power: 60W continuous rated power
Power Conversion Efficiency: High-efficiency energy-saving conversion design, low heat generation
Output Stability: Ultra-low voltage ripple, constant voltage output under variable load conditions
Redundancy Support: Supports parallel redundant hot backup operation to realize fault-tolerant power supply
Protection Mechanism: Integrated overvoltage, overcurrent, short-circuit and over-temperature automatic protection
Isolation Performance: Complete electrical isolation between input and output to isolate grid surge and interference

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Anti-Interference Performance: Compliant with IEC industrial EMC, vibration and shock resistance standards
Environmental Adaptability: Dust-proof, moisture-proof and anti-aging industrial grade design for long-term continuous operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard cabinet rail mounting or chassis slot mounting
Hot-Swap Support: Supports online replacement and redundant switching without system shutdown
System Compatibility: Fully compatible with Triconex TMR/Trident series safety system equipment
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

Core Product Features

3.1 Wide-Voltage Adaptive & Ultra-Stable Output

The PM6301A supports 100~240VAC universal wide voltage input, adapting to complex and unstable industrial grid environments. With precise voltage stabilization and filtering circuit design, it achieves ultra-low ripple 24VDC constant voltage output, effectively avoiding system signal distortion, module reset and logic abnormality caused by grid voltage fluctuation, and providing pure and stable power guarantee for high-precision safety modules.

3.2 Redundant Hot-Backup Fault-Tolerant Operation

The module supports multi-unit parallel redundant hot backup configuration. When a single power supply module fails, overheats or outputs abnormally, the system automatically and seamlessly switches to the standby power module without power interruption or system restart. This fault-tolerant power supply architecture completely eliminates single-point power failure risks and ensures 100% continuous power supply for SIS safety systems.

3.3 Full-Range Multi-Dimensional Safety Protection

Integrated with overvoltage, overcurrent, short-circuit, over-temperature and surge multi-protection mechanisms, the can quickly trigger self-protection and cut off abnormal output in case of circuit faults. It effectively protects rear-end expensive SIS processors, I/O and communication modules from burnout and damage, greatly improving the overall safety and anti-risk capability of the power supply system.

3.4 High-Efficiency Energy-Saving & Low Heat Generation

Adopting advanced high-frequency switching power supply technology, the module features high power conversion efficiency and low operating power consumption. It maintains low heat generation during long-term full-load operation, avoiding equipment performance degradation and service life reduction caused by high-temperature heat accumulation, and adapting to long-term unattended continuous operation of industrial cabinets.

3.5 Strong Anti-Interference & Harsh Environment Adaptability

With built-in electromagnetic shielding and input-output isolation design, the module can resist complex industrial electromagnetic interference, grid surge and transient pulse signals. The wide-temperature industrial-grade hardware design ensures stable operation in extreme environments such as high temperature, low temperature, high humidity and strong vibration, with excellent environmental adaptability and operational stability.

3.6 Convenient Maintenance & High Scalability

Supports online hot-swap replacement without shutting down the SIS system, realizing zero-downtime maintenance of power supply equipment. The standardized modular design supports flexible power capacity expansion according to system I/O point increment, with simple installation and flexible configuration, meeting the later upgrade and expansion needs of large-scale safety systems.

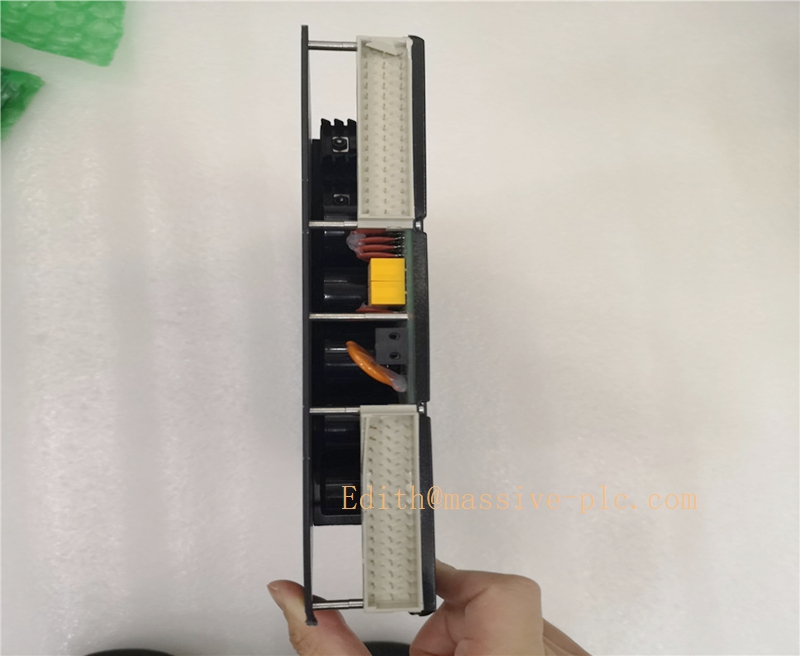

TRICONEX PM6301A

Similar Series Models

Triconex power supply series provides full-range high-reliability power supply solutions for industrial safety systems, covering different power levels and redundant types. The mainstream matching and alternative models of TRICONEX are as follows:

TRICONEX PM6302: High-power enhanced power supply module, suitable for large-scale SIS systems with more I/O points and higher power consumption.
TRICONEX PM6201: Standard low-power power supply module, cost-effective for small and medium-sized safety cabinet power supply scenarios.
TRICONEX 8312: TMR system dedicated redundant power supply unit, matched with to form multi-level power protection system.
TRICONEX 3009X / 3101: Main processor modules, stably powered by to execute safety logic operation.
TRICONEX 4355X: Multi-protocol communication module, relying on stable power supply to ensure uninterrupted network transmission.
TRICONEX DI3301S2 / 3723X: I/O acquisition modules, maintaining high-precision signal collection under purified power supply.

Product Summary

The TRICONEX is a SIL 3-grade high-reliability industrial power supply module specially designed for Triconex safety instrumented systems. With wide voltage adaptive input, ultra-stable DC output, redundant hot backup fault-tolerant architecture and full multi-dimensional safety protection, it solves common problems of industrial power supply such as unstable voltage, poor anti-interference and single-point failure. As the core power guarantee unit of SIS, ESD and F&G systems, it provides continuous, safe and high-quality power support for industrial safety control loops, and is widely used in global high-risk process industries.
