TRICONEX DO3626X: Technical Overview
The TRICONEX DO3626X is a high-performance Triple Modular Redundant (TMR) Digital Output (DO) module developed by Schneider Electric’s TRICONEX brand, purpose-built for safety-instrumented systems (SIS) deployed in mission-critical industrial environments. As a core execution component of Tricon safety controllers, it delivers fault-tolerant, high-availability output capabilities to meet SIL3-level functional safety requirements across high-risk process industries.

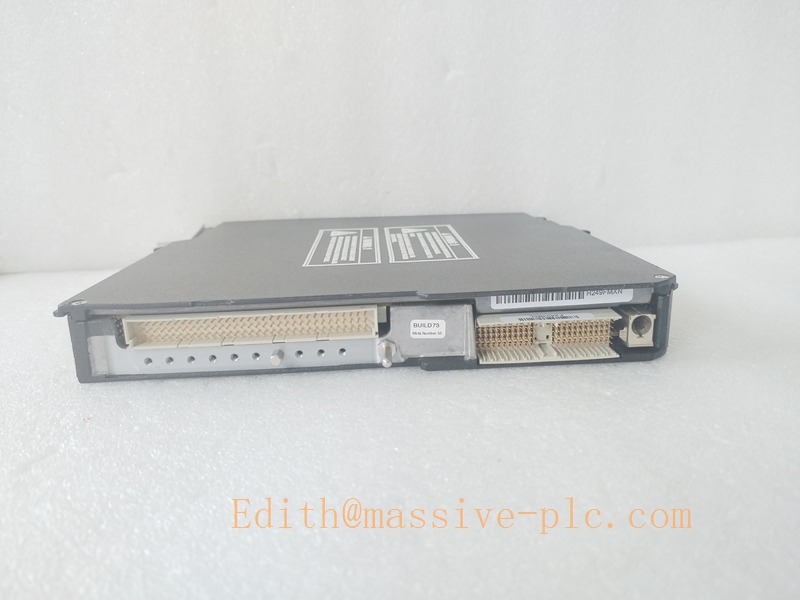

TRICONEX 3626X
Core Product Specifications
表格
| Parameter | Technical Specification |
|---|---|
| Manufacturer | TRICONEX (Schneider Electric) |
| Product Category | TMR De-energize-to-Trip Digital Output Module |
| Compatible Systems | Tricon v9, v10, v10.5, v11 safety control platforms |
| Channel Count | 8 or 16 isolated output channels (varies by hardware revision) |
| Nominal Operating Voltage | 24 VDC |
| Operating Voltage Range | 20 VDC to 36 VDC |
| Maximum Per-Channel Load Current | 2.0 A (pilot duty, resistive load) |
| Contact Rating | 2 A @ 30 VDC / 250 VAC per channel |
| Output Type | Form-C relay contacts (Common, Normally Open, Normally Closed) with TMR voting |
| Safety Integrity Level | SIL3 compliant |
| Isolation Rating | 500 VDC channel-to-channel isolation |
Key Design Features
- True TMR Architecture: Three independent, CPU-controlled output circuits operate in parallel, with a hardware 2-out-of-3 (2oo3) voting mechanism to validate output consistency. This design eliminates spurious trips and dangerous failures, delivering a Probability of Failure on Demand (PFD) lower than 10⁻⁴.
- Comprehensive Onboard Diagnostics: Real-time monitoring of channel health, output verification status, and voting logic performance, enabling granular channel-level fault localization without system shutdown.
- Fail-Safe Operation: The module remains energized during normal operation, and automatically de-energizes all outputs to a predefined safe state when a safety trip is triggered, fully complying with global process safety standards.
- Seamless Tricon Ecosystem Integration: Connects to the Tricon main processor via a dedicated high-speed backplane bus, supporting hot-swap replacement under permitted system configurations to minimize maintenance downtime.
- Industrial Hardening: Rugged aluminum housing and wide-temperature design ensure stable operation in harsh plant environments with high electromagnetic interference, vibration, and extreme ambient temperatures.
Typical Industrial Applications
The DO3626X serves as the final control element interface for critical safety loops, with widespread deployment in:
- Petrochemical and natural gas processing plants, for emergency shutdown (ESD) valve actuation and burner management system (BMS) control
- Thermal and nuclear power generation facilities, for turbine trip interlocks and boiler safety protection
- Offshore oil and gas platforms, for fire and gas (F&G) system alarm and suppression activation
- Chemical manufacturing sites, for reactive process safety interlocks to prevent hazardous material release
Installation Guidelines
- Mount the module in a standard Tricon system chassis, ensuring secure locking of the DIN rail or chassis slot mechanism.
- Connect field output wiring to the corresponding Form-C relay terminals, maintaining minimum 500V isolation clearance between high-voltage and low-voltage signal lines.
- Verify that the 24 VDC power supply matches the module’s operating range, and confirm proper grounding of the system chassis to eliminate ground loop interference.
- Complete configuration and commissioning via TriStation 1131 engineering software, performing full channel loop testing before putting the module into safety service.

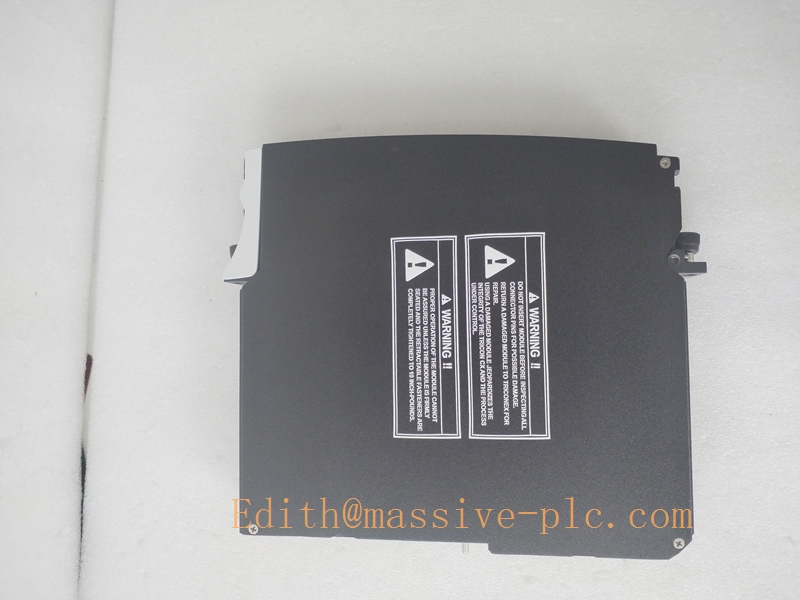

TRICONEX 3626X
Maintenance & Troubleshooting
- Perform quarterly routine inspections to check module status LEDs, terminal tightness, and heat dissipation conditions.
- Use the system’s built-in diagnostic interface to read fault codes: a red channel LED indicates an open load, short circuit, or internal voting mismatch, which can be resolved by targeted channel isolation or hot-swap replacement.
- All field maintenance operations must follow safety lockout/tagout (LOTO) procedures to avoid unintended safety loop tripping.
- Return faulty modules to TRICONEX authorized service centers for component-level repair, as field disassembly will void the functional safety certification.
Related Tricon Series Modules
The DO3626X belongs to TRICONEX’s Tricon general-purpose safety I/O family, with commonly paired and peer modules including:
- 3625: 24 VDC TMR isolated digital output module, for standard low-power safety load scenarios
- 3611E: 115 VAC digital output module, designed for AC-powered field safety devices
- 3636T: 32-point dry contact relay output module (non-TUV certified), for non-safety auxiliary control loops
- 3805E: 4-20 mA analog output module, for continuous safety regulation loops such as compressor anti-surge control
