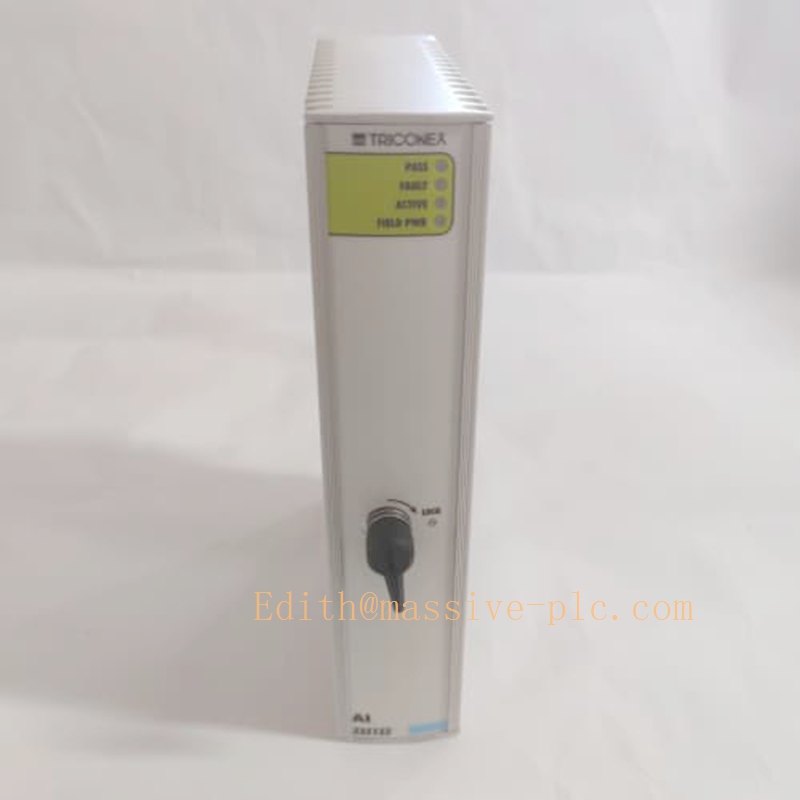

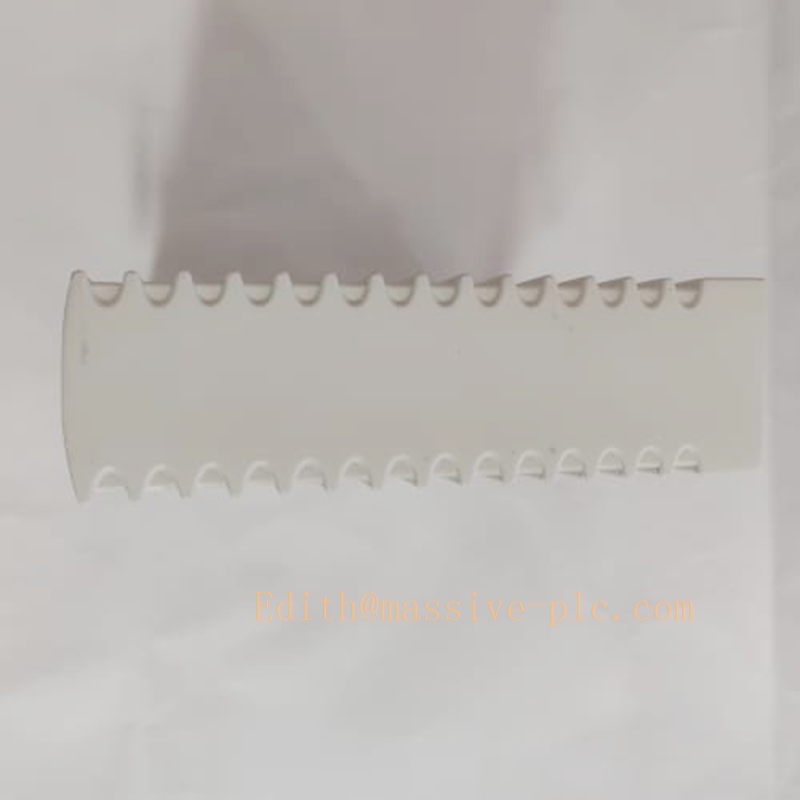

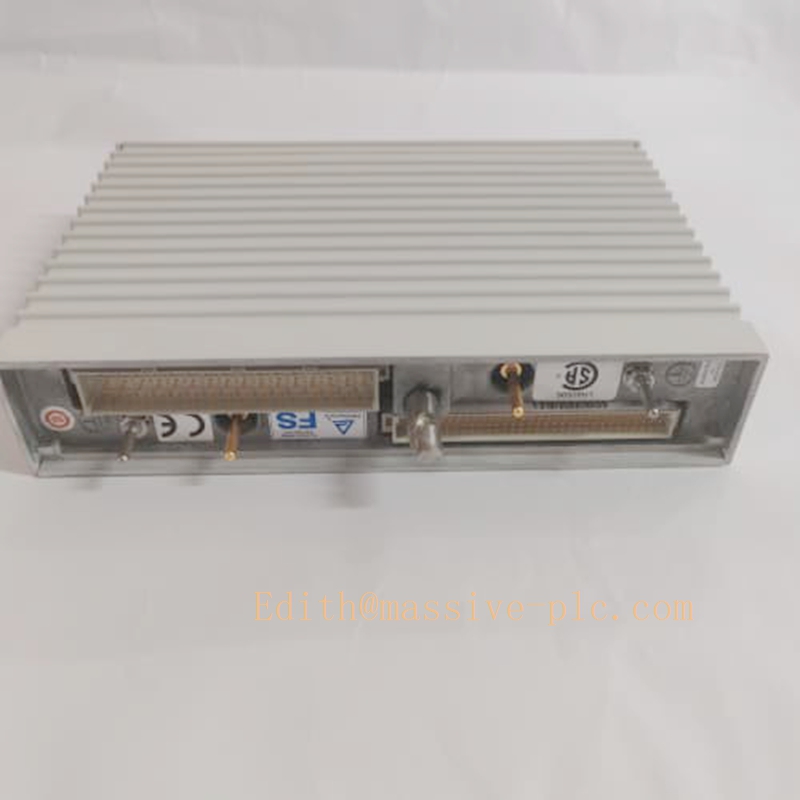

TRICONEX AI6700 Analog Input Module
Product Overview
The TRICONEX AI6700 is a high-precision Analog Input Module designed for the Tricon Safety Instrumented System (SIS). Engineered for harsh industrial environments, it serves as a critical interface for converting standard field signals (such as temperature, pressure, and flow) into digital data for the main processor. Operating within a Triple Modular Redundant (TMR) architecture, this module ensures maximum data integrity and system availability for mission-critical process control and safety interlocking applications.
Technical Specifications & Parameters
| Parameter | Specification |
|---|---|
| Module Type | High-Precision Analog Input Module |
| Signal Type | Analog Input (Supports Voltage, Current, Thermocouple/RTD) |
| Safety Integrity | IEC 61508 SIL3 Compliant |
| Redundancy | Triple Modular Redundant (TMR) Architecture |
| System Platform | Tricon Safety Control System |
| Communication | Supports Modbus, CAN bus, Ethernet protocols |
| Mounting | Standard Tricon Rack Slot Installation |
| Application | Petroleum, Chemical, Power, Mining, Water Treatment |
Key Features
- High-Precision Signal Conversion: Utilizes advanced signal processing technology to accurately convert a wide range of analog signals into digital data, ensuring reliable input for complex safety logic and PID control loops.
- TMR Fault Tolerance: Operates within the Tricon TMR architecture, where three independent channels acquire data in parallel and vote on results. This ensures continuous safe operation and prevents spurious trips even if a single channel fails.
- Advanced Diagnostics: Features built-in self-diagnostic capabilities to continuously monitor hardware status and loop integrity. It can detect and isolate faults such as open or short circuits, triggering alarms to facilitate rapid troubleshooting.
- Seamless System Integration: Designed for seamless integration into larger control architectures. It supports standard industrial communication protocols, enabling efficient data exchange with Tricon main processors and other DCS/PLC controllers.
- Robust Industrial Design: Built to withstand harsh industrial environments, making it ideal for critical infrastructure in power generation, mining, and petrochemical industries where reliability is paramount.
Installation Guidelines
- Rack Installation: Insert the module into a compatible Tricon rack slot, ensuring it is securely seated and locked in place for reliable backplane communication.
- Signal Wiring: For analog signals, always use shielded cables and ensure proper grounding to prevent electromagnetic interference (EMI) from affecting data accuracy.
- Software Configuration: Utilize TriStation 1131 software to configure channel parameters (e.g., signal type, scaling, alarm limits) and monitor diagnostic status in real-time.
- Environmental Protection: In environments with heavy dust or corrosive gases, regularly inspect terminal connections and ensure cabinet temperature and humidity remain within specified limits.
Related Series Models
The AI6700 is part of the broader Tricon analog and digital I/O family. Common related models include:
- AI3281: 32-Channel Analog Input Module, often used for higher channel density applications.
- 3721 / 3805E: Analog and Digital I/O modules frequently paired with the AI6700 in mixed I/O racks.
- 3503E: Digital Input modules that complement the AI6700 in comprehensive safety system designs.
- MP3101S2: Main Processor Module that typically manages the data acquired by the AI6700.
