Name: TRICONEX 9771-210 Analog Input Terminal Panel - MASSIVE
Brand: Triconex

Description

TRICONEX 9771-210 Analog Input Terminal Panel

The TRICONEX 9771-210 is a high-precision, safety-grade Analog Input External Terminal Panel (AI ETP) exclusively designed for Triconex Tricon Classic and 9000 series SIS safety systems. Specially optimized for 0–5VDC analog signal conversion and field termination, this terminal board integrates precision resistance conversion circuits, current-limiting protection and redundant power supply diode ORing design. It serves as the dedicated physical interface between Triconex analog input modules and field process transmitters, realizing standard current-to-voltage signal conversion, stable signal conditioning and reliable loop protection. Fully compliant with IEC 61508 SIL 3 functional safety standards, the 9771-210 ensures high-accuracy analog data acquisition integrity for critical safety loops in high-risk industrial environments.

Product Applications

The TRICONEX 9771-210 is widely applied in safety-critical process industries requiring precise analog signal conversion and standardized field termination, including onshore and offshore oil & gas facilities, petrochemical complexes, coal chemical plants, thermal power stations and fine chemical manufacturing. As a core supporting terminal accessory for Triconex analog safety loops, it focuses on standard process parameter signal conditioning and protection, with typical application scenarios as follows:

Standard Process Analog Signal Termination: Specialized for 4–20mA field transmitter signal access, converting industrial current signals to standard 0–5VDC voltage signals through built-in precision resistors for SIS analog input module recognition and high-precision collection.
Critical Parameter Safety Monitoring Loops: Applies to pressure, temperature, liquid level and flow monitoring loops of key process units, providing accurate signal conversion and stable transmission basis for ESD interlock judgment, over-limit alarm and safety trip control.
High-Precision SIS Data Acquisition Scenarios: Adapts to fine process monitoring links requiring low drift and high linearity signal conversion, effectively avoiding data deviation caused by on-site signal disorder and ensuring the authenticity and accuracy of safety loop analog data.
Redundant Power Supply Safety Loop Construction: Supports dual 24VDC redundant power input with built-in diode ORing circuit, realizing non-intrusive power switching and zero power interruption for safety loops, improving overall system operational availability.
Standardized SIS Cabinet Analog Wiring: Enables centralized and classified termination of multi-channel analog signals with unified marking specifications, standardizing cabinet wiring engineering, simplifying daily inspection and greatly improving fault troubleshooting efficiency.
Harsh Industrial Anti-Interference Signal Conditioning: With built-in current-limiting and anti-surge protection structure, it suppresses on-site electromagnetic interference and voltage transient fluctuations, protecting rear-end high-precision AI modules from field electrical faults and ensuring long-term stable loop operation.

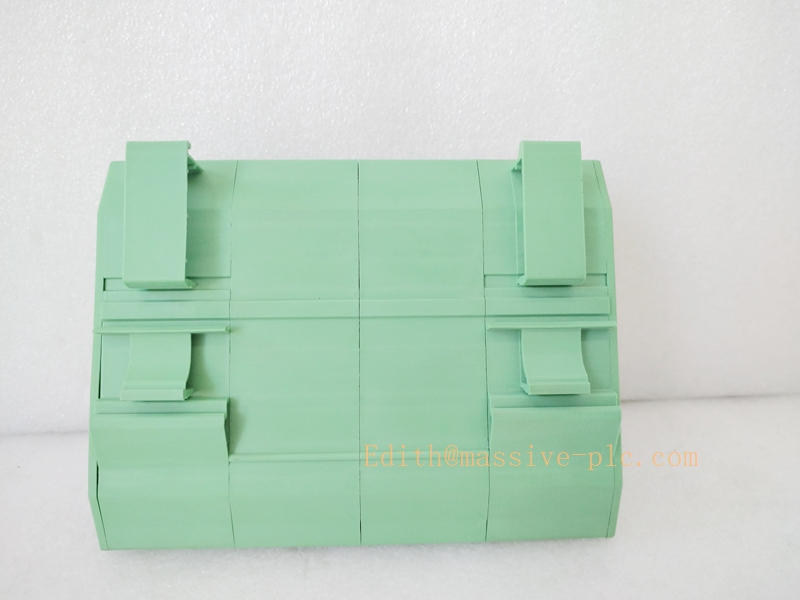

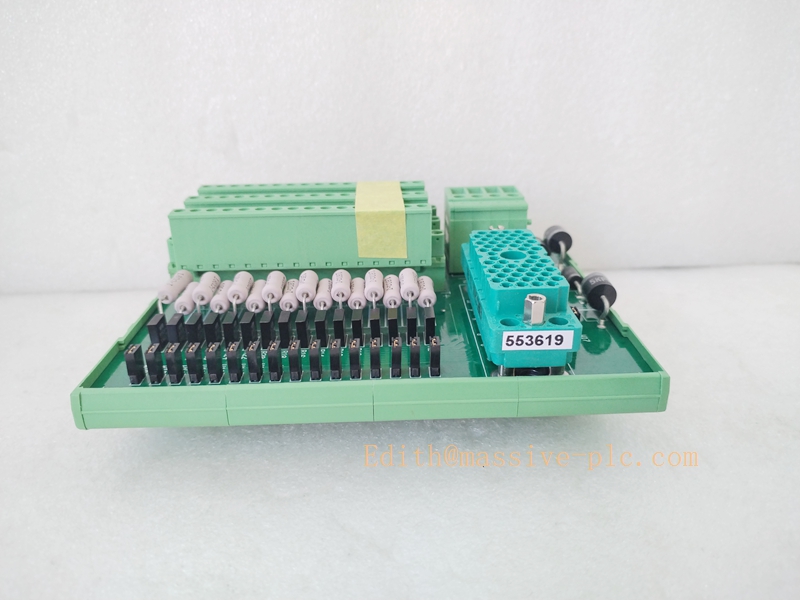

TRICONEX 9771-210F

Technical Specifications & Parameters

The TRICONEX 9771-210 adopts Triconex official dedicated analog conditioning circuit design, integrating precision 250Ω signal conversion resistors, 180Ω current-limiting resistors and redundant power supply switching circuit. Featuring standard 16-channel signal processing, ultra-low signal drift and strict SIL 3 safety compliance, it fully meets high-precision analog safety loop wiring and conversion requirements for industrial SIS systems. Detailed authoritative specifications are listed below:

2.1 Electrical & Signal Conversion Parameters

Product Type: SIS Analog Input External Terminal Panel (AI ETP)
Fully Compatible Modules: Triconex 3721, 3703E, 3503C1 series TMR analog input modules
Signal Conversion Principle: Converts 4–20mA field current signal to 0–5VDC standard voltage signal
Precision Conversion Resistor: 250Ω high-precision signal sampling resistor per channel
Channel Current-Limiting Protection: 180Ω series current-limiting resistor per positive terminal
Channel Density: 16 independent configurable analog signal channels
Power Supply Mode: Supports dual redundant 24VDC power input with diode ORing hot switching
Signal Accuracy: Ultra-low conversion drift, ensuring full-scale sampling accuracy ≤ ±0.15%
Built-In Protection: Channel over-current limiting, transient surge suppression and loop fault isolation
Terminal Structure: Anti-loose screw terminals with unified channel marking, anti-oxidation and anti-corrosion

2.2 Environmental Parameters

Operating Temperature: -20°C to +60°C industrial rated working range
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Performance: Compliant with industrial EMC electromagnetic immunity, vibration and mechanical shock resistance standards
Environmental Resistance: Dust-proof, moisture-proof, salt-spray resistant and anti-aging reinforced design
Working Condition: Suitable for long-term continuous operation in closed industrial safety cabinets

2.3 Mechanical & Certification Parameters

Installation Method: Standard cabinet fixed mounting, compact rack layout matching SIS cabinet specifications
Structural Feature: Integrated 16-channel centralized layout, independent channel partitioning to avoid crosstalk
PCB Material: High-strength flame-retardant industrial substrate, anti-breakdown and anti-electromagnetic interference
Safety Certification: IEC 61508 SIL 3, ISA S84, CE, UL international full certification
Design Service Life: More than 10 years of stable service life under standard industrial operating conditions

Core Product Features

3.1 Professional 4–20mA to 0–5VDC Precision Conversion

The 9771-210 is professionally customized for industrial standard analog signal conversion. Each channel is equipped with a built-in high-precision 250Ω sampling resistor, which accurately converts universal 4–20mA transmitter current signals to 0–5VDC voltage signals that match Triconex AI module acquisition range. The fixed precision resistance design eliminates manual calibration errors, ensuring linear and consistent signal conversion of each channel and providing high-fidelity original data for SIS safety logic judgment.

3.2 Independent Channel Current-Limiting Safety Protection

Every signal positive terminal is equipped with a 180Ω series current-limiting resistor, forming independent single-channel over-current protection. When field loops experience short circuits, overload or instantaneous current surges, the current-limiting structure effectively suppresses abnormal current transmission, blocking fault diffusion from field equipment to precision analog input modules. It thoroughly protects high-precision SIS acquisition modules from burnout and damage, improving loop fault tolerance and safety stability.

3.3 Dual Redundant Power Supply Hot Switching Design

Adopting built-in diode ORing redundant power supply circuit, the terminal board supports dual 24VDC power source access and automatic non-intrusive switching. In case of failure or power loss of a single power supply, the system instantly switches to the backup power source without signal interruption or data loss. This design completely avoids safety loop outage risks caused by single power supply failure, greatly improving the overall availability of analog safety monitoring systems.

3.4 Zero Crosstalk High-Stability Signal Transmission

With independent channel partitioning and isolated wiring structure, the 9771-210 effectively eliminates inter-channel signal crosstalk and interference. The low-drift resistance components and optimized circuit layout ensure stable signal conversion and distortion-free long-distance transmission. It maintains excellent signal linearity and consistency in high-temperature, high-humidity and strong electromagnetic interference environments, fully meeting high-precision safety monitoring requirements.

3.5 Standardized Cabinet Wiring & Efficient Maintenance

The product adopts standardized 16-channel centralized layout and clear unified marking design, realizing orderly classification and termination of analog signals. It standardizes SIS cabinet analog wiring specifications, solves the problems of messy wiring and difficult fault location in traditional construction. It supports single-channel independent inspection and maintenance without affecting the normal operation of other safety loops, greatly improving engineering quality and later maintenance efficiency.

3.6 Strict SIL 3 Full-Link Safety Guarantee

As a SIL 3-certified dedicated analog terminal board for SIS systems, all circuit design, component selection and performance indicators comply with IEC 61508 and ISA S84 functional safety standards. Different from ordinary industrial terminal boards without safety certification, it realizes full-link safety specification matching from field loop termination, signal conversion to module acquisition, eliminating hidden safety hazards in analog signal links and ensuring the overall safety integrity of SIS systems.

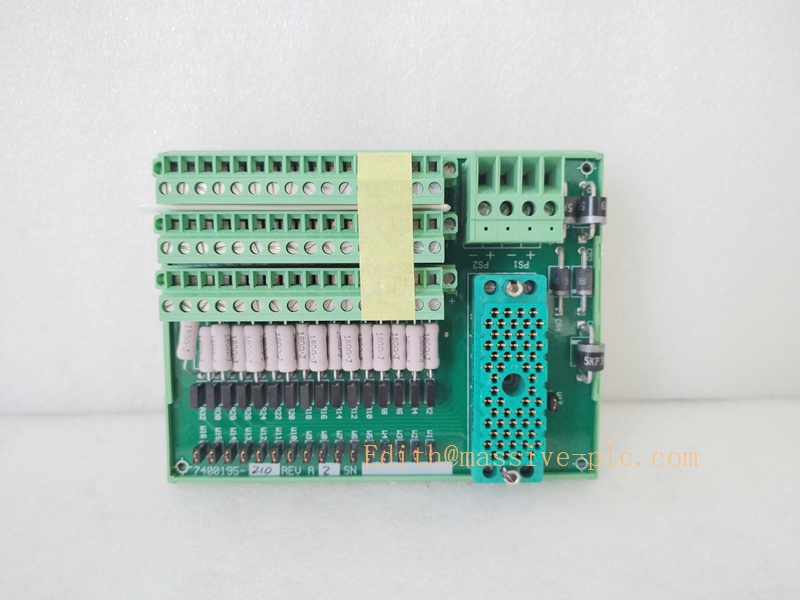

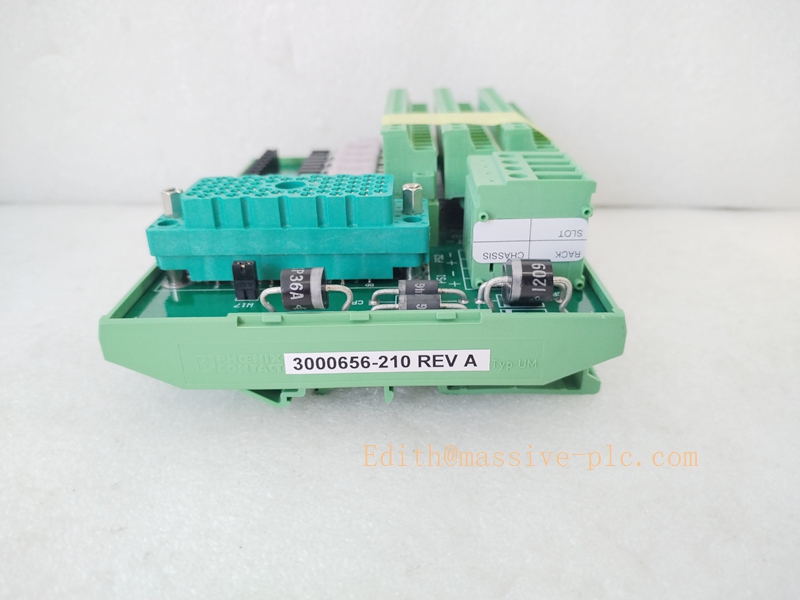

TRICONEX 9771-210F

Matching System Modules & Similar Accessories

The 9771-210 forms a complete high-precision analog safety acquisition solution with Triconex analog modules and system platforms. The mainstream matching and alternative products are as follows:

Matching Analog Input Modules: 3721, 3703E, 3503C1 (full-series Triconex TMR high-precision AI modules)
Matching Digital Terminal Board: 9674-810 (supporting unified standard wiring of analog and digital loops in SIS cabinets)
Supporting Communication Modules: 5351, ACM4609, 4355X (realizing real-time upload and remote monitoring of analog safety data)
Compatible Controller Platforms: Tricon Classic Series, 4200 Compact SIS Controller, 9000 Series High-End SIS Platforms
Supporting I/O Modules: 3501T, 3506X, 3601E, forming complete system signal acquisition and safety interlock closed loop

Product Summary

The TRICONEX 9771-210 is a SIL 3-grade dedicated high-precision analog input terminal panel for Triconex SIS safety systems. Featuring professional 4–20mA to 0–5VDC precision conversion, independent channel current-limiting protection, dual redundant power supply hot switching, zero-crosstalk stable signal transmission and standardized engineering wiring, it solves the common pain points of ordinary terminal boards such as low conversion accuracy, insufficient protection and single power supply risk. As the core supporting accessory for SIS analog safety loops, it provides accurate signal conversion and reliable loop protection for process parameter monitoring, ESD interlock and safety early warning systems, and is widely applied in global high-risk process industrial safety control projects.
