Product Overview: TRICONEX 9566-810F Communication Module
The TRICONEX 9566-810F is a specialized Tricon Communication Module (TCM) designed for the Triconex Safety Instrumented System (SIS). As a critical component in industrial safety control, it serves as the primary communication gateway, ensuring that the safety system integrates seamlessly with the broader plant information network without compromising the system’s Triple Modular Redundancy (TMR) architecture.
Key Features
- TMR Architecture Support: Operates within the Triconex TMR safety system, utilizing “2-out-of-3” voting logic to ensure no single point of failure causes a system shutdown or false trip.
- Multi-Protocol Gateway: Supports a wide range of industrial protocols, including TriStation (proprietary), Modbus (Master/Slave via serial or TCP/IP), TCP/IP, UDP/IP, and SNTP for network time synchronization.
- GPS Time Synchronization: Serial Port #1 supports Trimble GPS interface for precise, system-wide time synchronization.
- High Availability: Supports online module replacement without shutting down the process. While it does not support hot standby, its robust design ensures continuous operation.
- System Integration: Seamlessly integrates with Tricon v10.0 and above, 3008 Main Processors, and 3625/3664 I/O modules.

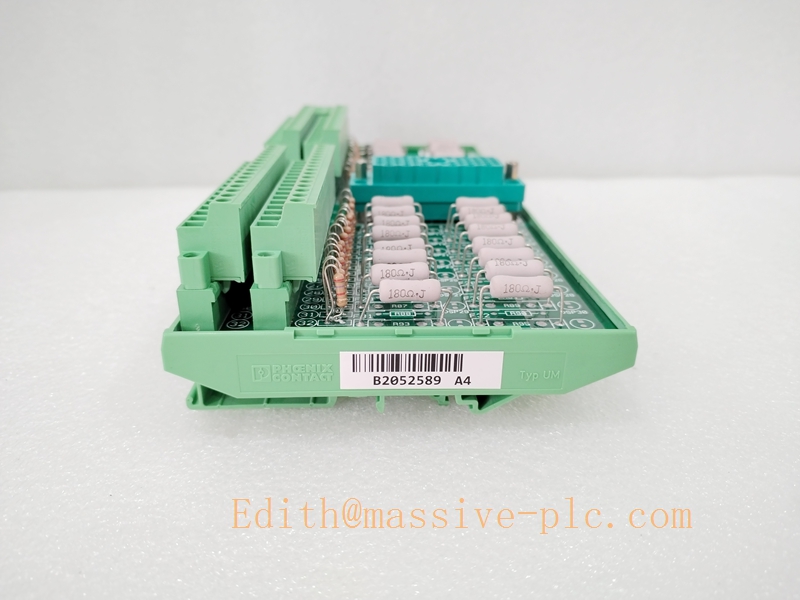

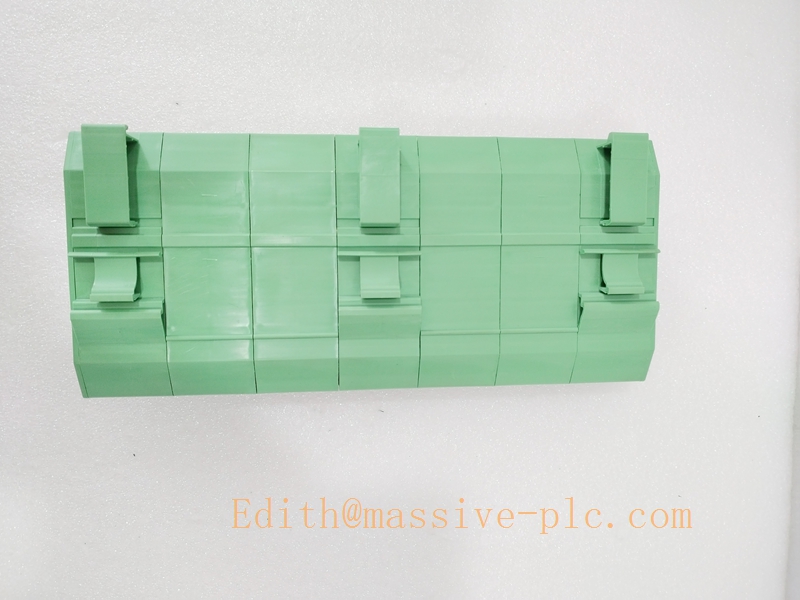

TRICONEX 9566-810
Technical Specifications & Parameters
| Parameter | Specification |
|---|---|
| Product Type | Tricon Communication Module (TCM) |
| Ethernet Ports | 2 x Copper Ethernet (NET 1 & NET 2), 10/100 Mbps |
| Serial Ports | 4 x Serial Ports (Max 115.2 Kbps each, Aggregate 460.8 Kbps) |
| Port Isolation | 500 VDC |
| System Capacity | Max 4 TCMs per system (occupies 2 logical slots); Max 32 Modbus connections |
| Physical Weight | Approx. 3.18 kg (Shipping weight: 4.5 kg) |
| Compatibility | Tricon v10.0+, 3008 Main Processor, 3625/3664 I/O Modules |
Industrial Applications
The 9566-810F is engineered for mission-critical environments where safety and data integrity are paramount:
- Emergency Shutdown Systems (ESD): Safety interlocks for reactors and compressor trains.
- Fire & Gas (F&G) Systems: Detection and联动 (linkage) protection.
- Burner Management Systems (BMS): Combustion safety control.
- High-Integrity Pressure Protection Systems (HIPPS).
- Turbine/Compressor Control: Anti-surge and speed control.
- Target Industries: Oil & Gas, Petrochemical Refining, LNG Terminals, Power Generation, and Offshore Platforms.
Installation Guidelines
- Slot Allocation: Each TCM occupies 2 logical slots in the Tricon chassis. Different TCM models cannot be mixed within the same logical slot.
- Mounting: Designed for standard Tricon chassis backplane integration. Ensure the chassis is properly grounded before installation.
- Wiring: Utilize shielded twisted-pair cables for serial and Ethernet connections to maintain signal integrity in high-noise industrial environments.
- Configuration: Use Triconex TriStation software for network configuration, IP assignment, and protocol mapping.

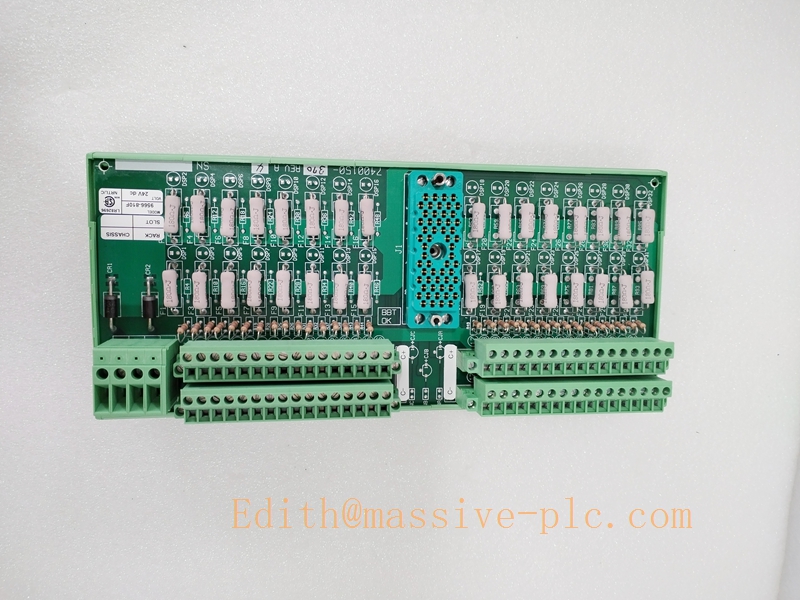

TRICONEX 9566-810
Maintenance & Troubleshooting
- Online Replacement: The module supports hot-swapping. In the event of a fault, the module can be replaced without powering down the safety system or interrupting the process.
- Diagnostics: Utilize the TriStation diagnostic tools to monitor port status, error counters, and communication health.
- Firmware: Ensure the module firmware is compatible with the main processor version (v10.0+) before deployment.
- Preventive Care: Regularly inspect physical connectors for corrosion or looseness, especially in offshore or high-humidity environments.
Related Series Models
- 4352B: Fiber Optic Ethernet Communication Module (100 Mbps).
- 4353: Copper Ethernet Communication Module (100 Mbps only, supports embedded OPC Server).
- 4354: Advanced Communication Module with OPC Server support.
- 4351B: Legacy Communication Module.
