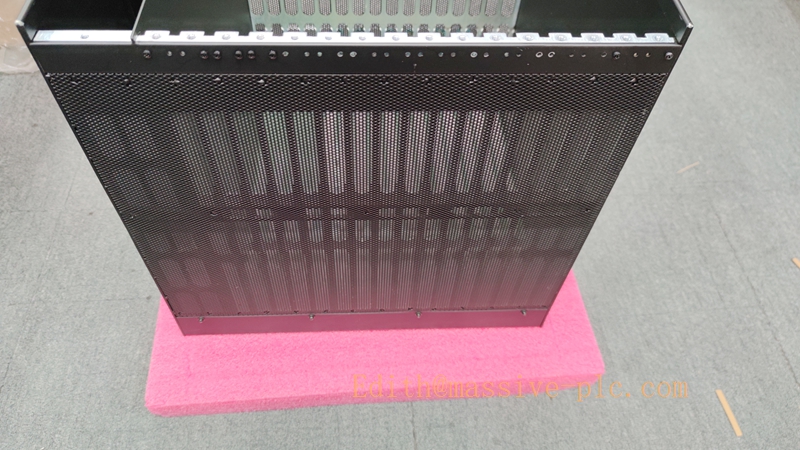

TRICONEX 8112 Remote Expansion Chassis

Description

TRICONEX 8112 Remote Expansion Chassis Product Introduction

Product Overview

The TRICONEX 8112 is a high-reliability TMR Remote Expansion Chassis exclusively designed for Tricon and Trident Safety Instrumented Systems (SIS). Serving as a core remote I/O expansion unit for fault-tolerant safety control systems, it works in coordination with the main controller chassis to expand system I/O capacity and extend remote signal acquisition and control distances. The 8112 chassis supports full-series Tricon I/O modules and communication modules, realizing distributed layout of on-site safety signals and centralized logic control of the main system.

Adopting industry-standard triple modular redundancy compatible architecture and reinforced industrial chassis design, the 8112 completely adapts to TMR 2oo3 fault-tolerant system operation logic. It features large-capacity slot expansion, long-distance stable communication, strong anti-interference capability and full-system safety compatibility. Certified with IEC 61508 SIL 3 functional safety and TÜV safety approval, the chassis supports online hot-swap of all I/O modules, non-stop system expansion and long-term stable operation in harsh industrial environments. It is widely deployed in petrochemical, natural gas, thermal power and coal chemical industries, solving the layout limitations of traditional integrated racks and realizing flexible expansion of large-scale safety control systems.

Same-Series Model Classification & Peer Models

The TRICONEX 8112 belongs to the Tricon 81xx System Chassis Series, positioned as a high-capacity long-distance remote expansion chassis, forming a complete main and expansion rack system with other chassis models, with clear differentiated positioning in system layout scenarios:

2.1 Product Positioning: High-capacity remote expansion chassis, no built-in main processor, dedicated to remote I/O signal expansion and distributed safety signal collection. It supports long-distance signal transmission and large-quantity I/O module expansion, suitable for large-span industrial sites and large-scale SIS system capacity expansion scenarios.

2.2 Same-Series Typical Peer Models

8110 Main Chassis: Core main control chassis, equipped with main processor slots and system bus, used for system logic operation and core control, unable to support independent remote expansion.

8111 Expansion Chassis: Standard short-distance expansion chassis with fewer slots and limited expansion capacity, only suitable for short-distance adjacent expansion scenarios, insufficient for long-distance and large-capacity expansion demands.

HD8311/8305A Power Modules: Matching chassis power supply units, providing stable fault-tolerant power support for 8112 expansion chassis and internal I/O modules.

3008 Main Processor: Core control unit of the main chassis; the 8112 expansion chassis transmits remote I/O signal data to the main processor for unified logic judgment and safety control.

2.3 System Compatibility: Fully compatible with classic Tricon racks and Trident safety systems, perfectly matched with all Tricon series I/O modules, communication modules and redundant power modules. It supports full-version TriStation 1131 configuration, online monitoring, system expansion debugging and fault diagnosis, realizing plug-and-play system capacity expansion and remote layout upgrade.

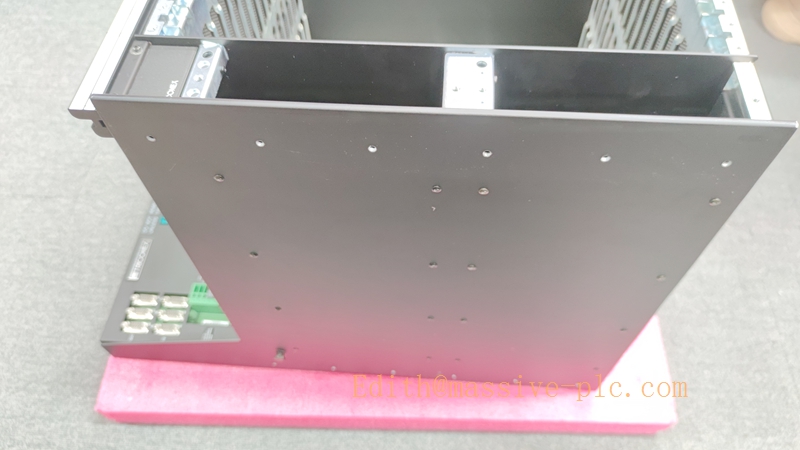

TRICONEX 8112

Core Technical Specifications & Product Specifications

Core Main Functions

4.1 Remote I/O Signal Expansion

As a dedicated remote expansion carrier for Tricon SIS systems, the 8112 chassis undertakes core remote I/O expansion functions. It can centrally install and carry multiple digital input, digital output, analog input and analog output modules, collect distributed on-site safety signals from long-distance positions, and transmit valid data to the main chassis processor for unified logic operation and safety judgment, effectively solving the problem of signal attenuation and layout difficulty of long-distance industrial signals.

4.2 System Capacity Expansion & Layout Optimization

Equipped with 16 high-capacity module slots, the 8112 greatly improves the I/O expansion capacity of the SIS system. It supports flexible grouping and configuration of different types of I/O modules, realizing regional distributed layout of on-site safety control points. It avoids the problem of insufficient slots of the main chassis and crowded cabinet layout, optimizes the overall system structure, and improves the rationality and scalability of large-scale safety system design.

4.3 High-Speed Fault-Tolerant Data Transmission

Built-in dedicated high-speed fault-tolerant backplane bus, the 8112 chassis supports real-time, stable and error-free transmission of remote I/O data. It is fully compatible with the TMR system voting mechanism, ensuring that remote collected signal data can complete 2oo3 fault-tolerant judgment synchronously with the main system, no data delay, loss or distortion occurs, and the consistency and integrity of remote and local control logic are guaranteed.

4.4 Full-Condition System Status Monitoring

The chassis integrates comprehensive status monitoring and diagnosis functions, which can real-time monitor chassis operating temperature, backplane bus communication status, module insertion status and power supply operating conditions. It automatically identifies abnormal conditions such as module loose connection, bus communication failure and over-temperature operation, generates standard fault codes and alarm logs, and supports remote upper computer monitoring, facilitating operation and maintenance personnel to quickly locate and eliminate faults.

4.5 Zero-Downtime Online Maintenance Support

The 8112 chassis inherits the series-standard hot-swap design, supporting online plugging, replacement and maintenance of all internal I/O modules and communication modules. The expansion chassis and main system operate independently and synchronously, and module maintenance will not affect the normal operation of the main control system and other loop signals, realizing zero-downtime maintenance of remote safety control loops and ensuring 24/7 continuous and stable operation of industrial safety systems.

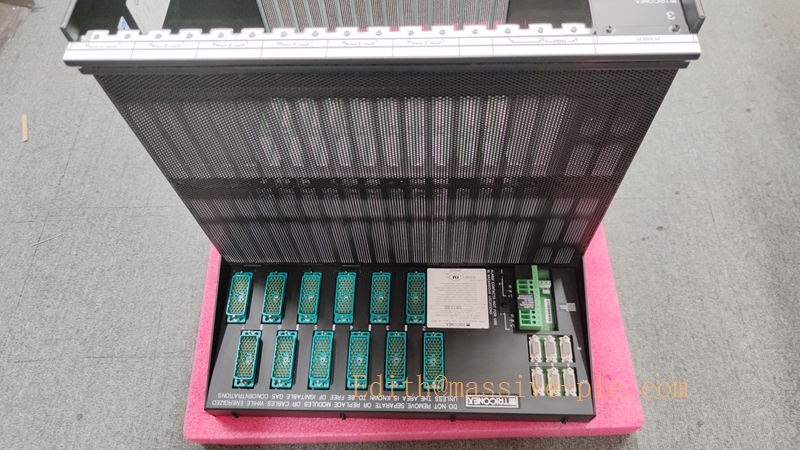

TRICONEX 8112

Core Product Features

5.1 TMR System Full Compatibility & High Safety

The 8112 chassis is fully optimized for Tricon TMR fault-tolerant safety systems, completely matching the 2oo3 voting logic and redundant operating mechanism of the main system. It has passed SIL3 functional safety certification, ensuring that remote expanded I/O loops have the same high safety integrity level as local loops, eliminating safety risks caused by remote signal transmission and expansion, and meeting the highest safety standards of high-risk industrial SIS systems.

5.2 Large-Capacity High-Density Expansion

With 16 configurable universal slots, the 8112 achieves high-density integration of remote I/O expansion. It supports mixed installation of various types of I/O and communication modules, with flexible configuration modes and strong scene adaptability. Compared with conventional expansion chassis, it has larger single-machine expansion capacity, effectively reducing the number of chassis deployment and system integration costs, and simplifying on-site cabinet layout.

5.3 Long-Distance Stable Signal Transmission

Adopting enhanced long-distance bus transmission technology and signal anti-attenuation design, the 8112 chassis realizes stable and reliable transmission of remote safety signals over long distances. It effectively resists industrial long-distance signal interference, line attenuation and waveform distortion, ensures the accuracy and real-time performance of remote acquisition and control signals, and adapts to large-span industrial production sites such as chemical parks and long-distance pipelines.

5.4 Harsh Environment Super Adaptability

Adopting reinforced industrial-grade chassis structure and high-temperature resistant, anti-aging and vibration-resistant components, the 8112 passes strict G3-level harsh environment tests and EMC electromagnetic compatibility certification. It operates stably in -40℃~+85℃ ultra-wide temperature range and high-humidity non-condensing environment, resisting on-site mechanical vibration, dust corrosion and strong electromagnetic interference, suitable for long-term uninterrupted operation in harsh industrial scenarios.

5.5 Flexible & Modular Expandable Design

The chassis adopts standardized modular design, supporting arbitrary combination and expansion of I/O modules, and can flexibly adjust system I/O capacity according to on-site project scale. It supports multi-chassis cascading expansion, meeting the I/O capacity expansion demands of ultra-large-scale safety control systems. The plug-and-play design greatly simplifies system transformation, upgrading and expansion construction, improving project implementation efficiency.

5.6 Intelligent Full-Coverage Fault Diagnosis

Equipped with multi-dimensional intelligent diagnosis function, the 8112 chassis can comprehensively monitor chassis hardware status, bus communication, module operating status and environmental parameters. It can accurately locate faults such as module failure, line abnormality and bus interruption, and feed back fault information to the main system in real time. The visualized fault alarm greatly reduces the difficulty of on-site operation and maintenance and improves system safety management efficiency.

TRICONEX 8112

Industrial Application Scenarios

The TRICONEX 8112 high-capacity remote expansion chassis is widely used in SIL3-level high-risk industrial safety instrumented systems, focusing on distributed remote signal acquisition and large-scale system I/O capacity expansion scenarios, covering petrochemical, natural gas gathering and transportation, LNG terminal, thermal power generation, coal chemical, metallurgical and long-distance pipeline industries.

Specific application scenarios include: remote I/O expansion and distributed signal collection of large chemical park ESD emergency shutdown systems; long-distance signal acquisition and linkage control of natural gas transmission pipelines and storage facilities; regional safety signal expansion of thermal power plant boiler and turbine safety control systems; cabinet layout optimization and capacity expansion of renovated and upgraded SIS systems; distributed safety monitoring and interlock control of large-scale industrial integrated production lines. It provides stable and reliable remote expansion support and system layout guarantee for large-span and large-capacity industrial safety control systems.
