TRICONEX 5482‑1S2 Analog Output Module

Product Overview

The TRICONEX 5482‑1S2 is a TMR analog output module for the Tricon 5000‑series Safety Instrumented System (SIS). This S2‑revision hardware converts digital safety logic commands from triple redundant main processors into high‑precision 4‑20 mA analog current signals for modulating control valves and field actuators. Each output channel is driven by three independent internal circuit legs with median‑value voting logic. It delivers enhanced diagnostic coverage and improved EMI noise immunity compared to the base 5482‑1 version, complying with IEC 61508 SIL 3 for safety‑critical process safety loops.

Typical Applications

ESD Emergency Shutdown System: Drive modulating control valves for safety‑related process regulation in refineries and petrochemical complexes.
BMS Burner Management System: Modulate fuel‑gas control valves to regulate combustion parameters for burner safety supervision.
HIPPS High‑Integrity Pressure Protection System: Provide analog modulating output for pressure‑control safety valves.
Turbine & Compressor Protection: Deliver 4‑20 mA control signals for steam / fuel valve positioning in power‑generation safety cabinets.
Oil‑gas On‑shore & Off‑shore Facilities: Control pipeline pressure regulating valves within SIS safety loops.
Chemical Process Safety: Adjust reactor feed and temperature‑related modulating actuators for safety interlock applications.

Technical Specifications

Item	Parameter
Model	5482‑1S2
Module Type	TMR Analog Output Module (S2 Hardware Revision)
Compatible Platform	Tricon 5000‑series SIS chassis
Channel Count	8 galvanic‑isolated analog output channels
Output Signal	4‑20 mA DC current
Resolution	12‑bit
Accuracy	±0.1 % Full‑Scale typical
Maximum Load Resistance	600 Ω per channel
Galvanic Isolation	1500 V channel‑to‑backplane isolation
Architecture	Triple Modular Redundant (TMR), median‑value voting
Safety Certification	SIL 3 compliant per IEC 61508
Backplane Bus	TriBus proprietary high‑speed backplane
Diagnostics	Open‑circuit, short‑circuit, load‑fault and internal hardware self‑diagnostics
Operating Temperature	0 °C ~ +60 °C
Storage Temperature	‑40 °C ~ +85 °C
Humidity	5 %‑95 % RH, non‑condensing
Net Weight	1.48 kg
Installation Environment	Cabinet‑only mounting, IP20 protection
Matching Accessories	4000‑series pre‑fabricated termination cable assemblies

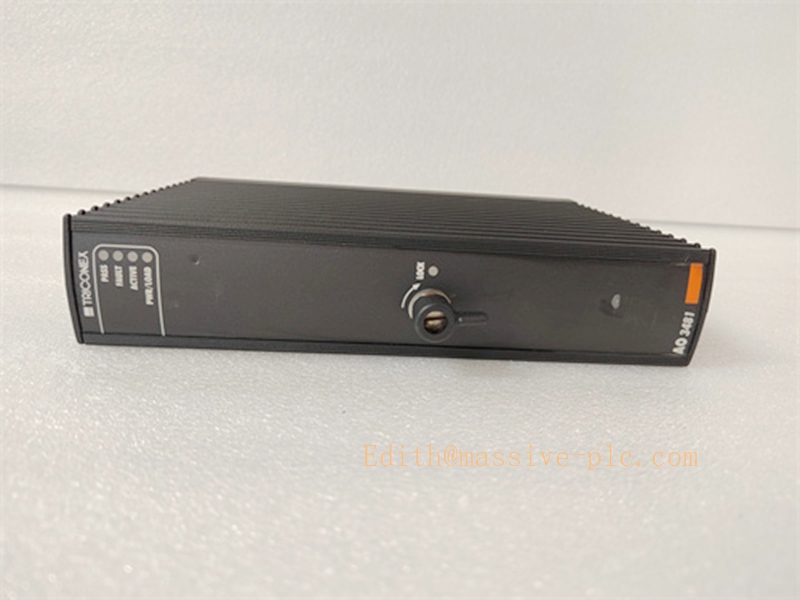

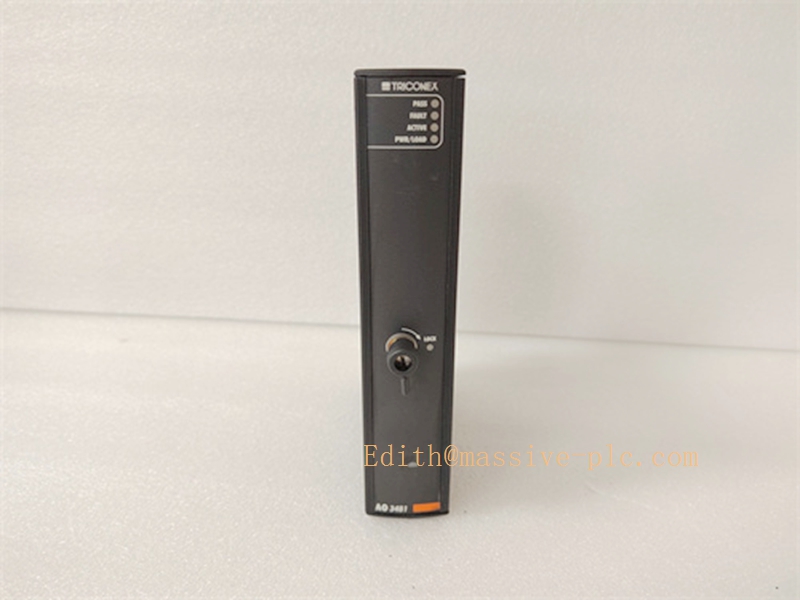

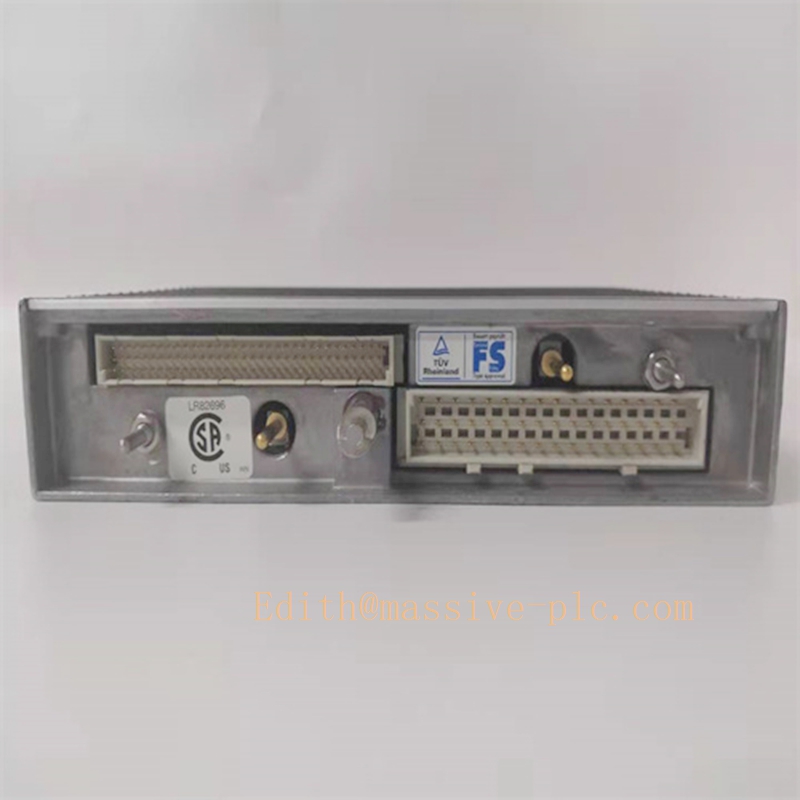

TRICONEX 3481

Key Features

TMR Triple‑Leg Voting Architecture: Three independent driving circuits for each analog channel. Single‑leg hardware faults cannot produce erroneous output, preserving safety‑loop operation.
Enhanced S2 Hardware Revision: Optimized circuit design provides wider diagnostic coverage and stronger electromagnetic noise rejection versus standard 5482‑1 module.
Full‑Channel Galvanic Isolation: 1500 V isolation between field side and system backplane, suppresses ground‑loop interference and protects SIS internal circuits.
Comprehensive Built‑in Diagnostics: Continuously detect open‑loop, short‑circuit and module internal anomalies; fault status indicated via front‑panel LED and reported to TriStation engineering software.
Hot‑Swap Support: Online module replacement without SIS system shutdown, minimizes maintenance downtime for running process plants.
Configurable Fail‑safe State: Each channel supports configurable fail‑safe output level upon module fault, satisfying diverse process safety requirements.
Mechanical Anti‑misplug Keying: Physical slot key prevents wrong‑model insertion and avoids hardware damage.
TriStation Software Integration: Supports channel scaling, output range and fail‑safe parameter configuration via TriStation engineering tool; seamless communication with 5000‑series main processors over TriBus backplane.

Installation Guidelines

Pre‑installation Inspection: Verify part‑number and hardware revision; inspect module housing, connectors and pins for mechanical damage. Strictly follow ESD anti‑static handling procedures.
Chassis Slot Mounting: Insert 5482‑1S2 module into designated I/O slot of Tricon 5000‑series chassis, lock front mounting latch securely. Confirm slot assignment matches system hardware configuration.
Termination Cable Connection: Connect rear module connector to factory‑pre‑fabricated Tricon termination cable assembly. Use qualified matching harness for field actuator wiring.
Field Wiring Practice: Route field modulating valve / actuator wiring to termination assemblies. Separate analog signal cables from high‑power motor / VFD cables to reduce EMI coupling. Avoid excessive cable tension and sharp bending.
Configuration & Commissioning: Configure channel scaling, fail‑safe value and diagnostic thresholds in TriStation software. Perform loop calibration test to validate output accuracy before putting SIS online.
Environmental Requirements: Install inside indoor control cabinet; avoid moisture, corrosive gas and direct sunlight; keep operating temperature within 0 °C ~ +60 °C.
Hot‑swap Operation: Unlock front latch and slide out faulty module; insert replacement module and lock latch. The Tricon 5000 system will auto‑recognize the hardware without power‑cycle.
