Product Overview & Applications

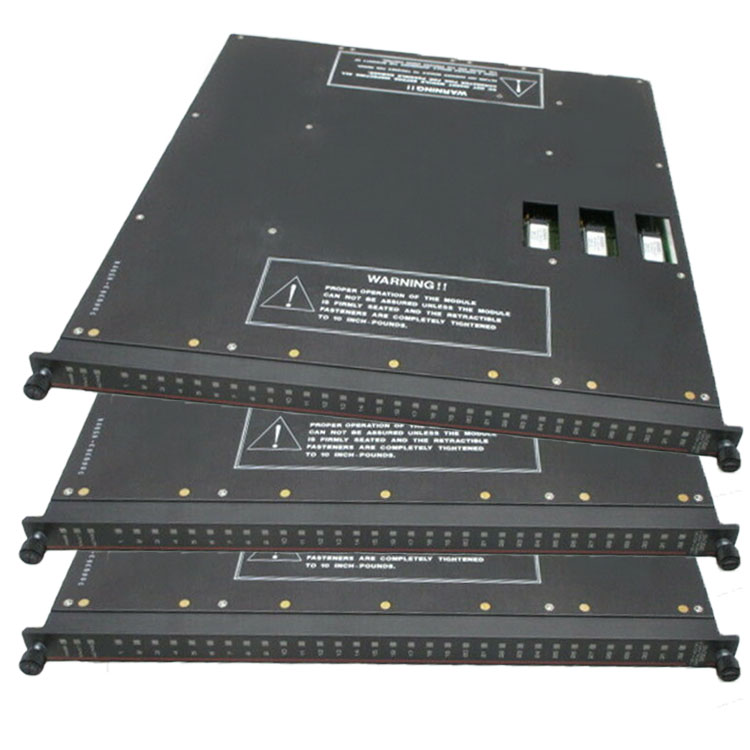

The TRICONEX 5354S2 is a high-performance Enhanced Performance Interface (EPI) Communication Module designed for the Tricon Safety Instrumented System (SIS). Acting as the critical communication bridge within the TMR architecture, it facilitates high-speed data exchange between the Tricon main processor and external systems such as Distributed Control Systems (DCS), SCADA, and enterprise-level networks. This module is essential for integrating safety system data into the broader plant-wide automation infrastructure while maintaining the highest levels of fault tolerance.
Typical Applications:
- Emergency Shutdown (ESD) & Fire & Gas (F&G): Uploading critical safety events and system status to central control rooms and historian databases.
- DCS/PLC Integration: Exchanging process variables and safety interlock statuses with the basic process control system (BPCS).
- GPS Time Synchronization: Providing precise system-wide time synchronization for accurate event sequencing and data logging across distributed safety systems.
- OPC Data Integration: Serving as an embedded OPC server for seamless data sharing with third-party HMI and asset management systems.
TRICONEX 5354
Technical Specifications & Parameters
| Parameter | Specification |
|---|---|
| Module Type | Enhanced Performance Interface (EPI) Communication Module |
| System Platform | Tricon v10.0 and above |
| Network Ports | Copper Ethernet (10/100 Mbps) |
| Supported Protocols | TriStation, Modbus TCP/IP, TCP/IP, UDP/IP, ICMP, SNTP |
| Serial Interfaces | Supports Modbus, TriStation, and Trimble GPS |
| Safety Integrity | IEC 61508 SIL3 Compliant |
| Redundancy | Triple Modular Redundant (TMR) Architecture |
| Mounting | Dedicated Tricon Rack Slot (Occupies 2 Logical Slots) |
| Weight | Approximately 3.18 kg |
Key Features
- Multi-Protocol Communication: Supports a wide range of industrial protocols, including Modbus TCP/IP and TriStation, enabling seamless integration with various DCS/PLC controllers and intelligent field devices.
- TMR Fault Tolerance: Operates within the Tricon TMR architecture, ensuring communication redundancy and fault isolation. A single communication channel failure will not compromise the overall safety system’s integrity.
- GPS Time Synchronization: Features a dedicated serial port for Trimble GPS antenna connection, providing precise system-wide time synchronization for accurate event sequencing and data logging.
- Hot-Swappable Design: Supports online maintenance, allowing the module to be replaced without powering down the rack or shutting down the process, significantly reducing downtime.
- Advanced Diagnostics: Provides real-time monitoring of communication link health, network status, and module performance, with diagnostic data accessible via TriStation 1131 or InFusion systems for rapid troubleshooting.
Installation Guidelines
- Rack Installation: Insert the module into a compatible Tricon rack slot, ensuring it is securely seated and locked in place. Note that this module occupies two logical slots in the system configuration.
- Network Cabling: Use high-quality shielded Ethernet cables for network connections to prevent electromagnetic interference (EMI) and ensure reliable data transmission.
- GPS Antenna Installation: When using GPS time synchronization, ensure the Trimble GPS antenna has a clear line of sight to the sky and is properly connected to the designated serial port.
- Software Configuration: Utilize TriStation 1131 software to configure network parameters, protocol settings, and IP addresses. Ensure the module’s firmware version is compatible with the main processor.
Maintenance & Troubleshooting
- Diagnostic Monitoring: Regularly check the module’s status LEDs and utilize TriStation 1131 diagnostics to monitor communication link health and network status.
- Network Connectivity: If communication faults occur, verify IP configurations, subnet masks, and physical cable integrity. Use network diagnostic tools to test link quality.
- GPS Signal Check: If time synchronization fails, verify the GPS antenna’s line of sight and check for signal obstructions or cable damage.
- Spare Parts Management: Maintain an adequate stock of 5354S2 modules to minimize downtime during unexpected hardware failures.
