Name: TRICONEX 5352S2 Digital Input Module - MASSIVE
Brand: Triconex

Description

TRICONEX 5352S2 Digital Input Module

Product Overview

The TRICONEX 5352S2 is a Triple Modular Redundant (TMR) digital input module for the Tricon 5000‑series Safety Instrumented System (SIS). This S2‑revision hardware collects discrete 24 VDC on‑off status signals from field safety sensors, limit switches, relay contacts and trip devices. Each input channel is sampled by three independent internal circuits, applying median‑value voting logic to filter abnormal readings. It achieves IEC 61508 SIL 3 safety integrity for safety‑critical interlock loops in process industries, with enhanced diagnostic coverage and improved noise immunity compared to the original 5352 version.

Typical Applications

ESD Emergency Shutdown System: Acquire status signals from trip switches, emergency stop buttons and safety relay contacts for refinery and petrochemical safety interlock loops.
BMS Burner Management System: Receive feedback signals from flame switches, fuel‑gas pressure switches and burner safety interlock contacts.
Fire & Gas Safety System: Collect contact status from smoke detectors, gas detectors and fire‑triggered safety switches.
Turbine & Compressor Protection: Capture turbine trip feedback, overspeed switch and auxiliary safety discrete signals for power‑generation safety cabinets.
Off‑shore & On‑shore Oil‑gas Facilities: Safety discrete signal acquisition for platform and pipeline SIS control cabinets.
Chemical Process Safety: Monitor reactor emergency interlock switches and safety‑related contact status.

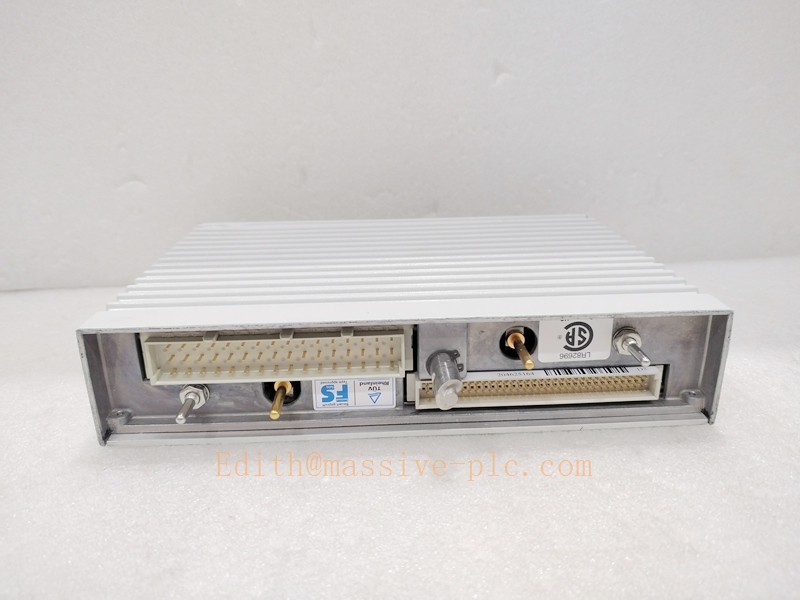

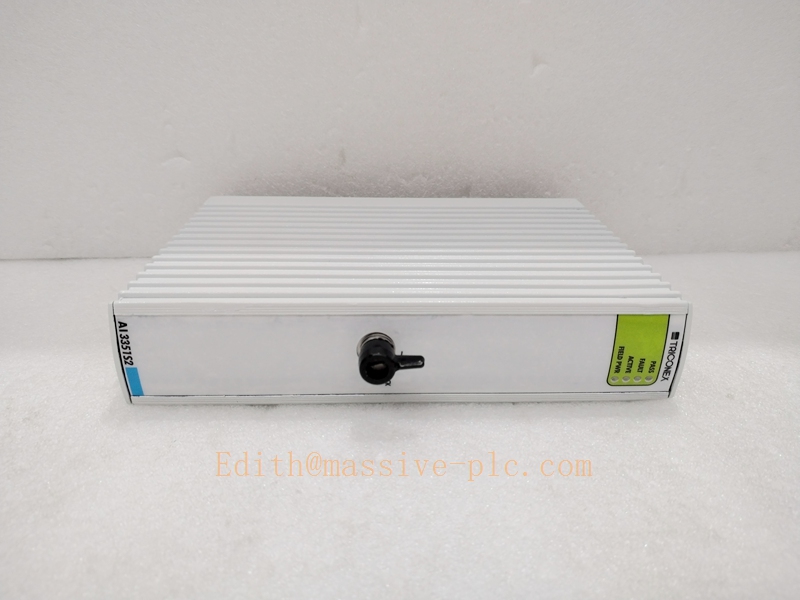

TRICONEX 3351S2

Technical Specifications

Item	Parameter
Model	5352S2
Module Type	TMR Digital Input Module (S2 Hardware Revision)
Channel Count	32 digital input channels
Nominal Input Voltage	24 VDC
Input Operating Range	18‑30 VDC
Input Logic Threshold	Logic‑ON: ≥14 VDC; Logic‑OFF: ≤5 VDC
Input Impedance	2.4 kΩ typical
Architecture	Triple Modular Redundant (TMR), 2‑out‑of‑3 voting
Safety Certification	SIL 3 compliant per IEC 61508
Backplane Bus	TriBus high‑speed proprietary backplane bus
Galvanic Isolation	1500 V channel‑to‑backplane isolation
Diagnostics	Open‑circuit detection, field‑circuit fault monitoring, internal hardware self‑diagnostics
Operating Temperature	0 °C ~ +60 °C
Storage Temperature	‑40 °C ~ +85 °C
Humidity	5 %‑95 % RH, non‑condensing
Compatibility	Tricon 5000‑series main chassis; matched 4000‑series termination cable assemblies
Net Weight	1.42 kg
Installation Environment	Cabinet‑only mounting, IP20 protection

Key Features

TMR Triple‑Path Voting Architecture: Each input signal is sampled by three independent internal circuits. Single‑path hardware faults will not corrupt input status or interrupt safety‑loop operation.
Enhanced S2 Hardware Revision: Optimized circuit design delivers higher diagnostic coverage and stronger EMI rejection versus standard 5352 module.
Comprehensive Channel Diagnostics: Continuously detect open‑circuit and internal hardware anomalies; fault status indicated via front‑panel LED and reported to TriStation engineering software.
Hot‑Swap Support: Permits online module replacement without SIS system shutdown, minimizing plant maintenance downtime.
Galvanic Isolation Design: 1500 V isolation between field side and system backplane, eliminates ground‑loop interference and protects internal SIS circuits.
Mechanical Anti‑misplug Keying: Physical slot key prevents wrong‑type module insertion, avoiding hardware damage caused by mis‑installation.
Seamless 5000‑series Integration: Communicates with main processor via TriBus backplane; channel filter parameters and fault thresholds can be configured within TriStation engineering tool.
Rugged Industrial Hardware: Vibration‑resistant construction for heavy‑industry control‑cabinet electromagnetic environments.

Installation Guidelines

Pre‑installation Inspection: Verify part number and hardware revision; inspect module housing, connectors and pins for physical damage. Follow strict ESD anti‑static handling procedures.
Chassis Slot Mounting: Insert 5352S2 module into designated I/O slot of Tricon 5000‑series chassis, lock front mounting latch securely. Confirm slot assignment matches system hardware configuration.
Termination Cable Connection: Connect rear module connector to factory‑pre‑fabricated Tricon termination cable assembly. Use qualified matching harness for field‑device wiring.
Field Wiring Practice: Route field switches and contact‑signal wiring to termination assemblies. Separate safety signal cables from high‑power motor / VFD cables to reduce EMI coupling. Avoid excessive cable tension and sharp bending.
Configuration & Commissioning: Set channel filter time and diagnostic parameters in TriStation software. Perform loop function test to verify input status consistency before SIS online operation.
Environmental Requirements: Install inside indoor control cabinet; avoid moisture, corrosive gas and direct sunlight; keep operating temperature within 0 °C ~ +60 °C.
Hot‑swap Operation: Unlock front latch and slide out faulty module; insert replacement module and lock latch. The Tricon system will auto‑recognize the hardware without power‑cycle.
