Description

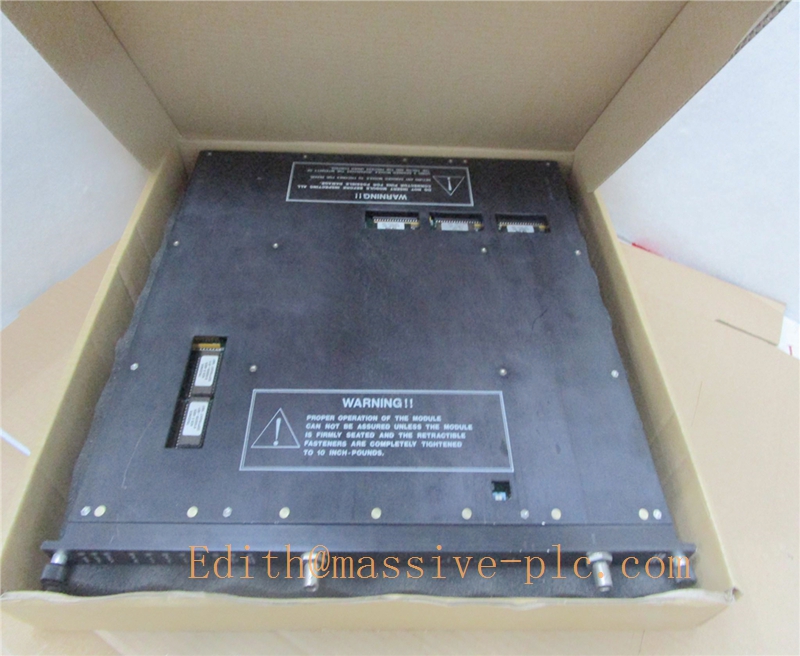

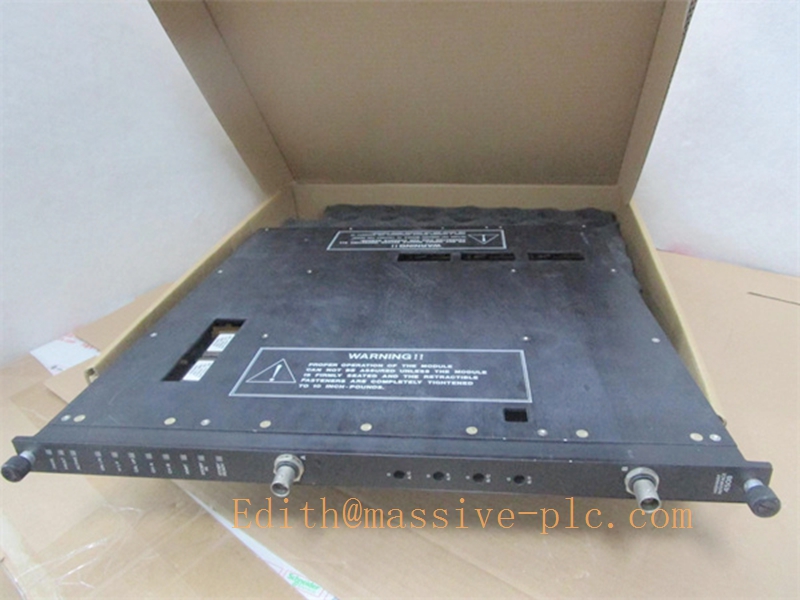

TRICONEX 4508
- Application: 8-channel high-density digital output module for safety interlock actuation, used in emergency shutdown valve driving, fire suppression system trigger and safety door interlock control.
- Specifications: 8 relay output channels, each rated at 250 VAC/5A, supports de-energize-to-trip safety logic design.
- Parameters: Relay mechanical life over 100,000 operations, response time less than 10ms, contact insulation resistance over 1000MΩ.
- TRICONEX 4508
- Features: Force-guided contact design for safety circuit monitoring, per-channel output status feedback, built-in surge suppression for inductive loads.
- Maintenance: Test relay contact actuation function quarterly, replace relays after 80,000 operations, clean dust on the module surface with dry compressed air.
- Installation: Connect output loads via dedicated power distribution terminals, install external surge absorbers for solenoid valve loads, ensure proper heat dissipation around the module.
- Related Series Models: 4508-SS solid-state relay version, 4508-EX explosion-proof housing model, 4508-H high-current 10A variant.
