TRICONEX 3902AX Universal I/O (UIO) Module

Description

Product Overview & Applications

The TRICONEX 3902AX is a high-integrity Universal I/O (UIO) Module designed for the Tricon Safety Instrumented System (SIS). As a versatile interface component, it can be software-configured to function as either an analog or digital input/output module, providing significant flexibility for system design and future expansion. Operating within a Triple Modular Redundant (TMR) architecture, this module ensures maximum safety and availability for mission-critical applications in harsh industrial environments.

Typical Applications:

• Emergency Shutdown (ESD): Monitoring critical process variables and driving final control elements to safely shut down process units.
• Fire & Gas (F&G): Interfacing with gas detectors, flame scanners, and activation devices for suppression systems.
• Burner Management Systems (BMS): Controlling fuel valves, monitoring flame status, and managing ignition sequences.
• Critical Process Control: Providing flexible I/O for PID control loops, valve position monitoring, and interlock logic in refineries and chemical plants.

Technical Specifications & Parameters

Key Features

• Software-Defined Flexibility: The 3902AX can be configured as an analog input, analog output, digital input, or digital output via software, eliminating the need for hardware changes when process requirements evolve.
• TMR Fault Tolerance: Operates within the Tricon TMR architecture, where three independent channels process signals in parallel and vote on results. This ensures continuous safe operation and prevents spurious trips even if a single channel fails.
• Advanced Diagnostics: Continuously monitors the health of each channel, detecting open circuits, short circuits, and out-of-range conditions. Diagnostic data is seamlessly integrated into TriStation 1131 for rapid troubleshooting.
• Hot-Swappable Design: Supports online maintenance, allowing the module to be replaced without powering down the rack or shutting down the process, significantly reducing downtime.
• Seamless Integration: Communicates with the main processor via the dedicated TriBus, ensuring real-time synchronization and deterministic response times for safety-critical actions.

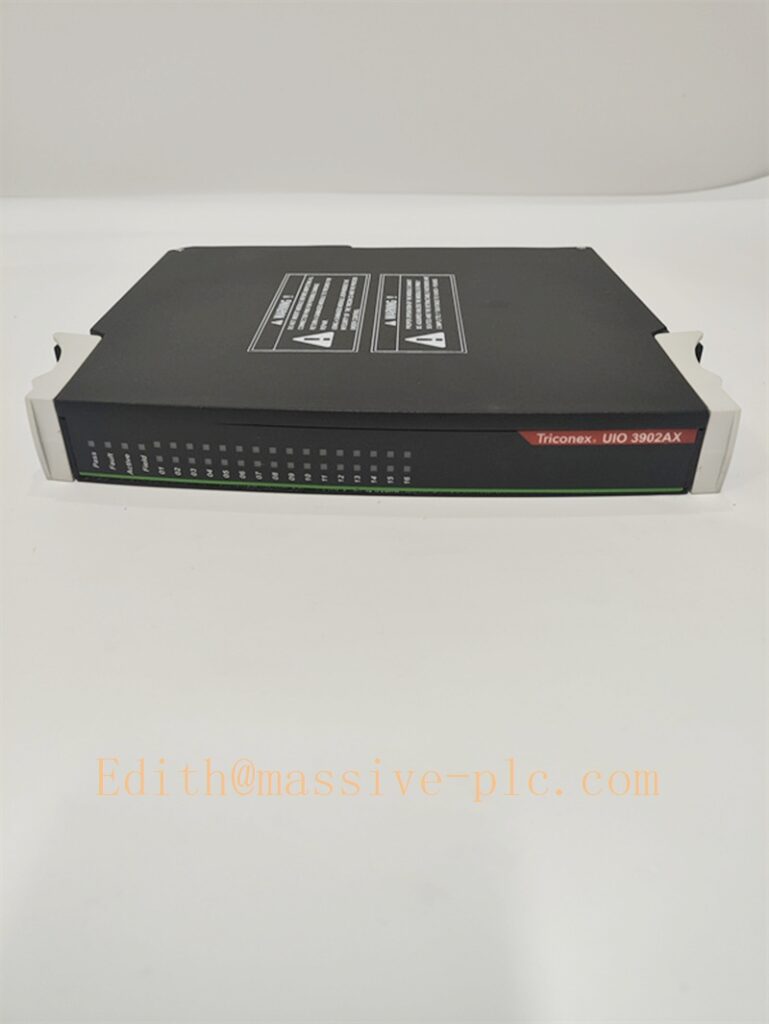

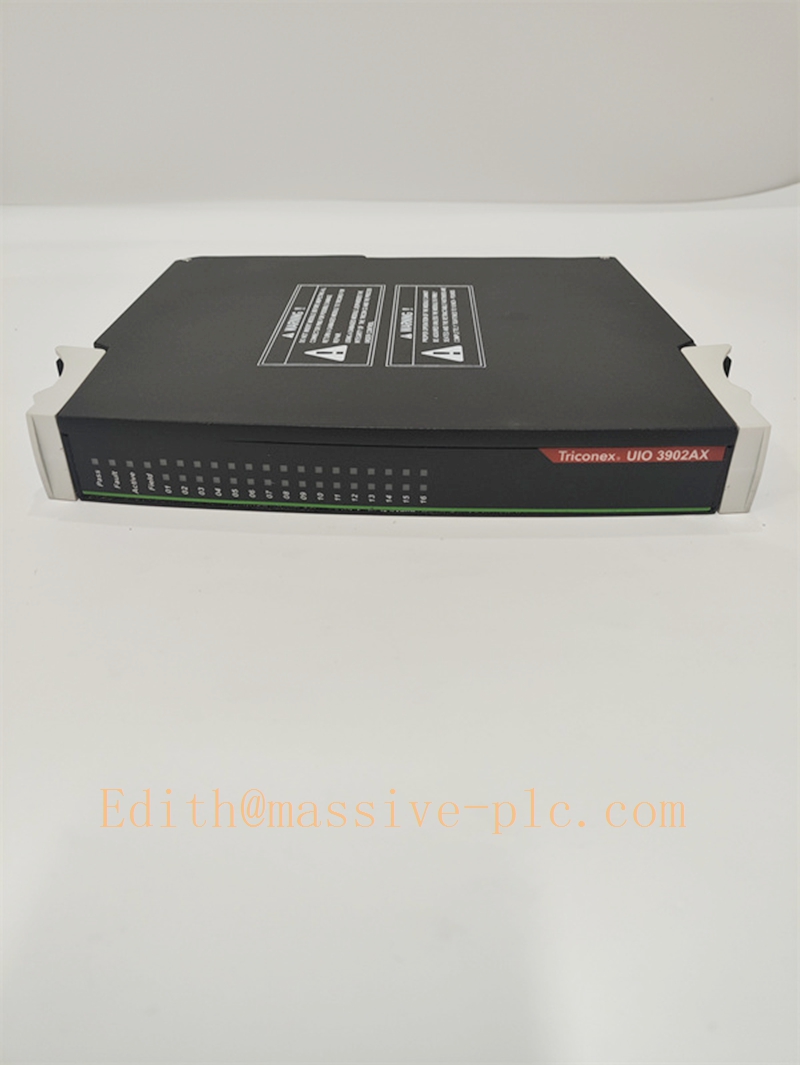

TRICONEX 3902AX

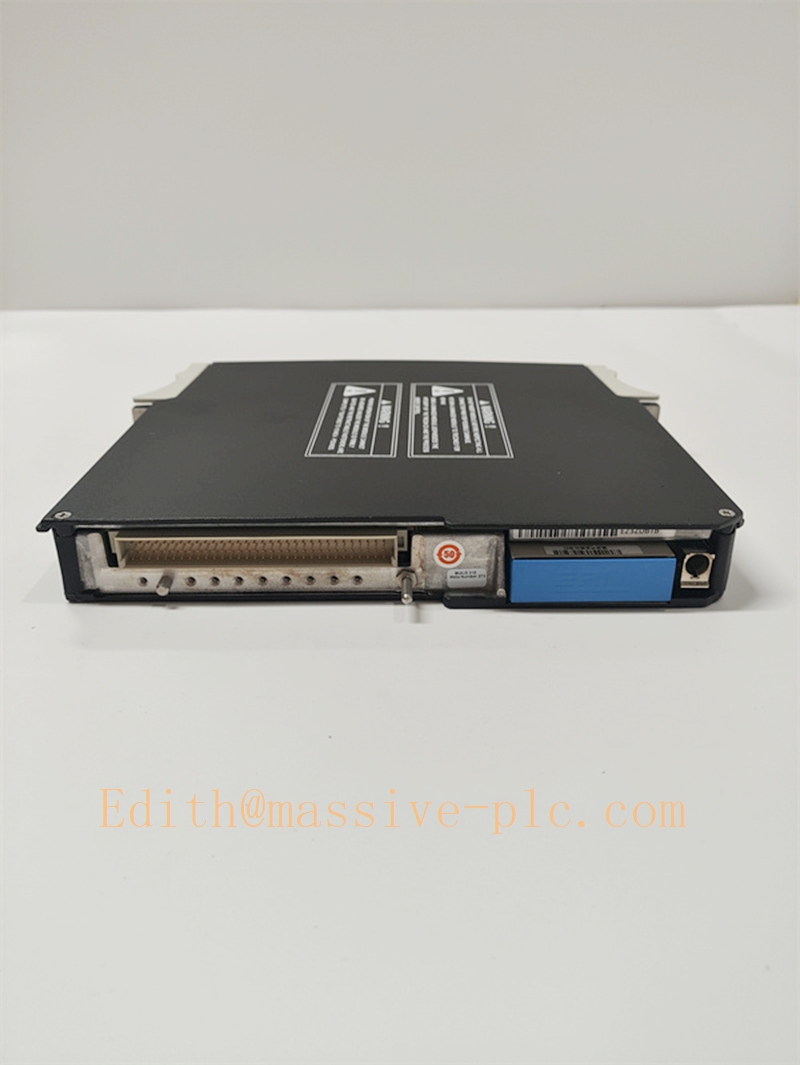

TRICONEX 3902AX

Installation Guidelines

• Rack Installation: Insert the module into a compatible Tricon rack slot, ensuring it is securely seated and locked in place for reliable backplane communication.
• Field Wiring: Always use shielded cables for analog signals and ensure proper grounding to minimize electromagnetic interference (EMI). Verify the signal type and wiring configuration matches the software configuration.
• Software Configuration: Utilize TriStation 1131 software to configure the module’s function (AI, AO, DI, DO), signal ranges, scaling, and diagnostic settings. Ensure the module’s firmware version is compatible with the main processor.
• Environmental Protection: Ensure the control cabinet maintains appropriate temperature and humidity levels. In dusty environments, use compressed air to clean module surfaces quarterly.

Maintenance & Troubleshooting

• Diagnostic Monitoring: Regularly check the module’s PASS, FAULT, and ACTIVE LEDs. A FAULT indicator typically points to a specific channel issue rather than a complete module failure.
• Channel Fault Diagnosis: If a channel fault alarm is triggered, use the TriStation 1131 diagnostic tools to identify the specific point. Check for field wiring issues, sensor failures, or configuration errors.
• Terminal Inspection: Periodically inspect terminal connections for looseness or corrosion, especially in high-vibration environments.
• Spare Parts Management: Maintain an adequate stock of 3902AX modules to minimize downtime during unexpected hardware failures.

Related Series Models

The 3902AX is part of the Tricon Universal I/O family. Common related models include:

• 3902: Standard Universal I/O Module (non-AX variant).
• 3721: 32-Point Differential Analog Input Module, often used for higher channel density applications.
• 3603T: Digital Output Module, 24 VDC, Opto-Isolated, Commoned, TMR.
• 3503E: Digital Input Module, often paired with the 3902AX in mixed I/O configurations.
