Name: TRICONEX 3704E Analog Input Module - MASSIVE
Brand: Triconex

Description

TRICONEX 3704E Analog Input Module Product Introduction

The TRICONEX 3704E is a high-precision, safety-certified analog input module built on Triconex proprietary TMR (Triple Modular Redundancy) architecture. Designed for industrial Safety Instrumented Systems (SIS), this module is dedicated to acquiring and converting analog field signals for critical process monitoring and safety loop control. With triple redundant signal processing, high measurement accuracy, and comprehensive self-diagnostic functions, the 3704E ensures stable, accurate, and fail-safe analog data collection in high-risk industrial environments, fully complying with global IEC 61508 functional safety standards.

Product Applications

The TRICONEX 3704E is widely deployed in safety-critical process industries that require high-precision analog parameter monitoring and safety interlock protection, including oil & gas, petrochemical, chemical processing, thermal power generation, pharmaceutical, and energy industries. It serves as the core analog signal acquisition unit for SIS, ESD, and F&G systems, with typical application scenarios as follows:

Process Parameter Safety Monitoring: Continuously collects 4-20mA analog signals from field transmitters for pressure, temperature, flow, liquid level, and density, providing real-time and accurate process data for safety system judgment and interlock execution.
Emergency Shutdown (ESD) System Loops: Supports high-precision signal acquisition for critical safety loops, triggering emergency shutdown actions when process parameters exceed safety thresholds to avoid equipment damage and safety accidents.
Fire & Gas (F&G) Detection Systems: Acquires analog concentration signals of flammable gas, toxic gas, and smoke detection transmitters, realizing early hazard warning and linkage protection control.
High-Integrity Pressure Protection Systems (HIPPS): Provides reliable analog pressure signal monitoring for ultra-high-pressure process equipment, ensuring the rapid response of pressure safety protection loops.
DCS & SIS Collaborative Control: Matches with digital I/O and communication modules to realize integrated monitoring and safety control of analog and discrete parameters for industrial production processes.

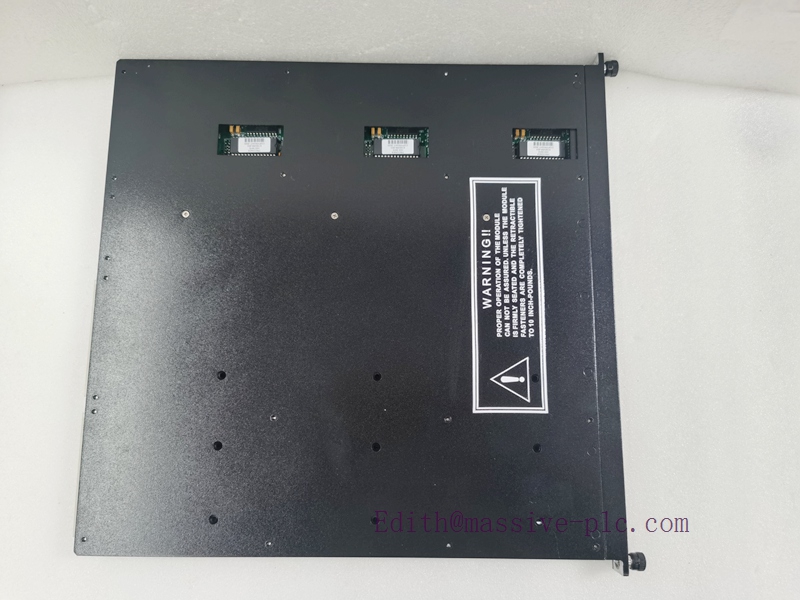

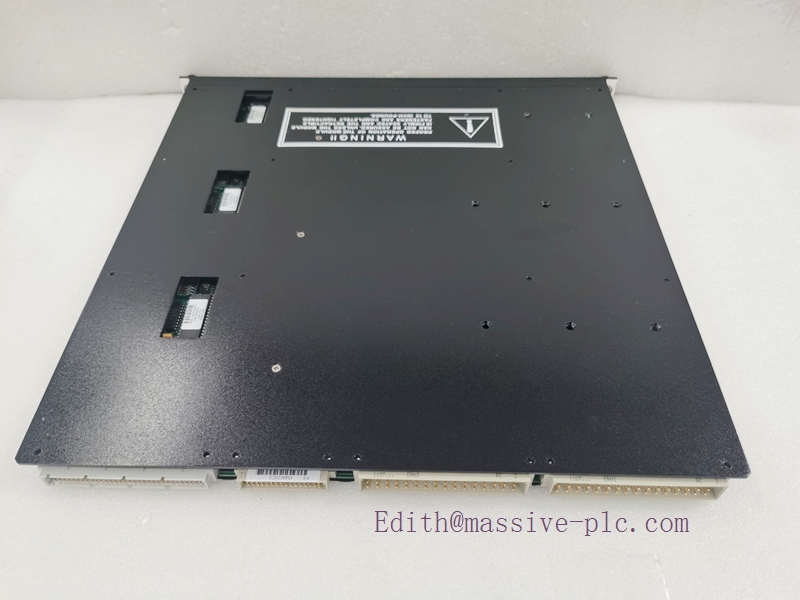

TRICONEX 3704E

Technical Specifications & Parameters

The TRICONEX 3704E adopts industrial-grade high-precision analog acquisition design, with standardized electrical, environmental, and mechanical parameters, adapting to harsh industrial operating conditions and meeting SIL 3 high-standard safety monitoring requirements. Detailed specifications are listed below:

2.1 Electrical & Acquisition Parameters

Module Type: TMR triple redundant analog input module
Channel Configuration: 8 independent analog input channels
Input Signal Type: Standard 4-20mA DC analog current signal
Measurement Precision: High-resolution conversion with ultra-low signal error
Rated Power Supply: 24VDC nominal industrial power supply
Operating Voltage Range: 15VDC to 30VDC wide voltage tolerance
Signal Conversion Mode: Triple-channel synchronous sampling and voting conversion
Isolation Design: Full galvanic isolation between field side and system side, independent channel anti-crosstalk design
Response Speed: Fast analog signal sampling and data update to meet real-time safety control requirements

2.2 Environmental Parameters

Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Environmental Resistance: Compliant with IEC industrial vibration, shock, and electromagnetic interference resistance standards, suitable for long-term continuous industrial operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard Triconex TMR chassis slot mounting
System Compatibility: Fully compatible with all Triconex TMR series controllers, chassis, and supporting software
Safety Certification: SIL 3 certified per IEC 61508, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

Core Product Features

3.1 TMR Triple Modular Redundancy Fault-Tolerant Architecture

The TRICONEX 3704E adopts three completely independent internal signal acquisition and processing channels, equipped with a built-in two-out-of-three voting mechanism. The three channels synchronously collect and convert analog signals, and automatically identify and shield single-channel signal deviation or hardware faults. Single-point failure will not affect the normal operation of the module and safety loops, completely eliminating single-point failure risks and ensuring zero interruption of safety monitoring.

3.2 High-Precision & Stable Analog Acquisition Performance

Optimized for industrial 4-20mA standard signal acquisition, the module features ultra-high measurement accuracy and excellent signal stability. It can effectively filter industrial field noise, signal fluctuation, and electromagnetic interference, ensuring consistent and reliable acquisition data for long-term operation. The high-resolution signal conversion capability meets the precise monitoring requirements of high-precision safety protection loops.

3.3 Full-Coverage Intelligent Self-Diagnosis

Equipped with comprehensive real-time diagnostic functions, the module can accurately detect field wiring open circuit, short circuit, signal over-range/under-range, internal circuit abnormality, voting mismatch, and power supply faults. All fault information is uploaded to the upper controller and monitoring system in real time, supporting precise fault location, early warning of hidden dangers, and rapid on-site troubleshooting.

3.4 Industrial-Grade Anti-Interference & Environmental Adaptability

All channels adopt independent galvanic isolation design to avoid inter-channel signal crosstalk and external electromagnetic interference. With wide temperature resistance, vibration resistance, and moisture-proof performance, it can operate stably in harsh industrial environments such as temperature and humidity fluctuation, complex electromagnetic fields, and continuous equipment operation, ensuring long-term trouble-free operation of safety loops.

3.5 Excellent System Compatibility & Maintainability

Fully compatible with the complete Triconex TMR system product line, supporting seamless docking with existing SIS and DCS systems. It supports online module replacement and hot maintenance without system shutdown, which greatly reduces system maintenance downtime. The standardized structural design and modular configuration simplify on-site installation, debugging, and daily maintenance work.

3.6 Strict Fail-Safe Safety Mechanism

Following industrial safety fail-safe design specifications, the module will automatically enter a preset safe state and output fault alarm signals in case of module failure, power abnormality, or signal loss. It effectively avoids misjudgment and misoperation of safety systems, ensuring the maximum safety integrity of industrial production processes.

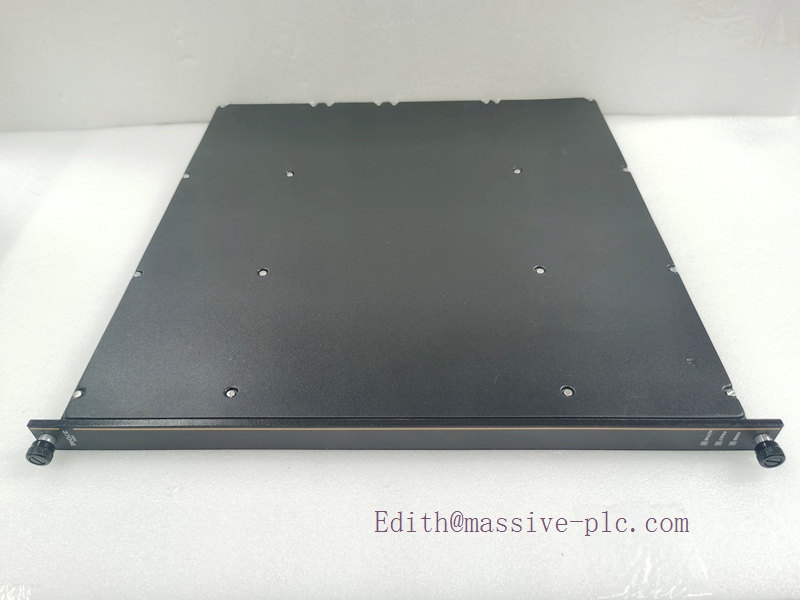

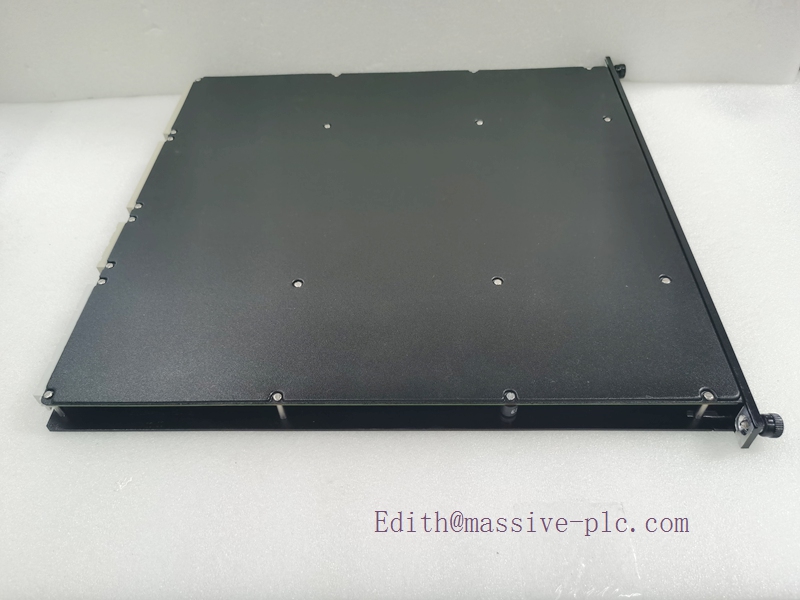

TRICONEX 3704E

Similar Series Models

The Triconex 3700 series forms a complete high-precision analog I/O product line for TMR safety systems. The mainstream similar and matching models of the TRICONEX 3704E are listed below for system configuration, replacement, and expansion reference:

TRICONEX 3703E: Standard 8-channel analog input module, basic version of the 3704E, suitable for conventional industrial analog monitoring scenarios.
TRICONEX 3705E: Enhanced high-precision analog input module with stronger anti-interference and higher measurement accuracy, applicable to ultra-high-precision safety monitoring loops.
TRICONEX 3721: Analog output module, matched with 3704E to realize closed-loop regulation and safety output control of analog parameters.
TRICONEX 3301: Classic 32-channel digital input module, cooperating with 3704E to complete mixed acquisition of analog and discrete signals.
TRICONEX 3411: High-reliability solid-state digital output module, realizing linkage safety interlock output based on 3704E analog monitoring data.
TRICONEX 5101S2: Safety communication module, uploading 3704E analog acquisition data to upper monitoring and DCS systems in real time.

Product Summary

The TRICONEX 3704E is a high-performance SIL 3-grade TMR analog input module dedicated to industrial safety instrumented systems. Adopting triple modular redundant fault-tolerant architecture and high-precision analog signal acquisition technology, it integrates stable data collection, intelligent fault diagnosis, strong anti-interference capability and perfect fail-safe protection. It is widely used in analog parameter monitoring and safety loop control of high-risk process industries, providing accurate and reliable data support for system safety judgment and interlock protection. With outstanding safety performance, stable operation quality and convenient maintenance advantages, it is a core essential component of Triconex TMR safety control systems.
