Name: TRICONEX 3703E Isolated Voltage Analog Input Module - MASSIVE
Brand: Triconex

Description

TRICONEX 3703E Isolated Voltage Analog Input Module

The TRICONEX 3703E is a high-stability TMR (Triple Modular Redundancy) isolated voltage analog input module designed for Triconex Tricon and 9000 series Safety Instrumented Systems (SIS). Specialized in industrial voltage signal acquisition, this module supports configurable 0–5V and 0–10V standard voltage inputs, featuring full-channel galvanic isolation, high common-mode rejection ratio and precise low-drift sampling performance. Adopting field-proven triple redundant fault-tolerant architecture and comprehensive self-diagnosis mechanism, the 3703E fully complies with IEC 61508 SIL 3 functional safety standards. It delivers reliable, high-precision voltage signal monitoring for critical process safety loops in high-risk industrial environments.

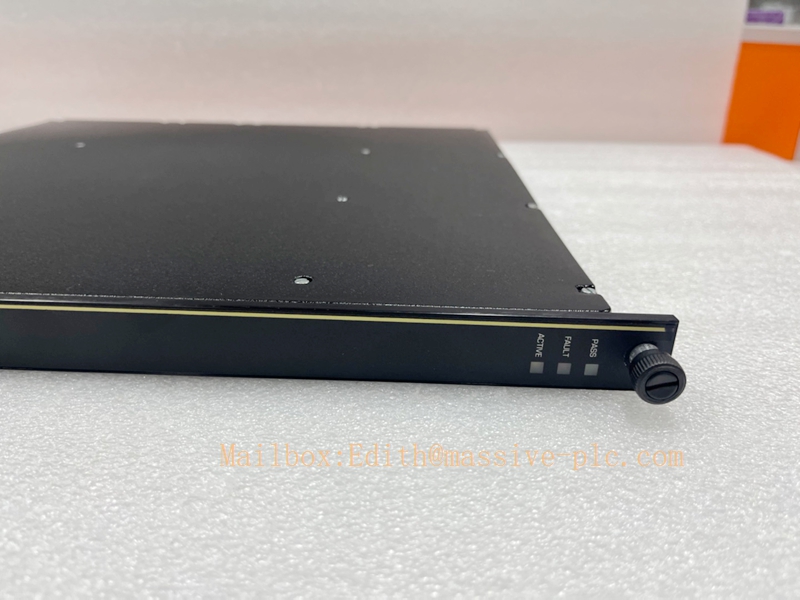

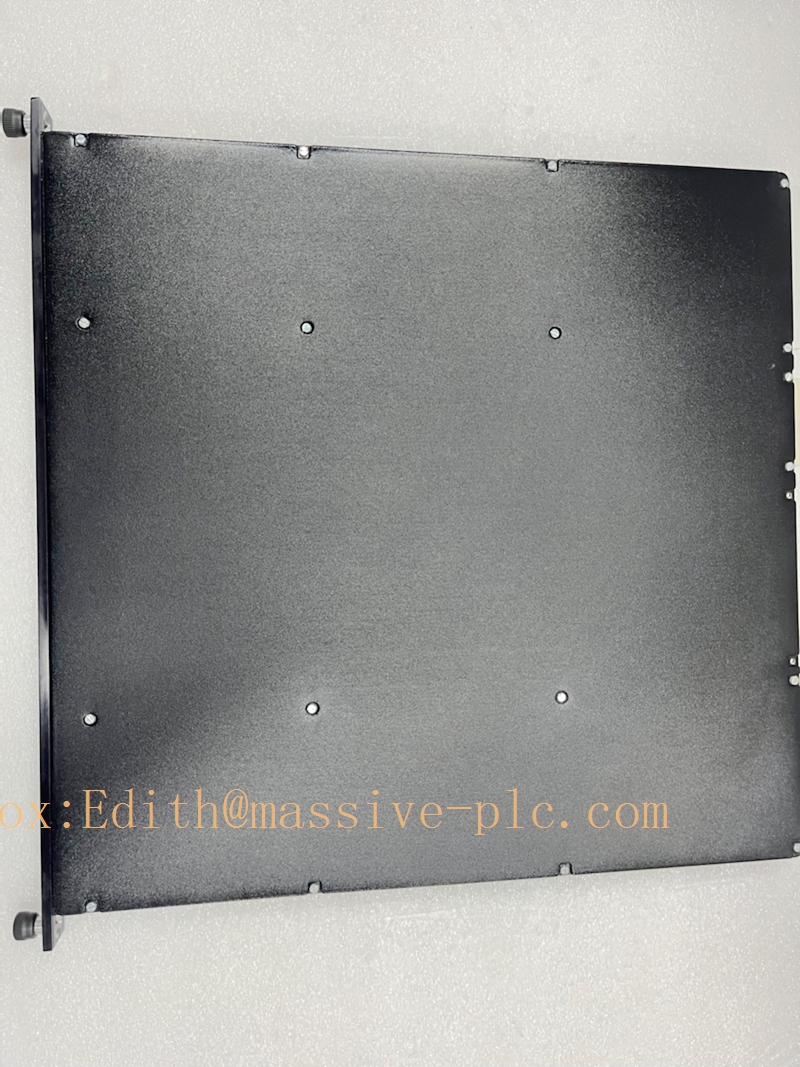

TRICONEX 3703E

Product Applications

The TRICONEX 3703E is widely deployed in safety-critical process industries requiring isolated voltage-type analog signal monitoring, including oil & gas, offshore platforms, petrochemical, chemical processing, power generation and pharmaceutical industries. It serves as the core high-reliability voltage signal acquisition unit for SIS safety systems, with typical application scenarios as follows:

Voltage-Type Process Parameter Monitoring: Collects standard 0–5V/0–10V voltage signals from pressure transmitters, temperature sensors, liquid level and flow instruments, providing accurate analog data basis for SIS safety interlock judgment and process limit protection.
Isolated Safety Loop Signal Acquisition: Applies to field scenarios with high ground potential difference and complex interference, realizing fully isolated voltage signal sampling to avoid cross-interference and fault diffusion between field equipment and safety system.
ESD Emergency Shutdown Analog Interlock: Monitors key process voltage feedback signals linked to emergency shutdown logic, triggering precise trip actions when process parameters exceed safety thresholds to prevent overpressure, overtemperature and leakage accidents.
High-Stability Fine Process Monitoring: Adapts to precision production links requiring low drift and high linearity signal acquisition, stably tracking subtle process fluctuations and ensuring accurate grading safety early warning and interlock response.
Harsh Industrial Anti-Interference Acquisition: With excellent common-mode interference suppression capability, it is suitable for high-electromagnetic-interference environments such as power plants and chemical plants, ensuring long-term jitter-free and stable signal acquisition of safety loops.

Technical Specifications & Parameters

The TRICONEX 3703E adopts standard TMR triple redundant synchronous sampling architecture, full-channel isolated conditioning circuit and high-precision AD conversion unit. Featuring configurable dual voltage ranges, ultra-high common-mode rejection, low temperature drift and comprehensive fault diagnosis, it fully meets SIL 3 high-standard safety loop monitoring requirements. Detailed specifications are listed below:

2.1 Electrical & Acquisition Parameters

Module Type: TMR triple redundant isolated voltage analog input module (AI)
Channel Density: 8 independent fully isolated analog input channels
Configurable Input Ranges: 0–5V, 0–10V (software configurable, ±6% tolerance)
Sampling Resolution: 12-bit high-precision AD conversion
Measurement Accuracy: ≤ ±0.15% full scale high-precision sampling
Input Update Rate: 50ms fast response update cycle
Common Mode Rejection: Min -80dB (DC–100Hz), typical -100dB @ DC
Common Mode Voltage Range: -12V to +12V peak wide adaptive range
Isolation Strength: 200V peak leg-to-leg channel isolation, complete galvanic isolation
Sampling Mechanism: Triple-channel synchronous sampling + 2-out-of-3 hardware voting judgment
Diagnostic Functions: Real-time detection of signal over-range, under-range, loop abnormality and channel circuit faults
Signal Filtering: Built-in hardware filtering to suppress high-frequency industrial interference
Backplane Bus: High-speed dedicated TriBus safety bus for low-delay stable data transmission

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C industrial wide temperature range
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Anti-Interference Performance: Compliant with IEC industrial EMC electromagnetic immunity, vibration and mechanical shock resistance standards
Working Adaptability: Industrial dust-proof, moisture-proof and anti-aging reinforced design for long-term continuous unattended field operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard slot mounting for Triconex classic and 9000 series chassis with anti-misplug mechanical key
Hot-Swap Support: Supports online module replacement without SIS system shutdown
System Compatibility: Fully compatible with Tricon series controllers, 9000 series SIS platforms and TriStation configuration software
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

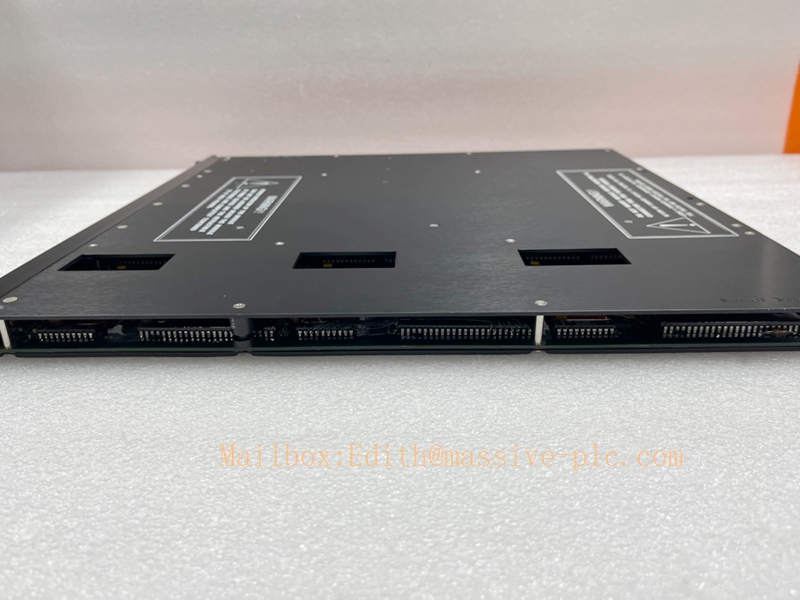

TRICONEX 3703E

Core Product Features

3.1 Standard TMR Triple Redundant Fault-Tolerant Architecture

The 3703E adopts three fully independent synchronous voltage sampling channels and hardware 2-out-of-3 voting logic. All channels synchronously complete signal acquisition, AD conversion and data verification. In case of single-channel circuit failure, sampling deviation or transient electromagnetic interference, the faulty channel is automatically isolated and shielded. The module outputs consistent and accurate analog voltage data through healthy channel consensus, completely eliminating single-point failure risks and ensuring zero misjudgment of safety loop monitoring.

3.2 Dual-Range Configurable Voltage Signal Adaptation

Supporting software-switchable 0–5V and 0–10V dual standard voltage ranges, the 3703E covers all mainstream industrial voltage-type analog instrument signals. Users can flexibly configure channel parameters via TriStation software according to on-site equipment specifications, avoiding the need for multiple types of voltage acquisition modules. The flexible configurable design simplifies system I/O configuration, reduces spare part types and improves engineering deployment efficiency.

3.3 Full-Channel Galvanic Isolation & Ultra-High Anti-Interference

Each channel of the 3703E features independent complete galvanic isolation structure, with excellent common-mode interference suppression capability. It effectively isolates on-site ground potential difference, high-frequency electromagnetic noise and surge voltage interference, prevents external field faults from diffusing to the SIS core system, and solves the problem of signal jitter and data deviation in complex industrial interference environments. The ultra-high common-mode rejection ratio ensures long-term stable and accurate sampling data.

3.4 Low-Drift High-Precision Sampling Performance

Equipped with 12-bit high-resolution AD converter and low-temperature-drift precision conditioning circuit, the module achieves ≤0.15% full-scale high-precision measurement. It maintains excellent linearity and stability in variable temperature and long-term operating environments, accurately capturing subtle changes of process voltage signals. The stable sampling performance fully meets the precision monitoring requirements of high-standard safety interlock and fine process control loops.

3.5 Full-State Intelligent Loop Diagnosis

The 3703E supports per-channel full-state intelligent diagnosis, accurately identifying common field faults such as signal over-range, under-range, loop open circuit and channel abnormality. All fault codes and loop health status are uploaded to the upper monitoring system in real time, realizing proactive fault early warning, precise positioning and rapid maintenance. It effectively eliminates dormant hidden dangers of analog safety loops and improves overall system safety integrity and maintainability.

3.6 Zero-Downtime Hot-Swap Maintenance

Supports online hot-swap replacement during normal SIS system operation without shutting down the safety system or affecting the signal monitoring of other analog loops. The professional mechanical anti-misplug structure avoids installation errors, realizing zero-downtime module maintenance, reducing on-site construction risks and system operation and maintenance costs, and fully adapting to long-term uninterrupted production requirements of process industrial plants.

Similar Series Models & Matching Modules

Triconex analog input module series covers voltage/current universal, high-precision and high-density types to meet diversified process monitoring demands. The mainstream matching and alternative models of TRICONEX 3703E are as follows:

TRICONEX 3503C1: Universal 4-20mA/±10V high-precision analog input module, for mixed current and voltage signal acquisition scenarios.
TRICONEX 3723X: High-density analog input module, suitable for large-scale multi-point conventional analog signal monitoring.
TRICONEX 3700A: Classic voltage analog input module, conventional low-precision voltage signal acquisition.
TRICONEX 3506X: 24VDC supervised digital input module, forming analog & digital integrated safety monitoring system.
TRICONEX 3625A / 3825X: Digital output and relay output modules, realizing closed-loop safety interlock based on 3703E voltage data.
TRICONEX 3009X / MP6004: TMR main processor modules, receiving 3703E high-precision voltage data for safety logic operation and judgment.

Product Summary

The TRICONEX 3703E is a SIL 3-grade high-stability isolated voltage analog input module in the Triconex SIS product line. Featuring TMR triple redundant fault-tolerant architecture, 0–5V/0–10V configurable dual-range adaptation, full-channel galvanic isolation, ultra-high anti-interference capability and low-drift high-precision sampling, it perfectly solves the problems of poor interference resistance and low accuracy of traditional voltage acquisition modules. As the core dedicated voltage signal monitoring unit for industrial high-integrity safety loops, it provides stable and accurate data guarantee for ESD, process interlock and fine safety monitoring, and is widely applied in global high-risk process industrial safety control projects.
