Description

TRICONEX 3506X 24VDC Supervised Digital Input Module

The TRICONEX 3506X is a high-integrity TMR (Triple Modular Redundancy) supervised digital input module designed for Triconex Tricon Safety Instrumented Systems (SIS). As a high-precision 24VDC safety signal acquisition unit, it features built-in loop supervision diagnosis, galvanic isolation protection and triple redundant fault-tolerant sampling architecture. Fully compliant with IEC 61508 SIL 3 functional safety standards, the 3506X is dedicated to continuous health monitoring and reliable status acquisition of critical discrete safety loops, effectively eliminating dormant failure risks in ESD, F&G and process interlock systems for high-risk industrial environments.

Product Applications

The TRICONEX 3506X is widely deployed in safety-critical process industries requiring high-integrity supervised discrete signal monitoring, including oil & gas, offshore platforms, petrochemical, chemical processing, thermal power generation and pharmaceutical industries. It serves as the core high-reliability digital signal acquisition module for medium and large-scale SIS safety systems, with typical application scenarios as follows:

Supervised ESD Emergency Shutdown Loop Monitoring: Collects status signals of emergency stop buttons, shutdown trip contacts and valve position feedback switches with real-time loop health diagnosis, ensuring every emergency safety loop is in effective standby state and avoiding unresponsive hidden faults.
F&G Fire and Gas Detection Signal Acquisition: Monitors discrete output signals of flame detectors, smoke sensors and toxic gas detectors, while continuously diagnosing field line breakage, short circuit and equipment loss faults to guarantee reliable hazard alarm and linkage trigger conditions.
Critical Process Interlock Status Detection: Tracks running status, fault feedback and interlock switch signals of key equipment such as compressors, pumps and fans, realizing real-time verification of interlock loop integrity and improving the accuracy of process safety judgment.
High-Integrity Safety Loop Health Management: Adapts to high-standard safety loop scenarios requiring regular self-check and dormant failure prevention, providing continuous loop supervision function that conventional non-supervised DI modules cannot achieve, greatly improving overall system safety integrity level.
Long-Term Unattended Industrial Safety Monitoring: Suitable for remote unmanned factory areas, offshore platforms and long-cycle production devices, realizing autonomous fault early warning of safety loops and reducing manual inspection and maintenance workload.

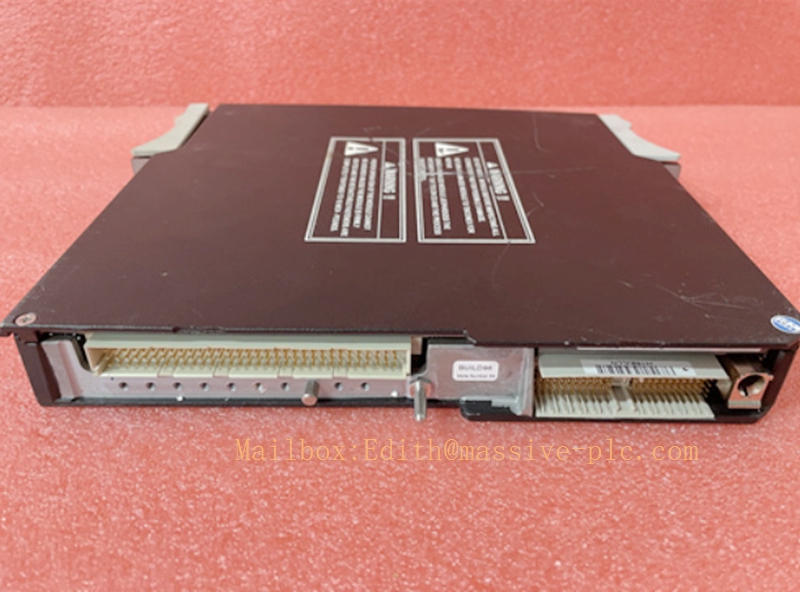

Triconex 3506X

Technical Specifications & Parameters

The TRICONEX 3506X adopts standard TMR triple redundant synchronous sampling mechanism, professional 24VDC supervised loop design and full-channel galvanic isolation. With precise signal recognition, comprehensive loop diagnosis capability and excellent harsh environment adaptability, it fully meets SIL 3 high-reliability safety loop monitoring requirements. Detailed specifications are listed below:

2.1 Electrical & Acquisition Parameters

Module Type: TMR triple redundant supervised digital input module (DI)
Channel Density: 16 independent 24VDC supervised input channels
Rated Input Voltage: 24VDC industrial safety standard voltage
Input Current Range: 3.6mA ~ 21.6mA precise current identification range
Single Channel Maximum Current: 20mA maximum load current per channel
Input Impedance: 3.3kΩ ~ 4.7kΩ stable input impedance range
Sampling Mechanism: Triple-channel synchronous sampling + 2-out-of-3 hardware voting judgment
Core Function: Full-channel real-time loop supervision diagnosis
Diagnostic Items: Field circuit open circuit, short circuit, load loss and abnormal loop resistance detection
Isolation Performance: Complete channel-to-backplane galvanic isolation to prevent fault crosstalk
Signal Filtering: Built-in hardware anti-jitter filter to eliminate transient electromagnetic interference
Backplane Bus: High-speed dedicated TriBus safety bus for low-delay and stable data transmission

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Anti-Interference Performance: Compliant with IEC industrial EMC electromagnetic immunity, vibration and mechanical shock resistance standards
Working Adaptability: Industrial dust-proof, moisture-proof and anti-aging reinforced design for long-term continuous unattended field operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard slot mounting for Triconex TMR system chassis with anti-misplug mechanical key
Hot-Swap Support: Supports online module replacement without SIS system shutdown
System Compatibility: Fully compatible with Triconex Tricon series chassis, TMR controllers and TriStation configuration software
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

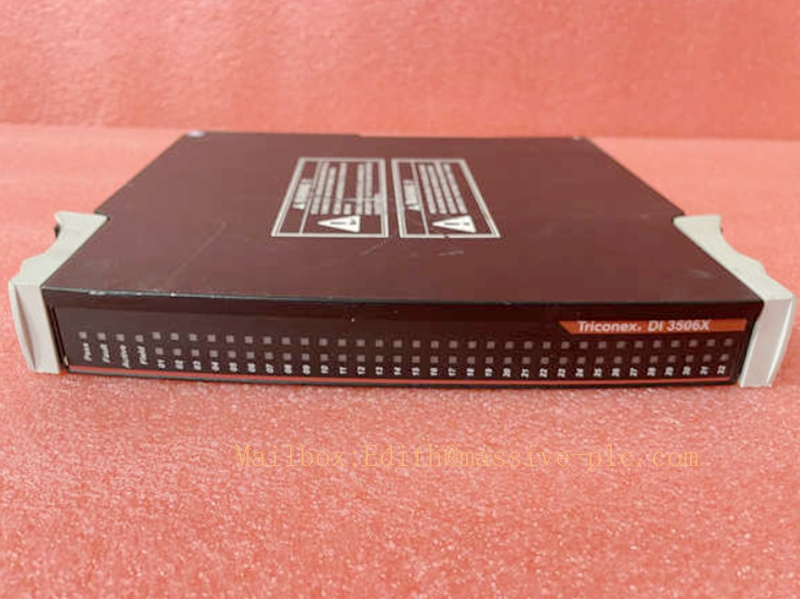

Triconex 3506X

Core Product Features

3.1 TMR Triple Modular Redundancy Fault-Tolerant Architecture

The 3506X adopts three fully independent synchronous signal sampling channels and hardware 2-out-of-3 voting logic. All channels synchronously collect and verify field digital status signals. In case of single-channel circuit failure, sampling deviation or transient electromagnetic interference, the faulty channel is automatically isolated and shielded. The module outputs consistent and accurate signal status through healthy channel consensus, completely eliminating single-point failure risks and ensuring zero misjudgment of safety loop monitoring.

3.2 Full-Channel 24VDC Loop Supervision Mechanism

Different from conventional ordinary digital input modules, every channel of the 3506X integrates independent loop supervision circuit. It continuously monitors the health status of field wiring and loads in real time, actively detecting hidden faults such as wire breakage, loose wiring, short circuit and sensor load loss that cannot be identified by non-supervised modules. This core function completely solves the dormant failure problem of safety loops and significantly improves the safety integrity of SIS systems.

3.3 High-Stability Signal Recognition & Anti-Jitter Design

Equipped with precise current sampling and hardware filtering technology, the module achieves stable identification of 24VDC discrete signals. It effectively filters on-site pulse noise, voltage fluctuation and instantaneous interference, avoiding frequent signal flipping and logic misjudgment in complex electromagnetic environments. The accurate current threshold judgment ensures reliable and consistent response of safety interlock logic.

3.4 Independent Galvanic Isolation & Strong Anti-Interference

Built-in high-strength galvanic isolation structure between field channels and system backplane, the 3506X effectively isolates external surge voltage, ground interference and circuit fault diffusion. It prevents on-site equipment abnormalities from affecting the stable operation of the core SIS system, greatly enhancing the system’s ability to resist harsh industrial environment interference and improving long-term operation stability.

3.5 Intelligent Full-State Self-Diagnosis

The module supports per-channel full-state intelligent diagnosis, covering loop abnormality, channel circuit fault, voting mismatch, bus communication anomaly and power supply fluctuation. All fault codes and loop health status are uploaded to the upper monitoring system in real time, realizing proactive fault early warning, precise positioning and rapid maintenance, reducing hidden safety hazards and improving system maintainability.

3.6 Zero-Downtime Hot-Swap Maintenance

Supports online hot-swap replacement during normal SIS system operation without shutting down the safety system or affecting the monitoring of other safety loops. The mechanical anti-misplug structure avoids installation errors, realizing zero-downtime module maintenance, reducing on-site construction risks and system operation costs, and adapting to long-term uninterrupted production requirements of process industrial plants.

Similar Series Models

Triconex digital input module series covers supervised and non-supervised types with different channel densities to meet diversified safety monitoring demands. The mainstream matching and alternative models of TRICONEX 3506X are as follows:

TRICONEX DI2301: 16-channel standard non-supervised digital input module, used for conventional low-risk discrete signal monitoring scenarios.
TRICONEX DI3301S2: 32-channel high-density digital input module, suitable for large-scale I/O intensive common signal acquisition.
TRICONEX 3625A / 3825X: Digital output and relay output modules, forming complete closed-loop safety interlock control with 3506X.
TRICONEX 3617E / 3601E: Supervised output modules, matching with 3506X to build full-supervision high-integrity safety loops.
TRICONEX 3009X / MP6004: TMR main processor modules, receiving 3506X supervised signal data for safety logic judgment.
TRICONEX 8311N / PM6301A: Redundant power supply modules, providing stable purified power for 3506X high-precision sampling and diagnosis operation.

Product Summary

The TRICONEX 3506X is a SIL 3-grade high-performance TMR 24VDC supervised digital input module in the Triconex safety system product line. Featuring triple modular redundant fault-tolerant architecture, full-channel loop supervision diagnosis, high-stability signal acquisition and galvanic isolation anti-interference capability, it effectively solves the dormant failure and undetectable hidden fault pain points of traditional non-supervised DI modules. As the core high-integrity signal monitoring unit for ESD, F&G and process interlock systems, it provides ultra-reliable loop health guarantee and discrete signal acquisition support for global high-risk process industrial safety systems.
