TRICONEX 3504E TMR Digital Input Module: Full Technical Introduction
The TRICONEX 3504E is a high-performance Triple Modular Redundant (TMR) Digital Input (DI) module developed by Schneider Electric’s TRICONEX brand, purpose-built for Tricon v9 to v11 Safety Instrumented Systems (SIS). It delivers fault-tolerant discrete signal acquisition with SIL3 functional safety certification, designed to eliminate single-point failures for critical safety loops in high-risk industrial environments.
Core Product Specifications
| Specification Item | Technical Details |
|---|---|
| Manufacturer | TRICONEX (Schneider Electric, formerly Invensys) |
| Product Category | TMR Isolated Digital Input Module |
| System Compatibility | Tricon v9, v10, v10.5, v11 safety control platforms |
| Input Channel Count | 32 isolated digital input points |
| Nominal Field Input Voltage | 24 VDC |
| Valid Input Voltage Range | 15 VDC to 30 VDC |
| Input Current per Channel | 7 mA (nominal at 24 VDC) |
| Signal Filtering Time | Configurable 0.5 ms to 128 ms anti-chatter filter |
| Isolation Rating | 500 VDC channel-to-backplane, 250 VAC channel-to-channel |
| Safety Integrity Level | SIL3 compliant |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Power Consumption | 6.0 W maximum |
| Net Weight | Approximately 0.9 kg |
| Warranty Period | 12-month manufacturer warranty |
Key Design Features
- True TMR 2oo3 Voting Architecture: Three independent signal acquisition circuits process each field input simultaneously, with hardware-level 2-out-of-3 voting to validate signal consistency. This eliminates spurious signal misreading and dangerous undetected failures, delivering a PFD (Probability of Failure on Demand) lower than 10⁻⁴.
- High-Density 32-Channel Layout: The compact form factor integrates 32 isolated DI points, reducing total system footprint and chassis slot usage for large-scale safety loop deployment.
- Built-In Field Power Monitoring: The module continuously monitors the 24 VDC field input power supply, automatically triggering an alarm if the power drops below the valid threshold to prevent invalid signal acquisition.
- Configurable Anti-Chatter Filter: Users can adjust the input filter time via TriStation 1131 engineering software, effectively filtering out transient electrical noise and contact bounce from mechanical field switches.
- Hot-Swap Support: The module supports online replacement without shutting down the safety system, as the redundant TMR channels maintain normal signal acquisition during the replacement process.
- Channel-Level Diagnostics: Real-time detection of open-loop field wiring, short-circuit faults and internal circuit anomalies, with granular fault localization reported directly to the Tricon host controller.

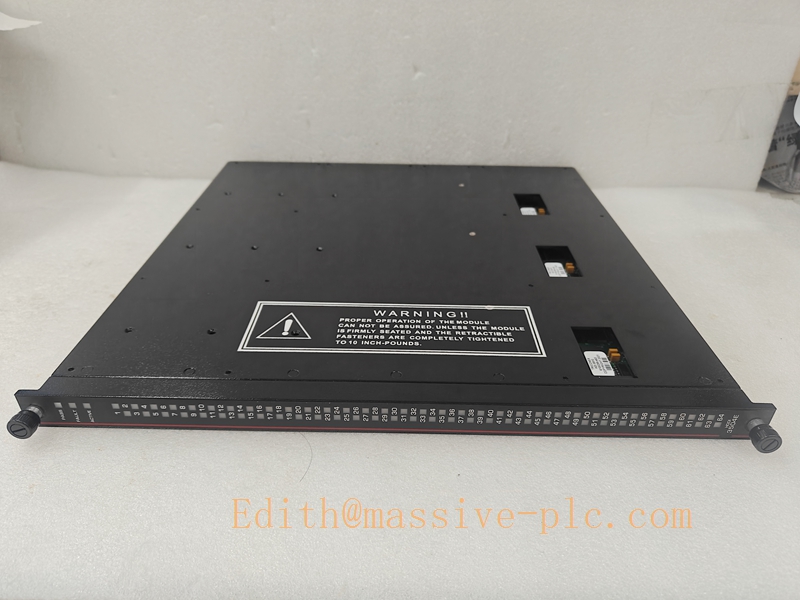

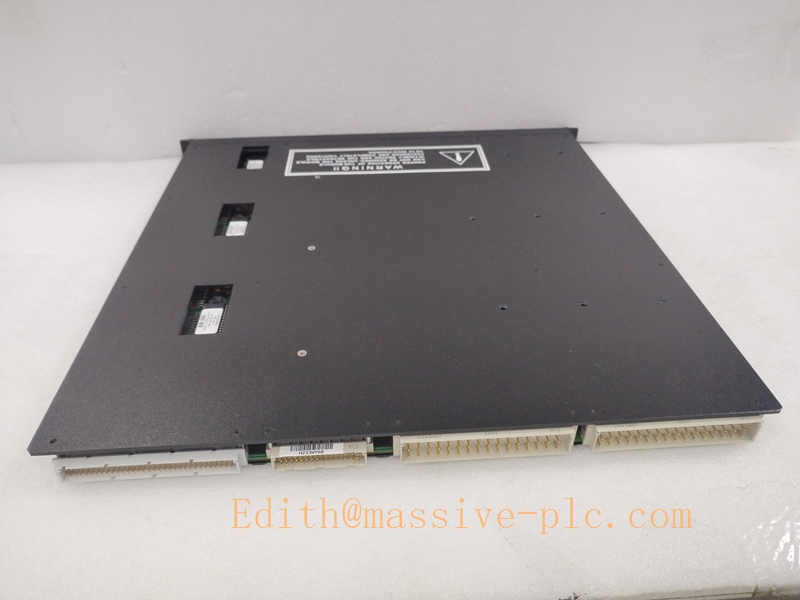

TRICONEX 3504E
Typical Industrial Applications
The 3504E serves as the core high-density discrete signal acquisition interface for safety-critical loops, with widespread deployment across high-risk process industries:
- Oil & Gas Facilities: Acquires status signals from emergency shutdown (ESD) pushbuttons, valve position limit switches and fire & gas (F&G) detectors for large-scale refinery complexes
- Power Generation Plants: Collects turbine trip interlock status, boiler safety switch signals and generator protection discrete inputs for multi-unit power stations
- Petrochemical Refineries: Monitors safety interlock switch status for distillation columns, reactors and high-pressure process units with a large number of discrete monitoring points
- Offshore Platforms: Captures critical safety discrete signals in corrosive, high-vibration offshore environments, optimizing limited cabinet space on offshore facilities
- Chemical Manufacturing Sites: Acquires emergency stop (E-stop) signals and hazardous material release detection discrete inputs for large chemical production lines
Installation Guidelines
- Slot Placement: Insert the 3504E module into a standard Tricon I/O chassis slot, ensuring full engagement with the backplane connector and secure locking of the module latch.
- Field Wiring: Connect 24 VDC discrete field signals to the corresponding channel terminals using shielded twisted-pair cables, maintaining minimum 250V isolation clearance between signal lines and high-voltage power lines.
- Grounding Configuration: Connect the module’s dedicated shield terminal to the system safety grounding grid to suppress electromagnetic interference from high-noise field environments.
- Pre-Commissioning Test: Complete signal loop verification via TriStation 1131 software, confirming each channel correctly reads both “ON” and “OFF” field states before activating the safety loop.
Maintenance & Troubleshooting
- Routine Inspection: Conduct quarterly checks to verify front-panel channel status LEDs, terminal screw tightness and chassis ventilation conditions, preventing overheating that may degrade signal accuracy.
- Fault Diagnosis: A steady red channel LED indicates an open field loop, short circuit or internal signal mismatch. Operators can isolate the faulty field loop first, and perform hot-swap replacement if the module itself is confirmed faulty.
- Safety Procedure Compliance: All maintenance operations must follow formal Lockout/Tagout (LOTO) protocols to avoid unintended disruption to active safety loops.
- Repair Notes: Field disassembly of the 3504E module will invalidate its SIL3 functional safety certification. All faulty units must be returned to TRICONEX authorized service centers for certified component-level maintenance.

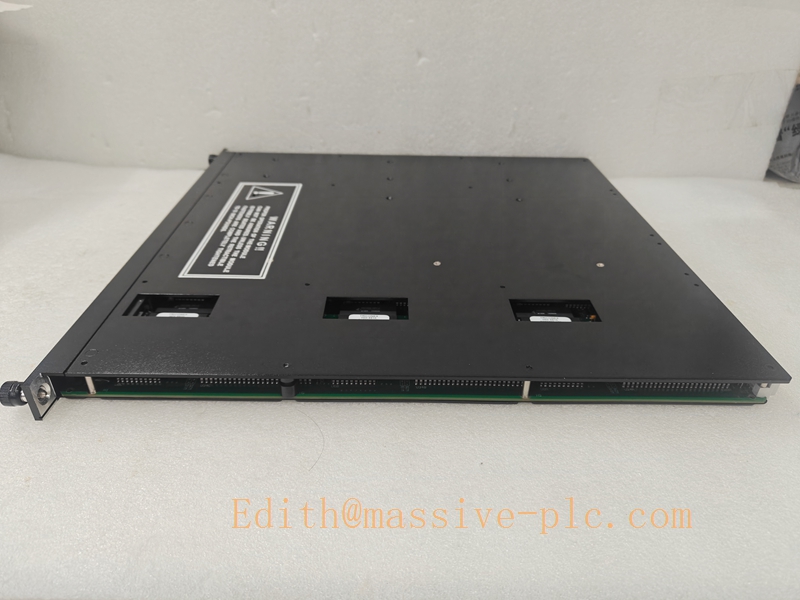

TRICONEX 3504E
Related Tricon Series Digital Input Modules
The 3504E belongs to TRICONEX’s Tricon high-density TMR digital input family, with peer models tailored for different field signal scenarios:
- 3708E: 16-channel 24 VDC TMR digital input module, for standard-density safety loop signal acquisition
- 3700A: 16+16 channel dual-redundant 24 VDC DI module, for ultra-high availability safety loops requiring 100% signal redundancy
- 3701: 115 VAC TMR digital input module, designed for AC-powered field safety switches commonly found in legacy industrial facilities
- 3702: 230 VAC TMR digital input module, optimized for high-voltage AC discrete signal acquisition in large-scale process plants
