TRICONEX 3502E 32-Point Digital Input Module

Description

Product Overview

The TRICONEX 3502E is a high-integrity 32-Point Digital Input Module designed for the Tricon Safety Instrumented System (SIS). Engineered for mission-critical applications, it serves as the primary interface for discrete field signals, such as limit switches, pressure switches, and valve position indicators. Operating within a Triple Modular Redundant (TMR) architecture, this module ensures maximum safety and availability for Emergency Shutdown (ESD), Fire & Gas (F&G), and Burner Management Systems (BMS).

Technical Specifications & Parameters

Key Features

• TMR Fault Tolerance: Operates within the Tricon TMR architecture, where three independent channels read inputs in parallel. The system utilizes “2-out-of-3” voting logic to ensure continuous safe operation and prevent spurious trips even if a single channel fails.
• Advanced Self-Test Diagnostics: Features a continuous self-test capability to detect “stuck-open” conditions, where the circuitry cannot determine if a point has entered a shutdown state. This is critical for ensuring fail-safe operation in safety systems.
• High-Voltage Isolation: Provides robust optical isolation (2500V AC) between field wiring and the internal logic, offering superior protection against ground loops, surges, and electrical noise in harsh industrial environments.
• Hot-Swappable Design: Supports online maintenance, allowing the module to be replaced without powering down the rack or shutting down the process, significantly reducing downtime.
• Seamless Integration: Communicates with the main processor via the dedicated TriBus, ensuring real-time synchronization and deterministic response times for safety-critical actions.

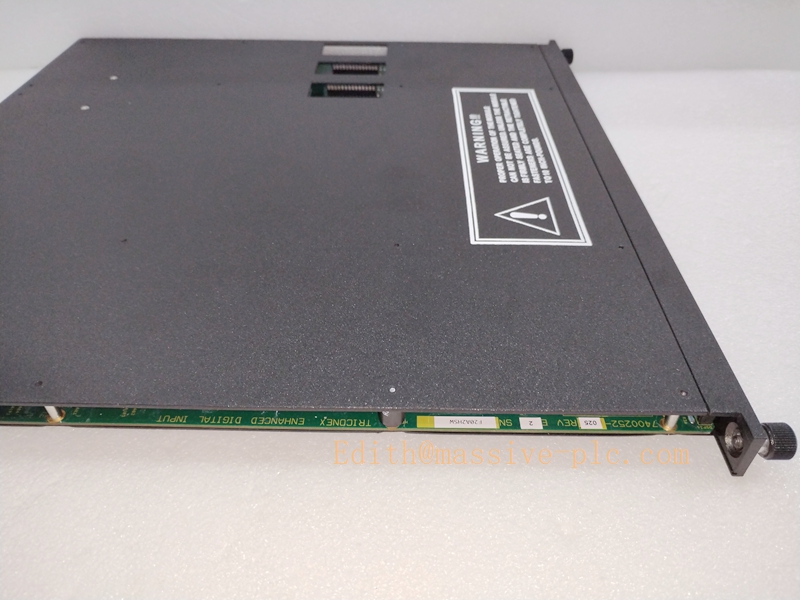

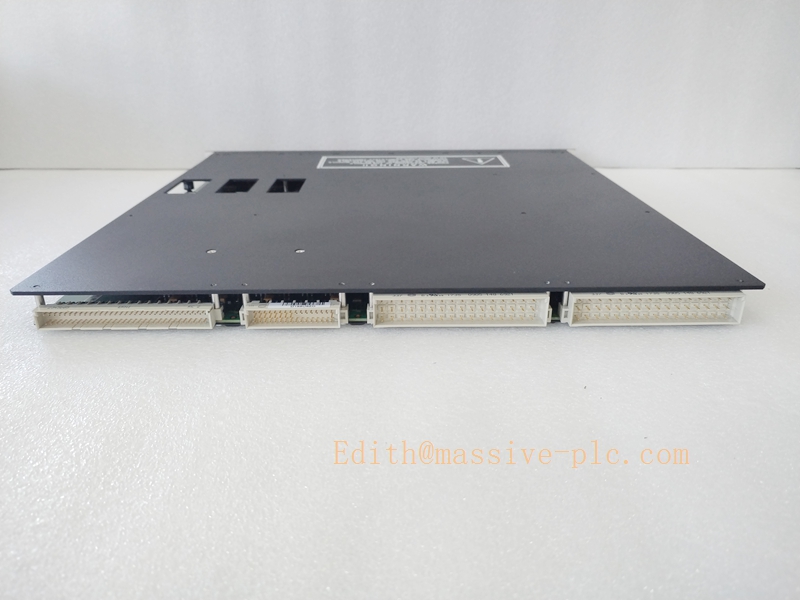

TRICONEX 3503C1

Installation Guidelines

• Rack Installation: Insert the module into a compatible Tricon rack slot, ensuring it is securely seated and locked in place. The module is mechanically keyed to prevent installation in incorrect slots.
• Field Wiring: Connect field devices to the 8 groups of 8 commoned points. Always use shielded cables for field connections and ensure proper grounding to minimize electromagnetic interference (EMI).
• External Termination: Requires a separate External Termination Panel (ETP) or direct field wiring via the backplane connector, depending on the system configuration.
• Software Configuration: Utilize TriStation 1131 software to configure input parameters, debounce times, and diagnostic settings. Ensure the module’s firmware version is compatible with the main processor.

Maintenance & Troubleshooting

• Diagnostic Monitoring: Regularly check the module’s PASS, FAULT, and ACTIVE LEDs. A FAULT indicator typically points to a specific channel issue or a self-test failure rather than a complete module failure.
• Self-Test Faults: If a “Stuck-Open” alarm is triggered, use the TriStation 1131 diagnostic tools to identify the specific point. This fault indicates the module cannot verify the safety state of that input.
• Terminal Inspection: Periodically inspect terminal connections for looseness or corrosion, especially in high-vibration environments.
• Spare Parts Management: Maintain an adequate stock of 3502E modules to minimize downtime during unexpected hardware failures.

Related Series Models

The 3502E is part of the Tricon digital input family. Common related models include:

• 3501E: 115VAC/VDC Digital Input Module, Opto-Isolated, Non-Commoned, TMR.
• 3503E: 24VAC/VDC Digital Input Module, 8 Groups Commoned, Self-Test, TMR.
• 3504E: 24VDC/48VDC Digital Input Module, High-Density, DC-Coupled, TMR.
• 3505E: 24VDC Digital Input Module, Low-Level, Self-Test, TMR.
