TRICONEX 3411 SDO Digital Output Module

Description

TRICONEX 3411 SDO Digital Output Module Product Introduction

The TRICONEX 3411 is a high-reliability, safety-certified SDO (Solid-state Digital Output) module built on Triconex proprietary TMR (Triple Modular Redundancy) architecture. Designed exclusively for Triconex safety instrumented systems (SIS), this solid-state relay output module executes critical safety control commands to drive on-site industrial actuators. With fault-tolerant output capability and comprehensive self-diagnostic functions, it delivers fail-safe operation for high-risk process industries and complies with global functional safety standards for continuous, stable safety loop control.

Product Applications

The TRICONEX 3411 module is applied in safety-critical control scenarios that require high-precision, high-stability digital output responses, widely deployed in oil & gas, petrochemical, thermal power, chemical processing, and energy industries. It serves as the core execution unit of SIS safety loops, with typical application scenarios as follows:

• Emergency Shutdown (ESD) Systems: Outputs switching control signals to drive emergency shutdown valves, solenoid valves, and safety isolation equipment, realizing rapid equipment shutdown and risk cut-off during process faults.
• Fire & Gas (F&G) Suppression Systems: Triggers alarm linkage and fire-extinguishing equipment activation after receiving hazard detection signals, controlling exhaust fans, fire valves, and alarm beacons.
• Safety Instrumented System (SIS) Loop Execution: Acts as the terminal output component of SIL 3 safety loops, executing system safety logic commands to ensure reliable action of safety protection devices.
• Critical Process Interlock Control: Implements process interlock protection for high-temperature, high-pressure, and flammable-explosive production links, preventing abnormal process operation and equipment failure risks.

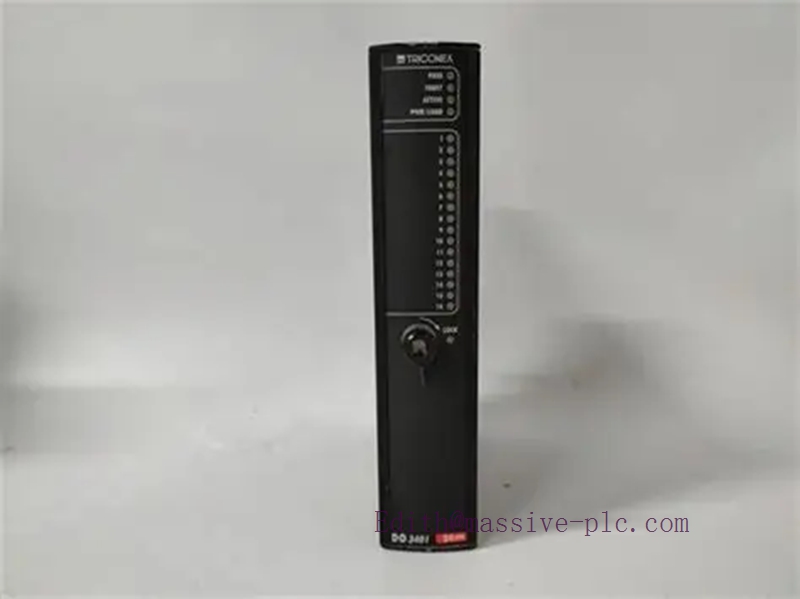

TRICONEX 3411

Technical Specifications & Parameters

The TRICONEX 3411 adopts industrial solid-state relay output design, with standardized electrical, environmental and mechanical parameters, adapting to harsh industrial operating conditions and meeting high-standard safety control requirements. Detailed specifications are listed below:

2.1 Electrical Parameters

• Module Type: TMR solid-state digital output module (SDO)
• Channel Configuration: 32 independent output channels
• Rated Output Voltage: 24VDC nominal
• Operating Voltage Range: 15VDC to 30VDC
• Single Channel Load Current: Maximum 2A per channel
• Output Response Speed: Millisecond-level fast response for safety action
• Isolation Design: Complete galvanic isolation between field output side and system internal side, with independent channel isolation to avoid signal interference
• Output Mode: Fail-safe de-energized safety output

2.2 Environmental Parameters

• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Environmental Adaptability: Compliant with IEC industrial vibration and shock resistance standards, resisting on-site electromagnetic interference and temperature fluctuation

2.3 Mechanical & Certification Parameters

• Weight: 1.45kg
• Installation Method: Standard Triconex chassis slot mounting
• Communication & Synchronization: Supports TMR three-channel synchronous voting and Modbus RTU system communication
• Safety Certification: SIL 3, CE, UL, ATEX certified, fully compliant with IEC 61508 functional safety standards

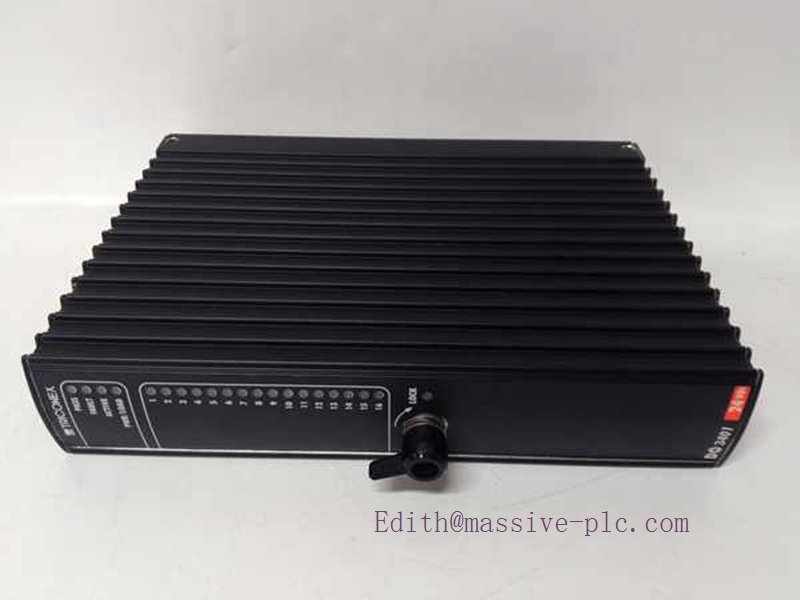

TRICONEX 3411

Core Product Features

3.1 TMR Triple Modular Redundancy Fault-Tolerant Architecture

The TRICONEX 3411 integrates three independent internal output circuits with a built-in two-out-of-three voting logic. The three parallel processing channels execute output commands synchronously and verify output status through loopback detection. Single-channel circuit failure or signal deviation will be automatically identified and masked without interrupting normal output of other channels or affecting the overall safety loop operation, eliminating single-point failure risks.

3.2 High-Reliability Solid-State Output Design

Adopts industrial solid-state relay output structure, replacing traditional mechanical relays, featuring no mechanical wear, fast switching speed, and long service life. It supports frequent safety switching actions and maintains stable output performance under long-term load operation, effectively avoiding contact adhesion and failure problems of mechanical output modules.

3.3 Full-Coverage Real-Time Self-Diagnosis

Equipped with comprehensive intelligent diagnosis functions, it can real-timely monitor output circuit faults, load abnormalities, open/short circuit of field wiring, voting mismatches, and power supply anomalies. All fault codes are uploaded to the host controller in real time, supporting precise fault location, pre-alarm of hidden dangers, and greatly improving system maintainability and safety transparency.

3.4 Strict Fail-Safe Safety Mechanism

Designed with a de-energized fail-safe mode. In case of module failure, power outage or system abnormality, all output channels will automatically return to the safe off state, triggering safety protection actions such as equipment shutdown and hazard isolation, which fully meets the fail-safe design requirements of industrial SIS safety systems.

3.5 Excellent Compatibility & Scalability

Fully compatible with all Triconex TMR series chassis, controllers and supporting software, supporting seamless docking with existing SIS and DCS systems. It supports online module replacement and hot maintenance without stopping the system, facilitating on-site equipment upgrade, expansion and daily maintenance.

3.6 Strong Industrial Environmental Adaptability

Industrial-grade hardware design with wide temperature resistance, anti-vibration, anti-electromagnetic interference and moisture-proof performance. It can operate stably in harsh industrial environments such as factory continuous operation, temperature and humidity fluctuation, and complex electromagnetic field interference, ensuring long-term trouble-free operation of safety loops.

Installation Guidelines

Standardized installation procedures are critical to ensure the full-performance operation and safety reliability of the TRICONEX 3411 module. On-site installation must follow the specifications below:

• On-Site Environment Requirements: Install in a sealed, dust-proof, moisture-proof industrial control cabinet, avoiding corrosive gas, oil pollution, strong electromagnetic radiation and direct sunlight. Reserve sufficient upper and lower space for module heat dissipation to prevent overheating caused by poor ventilation.
• Chassis Mounting Operation: Vertically insert the module into the designated slot of the Triconex TMR chassis, ensure precise docking of the backplane golden finger, and lock the module fixing buckle tightly. Fill idle chassis slots with standard blank panels to ensure chassis air circulation and electromagnetic shielding integrity.
• Power & Field Wiring: Access stable 24VDC isolated power supply with matched overcurrent and overvoltage protection devices. Adopt standard field shielded cables for actuator wiring, strictly distinguish load types, avoid over-current load access, and check all wiring for firm connection, no short circuit, open circuit or virtual connection.
• System Debugging & Verification: Complete module hardware identification, channel parameter configuration and safety logic programming through supporting system software after installation. Conduct full-channel output test and fault diagnosis function verification to ensure consistent output actions and normal fault reporting.

Maintenance & Troubleshooting

Scientific and standardized daily maintenance can effectively extend the service life of the TRICONEX 3411 module, maintain the long-term safety integrity of the system, and reduce unplanned downtime. The specific maintenance specifications and fault handling rules are as follows:

5.1 Routine Maintenance

• Monthly Functional Inspection: Use dedicated Triconex diagnostic software to scan module operating status, confirm that all output channels work normally, check for historical fault codes and voting abnormities, and verify real-time diagnosis function validity.
• Quarterly On-Site Inspection: Manually check terminal wiring tightness, clean module surface and cabinet dust, inspect cable aging and terminal corrosion, and test the flexibility of safety output linkage actions.
• Annual Comprehensive Calibration: Conduct full performance detection of the module, verify TMR voting accuracy, fail-safe response mechanism and load output stability, and eliminate potential hardware and wiring hidden dangers.

5.2 Common Fault Handling Rules

• Single-Channel Output Fault: The module automatically isolates the faulty channel through TMR voting, and other channels operate normally. After troubleshooting field load faults, wiring short circuit or open circuit problems, restore channel functions.
• Voting Mismatch Fault: Prioritize checking backplane connection stability and power supply quality; if the fault persists after eliminating on-site wiring problems, replace the module for offline maintenance.
• Diagnostic Function Abnormity: Restart module communication configuration first, check system software matching degree, and calibrate diagnostic parameters to ensure real-time and accurate fault monitoring.
• Operation Prohibition: Hot plugging is prohibited during system normal operation to avoid backplane circuit damage and safety loop interruption.

5.3 Service Life & Replacement Standard

The TRICONEX 3411 module has a design service life of more than 10 years under standard industrial operating conditions. For modules with frequent fault alarms, degraded output performance or aging circuits after long-term operation, timely replacement is recommended to ensure the SIL 3 safety integrity level of the entire SIS system.

Similar Series Models

TRICONEX TMR safety system I/O modules form a complete matching product line. The mainstream similar and supporting models of the 3411 output module are listed below for system configuration, replacement and expansion reference:

• TRICONEX 3401: Standard digital output module, the basic matching model of 3301 input module, suitable for conventional safety output control scenarios.
• TRICONEX 3412: Enhanced SDO digital output module, with higher load capacity and wider temperature adaptability, applicable to ultra-harsh industrial environments.
• TRICONEX 3301: Classic 32-channel digital input module, supporting signal acquisition matching with 3411 output module to form a complete safety control loop.
• TRICONEX 3501: Analog input module, cooperates with 3411 to realize linkage control of analog parameter monitoring and digital safety output.
• TRICONEX 3602: High-speed communication expansion module, improving the real-time data transmission and system interconnection performance of 3411 module loops.

Product Summary

The TRICONEX 3411 is a high-performance TMR solid-state digital output module dedicated to industrial SIS safety systems. Adopting triple redundant fault-tolerant architecture and solid-state relay output technology, it integrates fail-safe protection, full intelligent diagnosis and high stable load drive capability. With reliable safety performance, strong environmental adaptability and convenient maintenance characteristics, it can accurately execute various safety protection commands in high-risk industrial scenarios, effectively guaranteeing the safe, stable and efficient operation of production systems. It is a core terminal execution component of Triconex TMR safety instrumented systems and is widely recognized and applied in global process industry safety control fields.
