TRICONEX 3301 Digital Input Module

Description

TRICONEX 3301 Digital Input Module Product Introduction

The TRICONEX 3301 is a high-integrity, safety-certified 24VDC digital input module designed for Triconex TMR (Triple Modular Redundancy) safety instrumented systems (SIS). Engineered for critical process industries, this module delivers fault-tolerant discrete signal acquisition, ensuring continuous, reliable monitoring of field switch statuses in high-risk industrial environments. It complies with global functional safety standards and serves as a core I/O component for emergency safety control and process monitoring systems.

Product Applications

The TRICONEX 3301 module is exclusively deployed in safety-critical industrial control scenarios that demand zero downtime and high signal accuracy, widely adopted in oil & gas, petrochemical, power generation, chemical processing, and pharmaceutical industries. Its core application scenarios include:

• Emergency Shutdown (ESD) Systems: Collects on-site discrete signals from pressure switches, temperature switches, flow switches, and limit valves to support rapid emergency shutdown responses during process abnormalities.
• Critical Process DCS Auxiliary Monitoring: Provides redundant switch signal collection for key process equipment status feedback, ensuring process stability and

The TRICONEX 3301 features standardized industrial-grade electrical and mechanical parameters, adapting to harsh on-site operating conditions with excellent environmental adaptability and signal stability. The detailed specifications are as follows:

2.1 Electrical Parameters

• Input Type: 24VDC discrete digital input
• Channel Configuration: 32 independent signal channels
• Operating Voltage Range: 15VDC to 30VDC (supports industrial power fluctuation tolerance)
• Single Channel Current: Maximum 60mA per channel
• Signal Response Speed: Millisecond-level rapid signal acquisition and response
• Isolation Design: Galvanic isolation between internal channels and between field and system sides, eliminating crosstalk interference

2.2 Environmental Parameters

• Operating Temperature: -40°C to +85°C
• Storage Temperature: -50°C to +95°C
• Relative Humidity: 5% to 95% (non-condensing)
• Anti-vibration & Anti-shock: Compliant with industrial IEC vibration resistance standards, adapting to factory mechanical vibration environments

2.3 Mechanical & Certification Parameters

• Weight: 1.42kg
• Installation Method: Standard Triconex chassis slot mounting
• Communication Protocol: Supports Modbus RTU for seamless system integration
• Safety Certification: SIL 3, CE, UL, ATEX certified, meeting international industrial safety specifications

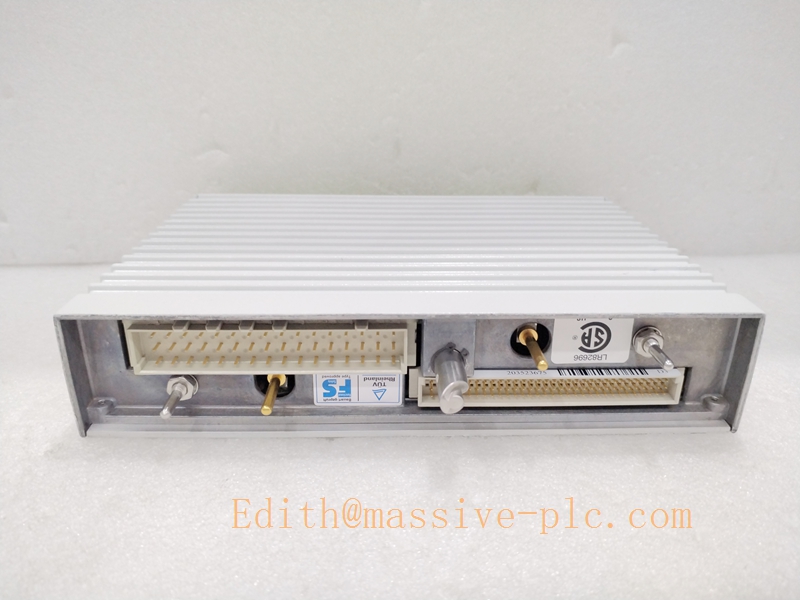

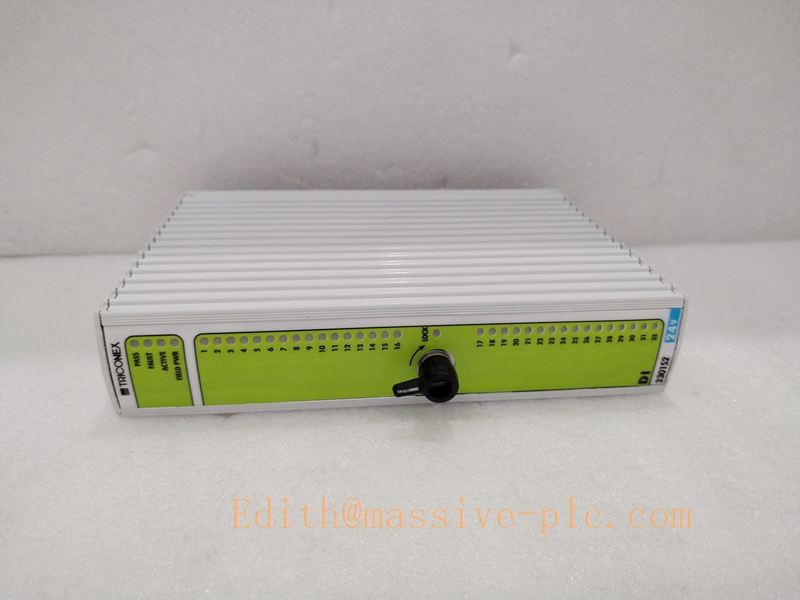

TRICONEX 3301S2

Core Product Features

3.1 TMR Fault-Tolerant Architecture

Adopts Triconex exclusive Triple Modular Redundancy design with three independent internal electronic channels for simultaneous signal processing. The built-in two-out-of-three voting mechanism ensures signal data integrity. Single-channel component failure will not affect the overall module and system operation, realizing automatic fault masking without manual switchover, effectively avoiding unplanned system shutdowns.

3.2 Powerful Self-Diagnostic Capability

Equipped with comprehensive real-time diagnostic functions, it can accurately detect internal circuit faults, power supply abnormalities, signal voting mismatches, wiring faults, and channel failures. All fault information is uploaded to the upper system in real time, supporting timely fault location and troubleshooting, and greatly reducing system hidden dangers.

3.3 High Anti-Interference & Stability

The full-channel galvanic isolation design eliminates signal crosstalk between adjacent channels. The wide voltage operating range and industrial-grade environmental resistance enable stable operation in extreme working conditions such as temperature fluctuation, power instability, and electromagnetic interference, ensuring long-term reliable signal acquisition.

3.4 High Safety & Compatibility

Meets SIL 3 highest safety integrity level requirements for industrial safety systems, suitable for high-risk safety loop control. It is fully compatible with all Triconex TMR series chassis and controllers, supporting seamless integration with existing SIS and DCS systems, with simple configuration and strong scalability.

3.5 Compact & Easy Integration

The lightweight and compact structural design saves cabinet installation space. It adopts removable terminal blocks for field wiring, which simplifies wiring operations and facilitates subsequent inspection and maintenance.

Installation Guidelines

Standardized installation procedures ensure the stable operation of the TRICONEX 3301 module and avoid equipment failure caused by non-standard installation:

• Environment Preparation: Install in a dust-proof, moisture-proof, and low-vibration control cabinet. Avoid direct sunlight, corrosive gas, and strong electromagnetic radiation interference. Reserve sufficient space around the module for heat dissipation and wiring operation.
• Chassis Mounting: Insert the module vertically and firmly into the matched Triconex chassis slot, ensure accurate alignment of the backplane connector, and lock the module fixing buckle to prevent loose contact. Fill unused chassis slots with 8105 blank slot panels to ensure overall chassis heat dissipation and air circulation.
• Power & Wiring: Access stable and isolated 24VDC power supply with matched overcurrent protection fuses. Complete field signal wiring through removable terminal blocks, distinguish dry contact and signal input types, and check for firm wiring and no short circuit or virtual connection.
• System Configuration: After hardware installation, complete module identification and signal parameter configuration through the supporting Triconex system software, and verify channel signal acquisition accuracy and diagnostic function validity.

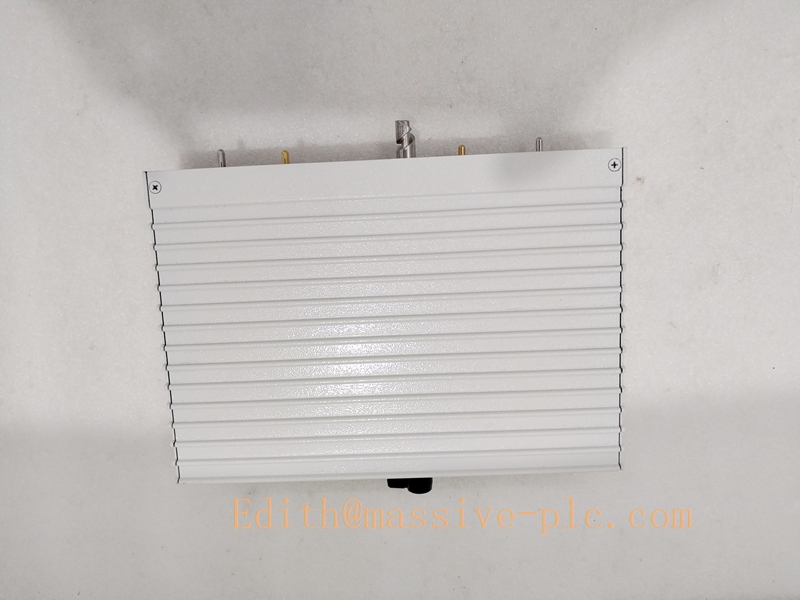

TRICONEX 3301S2

Maintenance & Troubleshooting

Scientific daily maintenance can effectively extend the service life of the module and ensure long-term stable system operation. The maintenance specifications are as follows:

5.1 Routine Maintenance

• Monthly Inspection: Use Triconex dedicated diagnostic software to scan module status, confirm that all channels acquire signals normally, and check for system-reported fault codes.
• Quarterly Inspection: Manually inspect terminal wiring tightness, check for terminal corrosion, wire aging, and loose connection phenomena, and clean module surface dust and cabinet dust.
• Annual Maintenance: Conduct full performance detection of the module, verify TMR voting function and fault diagnosis function, and test the stability of signal input under load fluctuation.

5.2 Fault Handling Rules

• For single-channel signal faults: The module will automatically shield the faulty channel without affecting other channels and system operation. After locating the wiring or field equipment fault, recover it in time.
• For module internal voting faults: Check backplane connection and power supply stability first; if the fault persists, replace the module offline for maintenance.
• Prohibit hot plugging and unplugging the module during system operation to avoid backplane circuit damage and system signal interruption.

5.3 Service Life & Replacement

The design service life of the module is more than 10 years under standard industrial working conditions. It is recommended to replace aging modules regularly according to on-site operation conditions to ensure system safety integrity.

Similar Series Models

TRICONEX TMR series I/O modules cover multiple specifications of digital input, digital output, analog input and analog output. The mainstream similar and matching models of 3301 are listed below for system configuration expansion and replacement reference:

• TRICONEX 3302: Enhanced 32-channel digital input module, with stronger anti-interference performance and extended temperature resistance, suitable for ultra-harsh industrial scenarios.
• TRICONEX 3351: 16-channel high-precision digital input module, supporting higher signal resolution, applied in high-precision safety monitoring loops.
• TRICONEX 3401: Digital output module matching 3301, used for safety system on-site actuator drive and signal output.
• TRICONEX 3501: Analog input module, collecting 4-20mA analog signals, cooperating with 3301 to realize full-parameter monitoring of process equipment.
• TRICONEX 3601: Communication expansion module, supporting multi-protocol conversion, improving the data transmission and interconnection capability of 3301 module system.

Product Summary

As a classic core digital input module of TRICONEX TMR safety system, the 3301 module integrates fault tolerance, high safety, strong stability and easy maintenance. Its industry-leading TMR redundant architecture and comprehensive self-diagnostic functions fully meet the strict safety monitoring requirements of high-risk process industries. With reliable performance, wide environmental adaptability and good system compatibility, it has become the preferred I/O module for global industrial SIS safety systems, providing solid technical support for industrial production safety and system stable operation.
