Name: TRICONEX 3009X Main Processor Module - MASSIVE
Brand: Triconex

Description

TRICONEX 3009X Main Processor Module Product Introduction

The TRICONEX 3009X is a high-performance TMR (Triple Modular Redundancy) main processor module serving as the core control unit of Triconex safety instrumented systems. Designed for high-availability and high-safety industrial process control, this advanced processor adopts industrial-grade fault-tolerant architecture to execute safety logic operation, system scheduling, I/O data processing and cross-network communication management. Fully compliant with IEC 61508 SIL 3 functional safety standards, the 3009X delivers ultra-high operational stability, comprehensive self-diagnosis capability and zero single-point failure performance, ensuring continuous and reliable operation of critical SIS, ESD and F&G systems in high-risk industrial environments.

Product Applications

The TRICONEX 3009X main processor is widely applied in safety-critical process industries that require ultra-high system integrity and uninterrupted operation, including oil & gas, petrochemical, chemical processing, thermal power generation, energy and pharmaceutical industries. As the core brain of Triconex TMR safety systems, it supports full-scenario safety control and logic processing, with typical application scenarios as follows:

Emergency Shutdown (ESD) Core Control: Executes complex user-defined safety logic programs, monitors real-time status of all field safety loops, and triggers accurate emergency shutdown and isolation actions once process parameters exceed safety thresholds, effectively preventing major equipment damage and production safety accidents.
Fire & Gas (F&G) System Operation: Processes fire detection and flammable/toxic gas monitoring signals, realizes hazard judgment, graded alarm and linkage protection logic, and controls fire suppression, ventilation and isolation equipment to ensure site safety.
High-Integrity Pressure Protection (HIPPS): Supports high-speed logic judgment and fast response output for high-pressure process protection loops, meeting the ultra-high reliability and low-delay operation requirements of high-grade safety protection systems.
Full-System I/O Data Scheduling: Collects, verifies and votes on all analog and digital I/O module data in real time, completes precise logic calculation, and issues accurate control instructions to field actuators to ensure loop consistency.
Multi-Protocol Cross-System Communication: Acts as the core communication scheduling hub of SIS systems, supporting stable data interaction and coordinated control with DCS, SCADA and third-party industrial control platforms, realizing unified management of system internal and external data.
Large-Scale Safety System Integrated Operation: Adapts to large-scale industrial safety systems with massive I/O points and complex interlock logic, supporting long-term stable cyclic operation and system function expansion.

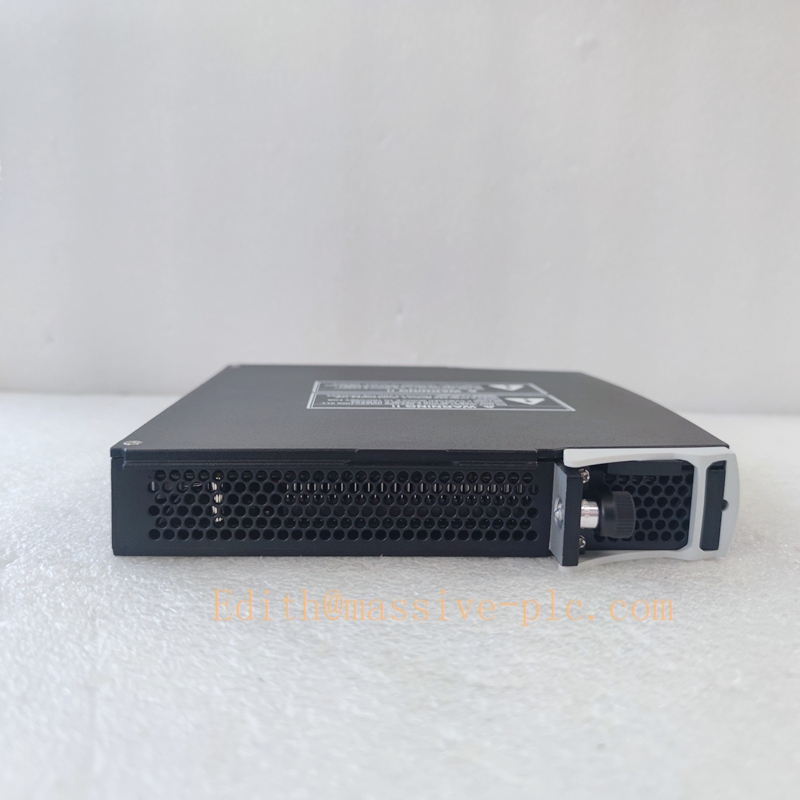

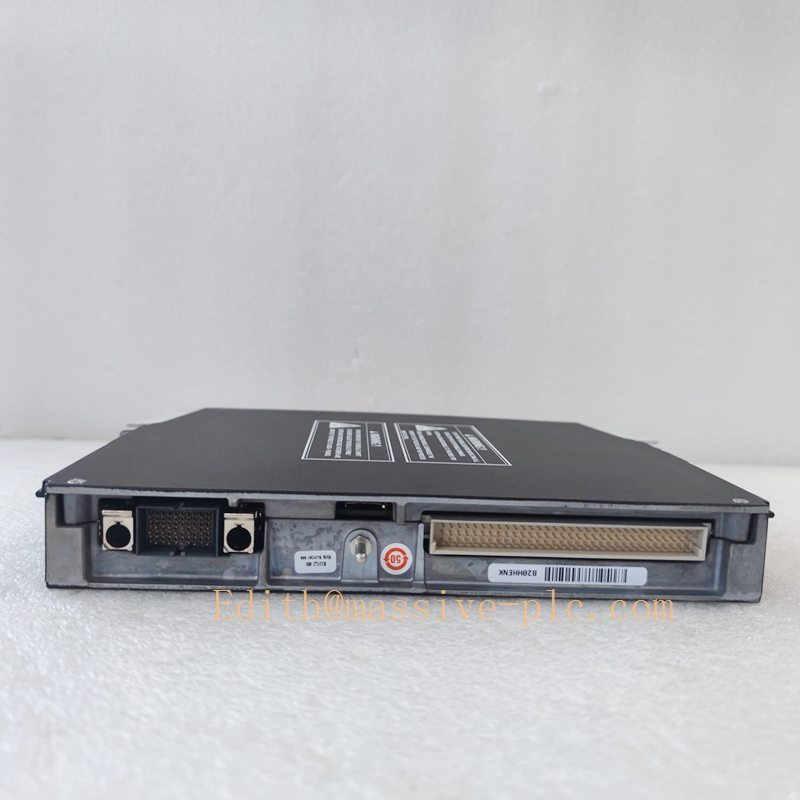

TRICONEX 3009X

Technical Specifications & Parameters

The TRICONEX 3009X adopts upgraded industrial high-speed processing architecture and strict TMR fault-tolerant design, with standardized electrical, environmental and mechanical parameters. It features powerful computing performance, large storage capacity and ultra-high diagnostic coverage, fully meeting SIL 3 high-standard safety control requirements. Detailed specifications are listed below:

2.1 Core Computing & Electrical Parameters

Module Type: TMR triple redundant main processor module
Processing Architecture: Triple-channel synchronous fault-tolerant computing architecture with 2-out-of-3 hardware voting
Flash Memory: 128 MB large-capacity program storage for complex safety logic and system firmware
RAM Memory: 16 MB high-speed data memory for real-time operation and data caching
Supported Protocols: Modbus RTU, CANopen and Triconex proprietary safety communication protocols
Communication Interfaces: Supports multi-type interface adaptation including RS485 and CAN bus
Data Transmission Rate: Up to 1 Mbps stable high-speed data transmission
Rated Power Supply: 24VDC industrial standard power supply
Operating Voltage Range: 15VDC to 30VDC wide voltage tolerance
Diagnostic Coverage: Ultra-high full-range fault diagnosis coverage for system hardware and software

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Environmental Resistance: Compliant with IEC industrial vibration, shock and EMC electromagnetic interference resistance standards
Structural Performance: Industrial dust-proof, moisture-proof and anti-corrosion reinforced design

2.3 Mechanical & Certification Parameters

Installation Method: Standard Triconex 3000 series chassis slot mounting
Hot-Swap Support: Supports online module replacement without system shutdown
System Compatibility: Fully compatible with Triconex TMR series chassis, I/O modules and TriStation software
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

Core Product Features

3.1 TMR Triple Modular Redundancy Fault-Tolerant Architecture

The TRICONEX 3009X adopts three completely independent synchronous computing channels with built-in hardware voting mechanism. The three channels synchronously execute logic operation, data calculation and command output. Any single-channel hardware failure, calculation deviation or transient signal abnormality will be automatically identified, isolated and masked. The module maintains accurate and stable system operation through healthy channel consensus, completely eliminating single-point failure risks and ensuring zero interruption of industrial safety systems.

3.2 Upgraded High-Performance Computing & Storage Capacity

Equipped with 128 MB Flash and 16 MB RAM large-capacity storage configuration, the 3009X supports more complex safety logic programs, multi-loop interlock strategies and long-term data caching compared with conventional processors. The high-speed computing core ensures fast program scanning and real-time data processing, meeting the high real-time and high-precision operation requirements of large-scale industrial safety control systems.

3.3 Multi-Protocol & Multi-Interface Compatibility

The module integrates multiple mainstream industrial communication protocols including Modbus RTU and CANopen, and supports RS485 and CAN multi-type interface docking. It can seamlessly connect with various field intelligent devices and upper monitoring platforms, solving the compatibility problems of multi-brand and multi-type equipment interconnection, greatly improving the flexibility and scalability of system communication architecture.

3.4 Full-Coverage Intelligent Self-Diagnosis System

The 3009X supports real-time full-system health monitoring, covering processor operation status, internal circuit health, bus communication status, I/O channel abnormality and power supply fluctuation. It can quickly locate potential faults and output accurate fault codes, realizing proactive early warning and rapid troubleshooting. The ultra-high diagnostic coverage effectively reduces system hidden risks and improves equipment maintainability.

3.5 Strict Fail-Safe Safety Protection Mechanism

Following industrial safety fail-safe design principles, the module will automatically switch to a predefined safe state and trigger alarm signals in case of voting mismatch, communication failure, hardware abnormality or power supply fault. It effectively avoids system misjudgment and misoperation, locks the safety state of production equipment, and maximizes the safety integrity of industrial production processes.

3.6 Harsh Environment Adaptability & Stable Operation

Adopting industrial-grade reinforced hardware design and ultra-wide temperature working range, the 3009X can operate stably in extreme environments such as high temperature, low temperature, high humidity, strong vibration and complex electromagnetic interference. With excellent anti-aging and anti-interference performance, it fully adapts to long-term unattended continuous operation of field industrial safety systems.

3.7 Convenient Hot-Swap Maintenance

Supports online hot-swap replacement without shutting down the entire SIS system. Module maintenance and replacement will not affect the normal operation of safety loops and production processes, effectively reducing system downtime and operation and maintenance costs, improving the overall operational efficiency of industrial safety systems.

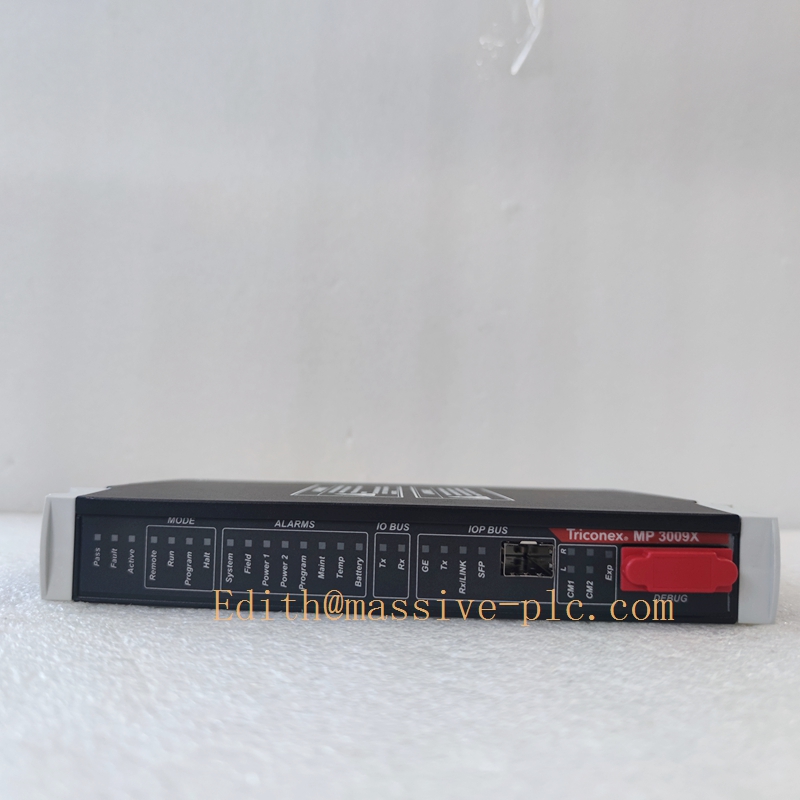

TRICONEX 3009X

Similar Series Models

The Triconex 3000 series covers full-range core processor modules for TMR safety systems, adapting to different computing performance and system scale requirements. The mainstream similar and matching models of the TRICONEX 3009X are listed below for system configuration, replacement and expansion reference:

TRICONEX 3101: Classic mainstream TMR main processor module, suitable for conventional medium and small-scale safety system operation scenarios.
TRICONEX 3102: Enhanced high-performance processor with higher computing speed and larger storage space for complex large-scale safety logic systems.
TRICONEX 3008: Standard version processor module for basic Triconex TMR system configuration and replacement.
TRICONEX 5101S2: Safety Ethernet communication module, matched with 3009X to realize high-speed remote data transmission and network interconnection.
TRICONEX 4119A: Multi-serial-port intelligent communication module, expanding multi-protocol external docking capability for 3009X processor system.
TRICONEX 3625A: High-density digital output module, executing safety interlock commands calculated by 3009X.

Product Summary

The TRICONEX 3009X is an upgraded high-performance SIL 3-grade TMR main processor module in the Triconex safety system product line. With triple modular redundant fault-tolerant architecture, large-capacity storage computing capability, multi-protocol communication compatibility and full intelligent self-diagnosis function, it overcomes the limitations of traditional processors in computing speed, storage space and communication expansion. As the core control hub of modern high-standard SIS safety systems, it provides stable, efficient and ultra-reliable logic operation and system scheduling support for large-scale high-risk industrial safety loops, and is widely recognized and applied in global process industries.
