TRICONEX 2700 Control System Module

Description

TRICONEX 2700 TCM Trusted Communication Module Product Introduction

Product Overview

The TRICONEX2700 TCM (Trusted Communication Module) is a high-integrity, safety-compatible extended communication module designed for Tricon and Trident Triple Modular Redundancy (TMR) Safety Instrumented Systems (SIS). As a dedicated external protocol communication gateway, it acts as a bridge between the Tricon SIS safety system and third-party monitoring platforms, DCS systems and upper-level management hosts. Different from core bus communication modules such as 3006, the 2700 focuses on external multi-protocol data forwarding and transparent transmission, realizing safe isolation and standardized docking of safety system data without interfering with internal TMR safety logic operation.

Built with industrial-grade communication processing chips and full electrical isolation architecture, the 2700 features multi-port parallel communication, flexible Modbus master/slave configuration, high-efficiency data transmission and comprehensive link self-diagnosis capabilities. It strictly isolates external non-safety network from internal safety bus, effectively preventing external network interference and abnormal data from affecting SIS core safety logic. Certified with industrial safety specifications and supporting G3 harsh environment operation, online hot-swap maintenance and 24/7 stable communication, the module is widely deployed in petrochemical, natural gas, thermal power and coal chemical industries. It provides safe, reliable and standardized external data interaction channels for industrial high-risk SIS systems.

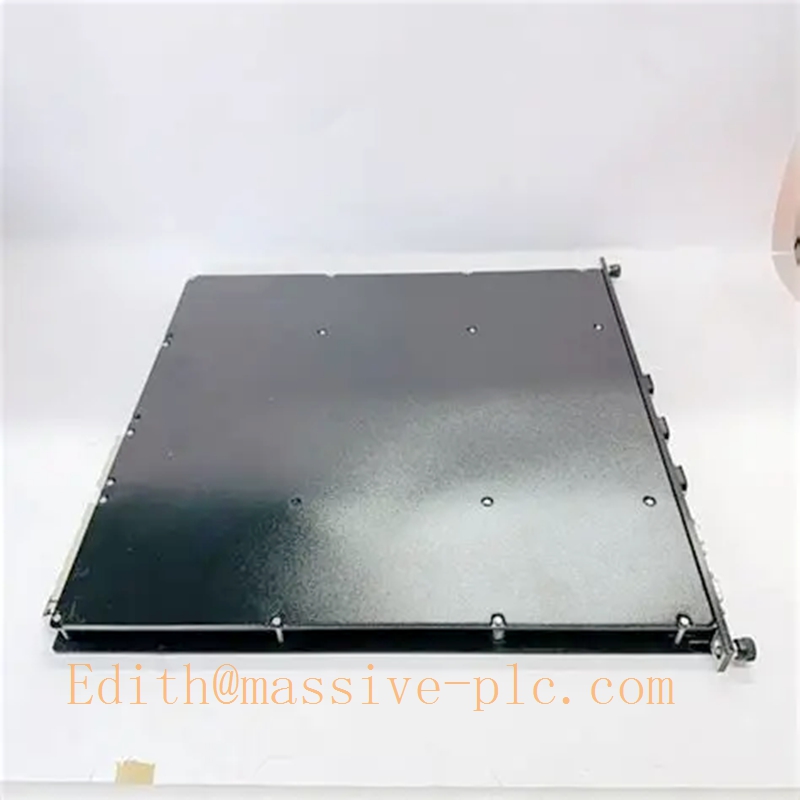

TRICONEX 2700

Same-Series Model Classification & Peer Models

The TRICONEX 2700 belongs to the Tricon External Extended Communication Series, positioned as a universal multi-functional TCM trusted communication module, forming a clear functional differentiation with core bus modules and single-function communication modules:

2.1 Product Positioning: Safety-isolated extended communication gateway module, specially used for external protocol docking and data upload of Tricon SIS systems. It solves the problem of safe communication interconnection between safety instrumented systems and external conventional control systems, and is the preferred module for SIS system remote monitoring, data uploading and cross-system data interaction.

2.2 Same-Series Typical Peer & Matching Models

3006 Core Bus Communication Module: Internal core bus communication unit, responsible for processor and I/O data synchronization; the 2700 is dedicated to external cross-system protocol docking, with independent communication positioning.

2291/2292 Auxiliary Communication Modules: Basic external communication modules with single transmission function; the 2700 supports multi-port parallel transmission and master-slave adaptive configuration with stronger expandability.

4119A EICM Communication Module: Enhanced intelligent communication module for special protocol expansion; the 2700 is a universal standard version for mainstream Modbus protocol docking scenarios.

3003/3008 Main Processor Modules: System core control units; the 2700 receives data instructions from the main processor and forwards standardized external data.

8110/8111/8112 Chassis Series: Standard Tricon system chassis; the 2700 is fully compatible with standard slots for flexible communication function expansion.

2.3 System Compatibility: Fully compatible with classic Tricon TMR racks and Trident SIS safety systems. It supports communication parameter configuration, protocol debugging, data address mapping and real-time link monitoring via TriStation 1131 software. It can be flexibly deployed for new project external communication configuration and old system communication function upgrading, realizing seamless docking between SIS system and mainstream industrial upper computer monitoring systems.

Core Technical Specifications & Product Specifications

Core Main Functions

4.1 Multi-Port Parallel High-Speed Data Transmission

The 2700 TCM module integrates rich communication interfaces, including four independent serial ports, two network ports and one dedicated debugging port. Each serial port supports independent address configuration and parallel data transmission, with a total system communication rate up to 460.8 kbps. It can synchronously undertake multi-channel external data upload and instruction interaction tasks, efficiently meet the multi-platform docking requirements of SIS systems, and solve the bottleneck of insufficient communication ports of traditional single-function communication modules.

4.2 Adaptive Modbus Master/Slave Protocol Docking

Supporting flexible configuration of Modbus master and slave modes, the 2700 can actively read data from third-party devices as a master station, or passively respond to upper computer access as a slave station. Among them, Serial Port 1 supports Modbus and Trimble GPS interface switching, and Serial Port 4 supports Modbus and TriStation debugging interface switching, which is compatible with on-site GPS timing acquisition and system professional debugging functions. It fully adapts to diverse industrial protocol docking scenarios and has strong on-site applicability.

4.3 Safety Isolation & Anti-Interference Transmission

Adopting strict internal and external safety isolation design, the 2700 completely isolates the SIS internal safety bus from the external non-safety industrial network. It effectively blocks external network fluctuation, data disorder and virus interference, prevents abnormal external signals from penetrating into the core safety system and affecting safety logic operation and interlock judgment. It ensures the independence, safety and stability of the SIS core control system while realizing external data interaction.

4.4 Full-Link Communication Self-Diagnosis & Alarm

The module supports full-coverage real-time diagnosis of all communication ports and links, which can accurately identify common faults such as link disconnection, communication timeout, data verification error, port overload and abnormal protocol matching. It automatically generates standard fault codes and operation logs, synchronizes alarm information to the main processor and upper monitoring platform, helps maintenance personnel quickly locate communication faults, and reduces system communication failure risks.

4.5 Zero-Downtime Online Maintenance & Stable Operation

Consistent with Tricon series unified industrial design standards, the 2700 supports full online hot-swap function. Module replacement, protocol parameter adjustment, port function switching and communication debugging can be completed during normal system and production operation. The maintenance process will not interrupt system safety logic operation and core data transmission, realizing 24/7 uninterrupted and stable external communication of SIS systems.

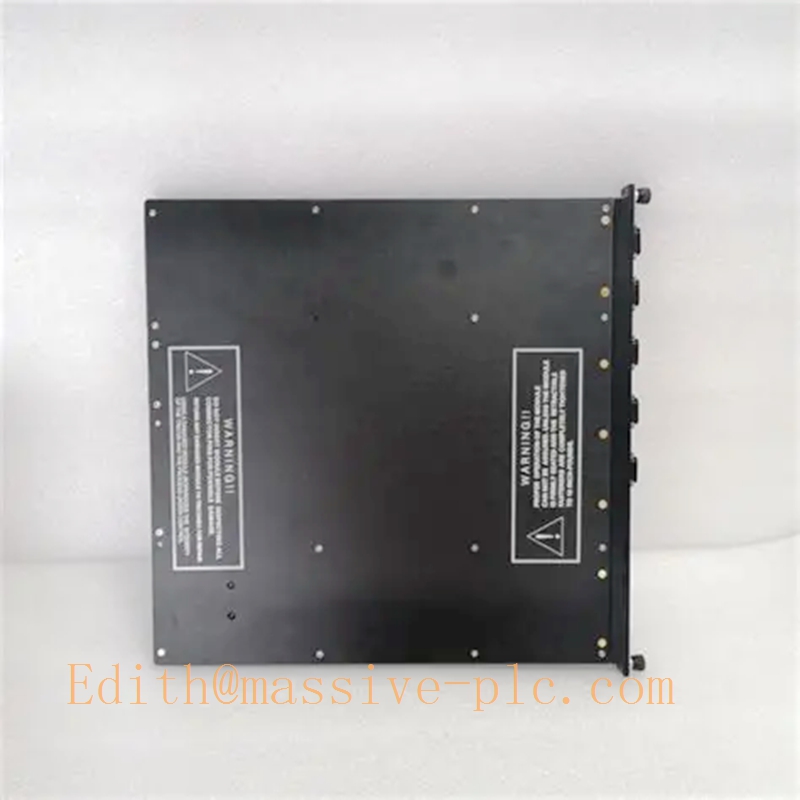

TRICONEX 2700

Core Product Features

5.1 Multi-Interface Integrated Expansion & Strong Compatibility

The 2700 integrates multiple serial ports and network ports in a single module, breaking the limitation of single interface of traditional communication modules. It supports multiple protocol switching and master-slave mode adaptive configuration, and is compatible with mainstream industrial monitoring software, DCS systems and GPS timing equipment. It greatly simplifies on-site communication wiring and system expansion structure, and improves the integration of SIS system external communication functions.

5.2 Safety Isolated Transmission & Zero Safety Impact

As an extended non-intrusive communication module, the 2700 does not participate in internal TMR safety logic voting and control operation. All external data interaction is completed through isolated forwarding, which will not cause any impact on the core safety loop. It perfectly balances the dual requirements of SIS system “safety independence” and “data transparency”, and fully complies with industrial safety system isolation specifications.

5.3 High-Efficiency Parallel Communication & Low Delay

With independent channel scheduling algorithm and multi-port parallel transmission technology, the 2700 realizes simultaneous operation of multiple communication links without mutual congestion. The high aggregate transmission rate ensures real-time and low-delay uploading of SIS system alarm data, equipment status and operation parameters, meeting the real-time monitoring requirements of industrial upper-level management platforms.

5.4 Comprehensive Fault Diagnosis & High Maintainability

Full-link and full-port self-diagnosis capability covers the whole communication process, which can pre-judge and feed back potential link faults in real time. Complete log recording and code prompting facilitate rapid troubleshooting and daily inspection of communication faults, greatly reducing the difficulty of system communication maintenance and improving the overall operation stability of cross-system data interaction.

5.5 Excellent Harsh Environment Adaptability

Adopting industrial-grade anti-aging, vibration-resistant and wide-temperature resistant components, the 2700 passes strict G3-level harsh environment tests. It operates stably in -40℃~+70℃ ultra-wide temperature range and high-humidity non-condensing environment, adapting to long-term uninterrupted communication operation of chemical workshops, power plant sites and outdoor industrial cabinets.

5.6 Flexible Configuration & Low Lifecycle Cost

The 2700 supports flexible switching of port functions, communication protocols and master-slave modes via TriStation software, adapting to different project docking requirements. The plug-and-play deployment and hot-swap maintenance design avoid system downtime caused by communication module failure and replacement, effectively reducing later operation and maintenance costs and improving system comprehensive benefits.

Industrial Application Scenarios

The TRICONEX 2700 TCM trusted communication module is widely used in SIL3-level high-risk industrial Safety Instrumented Systems (SIS), focusing on external multi-protocol data interaction, cross-system docking and remote monitoring scenarios, covering petrochemical refining, natural gas gathering and transportation, thermal power generation and coal chemical industries.

Typical application scenarios include: SIS system data remote uploading and upper computer monitoring docking of petrochemical plant ESD emergency shutdown systems; Modbus protocol communication interconnection between natural gas pipeline station SIS systems and centralized control DCS systems; GPS timing signal acquisition and system unified time calibration of thermal power unit safety systems; multi-channel data transmission and equipment status remote monitoring of FGS fire and gas safety systems; communication function upgrading and multi-platform docking expansion of old industrial SIS systems. It provides safe, efficient and stable extended communication guarantee for industrial high-risk safety instrumented systems.
