TRICONEX 2401S2 TMR Digital Output Module

Description

TRICONEX 2401S2 TMR Digital Output Module Product Introduction

Product Overview

The TRICONEX2401S2 is a high-reliability, safety-certified TMR Digital Output Module designed for classic Tricon and Trident Triple Modular Redundancy (TMR) Safety Instrumented Systems (SIS). As a core safety-level discrete output unit, it executes critical safety logic commands converted from processor digital signals to drive on-site safety equipment, including emergency shutdown valves, solenoid valves, alarm devices and interlock execution components. Adopting full triple modular redundant hardware architecture and 2oo3 fault-tolerant voting mechanism, the module eliminates single-point failure risks in safety output loops, ensuring deterministic and reliable execution of safety interlock actions.

Engineered for high-risk industrial safety control scenarios, the 2401S2 features full-channel real-time self-diagnosis, fast response output, strong load drive capability and industrial-grade anti-interference performance. Compliant withIEC 61508 SIL 3 functional safety standards and TÜV safety certification, it supports online hot-swap maintenance, G3 harsh environment adaptation and 24/7 uninterrupted safety loop operation. Widely deployed in petrochemical, natural gas transmission, thermal power generation and coal chemical industries, it serves as the core execution module for ESD emergency shutdown, process interlock and safety protection control loops.

Same-Series Model Classification & Peer Models

The TRICONEX 2401S2 belongs to the Tricon Core TMR Digital Output Series, positioned as a standard high-reliability safety-grade DO module for critical interlock control, forming clear functional differentiation with high-density auxiliary relay output modules:

2.1 Product Positioning: Standard SIL3-grade full TMR digital output module, dedicated to safety-critical control loops that require triple-redundant hardware fault tolerance, zero false action and high response speed. It undertakes core safety interlock output tasks, which cannot be replaced by non-triplicated relay output modules, and is the mainstream core execution unit for key SIS safety loops.

2.2 Same-Series Typical Peer & Matching Models

3636T Relay Output Module: High-density non-TMR auxiliary output module for status indication and non-critical prompts; the 2401S2 is full-triplicated hardware for critical safety interlock execution.

3625 TMR Digital Output Module: Enhanced high-performance DO module for ultra-high-precision rapid interlock scenarios; the 2401S2 is a classic stable standard model for universal critical safety loops.

3503EN TMR Digital Input Module: Matching core DI module for critical signal acquisition, forming complete TMR input-output safety loop with 2401S2.

3003/3008 Main Processor Modules: System core control units, issuing safety logic commands for 2401S2 output execution and voting verification.

2058 System Power Supply Module: Provides stable isolated power for TMR channel operation and field load drive of the 2401S2 module.

8110/8111/8112 Chassis Series: Standard Tricon rack chassis; the 2401S2 supports standard slot installation and ETP terminal panel matching wiring.

2.3 System Compatibility: Fully compatible with classic Tricon TMR racks and Trident SIS safety systems. It supports output logic configuration, channel calibration, fault diagnosis and real-time status monitoring via TriStation 1131 software. Applicable to new project critical safety loop deployment and old system core DO module replacement and upgrading, realizing seamless plug-and-play deployment and stable safety loop operation.

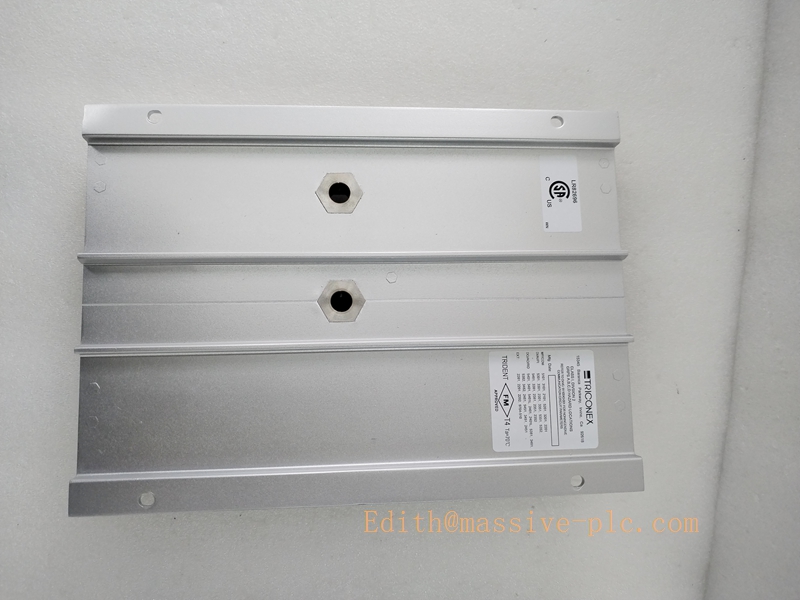

TRICON 2401

Core Technical Specifications & Product Specifications

Core Main Functions

4.1 Critical Safety Interlock Output Execution

The 2401S2 undertakes the core safety execution task of the Tricon SIS system. It receives triple-channel synchronous safety logic commands from the main processor, executes strict 2oo3 voting verification, and converts valid logic instructions into stable digital output signals. It accurately drives key on-site safety equipment such as emergency shutdown solenoid valves, process cut-off valves and safety alarm execution units, realizing fast and accurate response of ESD interlock, process protection and risk avoidance actions.

4.2 Full TMR Hardware Fault Tolerance & Voting

Adopting complete triple modular redundant hardware design, the 2401S2 is equipped with three independent and isolated output processing channels. All safety output actions undergo simultaneous triple-channel operation and majority voting judgment. In case of single-channel circuit abnormality, signal deviation or transient interference, the module automatically shields faulty channel data and outputs consistent correct actions. It completely eliminates single-point failure risks of core safety loops and avoids false interlock or failure to interlock.

4.3 Full-Loop Real-Time Fault Self-Diagnosis

The module supports full-coverage real-time diagnosis of internal circuits and external field loops. It can accurately identify various latent and obvious faults including output channel damage, load open/short circuit, signal output deviation and link communication abnormality. It automatically generates standard fault codes and operation logs, uploads alarm information to the upper monitoring platform, assists maintenance personnel in rapid fault location and elimination, and ensures the long-term health and available state of safety loops.

4.4 High-Stability Anti-Interference Output Control

Built-in enhanced EMC electromagnetic compatibility and surge suppression design, the 2401S2 effectively resists industrial field electromagnetic interference, power grid surge and line crosstalk. It maintains stable and accurate output status in complex harsh environments, prevents safety logic misjudgment and abnormal equipment action caused by external interference, and ensures the reliability and stability of critical safety control loops.

4.5 Zero-Downtime Online Maintenance & Continuous Operation

Consistent with unified Tricon industrial design specifications, the 2401S2 supports full online hot-swap function. Module replacement, channel performance debugging, logic parameter optimization and fault maintenance can be completed during normal system and production operation. The maintenance process will not interrupt safety loop operation and interlock protection functions, realizing 24/7 uninterrupted safe operation of high-risk industrial systems.

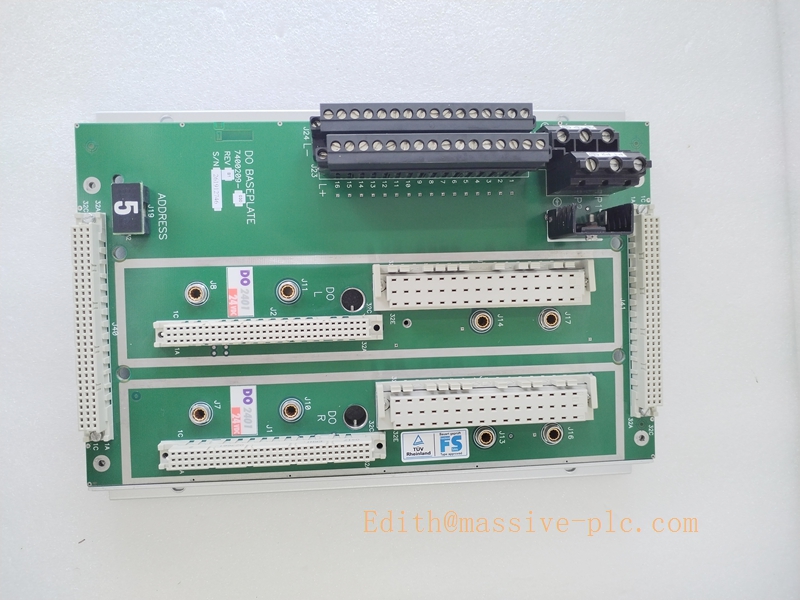

TRICON 2401

Core Product Features

5.1 Full TMR Hardware Safety & Zero Single-Point Failure

Different from non-triplicated auxiliary output modules, the 2401S2 adopts full triple redundant hardware architecture for all output links. The 2oo3 voting mechanism ensures that any single-channel fault will not affect the final safety output result, achieving extremely high safety integrity level. It fully meets the strict fault tolerance requirements of high-risk industrial core safety loops and eliminates hidden dangers of safety loop failure.

5.2 SIL3 High Safety Integrity Certification

The 2401S2 has passed authoritative IEC 61508 SIL 3 and TÜV functional safety certification, fully complying with international industrial safety instrument system standards. It has excellent safety performance and reliability, and is the designated core output module for high-risk process safety control, providing highest-level safety guarantee for industrial production risk prevention and emergency disposal.

5.3 Fast Deterministic Output Response

Optimized with dedicated safety logic processing circuit, the 2401S2 features low-delay and high-precision deterministic output response. It can quickly execute emergency shutdown and safety protection actions when process parameters exceed limits, effectively shortening risk response time, reducing accident loss, and ensuring the timeliness and effectiveness of safety interlock protection.

5.4 Full-Coverage Fault Diagnosis & High Maintainability

The module realizes full-link health monitoring from internal signal processing to external load loop status. It can pre-judge potential aging and hidden faults of the loop in advance, support accurate fault code positioning and log tracing, greatly simplify daily inspection and fault troubleshooting work, improve the intelligent operation and maintenance level of SIS system, and reduce system hidden safety risks.

5.5 G3 Harsh Environment Super Adaptability

Adopting industrial-grade vibration-resistant, anti-aging and wide-temperature resistant components, the 2401S2 passes strict G3-level harsh environment tests. It operates stably in -40℃~+70℃ ultra-wide temperature range and high-humidity non-condensing environment, adapting to long-term uninterrupted operation of chemical workshops, power plant equipment areas and outdoor industrial control cabinets.

5.6 High Reliability & Low Lifecycle Failure Rate

With mature industrial circuit design and strict factory performance testing, the 2401S2 has extremely low long-term failure rate and excellent operational stability. It supports long-term continuous safety loop operation, reduces unplanned system failures and production downtime, and provides stable and reliable core execution guarantee for industrial safety instrumented systems throughout the project lifecycle.

Industrial Application Scenarios

The TRICONEX 2401S2 high-reliability TMR digital output module is widely used in SIL3-level high-risk industrial Safety Instrumented Systems (SIS), focusing on core critical safety interlock execution scenarios, covering petrochemical refining, natural gas gathering and transportation, thermal power generation, coal chemical and process safety protection industries.

Typical application scenarios include: emergency shutdown valve drive and core interlock execution for petrochemical plant ESD safety systems; pipeline overpressure protection and compressor unit safety cut-off output for natural gas transmission station SIS systems; boiler and turbine auxiliary equipment safety interlock control for thermal power generation units; key process safety protection and risk avoidance output for coal chemical production devices; core safety loop upgrading and hidden danger elimination for old industrial SIS renovation projects. It provides high-safety, high-stability and zero-fault-tolerance execution guarantee for industrial critical safety control systems.
