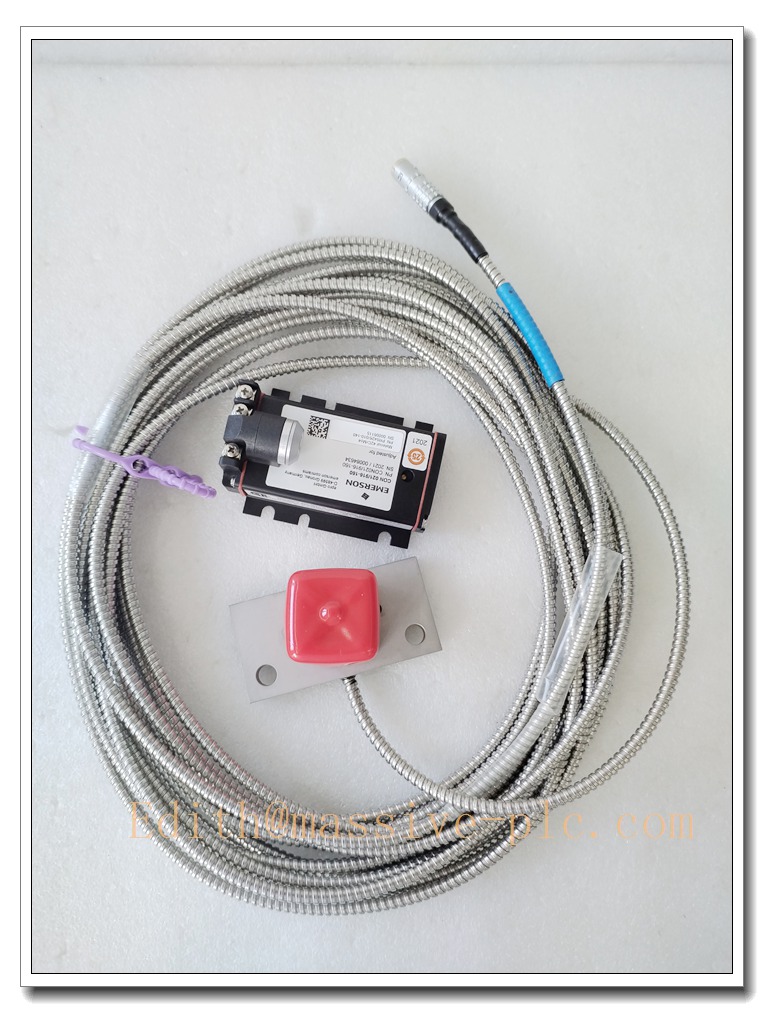

PR6426/010-000 EPRO Eddy‑Current Probe, Large Tip Non‑Contact Shaft Displacement Sensor for Turbomachinery Vibration, Axial Thrust & Eccentricity Monitoring



Product Application

PR6426/010-000 is a large‑diameter eddy‑current probe from EPRO (Emerson), working together with CON series preamplifier to realize non‑contact measurement of metal shaft displacement. It is widely used in steam turbines, centrifugal compressors, blowers, large pumps and other rotating equipment in power, petrochemical and oil & gas industries. Main measurement parameters: shaft relative radial vibration, axial thrust position, shaft eccentricity and differential expansion. The probe converts shaft‑to‑probe gap variation into gap voltage signal and transmits it to CSI6500 monitoring modules such as A6110 vibration monitor. The system fully complies with API 670 turbomachinery protection standard and provides protection trip and predictive maintenance data for critical rotating assets. The rectangular flange mounting structure is suitable for bearing housing installation with limited space.

PR6426/010-000

Product Specifications

  • Part Number: PR6426/010-000
  • Brand: Emerson EPRO
  • Sensor Type: Eddy‑current displacement probe
  • Matching Preamplifier: CON011, CON021
  • Tip Diameter: 32 mm large ceramic measuring tip
  • Linear Measuring Range: ±4 mm
  • Nominal Center Air Gap: approx. 5.5 mm
  • Sensitivity: 2 V/mm
  • Frequency Response: DC ~ 20 kHz (-3dB)
  • Cable: Integrated armored PTFE high‑temperature cable, LEMO plug connection to preamplifier
  • Mounting: Rectangular flange fixed installation
  • Working Temperature of Probe Head: -35 ℃ ~ +180 ℃
  • Certification: API 670, CE, ATEX / IECEx hazardous area certification
  • Protection Grade: Probe head IP67, oil‑resistant for bearing housing environment
  • Origin: Germany



Core Technical Parameters

  • Measuring Range: ±4 mm
  • Sensitivity: 2 V/mm
  • Frequency Bandwidth: 0 ~ 20 kHz
  • Rise Time: ＜15 μs
  • Probe Operating Temperature: -35 ℃ ~ +180 ℃
  • Cable Material: Stainless steel flexible armor + PTFE insulation, high oil & temperature resistance
  • Connector: LEMO plug for quick connection to CON preamplifier
  • Minimum target shaft diameter: Matched with large probe tip specification
  • Output Signal: Gap voltage signal transmitted to preamplifier
  • Weight: Approx. 0.8 kg
  • Diagnostics: Cable break / short circuit detection realized together with preamplifier and CSI6500 rack



Recommended Matching Models (8 Models)

Complete EPRO TSI measurement chain supporting spare parts:

  1. CON021 Preamplifier
  2. A6110 Dual‑Channel Shaft Vibration Monitor (CSI6500)
  3. A6120 Axial Thrust Position Monitor
  4. A6740 Relay Output Module for Alarm & Trip
  5. CSI 6500 System Rack & Backplane
  6. BNC coaxial signal cable from preamplifier to TSI rack
  7. AMS Suite Machinery Health Monitoring Software
  8. Dynamic Vibration Calibrator for probe loop calibration

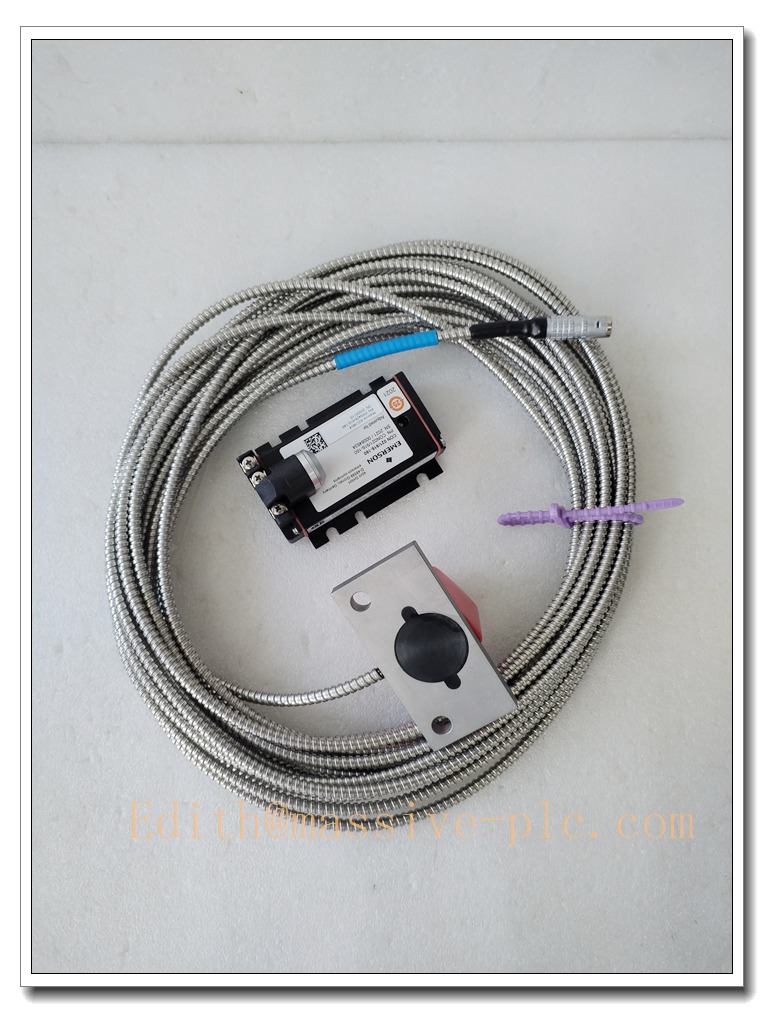

PR6426/010-000

Product Features

✅ 32 mm Large Measuring Tip Large ceramic probe tip forms wider electromagnetic field, more suitable for large‑diameter rotating shafts, stable measurement signal and strong anti‑interference capability.

✅ ±4 mm Wide Linear Range Wider linear measurement range than standard 8 mm PR6423 series probes, applicable for axial thrust and large shaft displacement monitoring scenarios.

✅ High Temperature & Oil Resistant Probe Assembly Probe head can work continuously up to 180℃; armored PTFE cable is resistant to bearing lubricating oil, suitable for direct installation inside bearing housing.

✅ Rectangular Flange Mounting Design Two‑hole fixed flange structure, convenient for probe bracket installation and precise gap fine‑tuning at site.

✅ Wide Frequency Response up to 20 kHz Covers low‑frequency shaft displacement and high‑frequency vibration components, meets vibration monitoring requirement of high‑speed turbomachinery.

✅ Complete API 670 TSI Measurement Chain Perfectly matched with CON preamplifier and Emerson CSI6500 monitoring rack to form a complete protection system for turbomachinery.

✅ Hazardous Area Approval The whole sensor set (probe + preamplifier) carries explosion‑proof certification and can be used in Zone 2 / Division 2 hazardous production areas.



Installation Guidelines

  1. Process the probe mounting bracket on bearing housing, ensure the bracket has enough rigidity to avoid resonance.
  2. Fix PR6426/010-000 probe via rectangular flange, do not clamp or squeeze the armored cable.
  3. Adjust static air gap between probe tip and shaft target surface to the nominal center gap about 5.5 mm.
  4. Route armored cable from probe to CON preamplifier, avoid sharp bending and extrusion of cable.
  5. Connect LEMO plug tightly between probe and preamplifier, confirm locking.
  6. Connect preamplifier output to A6110 TSI module front BNC port by dedicated coaxial cable.
  7. Power on CSI6500 rack, read gap voltage value in AMS software and verify static gap is within linear interval.
  8. Carry out dynamic test during machine startup, check vibration value and alarm logic before putting protection online.



Maintenance Instructions

Daily Maintenance Monitor gap voltage and vibration value in AMS workstation. Check probe bracket looseness and cable oil corrosion. Check preamplifier indicator status.

Periodic Maintenance Every 6–12 months: Inspect probe tip surface for scratch and abrasion. Check LEMO connector for oil contamination. Calibrate the whole probe‑preamp‑TSI measurement loop by vibration calibrator. Back up CSI6500 project configuration.

Fault Maintenance

  • Gap voltage out of linear range: Check probe bracket loose, shaft runout or probe collision.
  • No vibration signal: Inspect LEMO plug, cable breakage and preamplifier power supply.
  • Signal drift: Check whether probe tip is contaminated by oil sludge; clean or replace probe.
  • Static protection is mandatory during probe replacement. Do not disassemble probe head.

Long‑Term Operation Tips Avoid sharp bending of armored cable. Prevent lubricating oil long‑term immersion on LEMO connector. Regularly check bracket resonance under working speed.



Brand Same‑Series Models (6 Models)

EPRO PR642X eddy‑current probe family:

  1. PR6426/010-000 – 32mm Large Tip ±4mm Eddy‑Current Probe (Target Model)
  2. PR6423/010-000 – 8mm Standard Tip Eddy‑Current Probe
  3. PR6424/010-000 – 11mm Tip Displacement Probe
  4. PR6425/010-000 – 25mm Tip Long‑Range Probe
  5. PR6422/010-000 – Small Size Shaft Probe
  6. PR6426/010-040 – variant with different cable length
