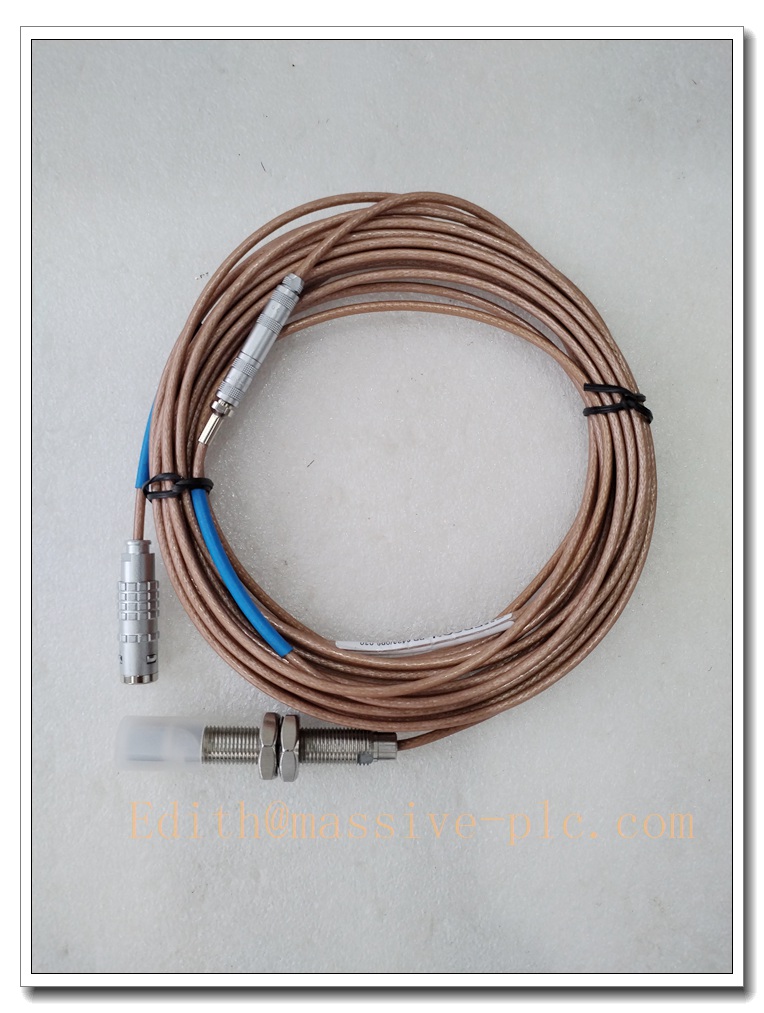

PR6423/003-030 + CON021 EPRO 8mm Eddy‑Current Proximity Probe Assembly, 3‑Meter Armored Cable Non‑Contact Shaft Displacement Sensor for Radial Vibration & Axial Thrust Monitoring

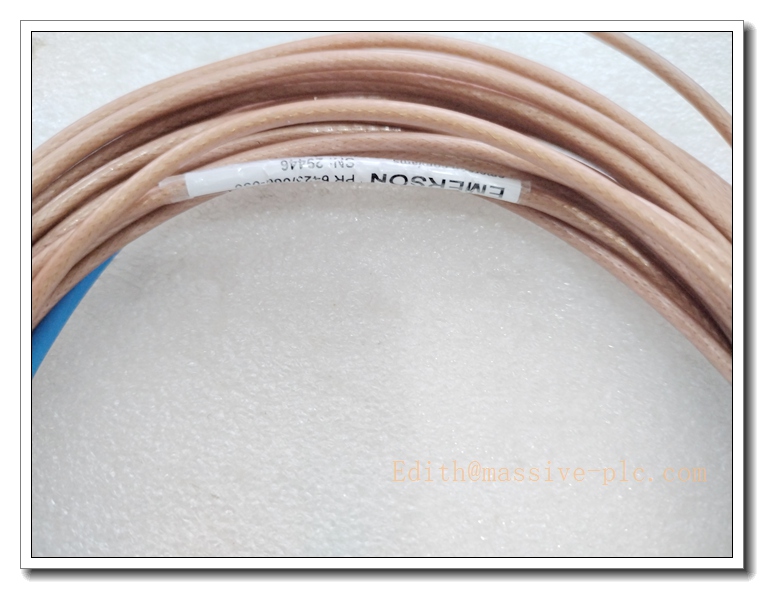

PR6423/003-030 + CON021 EPRO 8mm Eddy‑Current Proximity Probe Assembly, 3‑Meter Armored Cable Non‑Contact Shaft Displacement Sensor for Radial Vibration & Axial Thrust Monitoring - Image 2

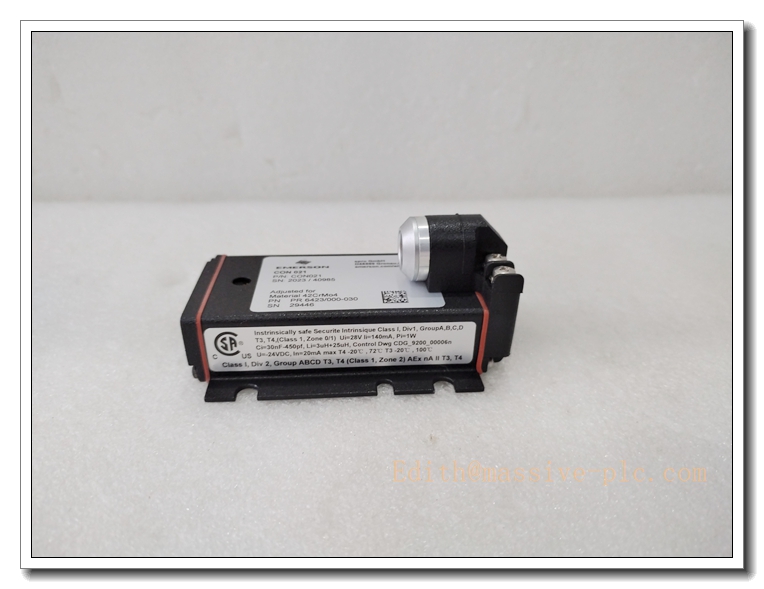

PR6423/003-030 + CON021 EPRO 8mm Eddy‑Current Proximity Probe Assembly, 3‑Meter Armored Cable Non‑Contact Shaft Displacement Sensor for Radial Vibration & Axial Thrust Monitoring - Image 3
PR6423/003-030 + CON021 EPRO 8mm Eddy‑Current Proximity Probe Assembly, 3‑Meter Armored Cable Non‑Contact Shaft Displacement Sensor for Radial Vibration & Axial Thrust Monitoring - Image 4

PR6423/003-030 + CON021 EPRO 8mm Eddy‑Current Proximity Probe Assembly, 3‑Meter Armored Cable Non‑Contact Shaft Displacement Sensor for Radial Vibration & Axial Thrust Monitoring

  1. PR6423/003‑030 + CON021 – M10 thread, 3m armored cable complete probe set (Target Model)
  2. PR6423/000‑000 – 8mm probe, bare wire end, standard length
  3. PR6423/010‑000 – 8mm probe with armored cable
  4. PR6423/003‑050 – M10 thread, 5m armored cable probe
  5. PR6423/103‑030 – 3/8‑24 UNF thread 8mm probe, 3m cable
  6. CON011 – Alternative preamplifier compatible with PR6423 probe
Request Quote
Category: Brand:

Description

PR6423/003-030 + CON021 EPRO 8mm Eddy‑Current Proximity Probe Assembly, 3‑Meter Armored Cable Non‑Contact Shaft Displacement Sensor for Radial Vibration & Axial Thrust Monitoring



Product Application

PR6423/003-030 is the classic 8mm standard eddy‑current probe of EPRO, matched with CON021 preamplifier to form a fully calibrated measurement chain. It performs non‑contact measurement of relative shaft‑to‑bearing‑housing gap variation. Widely installed on steam turbines, gas turbines, centrifugal compressors, large pumps, blowers and hydroelectric units in petrochemical, oil & gas and power plants. Typical measurement parameters: X/Y orthogonal radial vibration, shaft axial thrust position, shaft eccentricity and rotor runout. The gap voltage signal output from CON021 is sent to TSI monitoring modules such as A6110 vibration monitor inside Emerson CSI6500 rack, realizing machinery protection alarm and trip, meanwhile uploading vibration waveform data to AMS predictive maintenance software. The whole set complies with API 670 turbomachinery protection specification.



Product Specifications

  • Part Number: PR6423/003-030 + CON021
  • Brand: Emerson EPRO, Made in Germany
  • Probe Tip Diameter: 8 mm standard ceramic tip
  • Probe Thread: M10×1 mounting thread
  • Total Armored Cable Length: 3 m (suffix -030 stands for 3m cable)
  • Connector: LEMO plug between probe and CON021 preamplifier
  • Linear Measuring Range: ±2 mm
  • Sensitivity: 2 V/mm
  • Recommended Nominal Static Air Gap: approx. 2.5 mm
  • Probe Head Working Temperature: -35 ℃ ~ +180 ℃, short‑term up to 200 ℃
  • Preamplifier Model: CON021
  • CON021 Power Supply: -24 VDC power input
  • Output Signal: Gap voltage signal to TSI monitor via coaxial BNC cable
  • Certification: API 670, CE, ATEX / IECEx hazardous zone approval
  • Probe Protection: IP67, oil‑resistant for bearing housing environment
  • Matching Monitoring Rack: CSI 6500, MMS6000



Core Technical Parameters

  • Measuring Range: ±2 mm
  • Sensitivity: 2 V/mm
  • Frequency Response: DC ~ 10 kHz (-3dB)
  • Probe Housing: Stainless steel, M10×1 thread mounting
  • Cable: Stainless steel armored + PTFE high temperature insulation, oil resistant
  • Operating Temperature: -25 ℃ ~ +70 ℃
  • Minimum target shaft diameter: 25 mm for standard ferromagnetic steel target
  • Diagnostics: Cable break / short‑circuit detection (probe + preamp + TSI module)
  • Weight of full set: approx. 0.8 kg

PR6423/003－030＋CON021

Recommended Matching Models (8 Models)

Complete TSI monitoring spare parts for this probe assembly:

  1. A6110 Dual‑Channel Shaft Relative Vibration Monitor (CSI6500)
  2. A6120 Axial Thrust Position Monitor
  3. A6312 Speed & Keyphasor Module
  4. A6740 Relay Output Module for Alarm & Trip
  5. CSI 6500 System Rack & Backplane
  6. BNC coaxial signal cable ( to TSI rack)
  7. AMS Suite Machinery Health Software
  8. Dynamic vibration calibrator for probe loop calibration



Product Features

✅ 8mm Standard Tip, Widely Used Turbomachinery Probe The most common EPRO eddy‑current probe model. M10 thread is convenient for installation on standard probe bracket of bearing housing.

✅ 3 Meter Armored High‑Temperature Cable 3m integrated armored cable version, suitable for layout from bearing housing to preamplifier installation position; PTFE insulation resists high temperature and lubricating oil corrosion.

✅ Each full set is factory calibrated. No need to match probe and preamplifier separately on site, guaranteeing 2 V/mm sensitivity accuracy.

✅ Wide Frequency Bandwidth DC‑10kHz Covers low‑frequency shaft displacement and high‑frequency vibration components of high‑speed rotating equipment.

✅ Built‑in Cable Fault Diagnosis cooperates with CSI6500 TSI module to detect probe cable open circuit or short circuit, quickly report sensor failure alarm.

✅ Hazardous Area Certified Suitable for Zone 2 / Class I Div 2 explosive gas area installation.

✅ Rich TSI System Compatibility Compatible with Emerson CSI6500 and legacy EPRO MMS6000 machinery protection racks.



Installation Guidelines

  1. Install rigid probe bracket on bearing housing, avoid bracket resonance at machine working speed.
  2. Screw PR6423/003‑030 probe into M10 thread of bracket, lock the lock nut after gap adjustment.
  3. Adjust static air gap between probe tip and metal shaft target surface to the nominal center gap around 2.5 mm.
  4. Route the armored cable, prohibit sharp bending and heavy extrusion of cable; connect LEMO plug tightly to preamplifier.
  5. Mount preamplifier in a suitable cabinet or junction box away from high temperature.
  6. Connect signal output to front BNC port of A6110 TSI module by dedicated coaxial cable.
  7. Power on CSI6500 rack, read gap voltage value in AMS workstation to confirm probe stays within linear range.
  8. Complete dynamic vibration test during unit startup, verify vibration reading and alarm logic before putting protection online.



Maintenance Instructions

Daily Maintenance Monitor real‑time gap voltage and vibration value in AMS software. Check probe bracket looseness, armored cable oil erosion and LEMO connector oil contamination.

Periodic Maintenance Every 6–12 months: Inspect probe tip scratch and sludge contamination. Calibrate the whole probe‑‑TSI measurement loop by dynamic calibrator. Back up CSI6500 project configuration.

Fault Maintenance

  • Gap voltage out of linear range: Check bracket loosening, shaft runout or probe collision.
  • No vibration signal output: Inspect LEMO connector locking, cable breakage and power supply.
  • Signal drift: Clean oil sludge on probe tip or replace probe assembly.
  • ESD protection is required during replacement; do not disassemble probe head and housing.

Long‑Term Operation Tips Keep armored cable bending radius larger than specification. Prevent lubricating oil from soaking LEMO connector for long time. Regularly check bracket resonance.



Brand Same‑Series Models (6 Models)

EPRO PR6423 8mm eddy‑current probe family variants:

  1. PR6423/003‑030 + CON021 – M10 thread, 3m armored cable complete probe set (Target Model)
  2. PR6423/000‑000 – 8mm probe, bare wire end, standard length
  3. PR6423/010‑000 – 8mm probe with armored cable
  4. PR6423/003‑050 – M10 thread, 5m armored cable probe
  5. PR6423/103‑030 – 3/8‑24 UNF thread 8mm probe, 3m cable
  6. CON011 – Alternative preamplifier compatible with PR6423 probe
