MC-4/11/03/400 Servo Drive

Description

MC-4/11/03/400 Servo Drive Full Product Specification & Manual Guide

Product Description

The MC-4/11/03/400 is a compact, high-performance single-axis servo drive belonging to the ELAU PacDrive MC-4 series, widely adopted in Schneider automation motion control systems. Engineered for decentralized industrial motion control, this integrated drive unit consolidates a power stage, mains supply module, and software-based motion regulator into a lightweight, space-saving enclosure. It serves as a standalone axis controller that operates in synchronization with PacController and PacPC master systems via high-speed fiber-optic communication, eliminating the need for complex user programming for basic operational functions.

Designed for low-to-medium power precision motion scenarios, the 400W-rated drive delivers highly stable torque output, fast dynamic response, and exceptional load adaptability. It supports automatic motor identification and intelligent position data processing, including single-turn and multi-turn encoder signal decoding. Built to withstand harsh industrial operating conditions, it ensures long-term operational stability and consistent precision for continuous automated production processes.

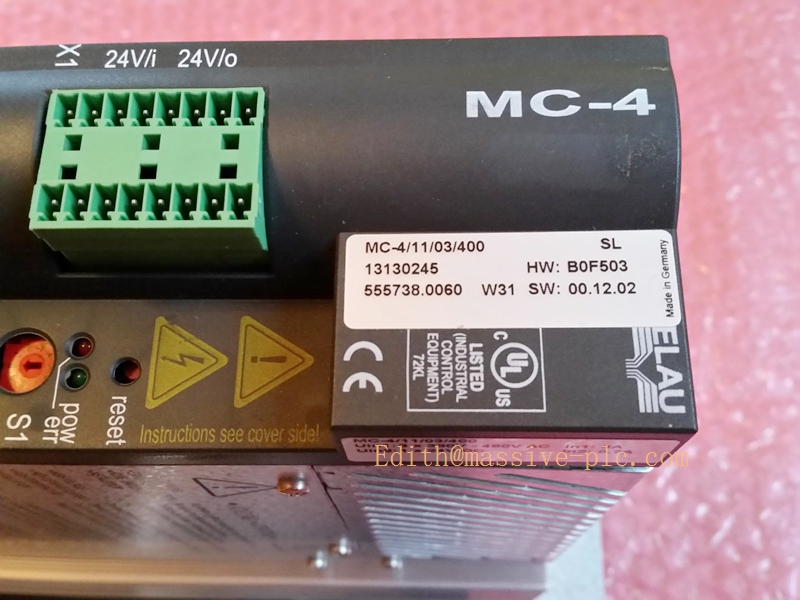

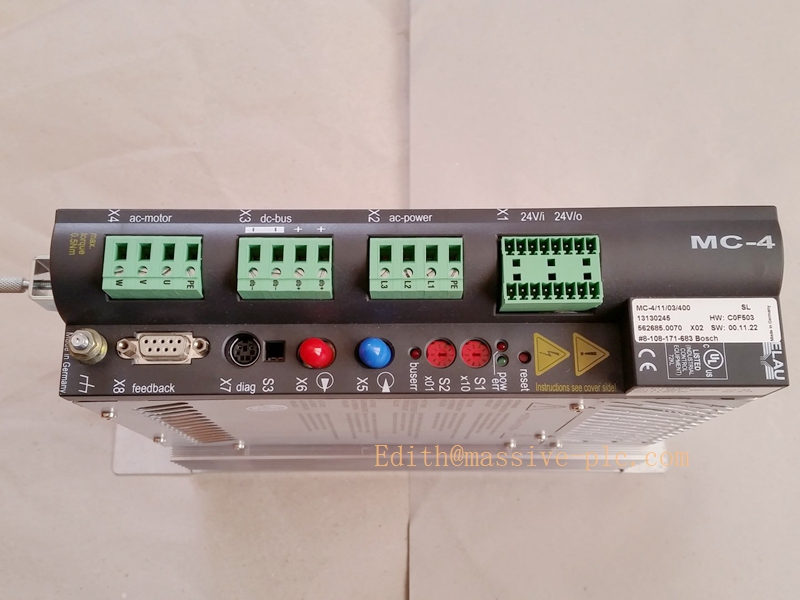

MC-4/11/03/400

Core Technical Specifications

Key Features & Competitive Advantages

3.1 Core Features

• Integrated All-in-One Design: Combines power drive stage, power supply unit, and motion control regulator in a compact modular structure, minimizing cabinet space occupation and simplifying system layout.
• Intelligent Motor Recognition: Supports automatic SM motor electronic nameplate identification, enabling fast parameter matching and plug-and-play axis setup without manual complex configuration.
• High Dynamic Performance: Delivers 250% overload capacity, ensuring rapid torque response for high-speed positioning, frequent start-stop, and dynamic load variation working conditions.
• Multi-Protocol Connectivity: Equipped with fiber-optic PacDrive bus, Modbus RTU and CAN interfaces, supporting seamless connection with PLCs, industrial PCs, and multi-axis master control systems.
• Precision Position Processing: Built-in single-turn and multi-turn encoder data processing functions, achieving high-accuracy position closed-loop control for repetitive motion tasks.
• Built-in Safety Mechanism: Integrated inverter enable safety input and multiple over-current, over-voltage, over-temperature protection functions to prevent equipment damage and operational risks.

3.2 Product Advantages

• Superior Operational Stability: Fanless passive cooling design eliminates fan failure risks and dust accumulation issues, adapting to long-term continuous industrial operation.
• Global Wide-Voltage Adaptability: Supports universal industrial voltage specifications, suitable for global production line deployment without hardware modification.
• Low Maintenance Cost: Modular integrated structure reduces external accessory dependence; automatic parameter calibration lowers manual debugging and maintenance workload.
• Decentralized Control Flexibility: Fiber-optic bus communication supports distributed axis layout, reducing on-site wiring complexity and improving system anti-interference ability.
• High Cost-Performance: Optimized for low-power precision motion scenarios, balancing high control accuracy and economic cost, ideal for standardized automated equipment.

Typical Application Fields

The MC-4/11/03/400 servo drive is tailored for low-power, high-precision, and high-stability industrial motion control scenarios, widely applied in discrete manufacturing and automated processing industries:

• Packaging Machinery: Precision positioning and feeding control for food, pharmaceutical, and daily chemical packaging equipment, including labeling, sealing, and cutting axes.
• Automated Production Lines: Synchronous motion control for assembly lines, handling robots, and conveyor positioning systems in 3C electronics manufacturing.
• Light Industrial Processing Equipment: High-speed precision motion control for printing, textile, and plastic processing machinery.
• Logistics Automation Equipment: Precise positioning and telescopic control for sorting machines, lifting platforms, and automated warehousing auxiliary axes.
• Medical & Precision Automation: Stable low-vibration motion control for medical processing equipment and small precision automated instruments.
• Retrofit & Upgrade Projects: Ideal replacement solution for legacy ELAU PacDrive MC-4 series old drives, ensuring system compatibility and performance upgrade.

Related Product Recommendations

• MC-4 Series Full-Spec Servo Drives: Including high-power models such as MC-4/11/22/400, covering power ranges from 400W to 69kVA, meeting multi-power-level axis control demands.
• ELAU SM Series Servo Motors: Matched dedicated servo motors with electronic nameplate recognition function, realizing automatic drive-motor parameter matching and optimal motion performance.
• PacController Master Motion Controllers: Core master control unit for PacDrive system, supporting multi-axis synchronous coordination and high-speed bus communication with MC-4 drives.
• PacPC Industrial Motion PC: PC-based motion control host for complex multi-axis linkage and customized automated process control scenarios.
• Fiber-Optic Bus Communication Cables & Adapters: Dedicated high-speed communication accessories to ensure stable data transmission between drives and master control systems.
• System Configuration Software: Professional parameter debugging, motion tuning, and fault diagnosis software for MC-4 series drive commissioning and daily maintenance.

Installation Guidelines

• Environmental Requirements: Install in sealed industrial control cabinets with clean, dry, and dust-free ambient conditions; avoid direct sunlight, corrosive gas, and strong electromagnetic interference sources. Ensure ambient operating temperature is maintained between 0 °C and +55 °C to avoid performance derating or failure.
• Mounting Standard: Adopt vertical fixed mounting method; reserve sufficient heat dissipation space around the drive (no shielding or stacking of other equipment) to ensure unobstructed passive heat dissipation.
• Wiring Specification: Separate power cables and signal cables to avoid EMI interference; shielded cables must be used for encoder and communication signals with standardized grounding. Strictly follow rated voltage specifications to prevent over-voltage input damage.
• Communication Installation: Use dedicated fiber-optic cables for bus connection; avoid excessive bending or stretching of optical fibers to ensure stable high-speed data transmission.
• Pre-Operation Inspection: Complete wiring check, grounding verification, and voltage testing before power-on; confirm no short circuit or wrong wiring to prevent hardware burnout.

Daily Maintenance & Troubleshooting Guidelines

• Regular Maintenance: Conduct quarterly dust cleaning on the drive surface and heat dissipation area; check cable tightness and shielding grounding integrity; verify communication signal stability and operating temperature regularly.
• Long-Term Operation Maintenance: For equipment operating continuously for more than 1 year, perform parameter calibration and motion performance testing; replace aging signal cables and connectors in time to avoid signal drift.
• Environmental Maintenance: Keep the cabinet ventilation smooth, avoid over-temperature and humid condensation environment; prevent dust and oil pollution from affecting heat dissipation and circuit stability.
• Common Fault Prevention: Avoid long-term overload operation to prevent power stage aging; regularly check 24V DC control power quality to avoid voltage fluctuation causing communication interruption or position deviation.
• Fault Handling Principle: Cut off power supply first for abnormal alarms, conduct fault code diagnosis via configuration software, and perform targeted troubleshooting; do not disassemble the drive privately to avoid damaging internal integrated circuits.
