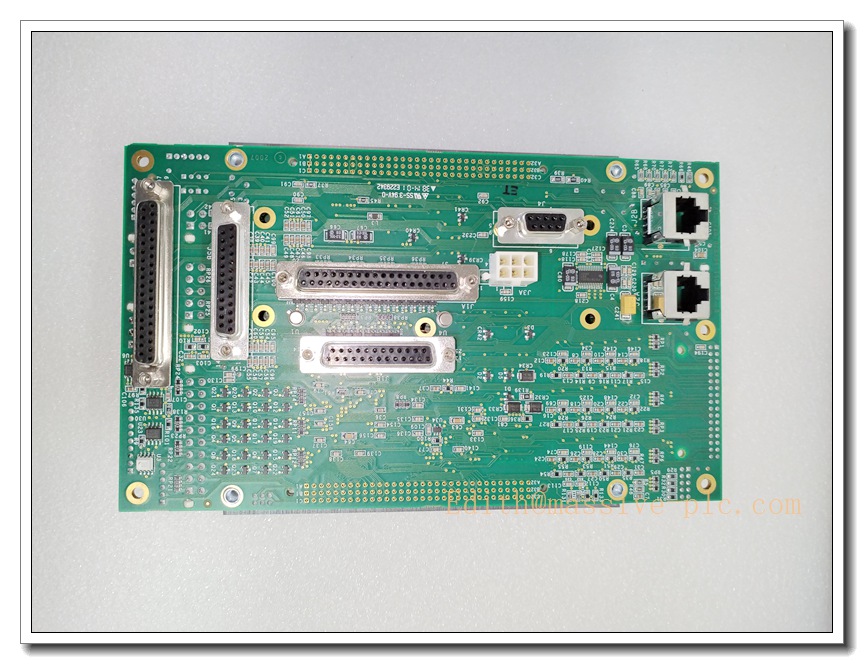

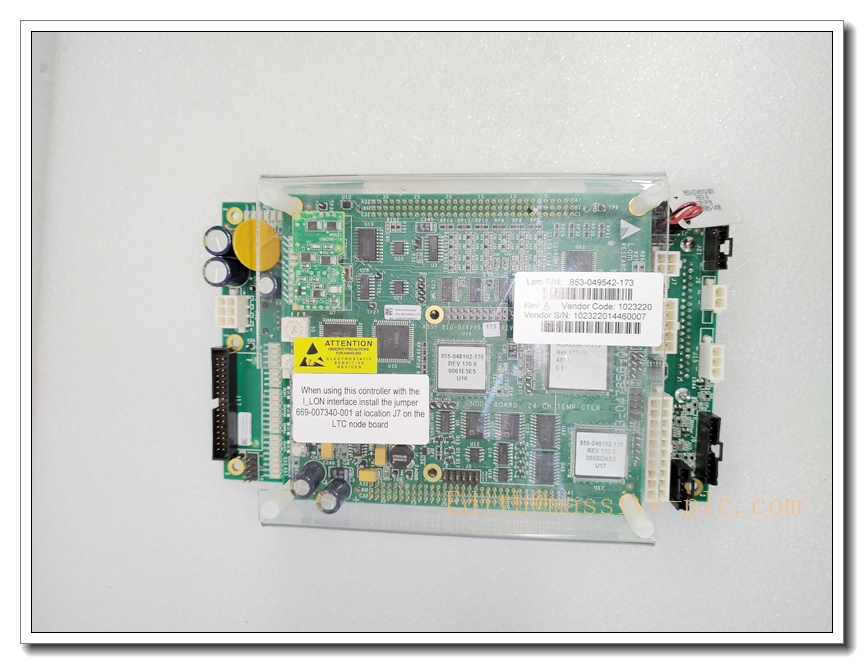

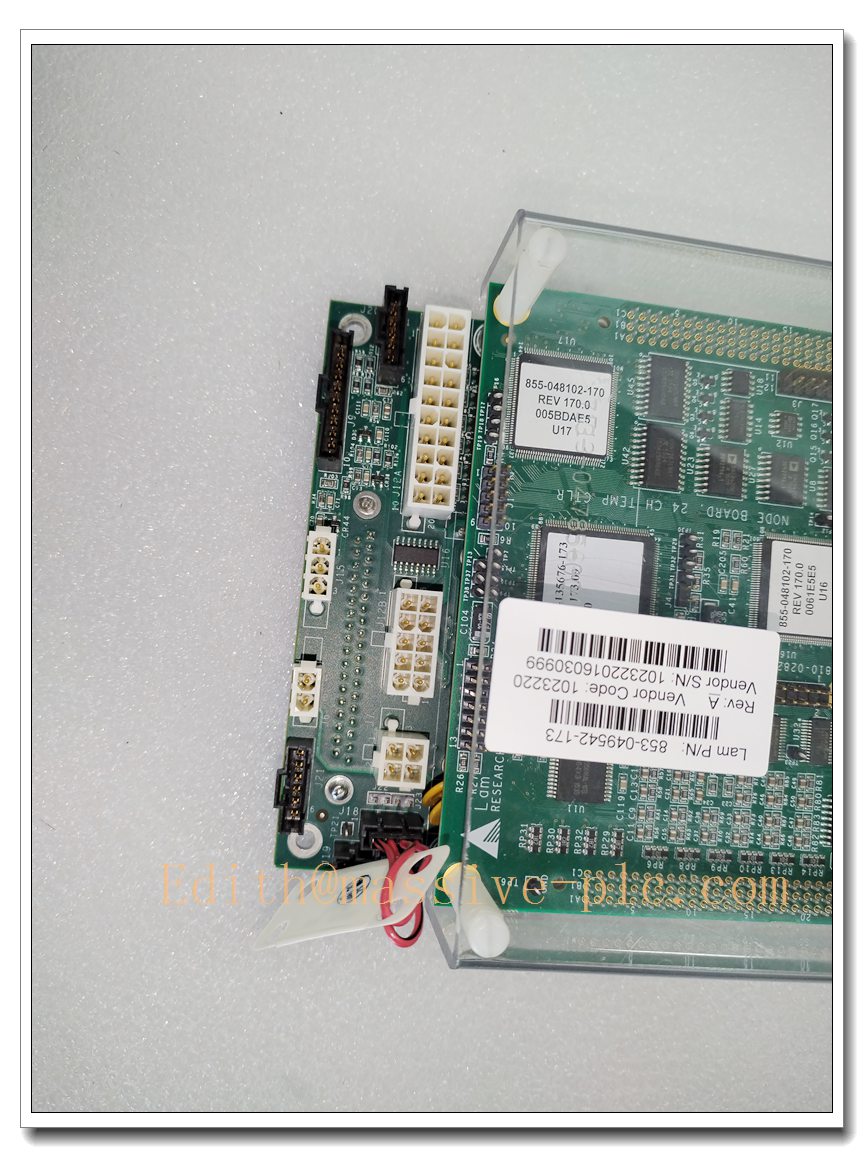

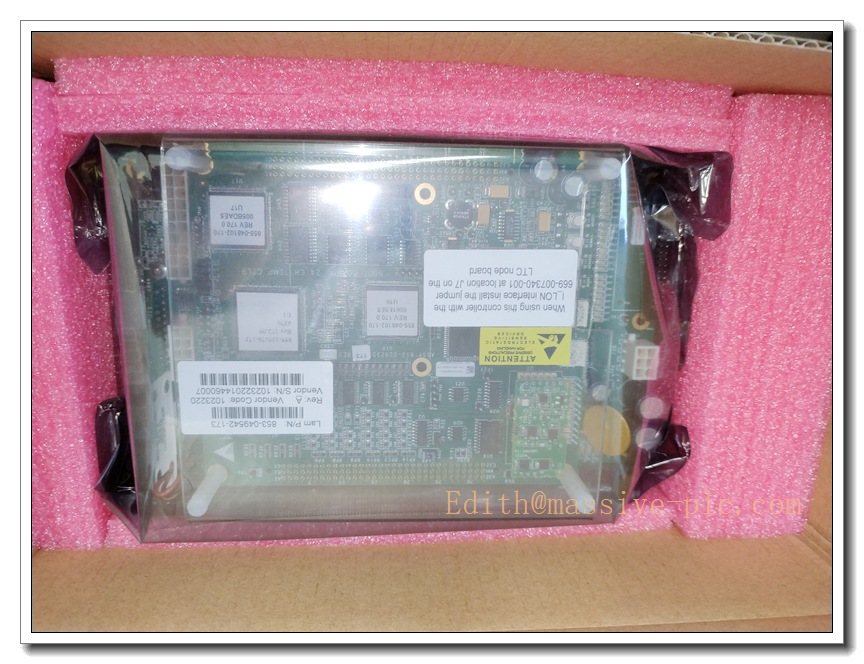

LAM 853-049542-173 24-Channel Temperature Control Node PCB Assembly, Semiconductor Etch Chamber Thermal Monitoring & Regulation Board



Product Description

The 853-049542-173 is a dedicated 24-channel thermal control node PCB for Lam Research plasma etch platforms. It is responsible for multi-zone temperature data acquisition, closed-loop heater drive control, and thermal fault diagnostics across chamber critical components including electrostatic chucks (ESC), showerheads, chamber liners and gas distribution manifolds. The board reads RTD or thermistor analog sensor signals, executes local thermal control loops, and communicates temperature setpoints, actual readings and alarm status back to the chamber main controller via proprietary backplane bus. The PCB is conformal-coated to resist cleanroom humidity, fluorine-based plasma byproducts and mechanical vibration. It stabilizes chamber thermal profiles, eliminates temperature drift during etch recipes, and is a critical spare for preventive maintenance and thermal-related process drift troubleshooting.



Technical Parameters

Item Specification
Manufacturer Lam Research
Model 853-049542-173, 24CH Temperature Control Node Board
Function Multi-Zone Temperature Sensing & Closed-Loop Heater Control
Channel Count 24 independent thermal monitoring & control channels
Sensor Type RTD / Thermistor analog temperature sensors
Power Supply 24 VDC cleanroom auxiliary supply; isolated 5 VDC analog reference rail
Host Interface Lam proprietary internal cabinet backplane bus
Diagnostics Sensor open/short detection, over-temperature latch, heater over-current protection, thermal runaway alarm
PCB Protection Conformal coating for corrosive process byproduct resistance
Mounting Plug-in backplane slot in chamber control cabinet
Operating Temperature 15 ℃ ~ 60 ℃
Humidity 10–85% RH, non-condensing
Compliance SEMI S2 semiconductor equipment safety standard
Weight Approx. 0.31 kg
Status Indicator LEDs for power, bus communication, channel fault and heater enable status



Recommended Related Models (8 units)

  1. 853-049542-073: Alternative revision of the 24-channel temperature control node board
  2. 810-046015-010: Gas Box MFC Interface PCB for process gas flow control
  3. 810-102361-222: Rocker Valve Interface PCB for chamber vacuum sequencing
  4. 853-150806-001: OES Optical Emission Spectrometer for plasma endpoint detection
  5. 810-114278-001: RF Match Control Board for ICP plasma source
  6. 61-428059-00: VECTOR EXTREME EIOC 1 Chamber I/O & Motion Controller
  7. ESC Electrostatic Chuck Assembly: Temperature-regulated wafer chuck paired with this board
  8. Lam Chamber Main CPU Board: Host processor for thermal recipe execution

LAM 853-049542-173

Compatibility & Installation Traps

Compatibility

  • Primary host platforms: Lam Research VECTOR EXTREME / Kiyo / 2300 Flex plasma etch systems
  • Control software: Lam fab host thermal recipe editor and fault monitoring framework
  • Field devices: ESC chuck RTD sensors, showerhead and liner heater cartridges, cooling manifold temperature probes
  • Note: Utilizes Lam proprietary internal backplane bus; not compatible with standard PLC temperature modules or Modbus sensor networks.

Critical Installation Traps

  1. Revision & Firmware Matching: Board revision and embedded firmware must match the chamber tool software. Mismatched firmware causes incorrect temperature feedback, heater misfire or recipe hold due to thermal interlock.
  2. Sensor Wiring Polarity: Reversed RTD/thermistor wiring yields invalid temperature readings and false high-temperature interlocks, which can trigger chamber safety shutdown.
  3. Conformal Coating Integrity: Do not scratch conformal coating during ESD handling. Damaged coating exposes copper traces to corrosive fluorine byproducts and creates intermittent thermal drift.
  4. High ESD Sensitivity: Precision analog front-end circuits for low-level temperature sensors are ESD-sensitive. All handling must take place at an ESD-controlled cleanroom workstation.
  5. Heater Load Isolation Before Power-Up: Shorted heater cartridges can destroy onboard drive circuits. Disconnect heater field wiring before energizing the replacement PCB.
  6. Backplane Connector Pin Integrity: Bent edge connector pins lead to intermittent bus or channel faults that are difficult to reproduce in static bench testing.
  7. Cleanroom Handling Rules: Avoid bare-hand contact with PCB traces and connector pins. Skin oils introduce measurement offset that worsens under thermal cycling.
  8. Post-Replacement Thermal Calibration Mandate: After installation, sensor offset calibration and thermal setpoint tuning must be completed. Skipping calibration leads to non-uniform wafer etch and yield loss.



Standard Operating Procedure (SOP)

  1. Pre-installation inspection: Inspect PCB, edge connector and conformal coating for scratches or corrosion. Verify part number and revision against the chamber BOM.
  2. Lockout and energy isolation: Set the tool to safe state, purge chamber process gases, de-energize chamber 24VDC auxiliary power and apply lockout/tagout. Confirm all heater circuits are de-energized.
  3. Mechanical removal: Remove cabinet access panels, disconnect backplane bus and field temperature/heater harnesses. Extract the old temperature node PCB from its designated slot.
  4. Reassembly and cabling: Insert the replacement board into the backplane slot and secure fasteners. Reconnect all sensor and heater cables, verify pin assignment and lock connectors.
  5. Power-up and self-test: Restore 24VDC auxiliary power. Confirm power and bus LEDs are active. Run the tool built-in channel diagnostic to check sensor continuity.
  6. Thermal calibration and loop validation: Perform sensor offset calibration for all 24 channels; test heater enable and cut-off functions, confirm temperature feedback matches reference probes within tolerance.
  7. Process qualification: Execute dry chamber thermal soak cycles, monitor zone temperature stability and interlock response. Release to production after passing thermal uniformity qualification.
  8. Decommissioning: Isolate power before removal. Cap all connectors and pack the defective PCB inside an ESD shielding bag for failure analysis or controlled disposal.



Application Scenarios

  • 24-zone precision thermal monitoring and closed-loop heater control for Lam plasma etch chambers
  • Electrostatic chuck, showerhead and liner temperature regulation during wafer etch recipes
  • Thermal fault detection, over-temperature protection and chamber interlock triggering
  • Cleanroom semiconductor wafer plasma etch production
  • Preventive maintenance replacement of aged thermal control node PCBs
  • Troubleshooting of thermal drift, sensor dropout and intermittent over-temperature alarms
  • Chamber thermal subsystem retrofit and spare inventory stocking
  • Recipe thermal profile tuning to improve wafer-to-wafer etch uniformity



Supporting Components

  • ESD wrist strap, ESD mat and anti-static shielding bags for cleanroom service
  • Torque screwdriver set for PCB mounting fasteners
  • Replacement edge connector contacts and chamber RTD/heater wiring harness
  • Lam tool service software and service login credentials
  • Conformal coating touch-up repair kit
  • RTD reference calibration probe for temperature loop verification
  • Filtered 24VDC cleanroom power supply with surge and short-circuit protection
  • Spare ESC chuck RTD sensors and chamber heater cartridge assemblies
