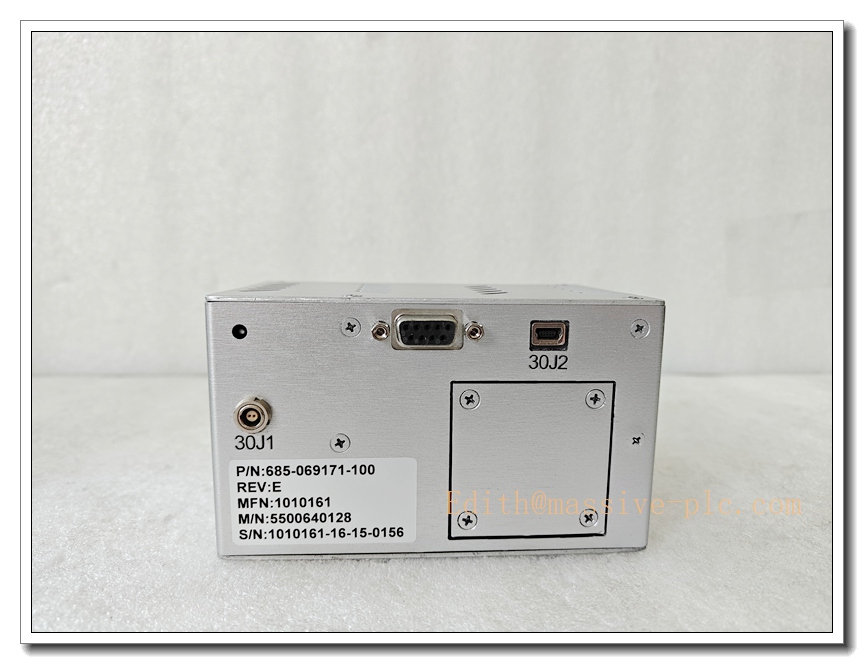

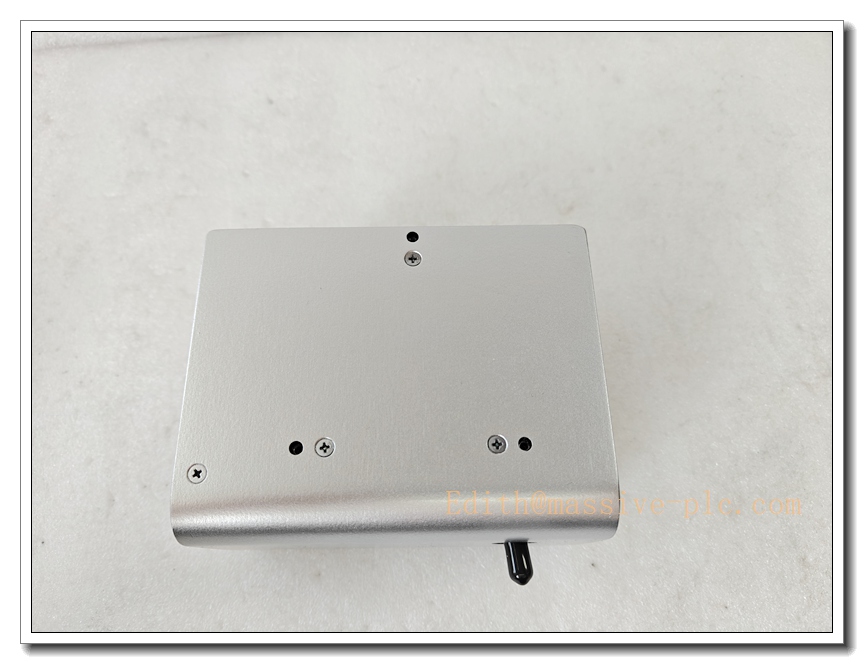

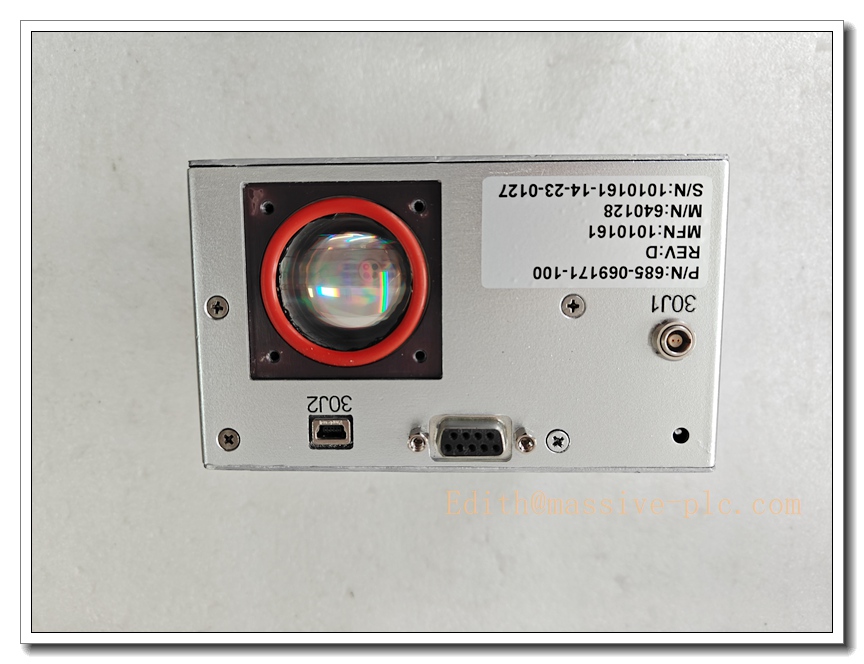

LAM 685-069171-100 Spectrometer Control Box, OES Endpoint Detection Controller for Plasma Etch Chamber

Description

LAM 685-069171-100 Spectrometer Control Box, OES Endpoint Detection Controller for Plasma Etch Chamber

Product Description

The 685-069171-100 is a compact spectrometer control box (Horiba OEM) built for Lam Research plasma etch systems. It works in conjunction with the OES optical sensor to acquire, process and analyze plasma optical emission spectra in real time. This unit converts raw spectral data into endpoint trace signals for the chamber host controller, identifying the exact moment the target thin film clears and terminating the etch recipe to avoid over-etch. Housed in a rugged metal enclosure optimized for cleanroom cabinet mounting, it delivers stable low-noise spectral acquisition under vibration and thermal cycling. It is a field-replaceable critical spare for resolving endpoint signal dropout, spectral baseline drift and OES communication faults.

Technical Parameters

Recommended Related Models (8 units)

1. 685-069171-000: Previous generation revision of the spectrometer control box
2. 853-150806-001: OES optical emission spectrometer sensor head
3. 810-066590-004: Chamber analog interface PCB for pressure sensor conditioning
4. 810-046015-010: Gas Box MFC interface PCB for process gas regulation
5. 853-049542-173: 24-channel temperature control node PCB
6. 810-102361-222: Rocker valve interface PCB for vacuum sequencing
7. 61-428059-00: VECTOR EXTREME EIOC 1 chamber I/O & motion controller
8. Lam Fiber Optic Harness: UV-resistant fiber cable connecting control box to chamber viewport

685-069171-100

Compatibility & Installation Traps

Compatibility

• Primary host platforms: Lam Research VECTOR EXTREME, Kiyo and 2300 Flex plasma etch systems
• Control software: Lam fab host endpoint recipe editor and process fault monitoring framework
• Field devices: OES sensor head, UV fiber optic harness, sapphire chamber viewport assembly
• Note: Uses Lam proprietary communication protocol; cannot interface with third-party spectrometer software.

Critical Installation Traps

1. Firmware & Tool Software Matching: The control box firmware must match the chamber host software revision. Mismatch causes unrecognized hardware, distorted spectral traces or missed endpoint events.
2. Fiber Endface Contamination: Fingerprints, dust or residual process byproducts on fiber connectors cause light attenuation, noisy spectra and false endpoint triggers. Optical cleaning is mandatory before connection.
3. UV Optical Degradation Check: Inspect fiber and viewport for solarization or burn marks. Aged optical components will degrade signal even if the control box itself is functional.
4. ESD Precautions: Internal detector and signal processing circuits are ESD-sensitive. All service must be performed inside an ESD-controlled cleanroom station.
5. Vibration Isolation: Mount the unit on the designated shock-dampening bracket. Direct coupling to high-vibration RF cabinet structures introduces spectral jitter.
6. Connector Pin Integrity: Damaged communication or power pins lead to intermittent loss of OES data, which is difficult to reproduce during static bench tests.
7. Cleanroom Handling Rules: Avoid touching internal circuit boards and optical ports with bare hands. Skin oils induce long-term drift and component degradation.
8. Post-Replacement Calibration Mandate: Dark offset, background plasma reference and endpoint threshold calibration must be executed after swap. Skipping calibration risks over-etch and wafer yield loss.

Standard Operating Procedure (SOP)

1. Pre-installation inspection: Examine enclosure, optical fiber port and electrical connectors for physical damage. Confirm part number and revision against the chamber BOM.
2. Lockout and energy isolation: Set the tool to safe state, purge chamber process gases, de-energize 24VDC auxiliary power and apply lockout/tagout.
3. Mechanical removal: Release mounting bracket fasteners, disconnect optical fiber and communication/power cables, then extract the old spectrometer control box.
4. Reassembly and cabling: Secure the replacement unit on the vibration-isolated bracket. Clean fiber endfaces with optical swabs, re-seat fiber and electrical connectors, and fully latch all ports.
5. Power-up and self-test: Restore 24VDC auxiliary power. Verify power and signal lock LEDs. Run built-in fiber loss and dark noise diagnostic routines.
6. Spectral reference calibration: Perform dark offset and plasma baseline calibration in the tool service menu. Confirm spectral trace matches the golden reference library.
7. Process qualification: Run dry chamber plasma cycles and endpoint test recipes. Validate trigger repeatability using monitor wafers before releasing the chamber to production.
8. Decommissioning: Isolate power before removal. Cap optical and electrical ports, and pack the defective unit inside ESD shielding bags for failure analysis or controlled disposal.

Application Scenarios

• Real-time plasma spectral acquisition and endpoint detection for Lam plasma etch chambers
• Thin-film etch stop detection to prevent over-etching and control wafer uniformity
• Spectral baseline monitoring for plasma condition drift and process anomaly capture
• Cleanroom semiconductor wafer plasma etch high-volume production
• Preventive maintenance replacement of aging OES spectrometer control hardware
• Troubleshooting of intermittent endpoint miss, noisy traces and OES communication loss
• Optical process monitoring subsystem spare stocking and chamber retrofit
• Recipe spectral tuning for advanced etch process stability and yield optimization

Supporting Components

• ESD wrist strap, ESD mat and anti-static shielding bags for cleanroom service
• Torque screwdriver set for bracket mounting fasteners
• UV-resistant fiber optic harness and sapphire viewport feedthrough assembly
• Optical fiber cleaning kit with lint-free swabs and solvent
• Lam tool service software and service login credentials
• Vibration-dampening mounting bracket
• Filtered 24VDC cleanroom power supply with surge protection
• OES sensor head (853-150806-001)
