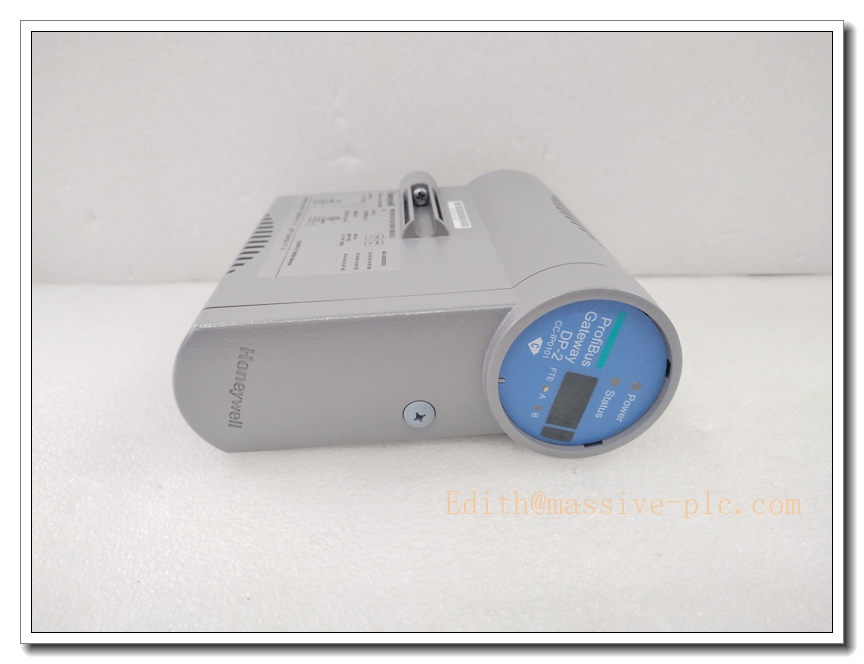

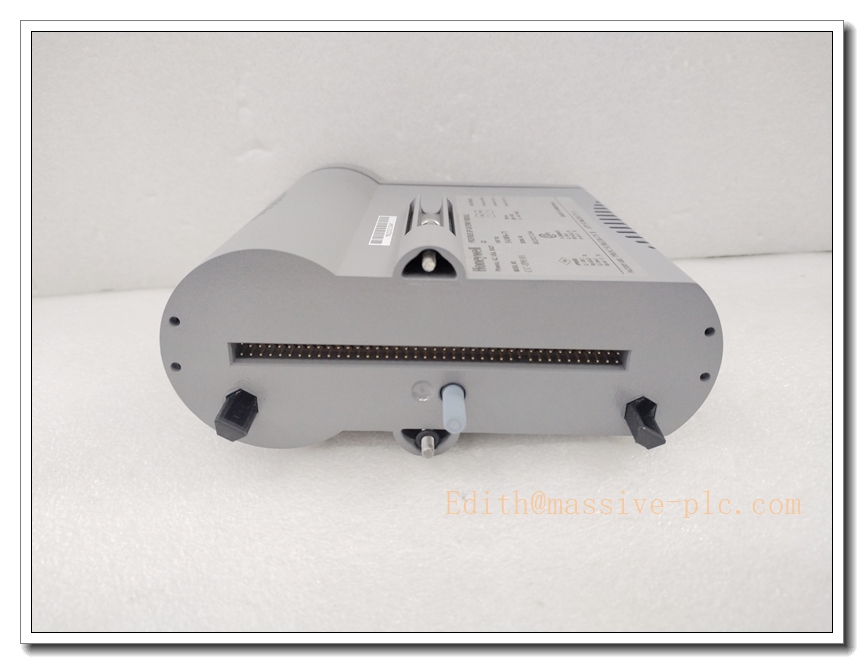

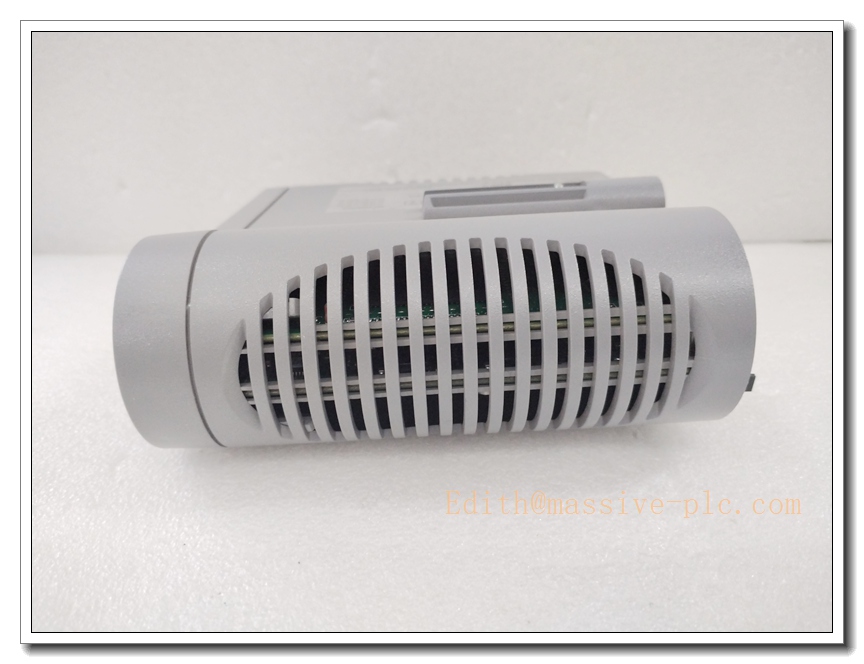

Honeywell CC-IP0101, PROFIBUS DP Gateway Module for Experion PKS Series C, OEM PN:51410056-175

Description

Honeywell CC-IP0101, PROFIBUS DP Gateway Module for Experion PKS Series C, OEM PN:51410056-175

Core Product Overview

CC-IP0101 is a PROFIBUS DP master gateway module for Honeywell Experion PKS Series C platform. It connects to C300 controller via I/O Link bus, performs protocol conversion between I/O Link and PROFIBUS DP, allowing the C300 to communicate with PROFIBUS DP slave devices such as variable frequency drives, remote I/O, mass flow meters and valve positioners. It is a dedicated communication gateway card, not a controller or regular analog/digital I/O card. It supports redundant deployment for critical process cabinets in petrochemical, gas and power plants.

Main Technical Specifications

• Part Number: CC-IP0101, Honeywell drawing PN: 51410056-175
• Manufacturer: Honeywell
• Device Type: PROFIBUS DP Gateway / Interface Processor Module
• Host Interface: I/O Link to C300 controller
• Field Bus: PROFIBUS DP, Master mode
• Baud Rate: 9.6 kbps ~ 12 Mbps
• Max Nodes: Up to 127 PROFIBUS DP slave devices per bus
• Power Supply: 24 VDC from Series C backplane
• PCB Coating: Conformal coated
• Operating Temperature: 0 ~ +60°C
• Humidity: 10%–90% non-condensing
• Form Factor: Series C rack single-slot module, matched with dedicated IOTA
• Status: EOL, original production discontinued; spare stock available as new surplus or professionally refurbished bench-tested units

CC-IP0101

Same-Series Model Recommendations (8 Models)

• CC-IP0101: PROFIBUS DP gateway module (subject model)
• CC-PCNT01: 1st Gen C300 DCS controller
• CC-TCNT01: C300 controller IOTA base
• CC-TUIO31: Universal I/O IOTA base
• CC-PCF901: CF9 FTE control firewall module
• CC-TDI220: 220VAC DI IOTA base
• FC-QPP-0001: Safety Manager SIS CPU
• CP451-10: Yokogawa CENTUM VP DCS CPU

Professional Quality Control & Testing Standard Operating Procedures

All surplus and refurbished Honeywell CC-IP0101 modules follow this inspection workflow:

1. Visual Inspection: Inspect PCB, gold edge fingers, front status LEDs, capacitors and soldering; verify Honeywell part label and revision.
2. Backplane Power Bench Test: Install on Series C rack with matching IOTA, apply 24VDC, confirm stable power rails, no overcurrent or cycling.
3. Boot & Firmware Validation: Complete power-on self-test, read firmware revision, confirm no permanent hardware fault codes.
4. I/O Link Communication Test: Verify communication link to simulated C300 controller.
5. PROFIBUS DP Bus Test: Connect PROFIBUS DP slave simulator, test data read/write and baud rate switching.
6. Redundancy Sync Test (if paired): Check synchronization between dual CC-IP0101 gateways and bumpless switchover.
7. Thermal Soak Test: Run module at upper rated temperature to expose intermittent bus or timing faults.
8. Final Cleaning & Packaging: Clean edge contacts, reset configuration, ESD packaging with printed test certificate.

New / Refurbished Module Installation Guidelines

1. Pre-Installation Safety: Execute lockout-tagout; isolate rack 24V supply and PROFIBUS DP field wiring to prevent unexpected equipment action.
2. Rack & IOTA Check: Confirm matching Series C IOTA base, protective earth and cabinet cooling airflow.
3. Mechanical Insertion: Align CC- edge connector with IOTA, insert smoothly and lock the latch.
4. Bus Wiring: Terminate PROFIBUS DP shielded twisted pair to field terminals; install bus terminators at both bus ends; separate field bus cables from high-power cables.
5. System Configuration: Configure PROFIBUS slave list, address map and scan parameters via Experion PKS engineering tool.
6. Offline Functional Test: Power rack offline, verify I/O Link status and cyclic data exchange with DP slaves.
7. Commissioning & Acceptance: Perform full bus loop test, verify fault diagnosis and slave failure alarm, archive PROFIBUS parameter and topology documents.

Application Scenarios & Product Features

Typical Application Scenarios

• Experion PKS Series C DCS integration of PROFIBUS DP field instruments and drives
• Petrochemical, refinery and power plant VFD, remote DP I/O, flow meter and smart valve communication
• Retrofit and spare replacement for legacy PROFIBUS DP communication racks

Core Product Features

• Dedicated PROFIBUS DP master gateway for Experion PKS
• Translates between Series C I/O Link bus and PROFIBUS DP fieldbus
• Wide baud rate selection, supports up to 127 DP slaves on one bus
• Built-in bus diagnostic functions for slave fault, short circuit and bus noise
• Conformal coated PCB for humid or mildly corrosive cabinet environments
• Supports redundant pairing for high-availability control cabinets
• Hot-swap capable; replacement requires field bus isolation and site work permit
• Not a safety SIS module, for standard DCS process communication only

Frequently Asked Questions (FAQ)

A1: It is designed as DP master for , not for slave mode.

Q2: Does it work without a dedicated IOTA base? A2: No, it needs its supporting IOTA for 24VDC power and PROFIBUS field wiring terminals.

Q3: Can it be directly replaced by other Honeywell communication cards? A3: No, it is exclusive for PROFIBUS DP. Other serial or Modbus gateway modules have different hardware and firmware.

Q4: Is it a SIL-rated safety card? A4: No. It is standard DCS communication gateway. SIS interlock uses Safety Manager FC-QPP-0001 series.

Q5: What are common failure modes? A5: Gold finger oxidation, DP bus transceiver damage from surge, capacitor ageing, firmware corruption, intermittent bus link drop.
