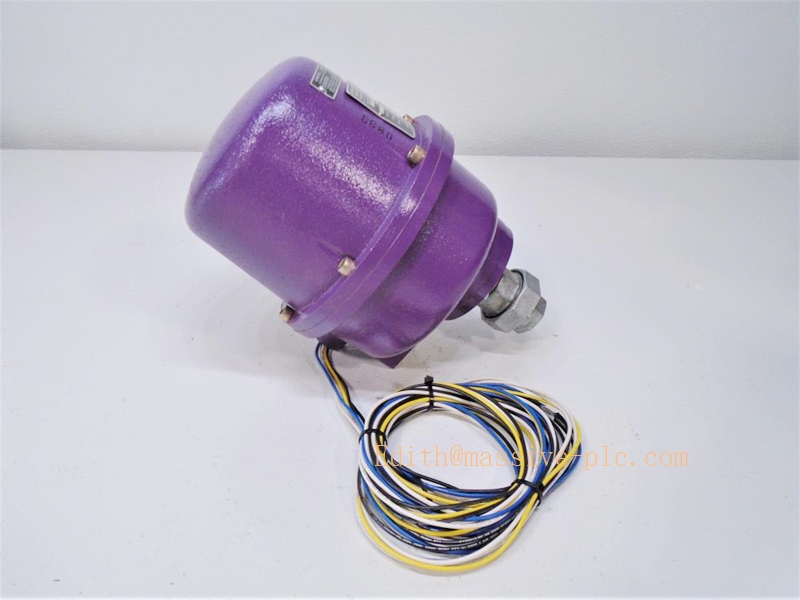

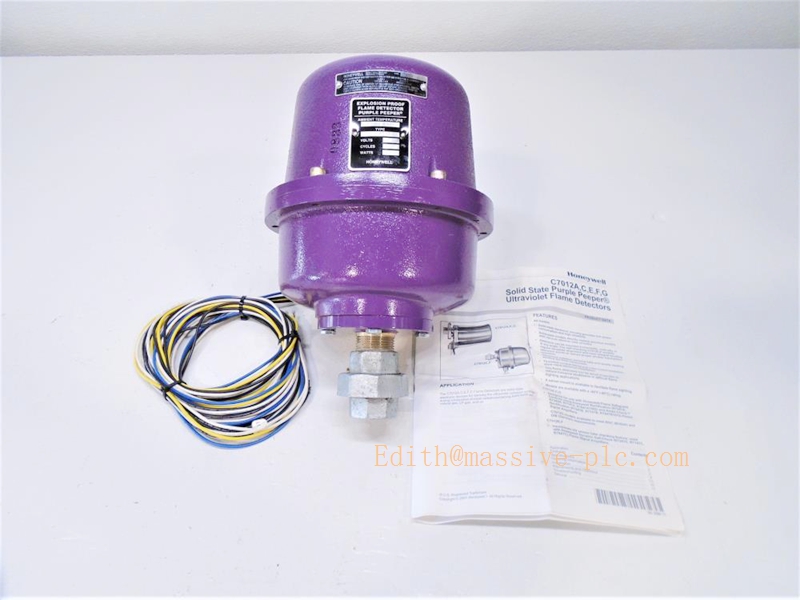

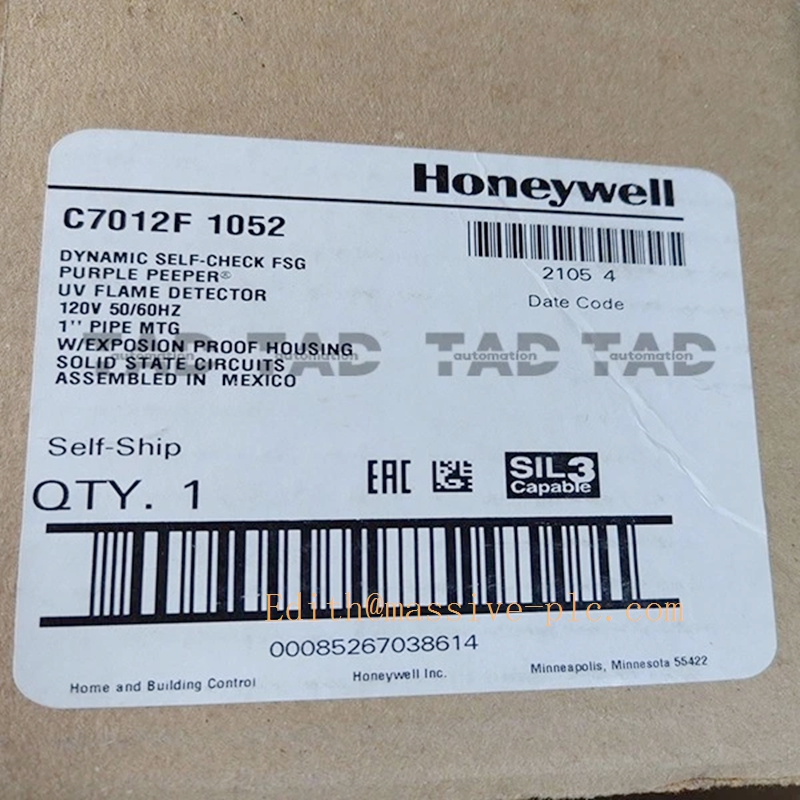

Honeywell C7012F1052 (Purple Peeper) Self‑Checking UV Flame Detector
Product Overview
C7012F1052 is Honeywell explosion‑proof self‑checking solid‑state ultraviolet flame detector, well‑known as Purple Peeper® series It detects ultraviolet UV radiation generated by fuel combustion. Designed for hazardous classified locations, it works together with Honeywell dynamic self‑check flame safeguard amplifiers (R7247C, R7747C, R7847C) to implement continuous flame supervision for industrial burners. This unit is widely applied for new burner projects, field maintenance and spare‑part replacement of existing combustion safety systemsfile.yizim….
C7012F1052

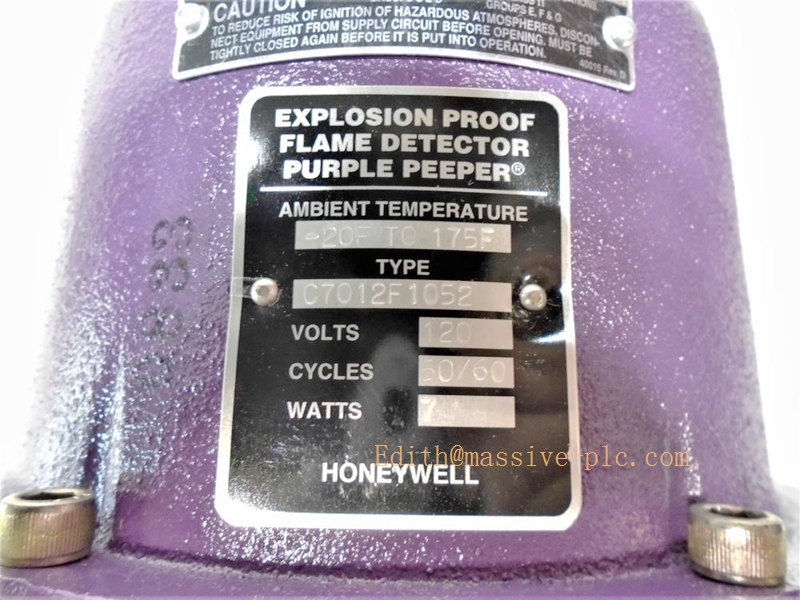

Key Specifications
| Item | Parameter |
|---|---|
| Part Number | C7012F1052 (C7012F1052/U) |
| Manufacturer | Honeywell |
| Product Type | Self‑checking Ultraviolet Flame Detector |
| Power Supply | 120 VAC, 50/60 Hz |
| Power Consumption | 7 W max |
| Viewing Window Pressure Rating | 100 psi (690 kPa) |
| Field‑of‑view Angle | 110° wide detection angle |
| Response Time | 0.8 s typical flame detection response |
| Mounting Interface | 1‑inch NPT threaded connection, swivel mounting adapter |
| Housing | Explosion‑proof cast aluminum housing, NEMA 4X, for Class I Div.1 hazardous locations |
| Ambient Operating Temperature | ‑29 °C ~ +79 °C |
| Lead Wire Length | 96 inch / 2438 mm, color‑coded wiring |
| Certifications | UL, FM, CSA listed; suitable for SIL‑2 safety loop application |
| Weight | Approx. 2.3 kg |
| Compatible Amplifier | R7247C, R7747C, R7847C dynamic self‑check flame amplifiers |
| Status | Obsolete / Discontinued original production, available as aftermarket spare parts |
Main Applications
- Gas, light‑oil, heavy‑oil and pulverized‑coal fired industrial burners
- Boiler combustion safety monitoring for power plant auxiliary boilers
- Furnace, heater and thermal cracking equipment in petrochemical plants
- Refinery hazardous‑area burner flame supervision
- Cement plant kiln burner flame detection
- Retrofit & spare‑part replacement for legacy Honeywell combustion safeguard systems
- Safety interlock for process heating equipment in hazardous classified zones

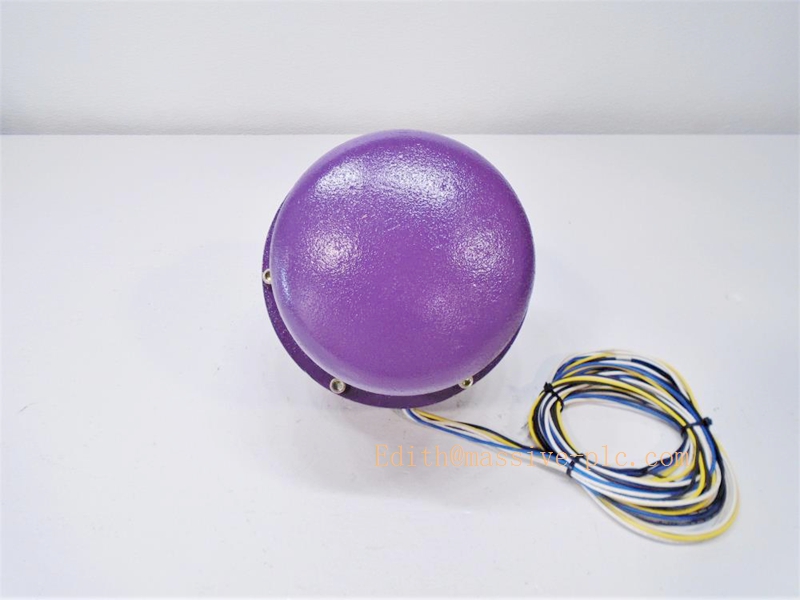

C7012F1052
Related Series Models
- C7012F1052 Self‑checking, explosion‑proof,120VAC (target model)
- C7012E Self‑checking, general‑purpose NEMA4 housing (non‑explosion‑proof)
- C7012C Non‑self‑checking, explosion‑proof UV detector
- C7012A Non‑self‑checking, general‑purpose NEMA4 housing
- R7247C / R7847C Matching dynamic self‑check flame safeguard amplifiers
Core Features
- Built‑in self‑diagnostic checking function: Periodically performs internal self‑test to verify detector health, avoids undetected sensor failure which could cause loss‑of‑flame protection failure.
- Explosion‑proof heavy‑duty enclosure: Designed for Class I Division 1 hazardous locations, suitable for explosive gas‑vapor workshop environments.
- Wide UV detection field‑of‑view: 110‑degree viewing angle, flexible aiming adjustment for different burner installation layouts. Supports mounting at any angle: horizontal, vertical or tilted position.
- High‑pressure‑rated quartz viewing window: 100 psi pressure resistance, adapts to furnace positive‑pressure operating conditions.
- Parallel redundant installation support: Two detectors can be wired in parallel to reduce nuisance safety shutdown risk for critical combustion loops霍尼韦尔中….
- Color‑coded pre‑wired cable: Simplifies field wiring and commissioning work.
- Robust industrial construction: Resists vibration, temperature cycling and dust contamination in heavy‑duty combustion site environment.
Main Functions
- Capture ultraviolet radiation emitted by gas / oil / coal combustion flame, convert flame optical signal into electrical signal and transmit to matched flame safeguard amplifier.
- Execute automatic periodic self‑check to validate internal detector circuit and sensor integrity; report fault condition to burner safety control system upon self‑check failure.
- Continuously monitor flame presence during burner running; send loss‑of‑flame signal to safeguard amplifier once flame extinguishes, trigger burner safety shutdown sequence.
- Support multi‑detector parallel configuration for enhanced safety reliability for high‑risk furnace and boiler applications.
- Cooperate with Honeywell flame safety amplifiers to complete full‑sequence burner flame supervision during ignition, stable burning and flame‑out conditions.
