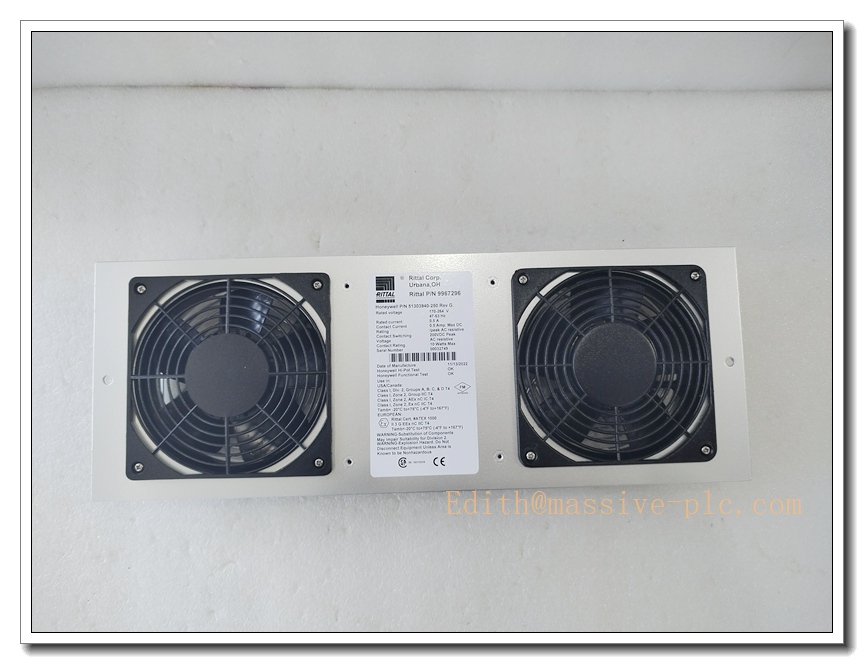

Honeywell 51303940-250 Cabinet Fan Assembly for DCS Control Cabinet
Core Product Overview
51303940-250 is Honeywell rack fan tray assembly for industrial DCS control cabinets. It adopts dual-fan integrated design, providing forced convection cooling for Honeywell control rack electronic modules such as controllers, power supplies and I/O cards. The unit comes with fan fault detection and alarm output. When fan stall or speed anomaly occurs, it sends alarm signal to the DCS system to prevent module over-temperature shutdown. Widely used in Honeywell Experion PKS, TDC3000 control cabinets for petrochemical, chemical and power plant control rooms. This part is a cooling accessory, not a controller or I/O module.
Main Technical Specifications
- Part Number: 51303940-250
- Manufacturer: Honeywell
- Device Type: Cabinet dual fan tray assembly
- Power Supply: 170–264 VAC, 50/60 Hz
- Rated Current: 0.5 A
- Fan Quantity: Dual fans integrated on metal mounting plate
- Diagnostic: Built-in fan speed monitoring, dry contact alarm for fan failure
- Housing: Metal frame, protective fan grilles
- Operating Temperature: -20°C ~ +60°C
- Humidity: 10%–95% non-condensing
- Certifications: CE, UL
- Form Factor: Rack mount fan tray for Honeywell control cabinet
- Status: EOL original production; spare stock available as new surplus or professionally refurbished bench-tested units
51303940-250 9967296
Same-Series Model Recommendations (8 Models)
- 51303940-250: Honeywell dual cabinet fan tray (subject model)
- FC-QPP-0001: Honeywell Safety Manager Quad Processor Pack
- FC-PSU-240516: Safety Manager power supply
- CC-TDCU01: Experion PKS C300 controller
- CC-PDIL01: Experion digital input module
- 51405043-175: CC-PDOB01 digital output module
- 51304084-100: TDC3000 fan assembly
- FC-BKM-0001: Safety Manager backplane module
Professional Quality Control & Testing Standard Operating Procedures
All surplus and refurbished Honeywell 51303940-250 fan trays follow this inspection workflow:
- Visual Inspection: Check metal frame, fan blades, grille, wiring harness, connectors; verify Honeywell part label.
- Power Bench Test: Apply AC rated voltage, verify fan startup, smooth rotation, no abnormal noise, vibration or bearing squeal.
- Fan Alarm Function Test: Simulate fan stall condition, confirm fault alarm contact triggers correctly.
- Continuous Burn-in Test: Run fans continuously for extended period to check bearing stability and temperature rise.
- Connector Continuity Test: Check harness pins for open circuit or short circuit.
- Airflow Inspection: Verify normal air output for cabinet cooling.
- Thermal ageing test: Run under elevated ambient temperature to expose early bearing failure.
- Final Cleaning & Packaging: Clean fan and frame, test report attached, ESD protected packaging.
New / Refurbished Installation Guidelines
- Pre-Installation Safety: Execute lockout-tagout; isolate cabinet AC power and DCS rack power to avoid electric shock and unexpected system action.
- Cabinet Pre-check: Confirm cabinet mounting cutout matches the fan tray dimension, check cabinet grounding and ventilation path.
- Mechanical Mounting: Fix the fan tray on designated cabinet position with fasteners; confirm airflow direction matches cabinet cooling design.
- Wiring Connection: Connect AC power cable and fault alarm signal cable to DCS alarm terminal; separate power wiring from low-signal control cables.
- Offline Functional Test: Power on the fan tray alone, check fan rotation and verify fan-failure alarm signal.
- System Integration Test: Restore rack power, confirm DCS can receive fan health status and fault alarm.
- Commissioning & Acceptance: Monitor cabinet internal temperature after installation, verify over-temperature protection logic, archive test records.
Application Scenarios & Product Features
Typical Application Scenarios
- Experion PKS / TDC3000 DCS control cabinet forced air cooling
- Petrochemical and refinery process control room racks
- Chemical plant and power plant DCS cabinets
- Replacement spare for Honeywell original cabinet cooling fan assembly
- Control cabinet retrofit and maintenance
Core Product Features
- Dual-fan tray design for Honeywell DCS cabinets
- Fan speed monitoring with fault alarm output
- Metal industrial frame with protective grille
- Wide AC input voltage range 170–264 VAC
- Continuous duty industrial bearing fans for 24/7 control room operation
- Alarm signal interface for DCS fault notification
- Supports hot replacement with proper work permit and temperature monitoring
Frequently Asked Questions (FAQ)
Q1: Is 51303940-250 a DCS controller module? A1: No, it is a cabinet cooling fan tray, used to dissipate heat for Honeywell rack modules. It has no control logic function.
Q2: Can one failed fan still run with the other fan working? A2: Yes, the second fan can provide partial cooling, but the fault alarm will activate. You should arrange replacement quickly to avoid overheating risk.
Q3: Is it hot-swappable? A3: Mechanically it can be replaced while the DCS rack remains powered, but cabinet temperature must be closely watched during replacement, follow site work permit procedures.
Q4: What is the alarm output type? A4: Dry contact relay output, can be wired to DCS DI channel for fan fault alert.
Q5: What are common failure modes? A5: Fan bearing wear, abnormal noise, fan stall, open circuit in wiring harness, alarm relay contact failure.
