Description
GE IS200EXAMG1BCB EX2100e Exciter Analog Module
Product Overview
IS200EXAMG1BCB is a TMR‑compliant analog measurement board for GE Speedtronic Mark VIe EX2100e generator excitation control system. It acquires and conditions critical analog field signals from generator‑exciter loops, performing isolation, filtering and analog‑to‑digital conversion. Via HSSL high‑speed serial bus, it transmits processed measurement data to the UCSx main controller for excitation closed‑loop regulation, protection and monitoring. Original production has been discontinued; this unit is supplied as aftermarket spare part for power‑plant retrofits and existing EX2100e cabinet maintenance.

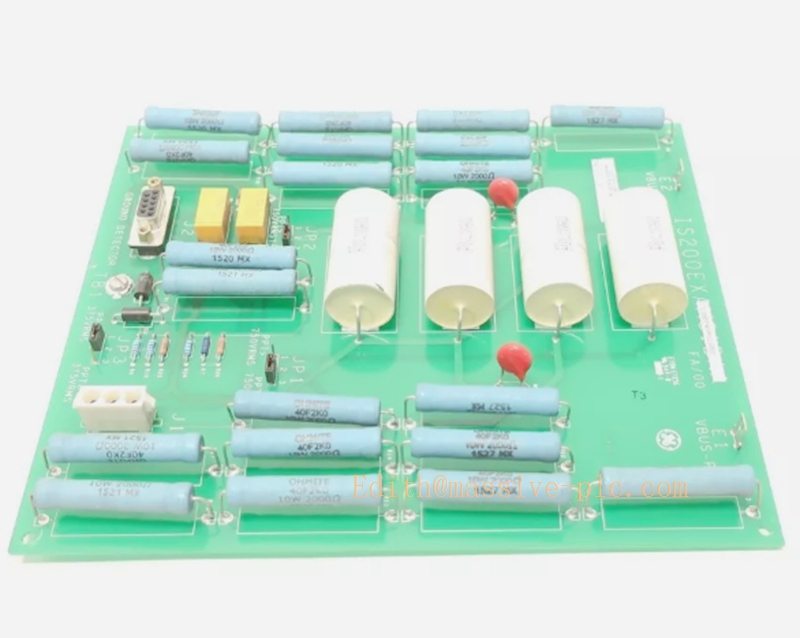

IS200EXAMG1BCB
Key Specifications
| Item | Parameter |
|---|---|
| Part Number | IS200EXAMG1BCB |
| Manufacturer | GE General Electric |
| Platform | Speedtronic Mark VIe, EX2100e Excitation System |
| Architecture | TMR Triple Modular Redundant (M1‑M2‑C three‑channel) |
| Backplane Interface | Mark VIe standard rack backplane |
| Communication | HSSL high‑speed serial link to UCSx controller |
| Signal Type | Isolated analog inputs for exciter voltage, exciter current, generator terminal voltage |
| Input Signal Range | ±10 V analog field measurement signals |
| Power Supply | 24 VDC from system backplane |
| Operating Temperature | 0 °C ~ +60 °C |
| Storage Temperature | ‑40 °C ~ +85 °C |
| Humidity | 5‑95 % RH, non‑condensing |
| Isolation | Galvanic isolation between field circuits and control logic |
| Weight | Approx. 2.8 kg |
| Status | Original manufacturing discontinued, aftermarket spare only |
Main Applications
- Excitation measurement loop for gas‑turbine and steam‑turbine generators in combined‑cycle power plants
- EX2100e excitation cabinet analog signal acquisition and conditioning
- Thermal power station generator voltage‑regulation closed‑loop control
- On‑site self‑generation excitation monitoring for petrochemical heavy‑industry
- Spare‑part replacement and hardware retrofit for legacy Mark VIe / EX2100e installations
- Safety‑related analog measurement for generator protection interlock
Related Series Models
- IS200EXAMG1BCB TMR Exciter Analog Module (target part number)
- IS200EXAMG1B Base hardware variant without BCB revision suffix
- IS200EAUXH1ABB Matching auxiliary I/O board for EX2100e
- IS200EXCIH1A EX2100e core exciter control board
- IS200UCSCH1A Mark VIe UCSx main processor controller
Core Features
- TMR triple‑modular‑redundant design: Three independent measurement channels implement hardware voting; single‑channel fault does not break excitation control loop, improving power‑system availability.
- Galvanically isolated analog inputs: Isolation barrier suppresses common‑mode noise from high‑power exciter circuits, protects control side against field‑side surge interference.
- High‑precision signal conditioning & A/D conversion: Accurately samples exciter current, exciter voltage and generator terminal voltage for stable excitation regulation.
- HSSL high‑speed serial communication: Reliable data exchange with UCSx main controller, strong anti‑EMI performance inside high‑voltage excitation cabinet.
- Plug‑in rack‑mount construction: Standard Mark VIe slot installation, supports convenient module swap during field maintenance.
- Comprehensive on‑board diagnostics: Detects channel anomaly, signal out‑of‑range and internal hardware failure; pushes fault alarms to Mark VIe HMI for fast troubleshooting.
Main Functions
- Receive analog measurement signals from exciter current/voltage and generator PT‑transducer circuits, perform filtering, galvanic isolation and analog‑to‑digital conversion.
- Execute TMR voting for multi‑channel sampled data, deliver validated measurement values to UCSx main controller over HSSL bus.
- Provide critical feedback data for generator excitation closed‑loop control, supporting automatic voltage regulation (AVR) and manual excitation adjustment.
- Detect abnormal measurement range, signal loss and internal hardware faults; generate diagnostic alarms for system monitoring.
- Cooperate with EX2100e core control board to realize generator over‑excitation, under‑excitation and over‑voltage protection logic.
- Record measurement‑related diagnostic events for post‑trip analysis and equipment maintenance.
