GE IS200EDISG1AAA EDIS Exciter Distribution Board
Product Overview
IS200EDISG1AAA, also known as EDIS (Exciter Distribution Board), is the central power‑routing PCB for GE EX2100 / EX2100e generator excitation system under Speedtronic Mark VIe platform. It accepts multi‑source redundant AC and DC station power inputs, implements power routing, branch over‑current protection and fault monitoring, and supplies conditioned power to all internal exciter control modules including processor boards, I/O boards and thyristor interface boards. Original production is discontinued; this unit is only available as aftermarket spare for power‑plant cabinet maintenance and retrofitting.

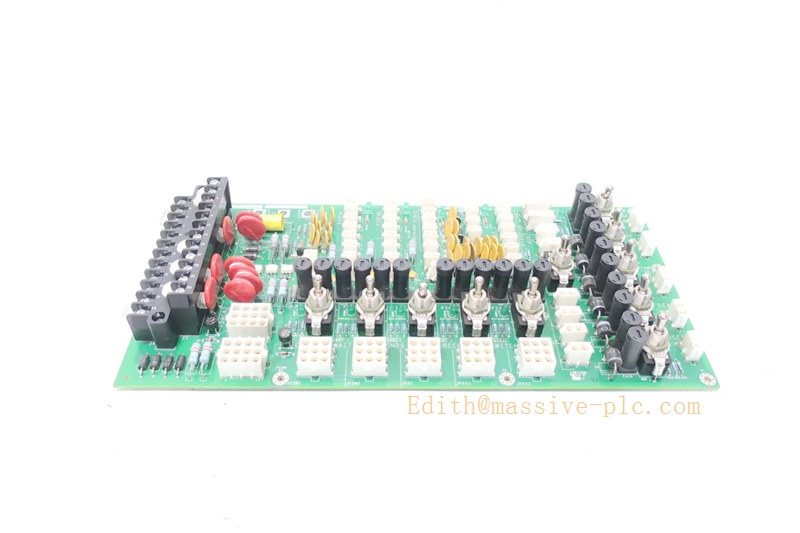

IS200EDISG1AAA
Key Specifications
| Item | Parameter |
|---|---|
| Part Number | IS200EDISG1AAA |
| Manufacturer | GE Vernova (General Electric) |
| Functional Name | EDIS Exciter Distribution Board |
| Applicable Platform | Speedtronic Mark VIe, EX2100 / EX2100e Excitation System |
| Power Input Sources | 125 VDC station battery; dual independent 115/220 VAC, 50/60 Hz auxiliary AC power |
| On‑board Components | 5 bridge switches, multiple branch circuit protection devices, power‑status LED indicators |
| Output Power | 125 VDC for power stage modules; 24 VDC for I/O & logic boards |
| Communication | HSSL high‑speed serial link to exciter main controller for power‑fault reporting |
| Mounting | Dedicated slot inside EX2100e excitation cabinet, vertical installation only |
| Operating Temperature | ‑20 °C ~ +70 °C |
| Storage Temperature | ‑40 °C ~ +70 °C |
| Humidity | 5‑95 % RH, non‑condensing |
| Isolation | 1500 V input‑to‑output isolation rating |
| Weight | Approx. 1.27 kg |
| Status | Obsolete original manufacturing, aftermarket spare part only |
Main Applications
- Central power distribution for EX2100 / EX2100e excitation cabinets in combined‑cycle power plants
- Gas‑turbine and steam‑turbine generator excitation control systems
- Thermal power station auxiliary power interface for excitation racks
- Petrochemical on‑site captive‑power generation excitation equipment
- Spare‑part replacement and hardware retrofit for legacy Mark VIe EX2100e installations
- Power‑supply fault detection for generator protection interlock loops
Related Series Models
- IS200EDISG1AAA Final revision EDIS exciter distribution board
- IS200EDISG1A Base hardware version without AAA suffix revision
- IS200EXAMG1BCB Exciter analog measurement matching board
- IS200EAUXH1ABB Exciter auxiliary I/O matching board
- DACA series AC‑DC rectifier board working cooperatively with EDIS board
Core Features
- Multi‑source redundant power input: Supports dual‑AC plus 125 VDC battery backup inputs, improves power‑supply reliability for safety‑critical excitation systems.
- Integrated branch‑level protection: Built‑in circuit protection for each output channel; local LED indicators show branch power status for quick on‑site inspection.
- Flexible power‑routing configuration: 5 onboard bridge switches allow flexible power‑path setup for different EX2100e cabinet hardware layouts.
- Power‑fault diagnostic capability: Continuously monitors input loss, branch overload and protection‑trip events; sends fault alarms to main exciter controller via HSSL bus.
- Reinforced industrial isolation design: High‑voltage isolation barrier separates station power side from control logic side, suppressing surge interference inside excitation cabinet.
- Optimized cabinet layout: Dedicated vertical slot mounting, centralizes power‑wiring point and simplifies cabinet internal cabling work.
Main Functions
- Receive multi‑source external station power (125 VDC battery and dual AC auxiliary supplies), perform power‑path selection and distribution for EX2100e cabinet internal modules.
- Deliver 125 VDC power to thyristor‑related power‑stage boards, and supply 24 VDC working power to I/O and logic control boards.
- Provide branch‑wise over‑current protection, cut off faulty output channel while keeping other power branches running.
- Detect input power failure, blown protection devices and abnormal power status, upload diagnostic alarm information to exciter main controller through HSSL serial link.
- Cooperate with DACA rectifier board to complete AC‑DC power conversion for excitation cabinet auxiliary power supply.
- Serve as central power interface for the whole EX2100e rack, guarantee stable power supply for measurement, I/O and control hardware during normal and partial‑fault operating conditions.
