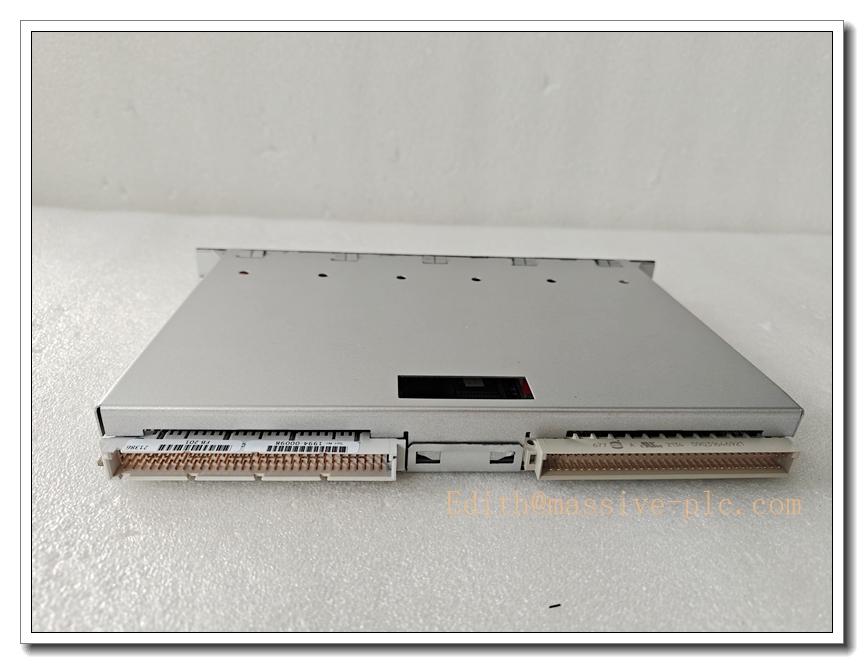

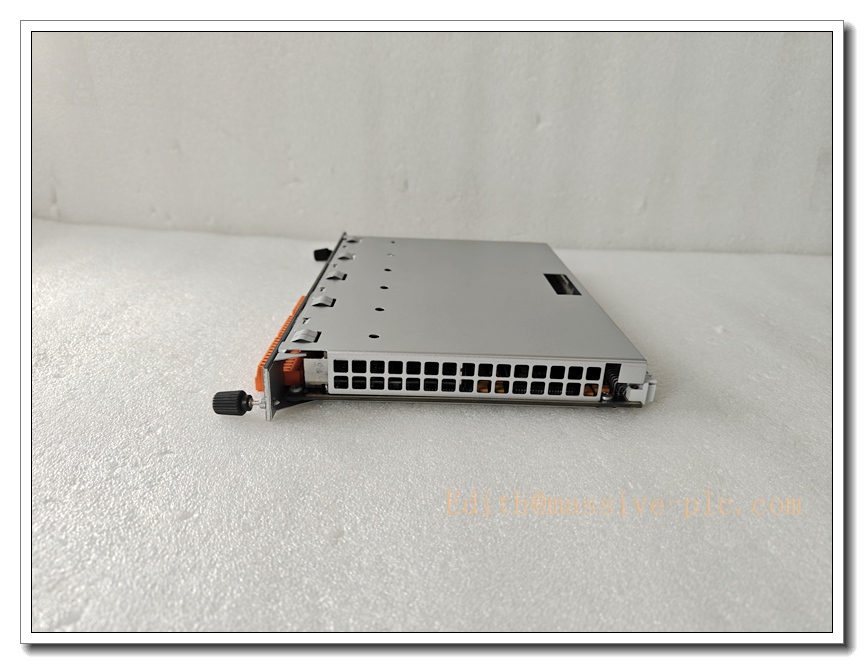

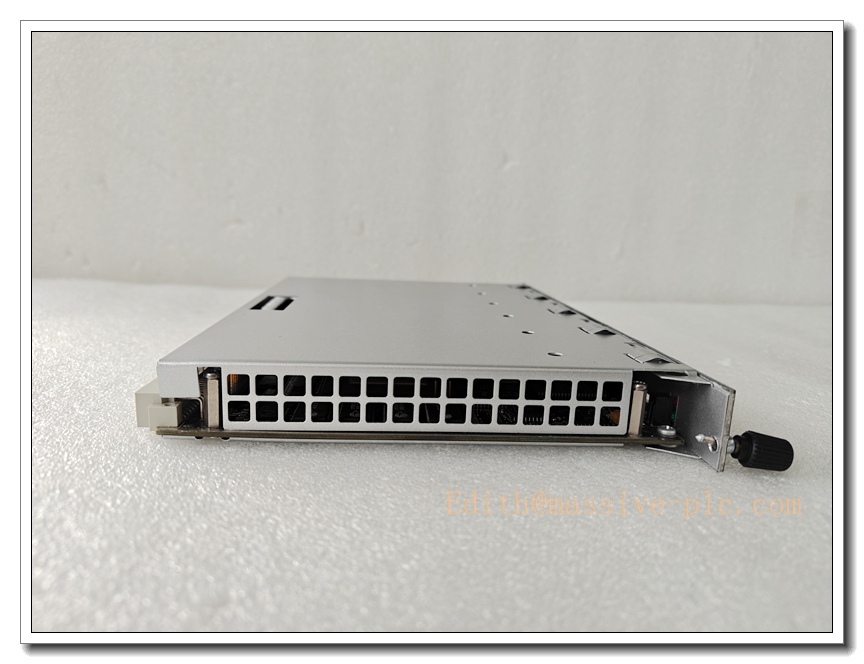

FB201 KEBA ComAct Rack-Mount Digital I/O Module

Description

FB201 KEBA ComAct Rack-Mount Digital I/O Module Full Product Specification

Product Title & Meta Description

Official Product Title: FB201 KEBA ComAct Series Hot-Swappable Digital I/O Rack Module Product Brief Description: The FB201 is a rack-mounted digital input/output module developed by KEBA for the ComAct automation platform. Designed for real-time discrete signal acquisition and actuator driving, it features galvanically isolated channels, backplane fieldbus communication and hot-swap capability. Optimized for heavy-duty machinery such as injection molding, die-casting and stamping presses, this module transfers sensor and switch signals to the main controller and outputs logic commands to relays, valves and contactors under harsh factory conditions. It complies with CE, RoHS and relevant EMC standards and serves as a core distributed I/O unit for KEBA machine control systems.

Detailed Product Information

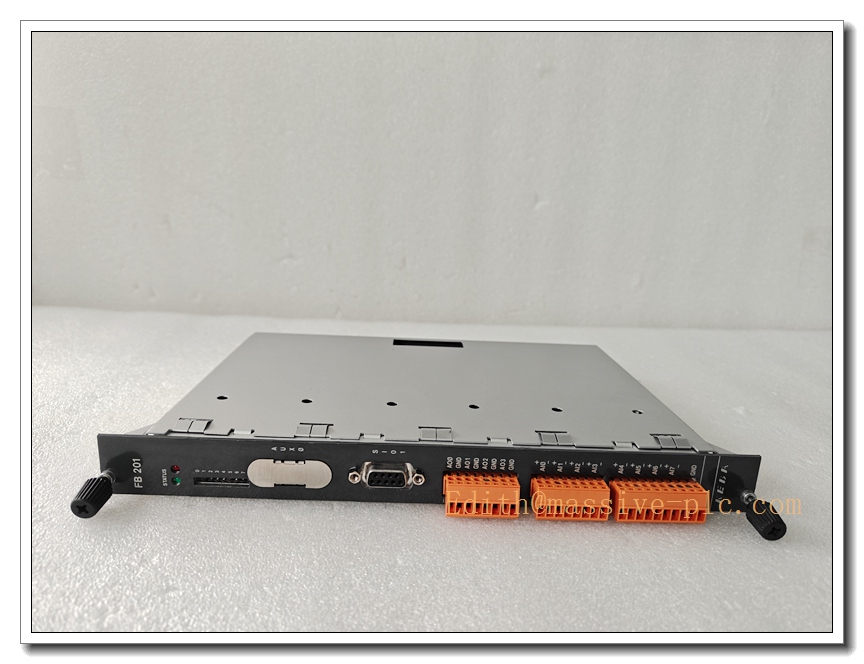

The FB201 belongs to KEBA ComAct modular control system, a plug-in card designed for installation in KEBA 6U/9U 19-inch control racks. It integrates multi-channel digital inputs and outputs with optocoupler isolation to suppress ground loop interference. Communication relies on the rack internal backplane bus to exchange real-time I/O data with the ComAct CPU master module. A dedicated RS232 debug port is reserved for channel testing, parameter diagnosis and firmware maintenance. The mechanical latch knob on both ends secures the card to the chassis and enables controlled hot swapping without shutting down the whole rack. This module is not a standalone controller; it must work with a KEBA ComAct CPU, backplane and power supply. It is widely adopted on plastic injection machines, die-casting equipment, hydraulic presses and textile machinery, supporting high-cycle, high-noise industrial environments.

Core Technical Parameters

• Manufacturer: KEBA
• Model: FB201
• Product Type: Rack Digital I/O Module, ComAct Series
• Power Supply: 24 VDC backplane supply, tolerance 19.2 ~ 28.8 VDC
• Power Consumption: Max 5 W
• I/O Type: Galvanically isolated digital DI/DO
• On-board Interface: Backplane fieldbus, RS232 debug port, removable terminal blocks
• Mounting: 19-inch rack plug-in, 6U/9U KEBA standard chassis
• Hot Swap: Supported with proper rack configuration
• Operating Temperature: 0 °C ~ +55 °C
• Storage Temperature: -20 °C ~ +70 °C
• Relative Humidity: 5% ~ 95 %, non-condensing
• Shock & Vibration: Compliant with IEC 60068-2
• Certifications: CE, RoHS, EMC industrial compliance
• Status Indication: LED per channel + module power / fault LED
• Programming Environment: KE-Studio

FB201

8 Recommended Related Models (KEBA ComAct I/O Family)

1. FB202: Extended high-density digital I/O module, more DI/DO channels for large machine stations
2. FB203: Analog input module, 4–20 mA / 0–10 V signal acquisition for pressure and temperature transducers
3. FB204: Analog output module, analog setpoint output for proportional hydraulic valves
4. FB205: High-speed counter & encoder module, pulse capture for spindle and position feedback
5. FB206: Safety digital I/O module, STO-related discrete signals for machine safety circuits
6. FB210: ComAct CPU master module, system controller for FB-series I/O backplane
7. FB211: Fieldbus gateway module, Profinet / EtherCAT interface for upper-level host connection
8. FB212: Relay output module, high-current dry contact outputs for heavy-load switching

Compatibility & Critical Installation Traps

5.1 System Compatibility

• Platform Compatibility: Exclusive to KEBA ComAct rack system; not compatible with third-party PLC backplanes
• Master Controller: Matches FB210 CPU and ComAct firmware versions; firmware mismatch causes backplane communication drop
• Rack Hardware: Works with KEBA original 6U/9U 19-inch chassis and dedicated backplane boards
• Software: Configured via KE-Studio; old software versions lack FB201 channel diagnosis functions
• Field Wiring: Compatible with 24 VDC PNP/NPN sensors, solenoid valves and miniature relays

5.2 Key Installation Traps & Avoidance Guidelines

• Trap 1: Hot-swap without rack permission setting Hot swap only works after enabling the hot-swap parameter in the CPU. Unauthorized card extraction triggers backplane bus fault and system stop. Solution: Confirm hot-swap permission in KE-Studio before replacement.
• Trap 2: Mixed ground for field 24V and rack backplane supply Common grounding of sensor power and rack power creates ground noise, leading to random channel flicker and false triggering. Solution: Isolate field sensor 24V from rack supply; single-point grounding for the cabinet.
• Trap 3: Over-tightening terminal blocks Excessive torque cracks the plastic terminal housing; loose terminals generate heat and intermittent signal loss. Solution: Follow KEBA terminal torque specification.
• Trap 4: Installing the module in non-KEBA backplane Pin definition of third-party racks differs. Insertion results in module burnout. Solution: Only use original KEBA ComAct chassis and backplane.
• Trap 5: Poor ventilation inside compact cabinet Stacking multiple I/O cards without airflow leads to overtemperature alarm and automatic channel shutdown. Solution: Maintain cabinet airflow, keep ambient temperature below 55 °C.
• Trap 6: Incorrect PNP/NPN wiring configuration Mismatched sensor type in software causes input channels to stay permanently ON or OFF. Solution: Match wiring type with KE-Studio channel parameter.
• Trap 7: Live wiring on field terminals Plugging sensor cables while powered may induce surge and damage the opto-isolation circuit. Solution: Cut off field 24V before modifying terminal wiring.

Standard Operating Procedure (SOP)

6.1 Pre-installation Inspection

Verify model and visual condition for physical damage. Check rack backplane version, CPU firmware compatibility and cabinet power quality. Confirm sensor and actuator signal types (PNP/NPN) and prepare shielded cables.

6.2 Mechanical Installation

Align the card with the vacant rack slot. Push the card fully into the backplane connector and lock both side knobs. Ensure no mechanical stress on the module. Reserve cooling clearance between adjacent modules.

6.3 Electrical Wiring

Wire field sensors and actuators to the removable terminal block. Separate signal cables from high-power hydraulic or motor cables. Implement shield termination at cabinet grounding bar. Double-check short circuits and polarity of 24 V field supply.

6.4 Software Configuration & Commissioning

Connect PC with KE-Studio. Scan the ComAct backplane, add to the hardware tree. Set channel direction, PNP/NPN type and fault reaction. Download the project to the ComAct CPU and restart the controller.

6.5 Functional Test

Activate each digital input and verify LED status and signal reception in KE-Studio. Trigger each digital output and confirm actuator response. Test fault simulation including wire break and over-temperature. Validate hot-swap function if required.

6.6 Formal Operation & Routine Maintenance

Run machine cycles and monitor module fault logs. Periodically inspect terminal tightness and cabinet dust buildup. Check fan performance in the rack. Back up I/O configuration before firmware upgrade.

Application Scenarios

• Injection molding machines: Mold protection signal, limit switch, valve control I/O
• Die-casting and hydraulic stamping presses: Clamp, ejector and safety gate discrete signals
• Textile and printing machinery: Cam position sensors, cutter and feeder actuators
• Packaging automation: Conveyor photoelectric sensors, pusher and sorting solenoids
• Machine tool auxiliary axes: Clamping, lubrication and door interlock logic
• Test benches: Safety interlock, status indication and emergency stop signal distribution

Supporting Components & Accessories

• Rack & Power: KEBA 6U/9U 19-inch ComAct chassis, rack power supply unit, backplane bus board
• Wiring Accessories: Removable terminal blocks, 24 VDC shielded sensor cables, ferrite cores for noise suppression
• Control Core: FB210 ComAct CPU module, CF memory card for project backup
• Communication Expansion: FB211 fieldbus gateway, Profinet / EtherCAT interface adapter
• Debug Tools: RS232 debug cable, KE-Studio programming software
• Spare & Protection: Module latch knobs, cabinet cooling fans, surge protection modules for field 24V
