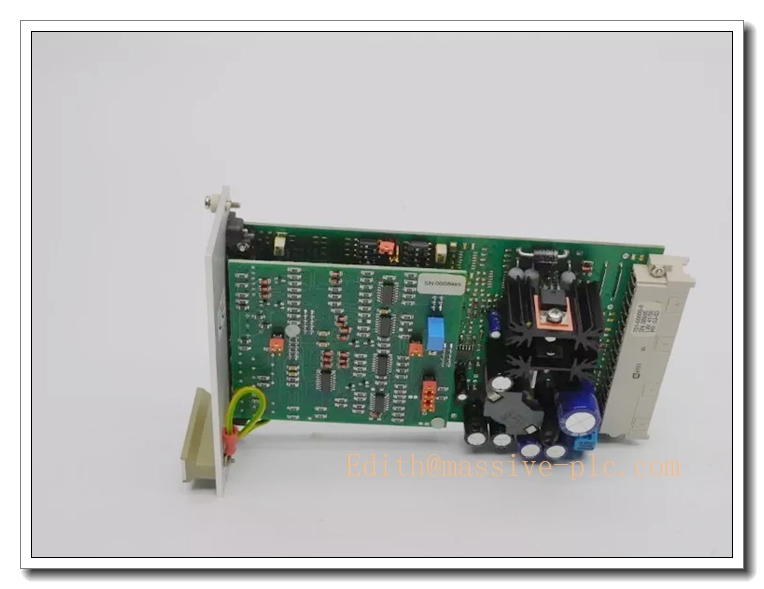

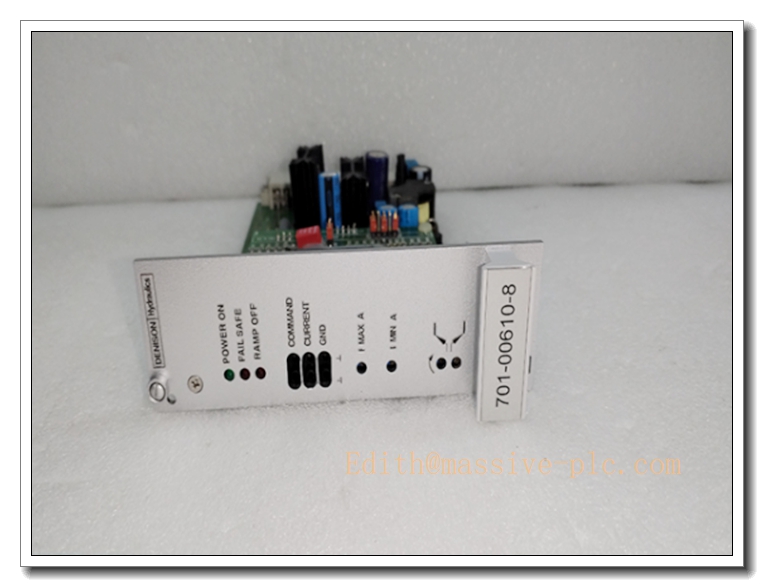

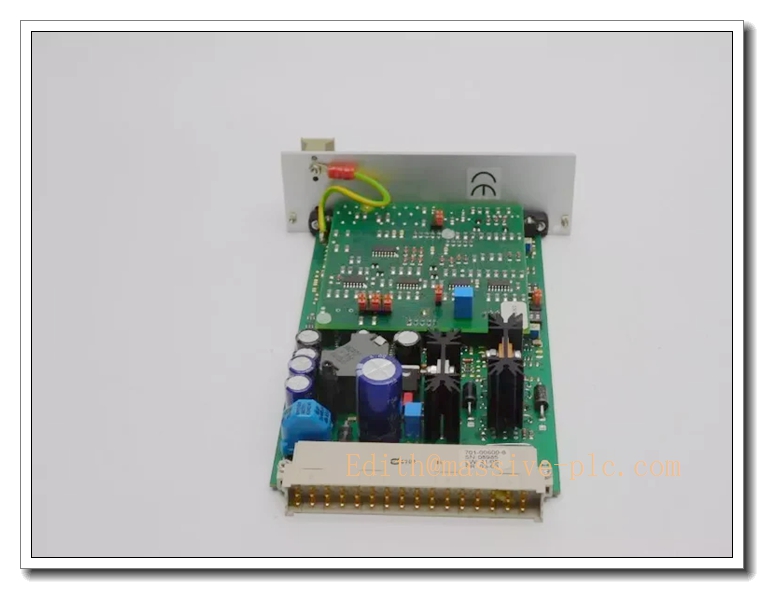

DENSION 701-00610-8 Industrial DCS Control Board
Product Core Introduction
The DENSION 701-00610-8 is a discontinued rack-based industrial control board used within distributed control and turbomachinery monitoring systems. It is a multi-channel signal conditioning & data acquisition board responsible for converting analog field signals, signal filtering, isolation and data transmission to the main controller backplane. It processes analog inputs from pressure, temperature and vibration transmitters, provides noise suppression for industrial measurement loops, and sends conditioned signals to the main CPU for closed-loop control and fault alarming. Widely used in legacy power, oil & gas and petrochemical process control racks. This spare part is mainly supplied for system maintenance and retrofit replacement of existing installed systems.
Denison 701-00610-8
Main Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | DENSION |
| Model | 701-00610-8 |
| Module Type | Analog Signal Conditioning & Acquisition Board |
| Input Channels | 8-channel analog signal input |
| Signal Type | 4-20mA, 0-10V, RTD / thermocouple compatible |
| Galvanic Isolation | 1500V AC channel-to-backplane isolation |
| Power Supply | 24VDC ±10%, power consumption ≤11W |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 5~95% RH, non-condensing |
| Diagnostics | Wire break, over-range, module power fault detection |
| Bus Interface | Parallel rack backplane bus |
| Certification | CE, IEC 61000-6-2 EMC compliance |
| Mounting | Standard subrack slot mounting, hot-swap capable |
| Protection Class | IP20 (cabinet installation only) |
| Weight | 1.23 kg |
| Status | Discontinued OEM production, available as aftermarket spare |
Brand Same Series Model Recommendation
- 701-00610-4: 4-channel low-density signal conditioning board for auxiliary measurement points
- 701-00610-6: 6-channel mid-range version for standard process monitoring
- 701-00610-8: 8-channel high-density variant for multi-point temperature/pressure signal collection
- 701-00610-12: 12-channel upgraded high-density board for large DCS rack signal expansion
Professional Quality Control Test Standard SOP
- Visual Inspection: Inspect PCB, soldering, connectors, capacitors and component labels for corrosion, cracks or physical damage.
- Power-On Test: Apply rated 24VDC supply, verify power LED status and confirm no short circuit or overheating.
- Analog Channel Calibration: Inject standard 4-20mA /0-10V reference signals to calibrate each input channel accuracy.
- Wire Break & Over-range Simulation: Simulate sensor open circuit and over-range signal to verify alarm triggering.
- Backplane Bus Communication Test: Insert module into DCS rack, validate stable data exchange with main processor.
- Hipot Isolation Test: 1500VAC dielectric withstand test between field signal side and rack backplane.
- Thermal Cycling Test: Temperature cycle from -40℃ to +70℃ for 24 hours to validate thermal stability.
- Vibration Screening Test: Cabinet vibration test to check solder joint and connector reliability.
- Continuous Burn-in Test: 72-hour full-load burn-in, record diagnostic logs before packaging.
New Module Installation
- Wear anti-static wristband. Implement LOTO procedure and power off the control rack before replacement.
- Verify part number 701-00610-8 matches the rack BOM and system hardware revision.
- Release front panel latch and carefully extract the old board from the rack slot.
- Insert DENSION 701-00610-8 into the designated slot, lock front panel fasteners securely.
- Wire field sensors (RTD, pressure transmitter) to the terminal block strictly following wiring diagram. Separate signal cables from high-power cables to reduce EMI.
- Check wiring continuity and insulation resistance; confirm no short circuit or reversed wiring.
- Restore rack power, access control software, run module self-diagnosis and configure channel signal types.
- Perform loop test with field transmitters, confirm no fault alarms before putting system online.
Denison 701-00610-8
Application Scenarios & Features
Application Scenarios
- Legacy DCS distributed control systems for power plants
- Oil & gas and petrochemical process monitoring racks
- Turbomachinery auxiliary signal measurement and conditioning
- Refinery temperature & pressure multi-point acquisition
- Heavy-duty industrial process safety monitoring systems
Features
✅ 8-channel high-density analog signal conditioning for process transmitters ✅ Built-in galvanic isolation to block ground loop interference and electrical surges ✅ Comprehensive channel diagnostics: wire break, over-range and module health alarms ✅ Backplane bus interface for seamless integration with DENSION rack controller ✅ Hot-swap support for online maintenance of legacy control systems ✅ Rugged PCB design for wide temperature and high vibration industrial cabinet environments ✅ Direct drop-in replacement for existing 701-00610 series boards for maintenance retrofit
FAQ
Q1: Is DENSION 701-00610-8 still in original production? A: OEM production is discontinued. Only new surplus and tested refurbished spare units available for maintenance replacement.
Q2: Channel over-range alarm after board replacement? A: Check field sensor wiring, cable integrity, channel type configuration and transmitter calibration.
Q3: Does it support hot swap? A: Hardware supports hot swap. For safety-critical systems, evaluate risk before hot replacement.
Q4: What is the difference between 701-00610-6 and 701-00610-8? A: 701-00610-6 has 6 analog input channels; 701-00610-8 has 8 channels for more signal points.
Q5: Communication failure between board and main controller? A: Inspect backplane connector pin condition, rack power quality, cabinet grounding and bus termination.
