Description

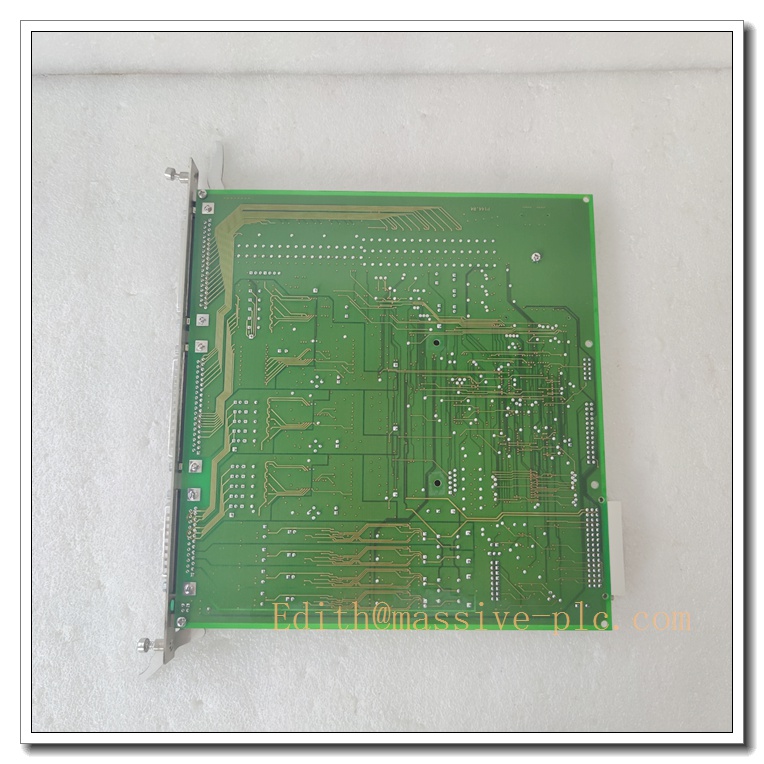

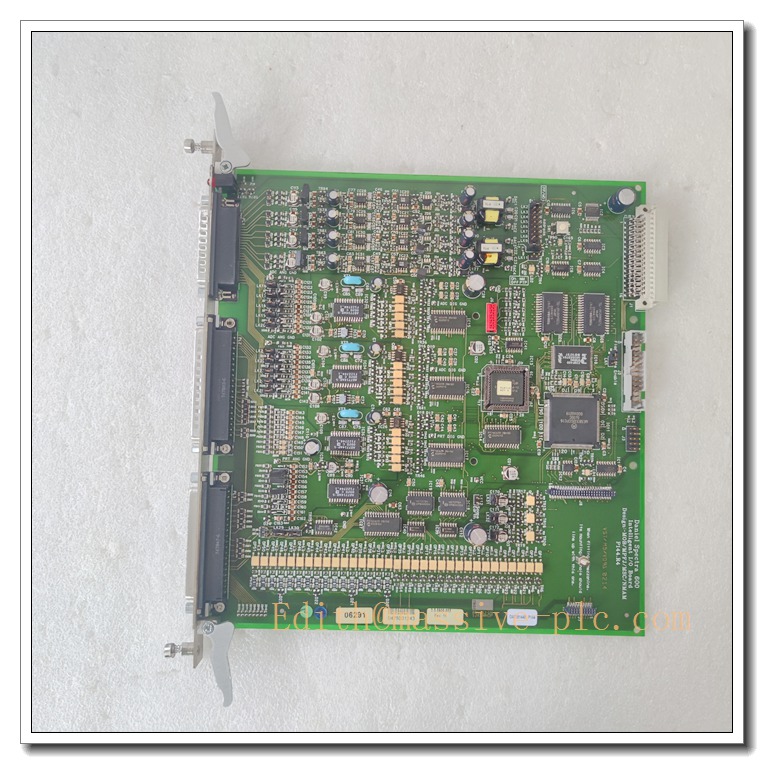

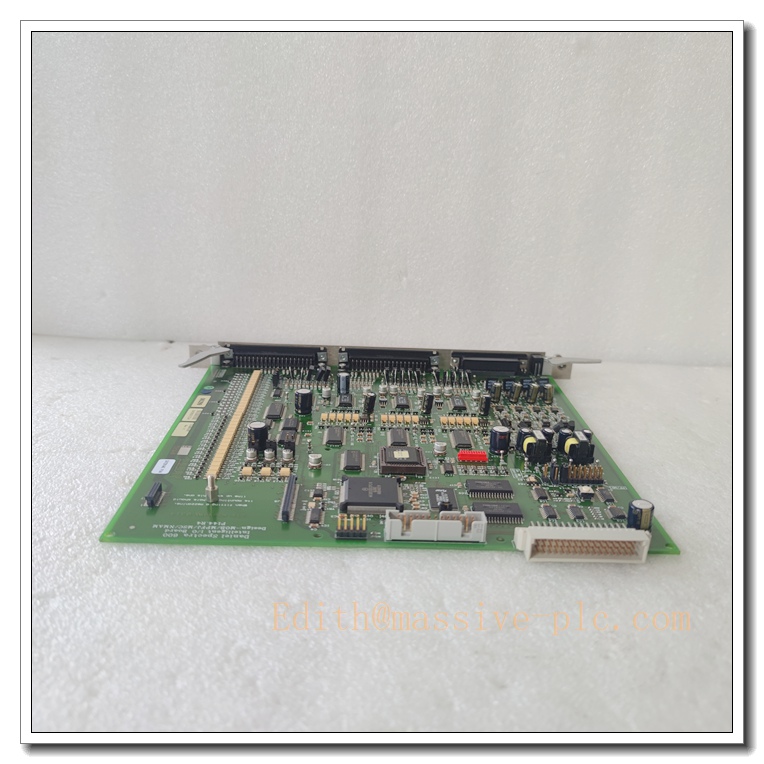

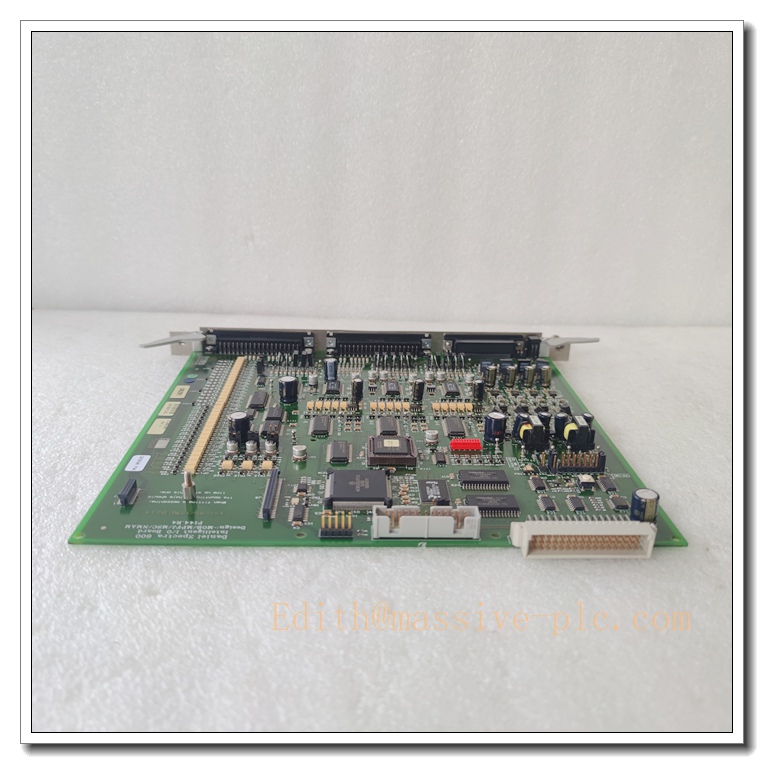

DA7281440 Emerson Daniel Spectra 600 Intelligent I/O Board P144.R4, Multi-Channel Analog Input & Output Module for Ultrasonic Flowmeter System

Product Application

DA7281440 intelligent I/O board is a dedicated signal acquisition and output card for Emerson Daniel Spectra 600 ultrasonic gas flow meter. It is designed for custody transfer gas metering, natural gas transmission pipelines, LNG stations, petrochemical metering skids and high-precision flow monitoring scenarios. This module collects real-time signals from field transmitters including pressure, temperature, Pt100 RTD, converts analog signals into digital data for flow computer calculation. It supports HART pass‑through communication to configure field instruments locally. Digital status signals from valves and safety switches can also be captured by DI channels. Analog output channels are used to drive control valves, display indicators and remote transmission of flow data. Widely deployed in natural gas pipeline metering stations, process plant fiscal metering systems, energy custody transfer measurement requiring high accuracy and traceable measurement data.

DA7281440

Product Specifications

Model Variant: P144.R4 Intelligent I/O Board
Compatible Host: Daniel Spectra 600 Ultrasonic Gas Flow Meter
Channel Configuration: 8 × 4–20mA analog input with HART; 4 × 4–20mA active analog output; 4 × 3‑wire Pt100 RTD input; 4 × digital DI channels
Mounting: Plug-in card, fits Spectra 600 mainframe backplane
Signal Isolation: Channel-to-channel isolation design
Communication: HART protocol support for field transmitter configuration
Physical: Metal shielding housing for electromagnetic interference suppression
Certification: Custody transfer certified, ATEX / IECEx hazardous area compliance

Core Technical Parameters

Analog Input: 8 channels, 4–20mA, built‑in HART communication, 24‑bit Σ‑Δ ADC
Analog Output: 4 channels, active 4–20mA, 16‑bit DAC
RTD Input: 4 channels, 3‑wire Pt100 temperature measurement
Digital Input: 4 channels, dry contact / 24VDC status acquisition
Measurement Accuracy: AI ±0.05% FSR; AO ±0.08% FSR
Channel Update Rate: 5 kHz per channel
Power Supply: 24 VDC backplane power supply, power consumption 3.8 W
Dimension (H × W × D): 185 × 32 × 135 mm
Weight: 230 g
Operating Temperature: -20℃ ~ +60℃
Relative Humidity: 5%–95%, non‑condensing
Protection: IP20 inside flow meter cabinet
Compliance: Custody transfer approval for gas metering applications

Recommended Matching Models (8 Models)

Commonly paired modules & host units to build complete Daniel Spectra 600 metering system:

Spectra 600 Main Processor Board
DA7281410 Spectra Power Supply Module
DA7281430 Digital I/O Expansion Board
3410 Series Daniel Ultrasonic Transducer
FLOBOSS S600+ Flow Computer
1500 Series Pressure Transmitter with HART
Pt100 3‑wire Temperature Sensor
Daniel Local Operator Display Panel

DA7281440

Product Features

✅ Multi‑function Integrated I/O Design One single board integrates analog input, analog output, Pt100 temperature acquisition and digital input, saving backplane slot space for Spectra 600 flow meter. Reduces the quantity of separate signal cards on metering skid.

✅ HART Communication Pass‑Through Built‑in HART modem on each AI channel. Operators can remotely access, calibrate and configure HART transmitters through this I/O board without opening transmitter housing.

✅ High‑Precision Custody‑Transfer Grade Measurement 24‑bit high resolution ADC provides ultra‑high signal sampling accuracy, meets fiscal gas custody transfer metering requirements, ensures measurement traceability and meets industry audit standards.

✅ Fast Dynamic Signal Capture 5kHz high sampling rate can capture fast pressure fluctuation and transient flow variation, suitable for dynamic gas pipeline monitoring.

✅ Excellent EMC & Hazardous Area Adaptability Metal shielding structure and channel isolation effectively suppress field electromagnetic noise. Certified for explosive hazardous area installation in natural gas metering stations.

✅ Plug‑and‑Play Backplane Installation Card type modular design, directly inserted into Spectra 600 rack backplane, hot swap replacement for quick on‑site maintenance and minimum system downtime.

✅ Low Power Consumption Only 3.8W power consumption at 24VDC, low heat generation, long service life inside sealed flow meter cabinet.

Installation Guidelines

Power off the Spectra 600 host before I/O board replacement or installation to avoid backplane circuit damage.
Insert DA7281440 vertically into the dedicated slot of Spectra 600 backplane, tighten the front panel fixing screws to ensure reliable connection with backplane connector.
Wire field 4–20mA transmitters, Pt100 temperature sensors, valve status DI signals and analog output loads to corresponding terminal points strictly following Daniel wiring diagram.
Separate low‑level sensor signal cables from high‑power cables, use shielded twisted pair cable for analog signal wiring, single‑point shielding grounding.
Complete wiring inspection and verify no short circuit on each channel before power‑on.
Power on the Spectra 600 system, enter configuration software to activate DA7281440 board, assign channel function, set HART parameters and calibrate I/O channels.
Perform loop test for each input and output channel to confirm signal transmission before putting into fiscal metering service.

Maintenance Instructions

Daily Maintenance Check Spectra 600 system diagnostic status for DA7281440 board alarm codes. Inspect signal terminal blocks for loose wiring or corrosion. Monitor cabinet internal temperature and humidity.

Periodic Maintenance Annually perform channel accuracy calibration for AI / AO channels. Back up Spectra 600 configuration including DA7281440 channel parameter settings. Check HART communication connectivity of each transmitter channel.

Fault Maintenance

Single channel signal loss: Check field sensor cable and terminal connection first; if hardware failure confirmed, replace the whole I/O board.
HART communication failure: Verify loop resistance of 4–20mA circuit, check HART modem configuration.
Board communication offline: Power cycle Spectra 600 host; inspect backplane connector for oxidation or poor contact.
Do not disassemble the I/O board circuit board privately. Replace with spare spare part and restore configuration.

Long‑Term Operation Tips Avoid overvoltage surge on analog channels; install signal surge protectors for long‑distance field wiring. Keep the flow meter cabinet sealed and dry to prevent circuit board corrosion.
