Bently Nevada 3500/94 (145988‑01) Ethernet‑to‑RS232/RS422 Interface Module

Description

Bently Nevada 3500/94 (145988‑01) Ethernet‑to‑RS232/RS422 Interface Module

Model Introduction

Model: 3500/94 Communication Gateway Module Part Number: 145988‑01 Device Type: Single‑slot front‑insert communication interface module, Ethernet to serial converter for 3500 rack system Manufacturer: Bently Nevada (Baker Hughes) System Compatibility: Fits any standard user‑slot of full‑size 3500 rack, no dedicated rear I/O card. Serial ports (RS232 / RS422) are located on front‑panel edge connector. Not for 3500 mini‑rack. Cannot replace 3500/91, 3500/91M, 3500/92 Modbus gateways. Application Scenarios: TSI turbine supervisory instrumentation, power plant, oil‑gas compressor machinery protection systems. Provides TCP/IP Ethernet interface to convert 3500 internal rack data to serial RS232 / RS422 protocol, for legacy serial host‑system connection, local configuration software access, and third‑party serial host communication. Complies with API‑670. Country of Origin: United States Lifecycle Status: Obsolete, OEM discontinued; only aftermarket spare‑part available.

Note: 3500/94 145988‑01 is Ethernet‑Serial bridge, NOT Modbus gateway. It transfers native Bently proprietary protocol over serial port, cannot generate Modbus‑TCP / Modbus‑RTU. For Modbus integration, use 3500/91 / 3500/91M / 3500/92. No rear‑I/O card required; all field wiring is on front‑edge connector.

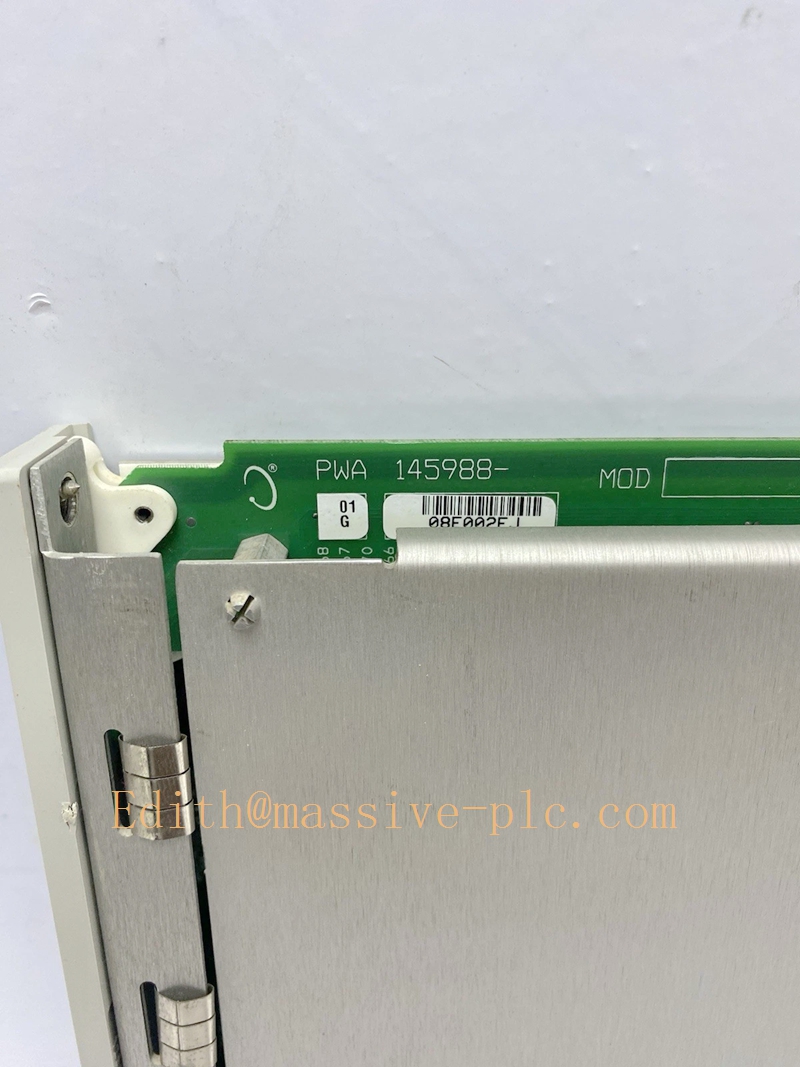

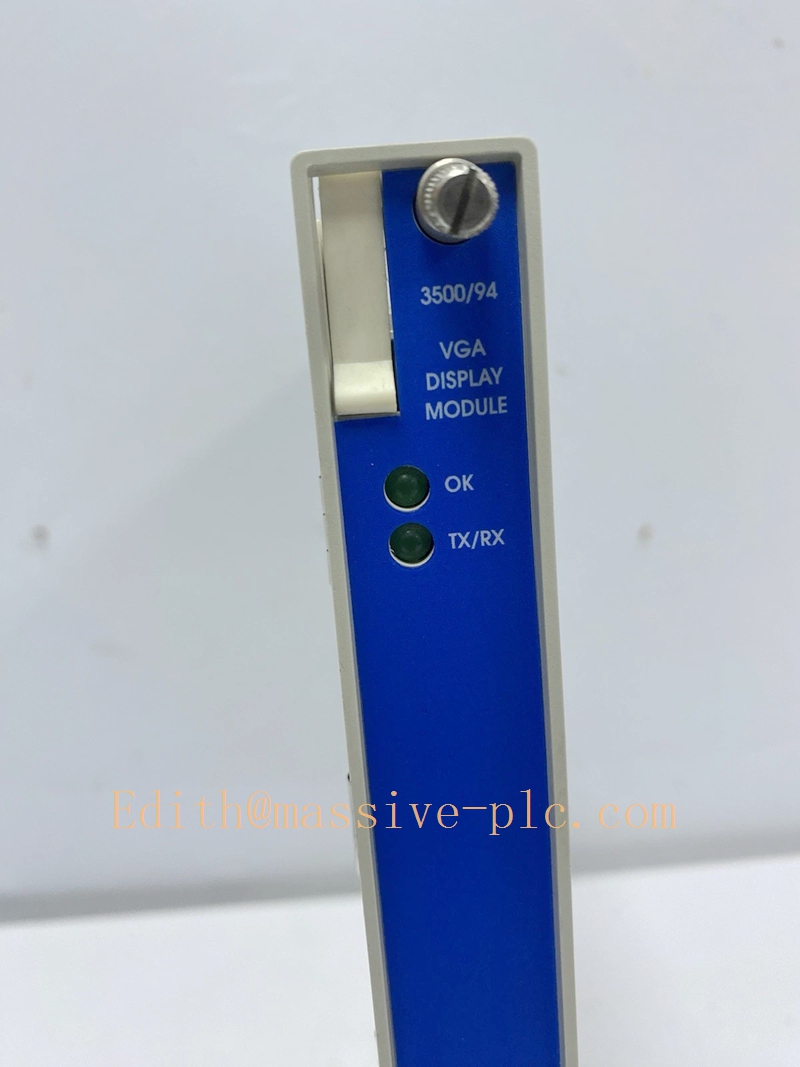

145988-01

Technical Introduction

Core Functions

‑ Acquire rack data via 3500 proprietary backplane bus: channel measurements, alarm status, trip status, system event logs. ‑ 10‑Base‑T Ethernet port for TCP/IP connection to host PC / network. ‑ Dual serial ports RS‑232 and RS‑422 on front‑edge connector, output native Bently serial protocol. ‑ Simultaneous multi‑host access over Ethernet and serial interfaces. ‑ Support remote rack configuration download and real‑time data reading via network. ‑ On‑board self‑diagnostics, reports module faults and communication errors into rack system event log.

Key Technical Specifications

Mechanical Feature

Single‑slot hot‑swappable front‑insert module. No matching rear‑I/O card. Ethernet RJ45 and serial RS232/RS422 signals are accessible on front‑side connectors. Can be installed in any user‑slot (not limited to slot‑15). Hot‑swap supported under rack powered‑on condition, follow official maintenance procedure.

Adaptive Quality Assurance & Test Protocol

3.1 Factory Adaptive QA Procedure

1. Backplane bus continuity test: Verify signal integrity between module connector and rack backplane, detect open‑circuit / short‑circuit defects.
2. Ethernet communication test: Verify TCP/IP link, IP configuration, host connection stability.
3. Serial port interoperability test: RS‑232 / RS‑422 baud‑rate adaptability, signal level verification.
4. Data forwarding test: Confirm real‑time measurement, alarm status and event‑log transmission over Ethernet and serial ports.
5. Configuration download test: Download rack configuration via 3500 Rack Configuration Software over Ethernet interface.
6. Fault simulation test: Simulate network loss, serial cable break; verify fault codes logged into rack event log.
7. Environmental screening: Temperature cycling test, EMC noise immunity test.
8. Built‑in self‑diagnostic execution; serial‑number traceability, full functional‑test report archived.

3.2 On‑site Acceptance Test Protocol

1. Visual inspection: Check module physical integrity, RJ45 and serial edge‑connector pins without damage or oxidation.
2. Rack installation test: Insert 145988‑01 into any user‑slot of full‑size 3500 rack; power‑on, connect via configuration software, confirm no hardware mismatch alarms.
3. Ethernet communication test: Assign valid static IP address; establish network connection from host PC; verify online real‑time data reading.
4. Serial port functional test: Connect RS‑232 / RS‑422 to serial host device; confirm stable proprietary‑protocol data output.
5. Configuration download test: Send complete rack configuration through 3500/94 Ethernet path.
6. Alarm‑simulation test: Trigger channel alert/danger, verify alarm information transmitted over Ethernet and serial links.
7. Communication‑break simulation: Disconnect/reconnect Ethernet and serial cables; verify fault reporting and auto‑recovery.
8. Test‑record filing: Log part‑number, hardware revision, firmware version, test‑result snapshot for site QA archive.

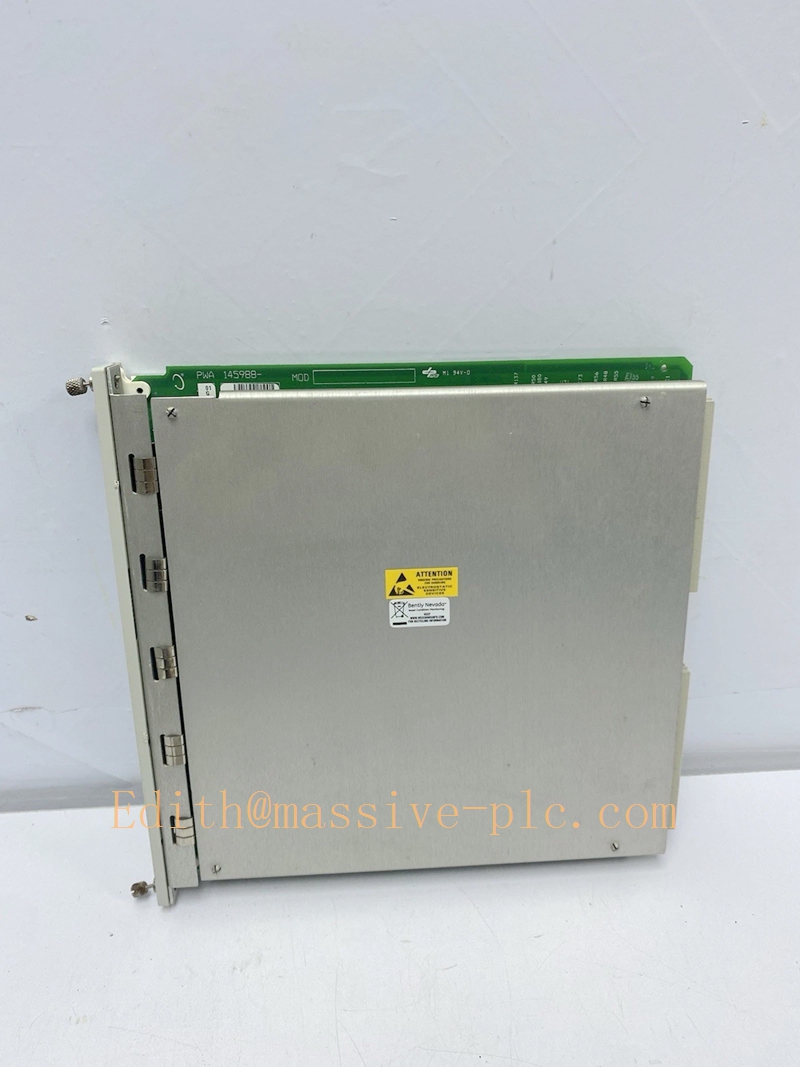

145988-01

Field Engineer Technical Notes

Installation Guidance

‑ Slot rule: 3500/94 145988‑01 can be installed in any user‑slot of full‑size 3500 rack; no dedicated slot requirement. Not compatible with mini‑rack. ‑ No rear‑I/O card. Ethernet RJ45 and RS232/RS422 wiring are completed on front‑module edge connectors. ‑ Ethernet: Use standard shielded CAT5 cable, assign static IP address (DHCP not supported). ‑ RS‑422 wiring: Use shielded twisted‑pair cable, apply bus termination resistor, single‑end shield grounding, avoid ground‑loop. ‑ Critical distinction: This module outputs Bently native proprietary serial protocol, it does NOT support Modbus RTU / Modbus TCP. If DCS/PLC requires Modbus interface, select 3500/91, 3500/91M or 3500/92.

Field note: 145988‑01 is obsolete legacy hardware. Spare‑parts are limited to aftermarket inventory. New integration projects should use standard Modbus gateway modules.

Commissioning Tips

‑ After module installation, download complete rack configuration. Assign static IP address for 3500/94 module via configuration software. ‑ Confirm network subnet matches host PC network segment for normal communication. ‑ For RS‑422 application: verify baud‑rate, parity, stop‑bit parameters match upper serial host settings. ‑ Cross‑check: data values and alarm status should be consistent between host software and rack local readings.

Troubleshooting Common Issues

1. Module not recognized: Check backplane connector contact; reseat module firmly.
2. Ethernet link down: Check RJ45 cable, network switch port, confirm IP address matches subnet.
3. Serial port no data output: Verify wiring polarity, baud‑rate / parity / stop‑bit parameter matching, termination resistor setting.
4. Intermittent communication dropout: Check cable shielding and grounding, eliminate ground‑loop interference.

Diagnostic reference: Read rack system event‑log inside 3500 Rack Configuration Software for 3500/94 communication fault codes.

Maintenance & Spare‑part Recommendation

‑ No user‑serviceable components onboard; replace complete 145988‑01 module upon hardware failure. ‑ Spare‑part suggestion: Keep spare 145988‑01 for legacy racks requiring legacy serial‑host connection. If serial host system is retired, replace with 3500 series Modbus gateway for modern DCS integration. ‑ Preventive inspection during shutdown: Check front‑side RJ45 and serial edge‑connector tightness, cable aging and shielding integrity.
