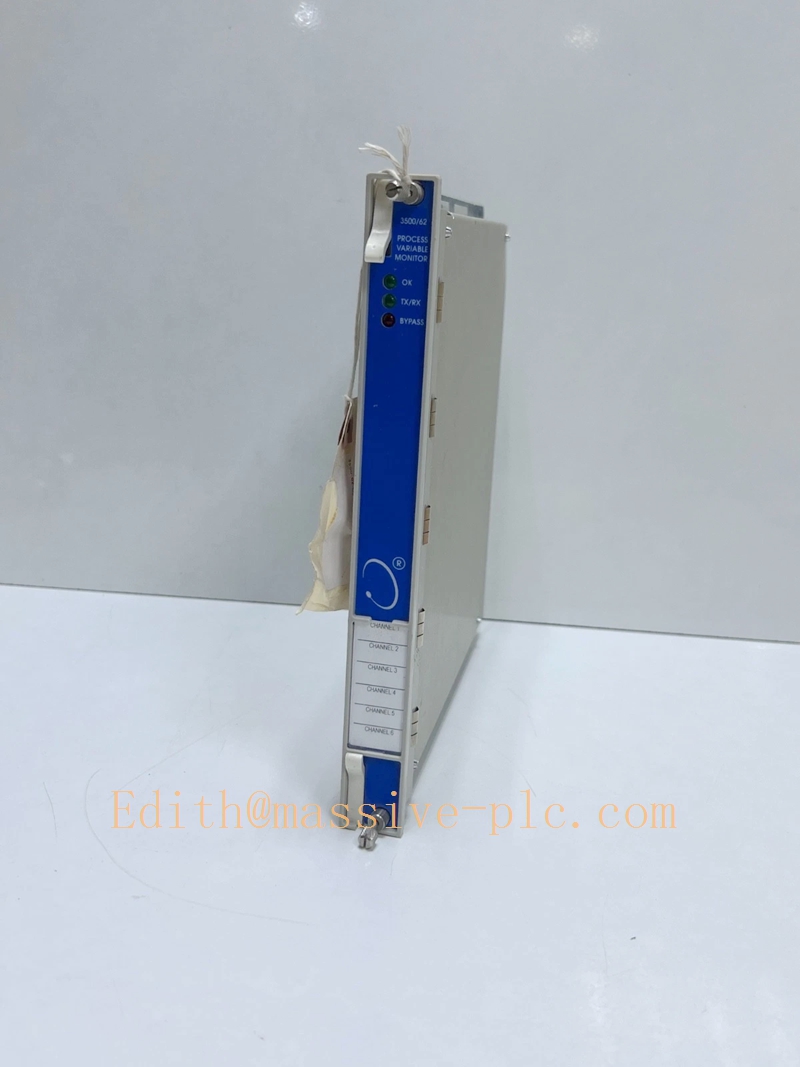

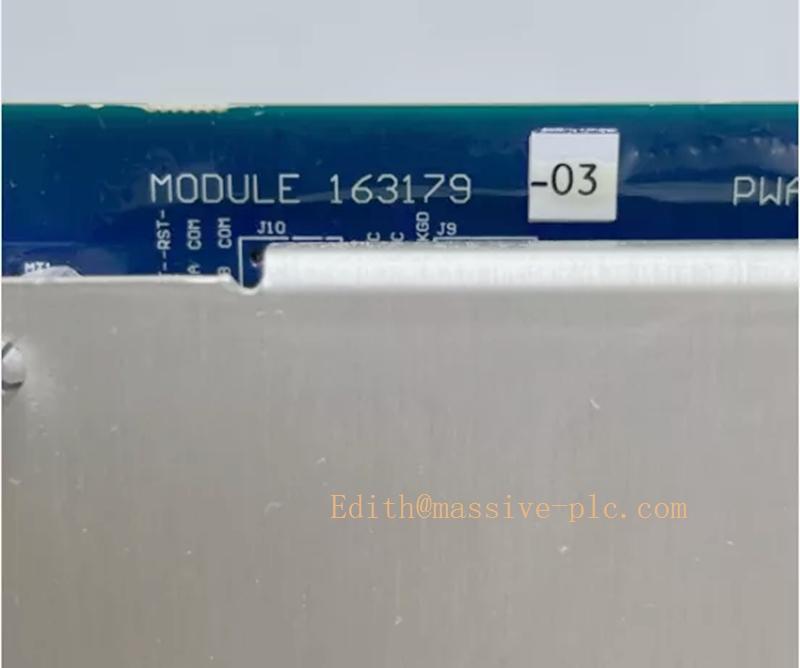

Bently Nevada 3500/62 (163179‑03) Process Variable Monitor Front‑Plane Module

Description

Bently Nevada 3500/62 (163179‑03) Process Variable Monitor Front‑Plane Module

Product Description

163179‑03 is the front‑plane main monitor board for the Bently Nevada 3500/62 Process Variable Monitor within the 3500 machinery‑protection platform. It must pair with matching rear I/O assemblies to realize complete analog signal acquisition function. This 6‑channel monitor module acquires standard industry analog signals 4‑20 mA and ‑10 V ~ +10 V DC coming from field transmitters, performs signal conditioning, user‑defined engineering‑unit scaling, filtering and alarm comparison. It collects non‑vibration auxiliary machinery parameters such as lube‑oil pressure, differential pressure, flow and auxiliary temperature, transmits measurement values and Alert/Danger alarm status over rack backplane bus. It supports TMR triple‑modular‑redundant deployment for high‑safety turbo‑machinery protection, integrates auxiliary‑process monitoring into the same 3500 rack together with vibration and temperature monitorsBaker Hugh….

163179‑03

Technical Specifications

Main Features and Advantages

Key Features

1. Six‑channel multi‑signal‑type input, each channel independently configurable for 4‑20 mA or ±10 V DC to connect pressure, differential‑pressure, flow and other transmitters.
2. Complete user‑defined scaling, filtering and dual‑level alarm functions, adjustable alarm time‑delay suppresses transient false alarms.
3. Multiple rear I/O options available: standard internal termination, external termination, intrinsically‑safe barrier I/O for hazardous classified‑area applicationsBaker Hugh….
4. TMR‑compatible architecture; three identical 3500/62 assemblies can be installed adjacently for triple‑modular‑redundant safety‑critical protection loops.
5. Hot‑swap capable for complete front‑rear assembly; replacement can be executed without rack power‑down. Front‑panel LED indicators quickly show module health, communication and bypass status.
6. Deep integration with whole 3500 system; measurement and alarm data shared via backplane with relay output modules, TDI communication module, cooperating with vibration and temperature monitors to realize comprehensive machinery health assessment.
7. SIL 3 safety certified, suitable for safety‑instrumented‑system auxiliary‑process‑variable monitoring for turbo‑machinery.

Core Advantages

• Integrates auxiliary‑process‑variable monitoring into existing 3500 TSI rack, eliminates extra standalone acquisition hardware, reduces cabinet space and spare‑part inventory.
• Multiple I/O variants adapt to ordinary safe‑area and explosive‑hazardous‑zone field‑wiring requirements, flexible for different project specifications.
• High‑precision signal processing maintains stable measurement under heavy EMI industrial environments in oil‑gas, petrochemical and power plants.
• Complies with API 670 turbo‑machinery protection standard, widely‑accepted for critical rotating‑equipment auxiliary‑parameter supervision.
• Hot‑swap maintainability shortens downtime during module fault replacement.

Application Fields

• Oil & Gas: centrifugal compressors, gas turbines, steam turbines; monitoring lube‑oil pressure, seal‑gas differential pressure, flow and other auxiliary process parameters for compressor‑station assets.
• Power Generation: thermal‑power and combined‑cycle plants; turbine‑generator lube‑system, vacuum, cooling‑water related process‑variable monitoring for machinery‑protection and predictive‑maintenance.
• Petrochemical: refineries, ethylene plants; turbo‑expanders, large process pumps and blowers auxiliary‑parameter acquisition and alarm interlock.
• Heavy‑process industry: chemical plants, steel facilities; critical rotating‑machinery non‑vibration‑type process‑signal monitoring.
• General rotating‑machinery protection: complements vibration and temperature monitors to deliver full‑scope machinery‑condition monitoring solution.

Related Product Recommendations

1. Rear I/O options for 163179‑03:
   • 136491‑01: ±10 V I/O module with internal termination
   • 136499‑01: ±10 V I/O module with external termination
   • Intrinsically‑safe barrier I/O assembly for hazardous‑area projects
2. 3500/61 (163179‑02): Temperature monitor for RTD / thermocouple measurement.
3. 3500 system rack accessories: 3500/05 rack chassis, 3500/15 redundant power supply, 3500/33 relay‑output module, 3500/22M TDI communication module.
4. Field devices: 4‑20 mA / ±10 V pressure, differential‑pressure and flow transmitters.

Installation and Maintenance

Installation

1. Mate 163179‑03 front‑plane board with project‑selected matching rear I/O assembly, insert complete unit into full‑height slot of 3500 rack. For TMR redundant configuration, install three identical assemblies in adjacent rack slots.
2. Route field transmitter shielded cables to rear‑I/O terminals. Separate low‑level analog signal wiring from high‑power cables to reduce electromagnetic interference; strictly follow single‑point‑grounding specification. For intrinsically‑safe barrier I/O versions, comply with ATEX/IECEx installation rules.
3. Launch 3500 Rack Configuration Software, set each channel signal type, engineering‑unit scaling, filter parameters, Alert/Danger alarm thresholds and delay, then download configuration to rack backplane.
4. Verify front‑panel LED status; solid OK lamp indicates normal module operation. Inject standard analog reference signals to validate measurement accuracy and alarm‑trigger performance before commissioning.

Maintenance

1. Hot‑swap replacement supported: set relevant monitor channels to bypass status before extracting the complete front‑rear paired assembly; install new matched assembly; reload configuration parameters as needed; rack power‑off is not required.
2. Periodically inspect field‑transmitter cables and rear‑I/O terminals for looseness, abrasion or corrosion. For barrier‑type I/O modules, strictly maintain intrinsically‑safe wiring separation requirements.
3. Routinely check front‑panel LED indicators; investigate alarm, bypass or fault status promptly.
4. Ensure rack ventilation unobstructed; keep operating temperature and humidity within rated specifications.
5. Perform periodic loop calibration: inject standard analog input signals to verify measurement accuracy and alarm‑response behaviour.
6. For defective hardware, return complete front‑rear assembly to authorized‑service channels; do not disassemble internal circuit boards on‑site.
