Name: Bently nevada 3500/61 temperature control module (including accessories 133900-01 and 133843-02) - MASSIVE
Brand: Bently Nevada

Description

3500/61 Temperature Monitor Module Technical Introduction

Product Overview & Application Information

The 3500/61 is a high-performance six-channel temperature monitoring module developed for the Bently Nevada 3500 machinery protection system, dedicated to real-time temperature measurement, signal conditioning, alarm judgment and data recording of industrial rotating and stationary equipment. Compatibly equipped with 133900-01 recorder output external termination block (Euro style) and 133843-02 series supporting termination accessories, the module supports flexible field wiring and stable signal output, widely deployed in critical industrial condition monitoring scenarios.

As a core temperature monitoring unit of the 3500 rack system, it accepts both Resistance Temperature Detector (RTD) and Thermocouple (TC) sensor inputs. Different from the 3500/60 module, the 3500/61 integrates independent recorder output for each channel, enabling continuous temperature data recording, remote data transmission and on-site data backup. It is programmable via 3500 Rack Configuration Software to adapt to diversified temperature measurement demands, providing reliable over-temperature protection and condition diagnosis for industrial equipment.

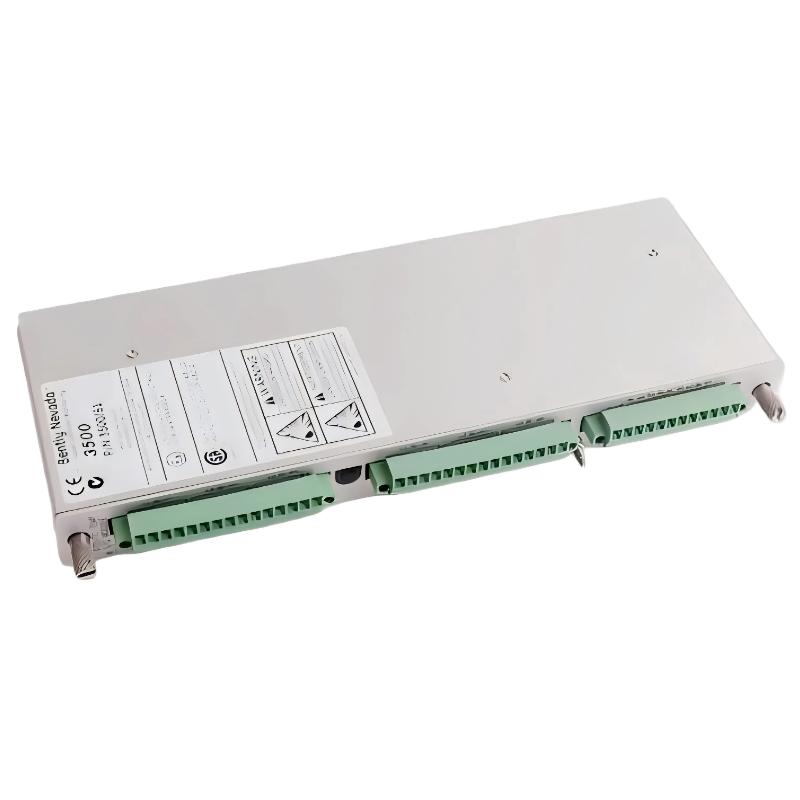

133827-02

Core Technical Parameters

2.1 Basic Performance Parameters

Channel Configuration: 6 independent configurable measurement channels, supporting mixed access of RTD and TC signals
Input Impedance: 10 MΩ per channel, ensuring strong anti-interference capability for weak sensor signals
Power Consumption: Nominal 9W, low power operation to reduce system load and heat generation
Measurement Accuracy: ±1℃/±1℉ full range; ambient deviation ±3℃ @25℃ for standard rack installation
System Isolation: 500 Vdc system-level isolation; 250 Vdc channel-to-channel isolation (isolated I/O version)
Resolution & Error: 0.3662 μA per bit, ±0.15% error at room temperature, ±0.4% full temperature range error
Operation Mode: Supports single-channel independent configuration and triple modular redundant (TMR) voting operation for high-reliability scenarios

2.2 Sensor Measurement Range

Platinum RTD (100Ω, α=0.00385): -200℃ ~ +850℃; -50℃ ~ +850℃ (with external barrier)
Platinum RTD (100Ω, α=0.00392): -200℃ ~ +700℃
Copper RTD (10Ω): -50℃ ~ +260℃
Type T Thermocouple: -160℃ ~ +400℃
Type E Thermocouple: -100℃ ~ +1000℃

2.3 Environmental & Mechanical Parameters

Working Temperature: -40℃ ~ +85℃
Storage Temperature: -50℃ ~ +100℃
Dimension: 241.3mm × 24.4mm × 99.1mm
Indicator Lights: OK (operation status), TX/RX (communication status), Bypass (bypass status)

Main Product Features

Dual-Signal Compatibility: Integrates RTD and TC dual-measurement functions, supporting arbitrary configuration of single-channel signal type and mixed signal access, eliminating the need for multiple dedicated modules and reducing system integration cost
Independent Recorder Output: Unique 6-channel independent recorder output (superior to 3500/60) realizes real-time continuous temperature data recording, facilitating equipment operation trend analysis, fault tracing and data archiving
High-Isolation Anti-Interference Design: Optional TC isolated I/O version provides 250Vdc channel isolation, effectively isolating external electromagnetic interference and on-site fault voltage, ensuring stable measurement in harsh industrial electromagnetic environments
TMR Redundant Protection: Supports TMR triple redundant configuration with dual voting mechanism, eliminates single-point system failure, meets high-reliability requirements of petrochemical, power and other key industrial scenarios
Plug-and-Play & No Calibration: Full-scale range configurable via official configuration software, no on-site manual calibration required, realizing fast deployment and maintenance
Complete Status Monitoring: Equipped with multi-functional LED indicators to display module operation, communication and bypass status in real time, facilitating on-site staff to quickly judge equipment faults
Certified Industrial Adaptability: Supports CSA/NRTL/C, ATEX/IECEx industrial certifications, applicable to Class 1 Div 2 and Zone 2 hazardous industrial areas

133835-02

Typical Application Scenarios

The 3500/61 module is widely used for temperature condition monitoring and safety protection of key rotating and thermal equipment in heavy industrial fields, covering the following core scenarios:

Power Generation Industry: Bearing temperature monitoring of steam turbines, gas turbines, generators and wind power units; stator and rotor temperature detection of power equipment
Petrochemical & Oil & Gas: Temperature monitoring of compressors, pumps, reactors and transmission equipment in hazardous explosive working conditions; over-temperature early warning for process equipment
Metallurgy & Heavy Industry: Real-time temperature collection and protection of rolling mills, fans, blowers and high-temperature operating mechanical equipment
Industrial Automatic Control: Multi-point temperature data acquisition, remote transmission and trend recording of production line core equipment, supporting intelligent operation and maintenance and predictive maintenance
High-Reliability Safety Systems: TMR redundant monitoring for key equipment in ESD emergency shutdown systems to ensure safe and stable operation of industrial units

Supporting Components & Accessories

5.1 Core Matching Accessories

133900-01: 3500/61 Recorder Output External Termination Block (Euro style connector), dedicated to recorder output signal wiring, supporting standard European terminal wiring specifications, convenient for on-site wiring and fixed installation
133843-02: 3500/61 TC Isolated I/O External Termination Accessories, supporting isolated thermocouple signal external wiring, matching isolated module versions to ensure signal isolation and anti-interference performance

5.2 Other Supporting Accessories

External Termination Blocks: 133908-01 (RTD/TC non-isolated terminal strip type), 133916-01 (RTD/TC non-isolated Euro type), 133924-01 (TC isolated terminal strip type)
Special Cables: 134544-AXXXX-BXX (transducer signal cable), 134543-AXXXX-BXX (recorder output cable), multiple optional lengths for on-site distance adaptation
Internal Barrier Accessories: Supporting intrinsically safe barrier modules, applicable to explosion-proof hazardous area monitoring scenarios

System Compatibility Requirements

To ensure stable operation of the 3500/61 module in the 3500 rack system, the system firmware and software need to meet the minimum version requirements: 3500/20 module firmware Rev.G; 3500/01/02 software V2.00; 3500/03 software V1.10 and above. The module supports seamless expansion of existing 3500 systems with strong backward compatibility.
