Bently Nevada 3500/54M (133396-01) Overspeed Detection Module
Product Overview
The Bently Nevada 3500/54M Overspeed Detection Module (133396-01) is a mature, field-proven safety-grade overspeed protection card designed for the Bently Nevada 3500 Machinery Protection System. Serving as the standard mainstream hardware revision of the 3500/54M series, the 133396-01 version focuses on reliable high-speed rotational speed monitoring and emergency overspeed trip interlock for critical turbomachinery and process compressors. Compared with the upgraded 286566-01 version, this revision features classic stable circuit design, standardized signal processing logic and universal industrial adaptability, making it the most widely applied overspeed module for conventional power and petrochemical safety protection projects.
The 3500/54M (133396-01) receives high-frequency pulse signals from standard magnetic pickup sensors and 3300XL series proximity probe assemblies, supporting real-time full-range speed tracking, overspeed alarm and emergency trip output. It integrates acceleration and deceleration anomaly monitoring, on-site signal fault diagnosis and configurable safety interlock logic. Fully compliant with API 670 international machinery safety standards, the module supports dual-channel independent monitoring and redundant judgment, with stable operating performance and low field failure rate. It is widely used for new project configuration and old system spare part replacement in thermal power, petrochemical, natural gas and coal chemical industries, providing core safety overspeed protection for high-speed rotating equipment.

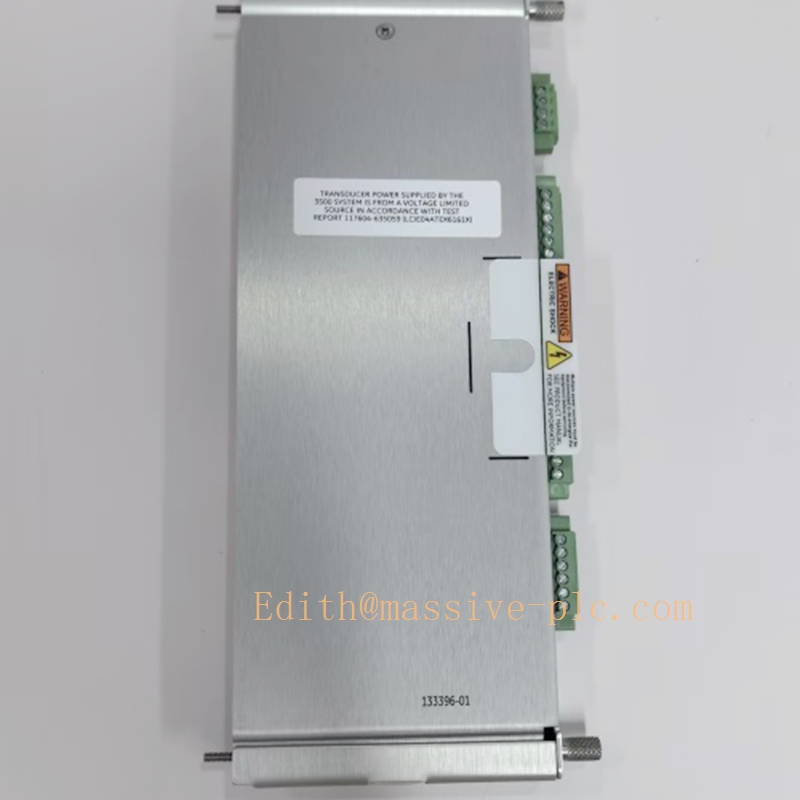

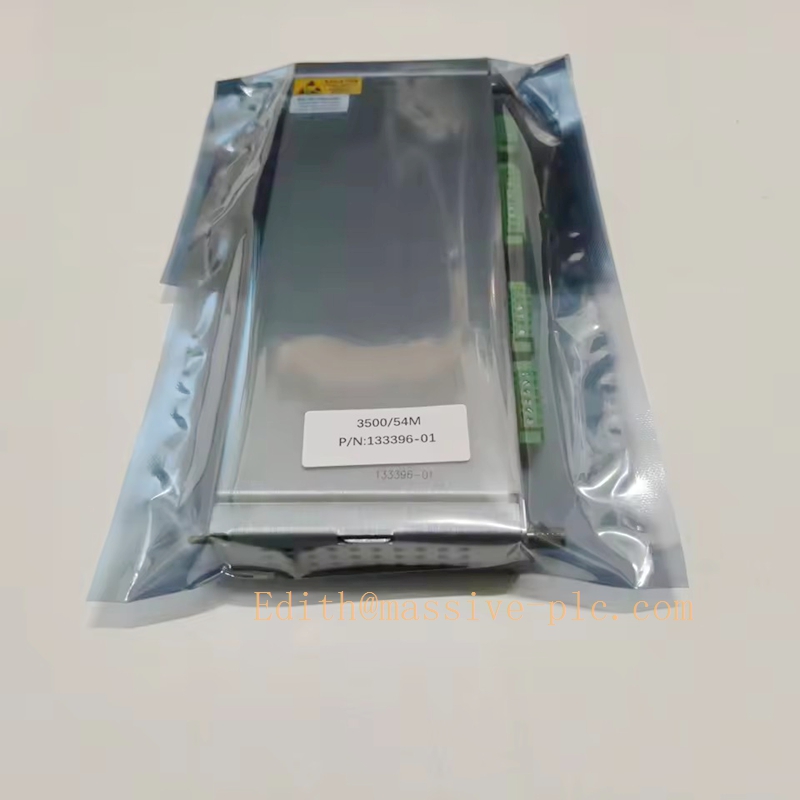

350054M 133396-01
Core Technical Parameters
| Parameter Item | Technical Specifications |
| Official Model | 3500/54M Overspeed Detection Module |
| Part Number | 133396-01 (Standard Mature Industrial Revision) |
| Core Function | Full-range high-speed real-time monitoring, overspeed alarm & emergency trip protection, acceleration/deceleration anomaly diagnosis, signal fault self-diagnosis |
| Input Signal Type | Compatible with standard magnetic pickups and 3300XL series proximity probe pulse signals |
| Monitoring Speed Range | 0 ~ 99999 RPM full-range configurable, max input frequency up to 20kHz |
| Gear Tooth Configuration | Supports 1~255 teeth customizable for different rotating shaft gear specifications |
| Channel Configuration | Dual independent monitoring channels, support redundant speed verification judgment |
| Protection Logic | Configurable multi-level overspeed alarm/trip thresholds, speed change rate interlock protection |
| System Compatibility | 100% compatible with standard 3500 rack backplane bus, fully backward compatible with legacy system configurations |
| Configuration Software | Bently Nevada 3500 System Official Configuration Software |
| Operating Temperature | -20℃ ~ +50℃ standard industrial operating range |
| Humidity Range | 5%~95% RH, non-condensing |
| Industrial Compliance | API 670 certified, standard turbomachinery overspeed safety protection grade |
| Diagnostic Function | Sensor fault detection, signal loss alarm, pulse abnormality diagnosis, internal circuit self-test and fault code output |
Main Product Features
3.1 Standard Professional Overspeed Protection
The 3500/54M (133396-01) is a dedicated standard overspeed protection module, independently responsible for high-speed equipment overspeed trip protection, which is functionally separated from general speed measurement and zero-speed monitoring modules. It adopts mature high-frequency pulse sampling algorithm, stably captures real-time speed changes of turbines and compressors, and realizes accurate overspeed judgment and reliable trip output. It avoids equipment runaway damage caused by untimely overspeed response, meeting the basic safety protection requirements of industrial key rotating machinery.
3.2 Dual Independent Redundant Monitoring Design
Equipped with two physically independent monitoring channels, the module supports synchronous collection and cross-verification of dual-channel speed signals. The redundant design effectively reduces the risk of protection failure caused by single-channel signal abnormality or circuit fault, improves the stability of overspeed protection loop operation, and meets the redundancy safety design specifications of conventional industrial power and chemical projects.
3.3 Stable Environmental Adaptability
Adopting industrial-grade stable components and standardized EMC anti-interference design, the 133396-01 module adapts to conventional harsh industrial environments such as on-site electromagnetic interference and mechanical vibration. It maintains stable signal acquisition and accurate speed judgment within the standard industrial temperature range, supporting long-term 24/7 continuous operation of on-site equipment, with excellent field stability and environmental tolerance.
3.4 Comprehensive Speed Abnormity Monitoring
In addition to core overspeed alarm and trip functions, the module integrates acceleration and deceleration rate monitoring functions. It can effectively identify abnormal operating conditions such as sudden speed surge, rapid speed drop and unstable speed fluctuation during equipment startup, load switching and shutdown processes, providing comprehensive operating condition data and early warning basis for equipment operation and maintenance.
3.5 Complete Signal Self-Diagnosis Mechanism
The module supports full-link fault self-diagnosis covering field sensors, signal wiring and internal circuits. It can accurately detect common faults such as sensor disconnection, signal loss, pulse distortion and internal circuit abnormality, and output standardized fault codes and operation logs. It helps maintenance personnel quickly locate and eliminate on-site faults, ensuring the integrity and effectiveness of the overspeed protection system.
3.6 High Versatility & Low Maintenance Cost
As a classic mainstream version of the 3500/54M series, 133396-01 has strong universality and market inventory compatibility. It is fully backward compatible with all standard 3500 system racks, power supplies and configuration software, supporting plug-and-play replacement. The configuration logic is simple and efficient, with low failure rate and convenient daily debugging and maintenance. It is the preferred cost-effective module for conventional project configuration and old system spare part replacement.

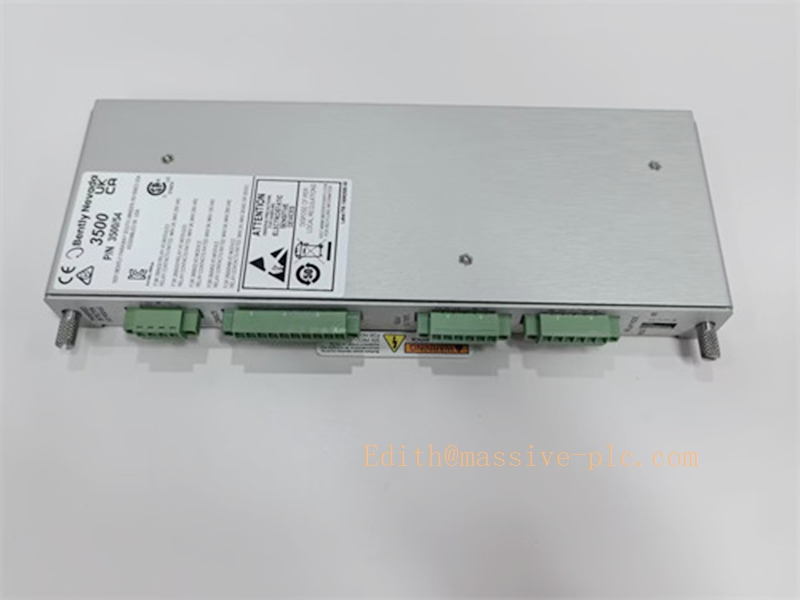

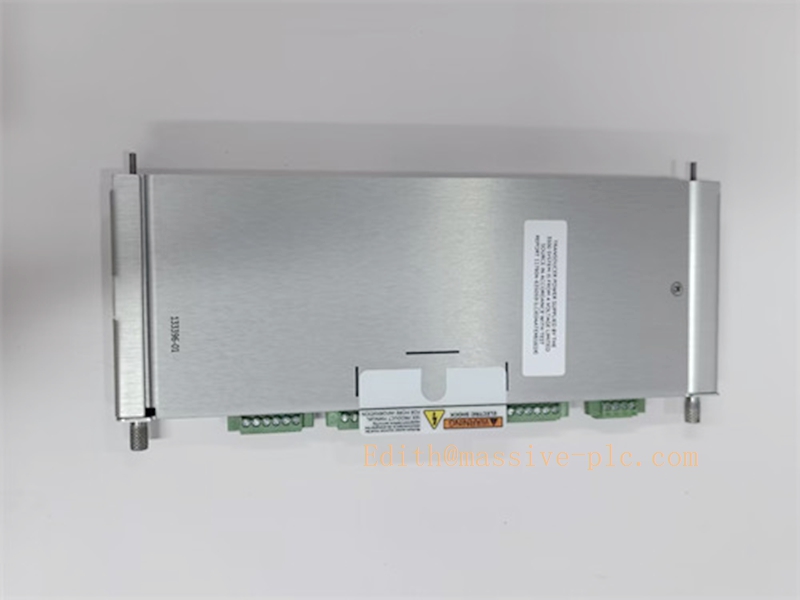

350054M 133396-01
Specific Application Scenarios
The Bently Nevada 3500/54M (133396-01) standard overspeed detection module is widely used in conventional industrial projects requiring standardized overspeed safety protection, covering thermal power, petrochemical, natural gas and general process industries.
Typical Industrial Application Scenarios:
• Conventional Turbine Overspeed Protection: Standard real-time speed monitoring and overspeed trip protection for steam turbines and gas turbines in thermal power plants to ensure unit operation safety.
• Process Compressor Safety Interlock: Overspeed monitoring and emergency trip protection for petrochemical and natural gas centrifugal compressors under variable load operating conditions.
• Old System Spare Part Replacement: Universal replacement module for legacy 3500 system overspeed loop maintenance, compatible with most on-site old system configurations.
• Medium-Standard Safety Project Configuration: Suitable for conventional industrial projects with standard safety requirements, realizing stable and reliable overspeed barrier protection.
• Equipment Speed Abnormity Early Warning: Monitor abnormal acceleration and speed fluctuation during equipment startup and shutdown to realize early fault prevention.
Supporting Components
The 3500/54M (133396-01) forms a complete standard overspeed protection system with matching 3500 series accessories:
• 3500/05 System Rack: Standard system chassis, providing stable backplane bus communication and mechanical installation support.
• 3500/15 Redundant Power Supply: Dual redundant power supply to ensure uninterrupted operation of safety protection modules.
• 3500/22 Transient Data Interface: Realizing remote configuration, real-time data upload and upper monitoring platform docking.
• Standard Magnetic Pickup Sensor: Matched high-frequency pulse acquisition sensor for rotating shaft speed signal collection.
• 3300XL Series Proximity Probe: Universal proximity probe assembly for high-speed equipment speed signal detection.
• Standard Shielded Signal Cables: Anti-interference shielding cables to ensure stable transmission of high-frequency speed pulses.
Related Series Models & Version Iteration
The 3500/54M 133396-01 is the classic standard version of the 3500/54M overspeed series, with clear iterative and functional matching relationships with other versions and modules:
• 133396-01 (Standard Classic Version): Mainstream stable industrial version, cost-effective, widely used in conventional standard safety projects and daily spare part replacement.
• 286566-01 (High-End Enhanced Version): Upgraded M-type version with wider temperature range, stronger anti-interference and higher safety level, suitable for high-standard safety critical projects.
• 3500/50 General Speed Module: Responsible for conventional full-range speed monitoring, cooperating with 3500/54M to form complete speed measurement and overspeed protection system.
• 3500/53 Zero Speed Series Modules: Specialized in static standstill and low-speed creeping monitoring, matching overspeed protection to cover full working condition safety protection.
• 3500/40 / 3500/42 Vibration Modules: Combined with speed and overspeed data to realize multi-parameter comprehensive fault diagnosis of rotating machinery.
