Bently Nevada 3500/53 (133388-01) Zero Speed Monitor Module

Description

Bently Nevada 3500/53 (133388-01) Zero Speed Monitor Module

Product Overview

The Bently Nevada 3500/53 Zero Speed Monitor Module (133388-01) is a dedicated high-sensitivity zero-speed and low-speed monitoring card designed for the Bently Nevada 3500 Machinery Protection System. Differentiated from standard speed monitoring modules, this unit is specially optimized for standstill detection, ultra-low speed monitoring and static interlock protection of rotating machinery. As a safety-critical component for equipment maintenance interlock and startup permission control, it is widely used in industrial scenarios requiring strict static state confirmation of rotating equipment. The part number 133388-01 is a classic stable hardware revision of the 3500/53 series, featuring mature signal recognition circuits, ultra-low speed signal capture capability and excellent long-term operational stability.

The module precisely collects pulse signals from magnetic pickup sensors and proximity probes, achieving accurate identification of equipment zero-speed standstill and ultra-low speed rotation status. It outputs reliable interlock switch signals to control equipment startup permission, maintenance safety locking and auxiliary system linkage. Fully compliant with API 670 industrial machinery safety standards, the 3500/53 (133388-01) supports full-channel self-diagnosis, professional software configuration and stable operation in harsh industrial environments. It is core equipment for safety interlock protection in thermal power, petrochemical, natural gas and process manufacturing industries, effectively preventing mis-startup accidents of static rotating machinery.

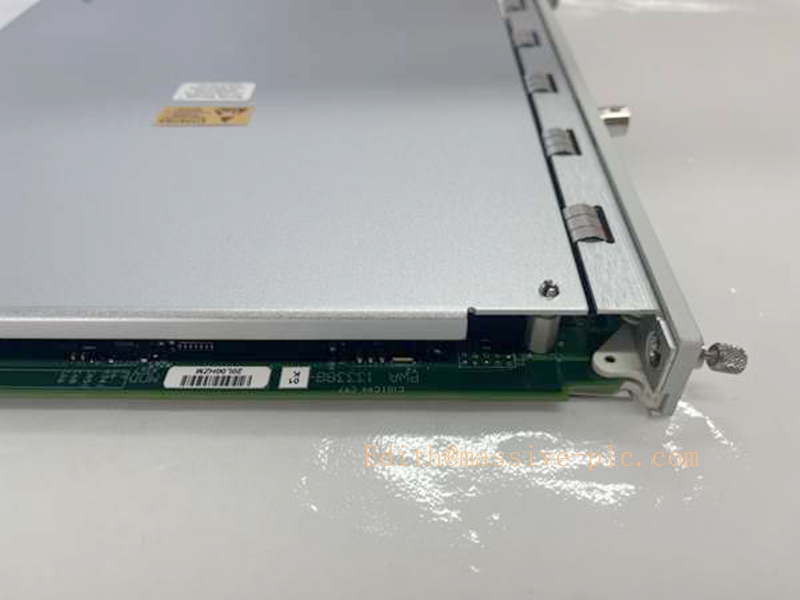

3500/53 133388-01

Core Technical Parameters

Main Product Features

3.1 Professional Zero-Speed Precision Detection

Different from conventional speed monitoring modules focused on high-speed measurement, the 3500/53 (133388-01) is specially optimized for zero-speed and ultra-low speed monitoring scenarios. It adopts exclusive low-frequency pulse capture algorithm, which can accurately identify equipment static standstill state and tiny micro-rotation that cannot be detected by ordinary speed modules. It eliminates misjudgment of static state caused by signal jitter, ensuring 100% accurate confirmation of equipment shutdown status, which is the core guarantee for industrial equipment maintenance safety.

3.2 Dual Redundant Monitoring Channels

Equipped with two physically independent zero-speed detection channels, the module supports dual redundant signal acquisition and judgment for a single device. Both channels independently complete pulse signal collection, static state identification and logic output. The dual-channel verification mechanism effectively avoids safety risks such as false startup caused by single-channel circuit failure or signal abnormality, greatly improving the reliability of equipment safety interlock loop.

3.3 Strict Safety Interlock Protection Logic

This module integrates professional zero-speed interlock protection functions compliant with industrial safety specifications. It can output reliable prohibition-start signals when the equipment is not completely stopped, and release startup permission only after accurate zero-speed confirmation. It effectively prevents mis-operation startup during equipment maintenance, shutdown switching and fault standby, avoids mechanical collision, equipment damage and personal safety accidents caused by static equipment rotation, and provides rigid safety logic guarantee for industrial production.

3.4 Full-Loop Fault Self-Diagnosis Capability

The 133388-01 revision supports full-link real-time self-diagnosis covering field sensors, signal wiring and internal hardware circuits. It can accurately detect common faults such as sensor disconnection, low-frequency signal attenuation, pulse distortion and internal circuit failure, and generate standardized fault codes and logs. The diagnostic data is uploaded to the upper monitoring system in real time, helping maintenance personnel quickly eliminate hidden dangers and ensure the normal operation of the safety interlock system.

3.5 Strong Industrial Environmental Adaptability

Adopting industrial-grade components and optimized EMC anti-interference design for low-frequency signals, the module can resist on-site electromagnetic interference, mechanical vibration and power fluctuation in complex industrial environments. It maintains stable low-speed pulse signal capture and accurate static state judgment in high-noise and strong-vibration workshop environments, supporting 24/7 long-term uninterrupted safety monitoring operation.

3.6 Flexible Configuration and Easy Maintenance

All zero-speed judgment thresholds, low-speed alarm parameters and interlock logic can be remotely configured and adjusted through the official 3500 system software. It supports real-time equipment state display and fault record query, facilitating daily safety inspection and troubleshooting. Adopting standard rack plug-and-play installation, the module is easy to replace and debug, effectively reducing system operation and maintenance costs.

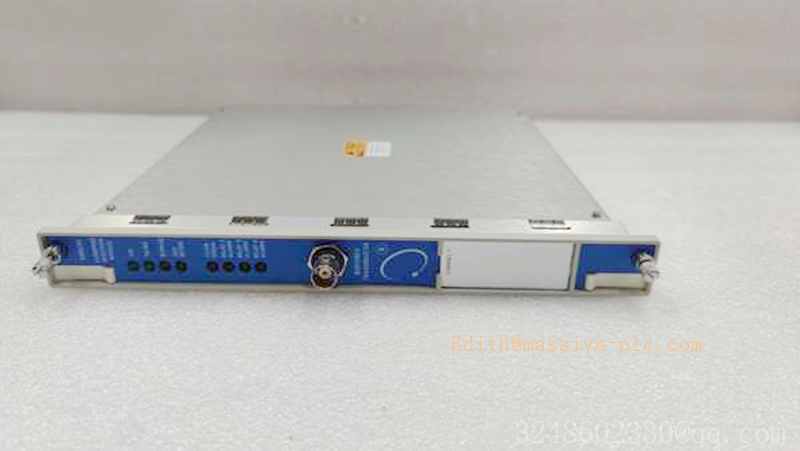

3500/53 133388-01

Specific Application Scenarios

The Bently Nevada 3500/53 (133388-01) zero speed monitor module is dedicated to safety interlock and static state monitoring of industrial rotating equipment, widely used in scenarios requiring strict shutdown confirmation and maintenance safety protection in thermal power, petrochemical, natural gas and coal chemical industries.

Typical Industrial Application Scenarios:

• Turbine Maintenance Safety Interlock: Zero-speed standstill confirmation for steam and gas turbines, locking equipment startup authority to ensure safe maintenance operation.

• Process Compressor Startup Permission Control: Static state detection for petrochemical and natural gas compressors, preventing mis-startup during equipment standby and maintenance.

• Large Rotating Equipment Safety Locking: Zero-speed monitoring for industrial large fans, water pumps and blowers to avoid mechanical damage caused by incomplete shutdown and forced startup.

• Low-Speed Equipment Condition Monitoring: Precision monitoring for ultra-low speed rotating equipment to capture abnormal micro-rotation and hidden equipment faults.

• 3500 System Safety Function Upgrade: Supporting module for supplementing zero-speed interlock function of standard 3500 machinery protection system, matching high-standard safety production specifications.

Supporting Components

The 3500/53 (133388-01) forms a complete zero-speed safety monitoring system with standard Bently Nevada 3500 series supporting accessories:

• 3500/05 System Rack: Standard system chassis, providing unified mechanical installation and backplane bus communication interface.

• 3500/15 Power Supply Module: Redundant system power supply to ensure stable and uninterrupted operation of the zero-speed monitoring module.

• 3500/22 Transient Data Interface: Realizing system data upload, remote configuration and upper monitoring platform docking.

• Low-Speed Magnetic Pickup Sensor: Special low-frequency pulse acquisition sensor for zero-speed and micro-rotation signal collection.

• High-Sensitivity Probe Assembly: Precision probe for capturing ultra-low speed pulse signals of rotating shafts.

• Shielded Low-Frequency Signal Cables & Terminal Boards: Anti-interference wiring accessories to ensure stable transmission of weak low-speed signals.

Related Series Models & Version Matching

The 3500/53 133388-01 is a classic stable revision of the 3500 zero-speed monitoring series, which supports perfect matching and collaborative work with multiple 3500 series modules:

• 133388-01 (Classic Standard Version): Mature mainstream revision of 3500/53 module, with stable zero-speed detection performance and wide compatibility, suitable for most industrial safety interlock scenarios.

• 3500/50 Speed Monitor Module: Cooperates with zero-speed monitoring module to realize full-range monitoring from static standstill to high-speed operation of equipment.

• 3500/40 Proximity Monitor Module: Matches zero-speed interlock function to form integrated protection of equipment vibration, displacement and static safety.

• 3500/42 Vibration Monitor Module: Combines zero-speed state data to analyze equipment fault characteristics during startup, shutdown and static standby.

• 3500/60 Temperature Monitor Module: Realizes multi-parameter joint safety protection of equipment temperature, speed and static state.
