Bently Nevada 3500/50 (133434-01) Speed Monitor Module

Description

Bently Nevada 3500/50 (133434-01) Speed Monitor Module

Product Overview

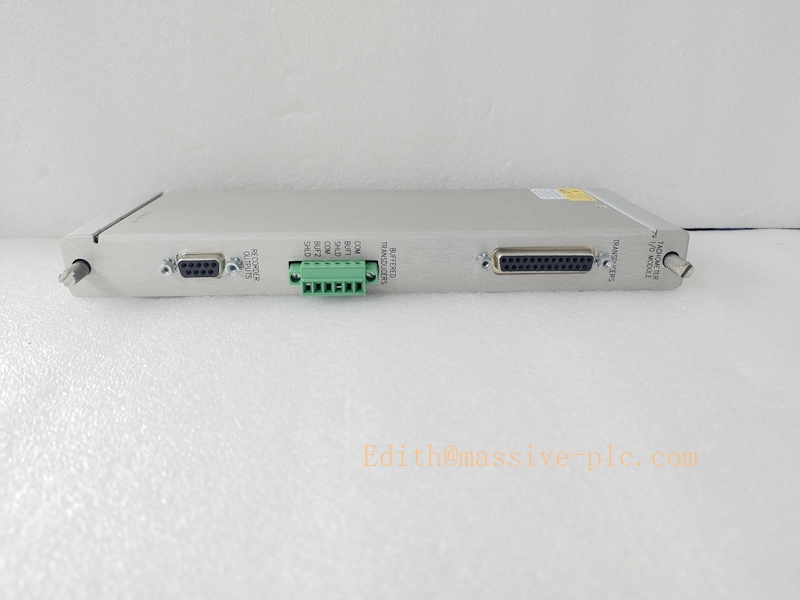

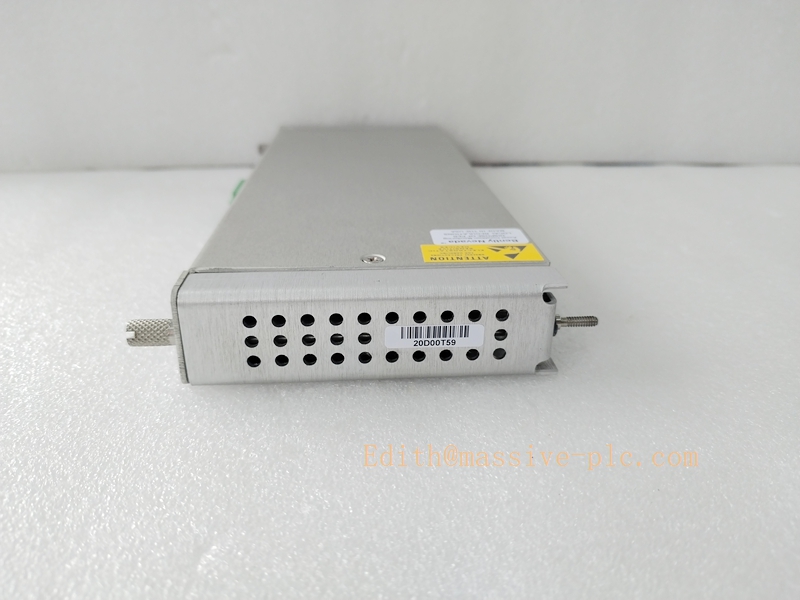

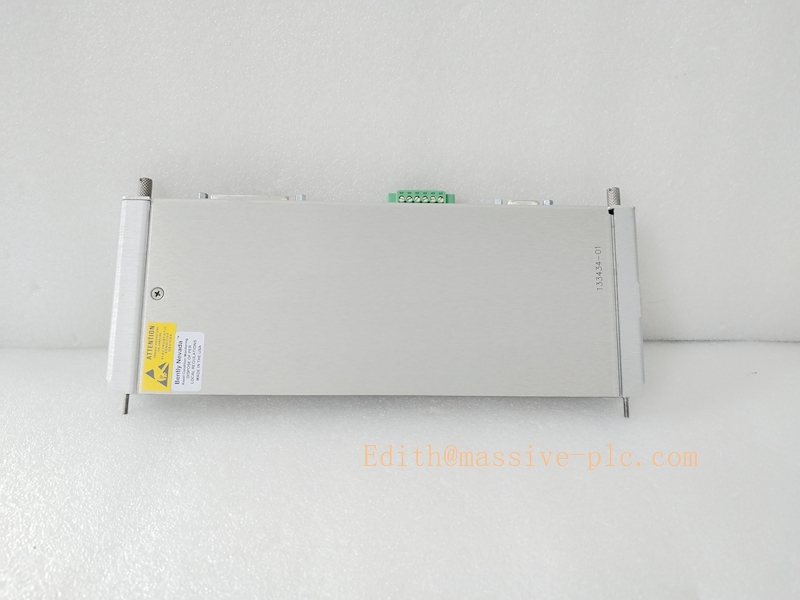

The Bently Nevada 3500/50 Speed Monitor Module (133434-01) is a high-precision, industry-certified speed and zero-speed monitoring card designed exclusively for the Bently Nevada 3500 Machinery Protection System. As a core safety-critical component for industrial rotating machinery, it provides continuous shaft speed measurement, overspeed trip protection, standstill detection and dynamic acceleration monitoring for turbines, compressors and other high-speed process equipment. The part number 133434-01 is a classic, widely deployed stable hardware revision of the 3500/50 series, featuring mature circuit architecture, solid firmware stability and universal rack compatibility. This version is a mainstream original matching module for early and mid-term 3500 system projects and serves as a standard replacement spare part for global industrial machinery protection systems.

The module reliably acquires frequency pulse signals from magnetic pickup sensors and proximity probe assemblies, converting variable field pulse frequency into accurate real-time RPM digital values. It supports fully configurable alarm, alert and danger trip thresholds to implement active overspeed protection, under-speed monitoring and zero-speed interlock logic. Fully compliant with API 670 international machinery safety standards, the 3500/50 (133434-01) integrates comprehensive hardware self-diagnosis functions, supports professional software configuration and long-term stable operation in standard industrial environments. It is extensively applied in thermal power, petrochemical refining, natural gas transmission and coal chemical industries to guarantee the safe and stable operation of core high-speed rotating equipment.

350050 133434-01

Core Technical Parameters

Main Product Features

3.1 Field-Proven Stable Measurement Performance

The 3500/50 (133434-01) adopts mature and field-verified pulse sampling and frequency demodulation algorithms, with extremely stable measurement performance after long-term industrial operation verification. It supports full-range speed monitoring from complete equipment standstill to ultra-high-speed rotation, featuring low sampling jitter, zero long-term data drift and consistent high-precision output. The standardized industrial circuit design adapts perfectly to conventional industrial vibration and weak electromagnetic interference environments, ensuring uninterrupted and accurate speed monitoring for core rotating machinery.

3.2 Dual Independent Redundant Monitoring Channels

Equipped with two physically and electrically isolated independent monitoring channels, the module supports dual redundant speed signal acquisition for a single rotating unit or synchronous speed monitoring of two separate pieces of equipment. Each channel is equipped with independent signal processing, threshold configuration and fault diagnosis logic. The dual-channel redundant architecture eliminates monitoring failure risks caused by single-channel faults, greatly improving the safety integrity and operational reliability of the machinery overspeed protection loop.

3.3 Comprehensive Multi-Dimensional Safety Protection Logic

This module integrates all core safety protection functions required by API 670 standards, including adjustable overspeed alert, critical overspeed trip, zero-speed standstill interlock and acceleration/deceleration anomaly monitoring. It can rapidly capture abnormal operating states such as equipment overspeed runaway, sudden speed drop, abnormal startup and stall failure, and output reliable hardwired trip signals to trigger system interlock shutdown. It effectively avoids major mechanical faults such as blade collision, bearing burnout and rotor overload damage, ensuring the safe and stable operation of high-speed rotating equipment.

3.4 Full-Loop Intelligent Self-Diagnosis Capability

The 133434-01 revision supports full-link real-time self-diagnosis covering field sensors, signal wiring harnesses and internal hardware circuits. It can accurately identify common faults including sensor disconnection, signal attenuation, pulse distortion, wiring short circuit and internal circuit abnormality, and generate standardized fault codes and operation logs. All diagnostic data can be uploaded to the upper monitoring system in real time, helping maintenance personnel quickly locate faults and eliminate hidden dangers, ensuring 100% availability of the speed protection system.

3.5 Excellent Industrial Environmental Adaptability

Adopting high-quality industrial-grade components and standardized EMC anti-interference design, the 133434-01 module has strong environmental adaptability for conventional industrial scenarios. It can resist on-site electromagnetic interference, mechanical vibration and power supply fluctuation, maintaining stable signal acquisition and accurate data output in factory workshops and field equipment rooms. It supports 24/7 long-term uninterrupted continuous operation, fully meeting the long-cycle safety monitoring requirements of industrial production equipment.

3.6 Flexible Configuration and Low O&M Cost

All monitoring parameters, alarm thresholds and protection logic of the module can be remotely configured, calibrated and adjusted through the official 3500 system software. It supports real-time data display, historical trend recording and fault log query, facilitating daily equipment condition analysis and rapid troubleshooting. Adopting standard rack plug-and-play installation, the module is easy to install, replace and debug, effectively reducing system operation and maintenance costs and improving project operational efficiency.

350050 133434-01

Specific Application Scenarios

The Bently Nevada 3500/50 (133434-01) speed monitor module is widely used in industrial machinery safety protection systems, dedicated to speed monitoring and overspeed safety protection of core high-speed rotating equipment in thermal power, petrochemical, natural gas and coal chemical industries.

Typical Industrial Application Scenarios:

• Steam & Gas Turbine Safety Protection: Real-time speed tracking and critical overspeed trip protection for power generation turbines to prevent equipment runaway and major mechanical safety accidents.

• Process Compressor Monitoring: Speed feedback detection and zero-speed interlock control for petrochemical and natural gas centrifugal compressors, ensuring standardized safe start-stop and interlock logic execution.

• Large Fan & Pump Equipment Supervision: Abnormal speed alarm and fault monitoring for large auxiliary rotating equipment to avoid overload operation and mechanical damage.

• Equipment Maintenance Safety Interlock: Zero-speed standstill detection to confirm equipment static state, providing reliable safety locking basis for equipment maintenance and personnel operation protection.

• Early-Generation 3500 System Matching & Spare Replacement: Classic original matching module for early 3500 systems, widely used for old system maintenance, renovation and spare part replacement.

Supporting Components

The 3500/50 (133434-01) forms a complete industrial speed monitoring and protection system with standard Bently Nevada 3500 series supporting accessories:

• 3500/05 System Rack: Standard system chassis, providing unified mechanical installation and backplane bus communication interface.

• 3500/15 Power Supply Module: Redundant system power supply unit to ensure stable and uninterrupted operation of the monitoring module.

• 3500/22 Transient Data Interface: Realizing system data upload, remote configuration and docking with upper monitoring platform.

• Magnetic Pickup Speed Sensor: Special field sensor for collecting rotating shaft speed pulse signals.

• Standard Proximity Probe Assembly: High-precision probe for speed and phase signal acquisition of high-speed rotating shafts.

• Shielded Signal Cables & Terminal Boards: Anti-interference wiring accessories to ensure stable and distortion-free signal transmission.

Related Series Models & Version Iteration

The 3500/50 133434-01 is a classic early-mid generation stable revision in the 3500 speed monitoring series, with clear iteration and replacement relationships with other versions:

• 133434-01 (Classic Stable Version): Early-mid generation benchmark revision with ultra-high field compatibility, the preferred spare part for legacy 3500 system maintenance.

• 133388-01 / 133388-02 (Earliest Basic Versions): Initial basic revisions, gradually replaced by 133434-01 for improved stability and diagnostic performance.

• 136703-01 / 125808-05 (Optimized Mid-Generation Versions): Upgraded mid-series revisions with enhanced anti-interference and signal stability.

• 288062-02 (Latest Enhanced Version): New-generation high-performance revision for modern high-standard industrial new projects.

• 3500/40 Proximity Monitor Module: Shaft vibration and displacement monitoring module, matched with 3500/50 to form complete turbomachinery condition protection system.

• 3500/42 Vibration Monitor Module: Bearing and casing vibration monitoring unit, cooperating with speed data to realize multi-dimensional equipment fault analysis.

• 3500/53 Zero Speed Monitor: Professional zero-speed enhanced module for ultra-strict static interlock and maintenance safety scenarios.

• 3500/60 Temperature Monitor Module: Equipment temperature monitoring module, realizing multi-parameter joint safety protection for rotating machinery.
